Military
Insulated
Terminals

Filter

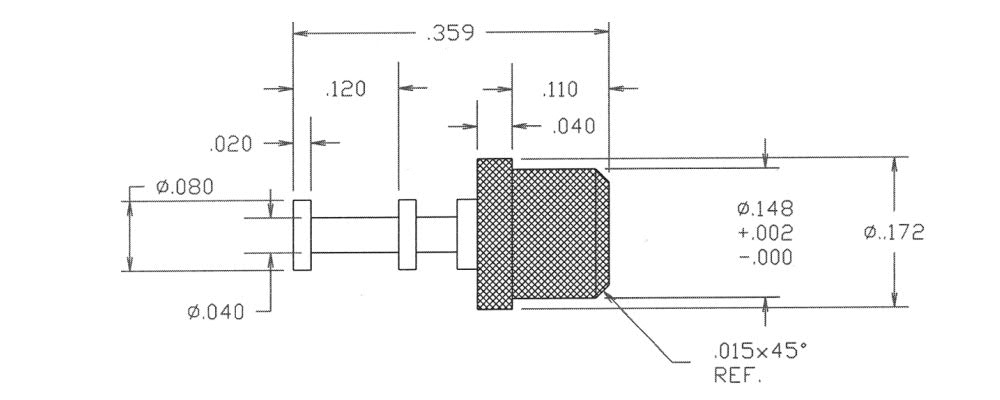

1102-14M-09510
1102-14M-09510
1102-14M-09510
0.359" - Press Fit 1/16 0.136 PTFE Black M55155/070I01 AA59126/070I01
1110-21M-09518
1110-21M-09518
1110-21M-09518
0.515" Pin/Pin Press Fit 1/16 0.136 PTFE Gray M55155/038I02 AA59126/038I02
1125-45M-09511
1125-45M-09511
1125-45M-09511
0.890" - 6-32 Nut 1/8 0.144 PTFE Brown M55155/091I02 AA59126/091I02
1127-03M-09519
1127-03M-09519
1127-03M-09519
0.593" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE White M55155/199I03 AA59126/199I03

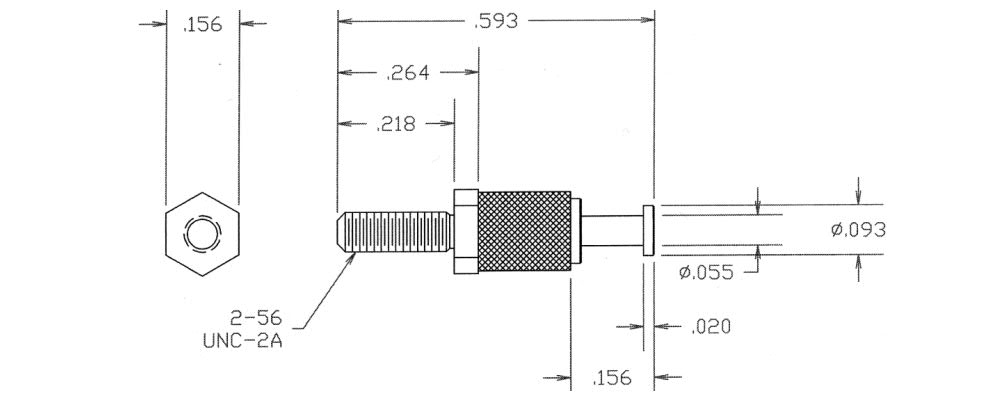

1127-68M-0517
1127-68M-0517
1127-68M-0517
0.593" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Violet M55155/187H01 AA59126/187H01

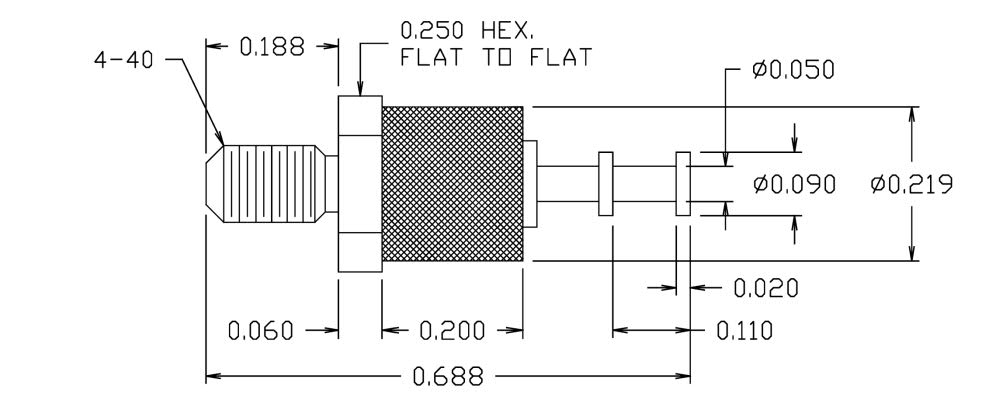

1169-36M-0510
1169-36M-0510
1169-36M-0510
0.688" - 4-40 Nut 5/64 0.120 DIALLYL PHTHALATE Black M55155/090H03 AA59126/090H03
1114-04M-09513
1114-04M-09513
1114-04M-09513
0.225" - Press Fit 1/32 0.086 PTFE Orange M55155/053I01 AA59126/053I01

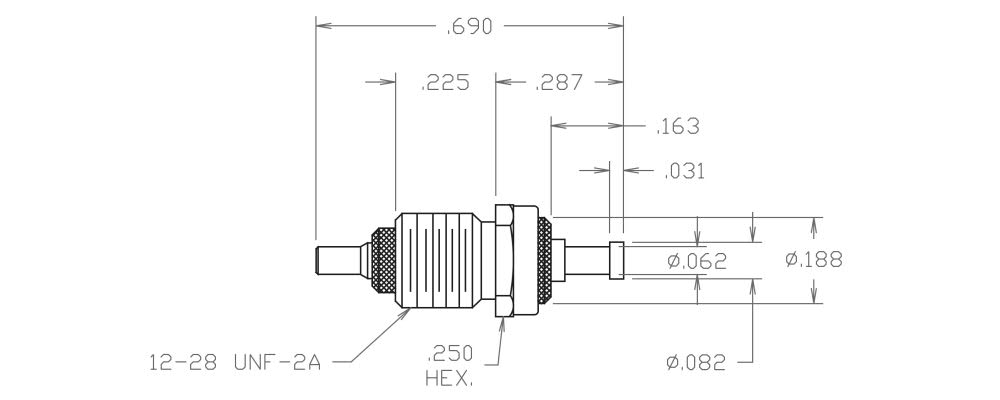

1117-01M-0511
1117-01M-0511
1117-01M-0511
0.690" TURRET/PIN 12-28 Nut 3/32 0.221 PTFE Brown M55155/021H01 AA59126/021H01
1102-14M-09510Z
1102-14M-09510Z
1102-14M-09510Z
0.359" - Press Fit 1/16 0.136 PTFE Black M55155/070C01 AA59126/070C01
1110-21M-09518Z
1110-21M-09518Z
1110-21M-09518Z
0.515" Pin/Pin Press Fit 1/16 0.136 PTFE Gray M55155/038C02 AA59126/038C02
1125-45M-09511Z
1125-45M-09511Z
1125-45M-09511Z
0.890" - 6-32 Nut 1/8 0.144 PTFE Brown M55155/091C02 AA59126/091C02
1127-03M-09519Z
1127-03M-09519Z
1127-03M-09519Z
0.593" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE White M55155/199C03 AA59126/199C03
1127-68M-0517Z
1127-68M-0517Z
1127-68M-0517Z
0.593" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Violet M55155/187B01 AA59126/187B01
1169-36M-0510Z
1169-36M-0510Z
1169-36M-0510Z
0.688" - 4-40 Nut 5/64 0.120 DIALLYL PHTHALATE Black M55155/090B03 AA59126/090B03
1114-04M-09513Z
1114-04M-09513Z
1114-04M-09513Z
0.225" - Press Fit 1/32 0.086 PTFE Orange M55155/053C01 AA59126/053C01
1117-01M-0511Z
1117-01M-0511Z
1117-01M-0511Z
0.690" TURRET/PIN 12-28 Nut 3/32 0.221 PTFE Brown M55155/021B01 AA59126/021B01
1102-14M-09511
1102-14M-09511
1102-14M-09511
0.359" - Press Fit 1/16 0.136 PTFE Brown M55155/071I01 AA59126/071I01
1110-21M-09519
1110-21M-09519
1110-21M-09519
0.515" Pin/Pin Press Fit 1/16 0.136 PTFE White M55155/039I02 AA59126/039I02
1125-45M-09512
1125-45M-09512
1125-45M-09512
0.890" - 6-32 Nut 1/8 0.144 PTFE Red M55155/092I02 AA59126/092I02

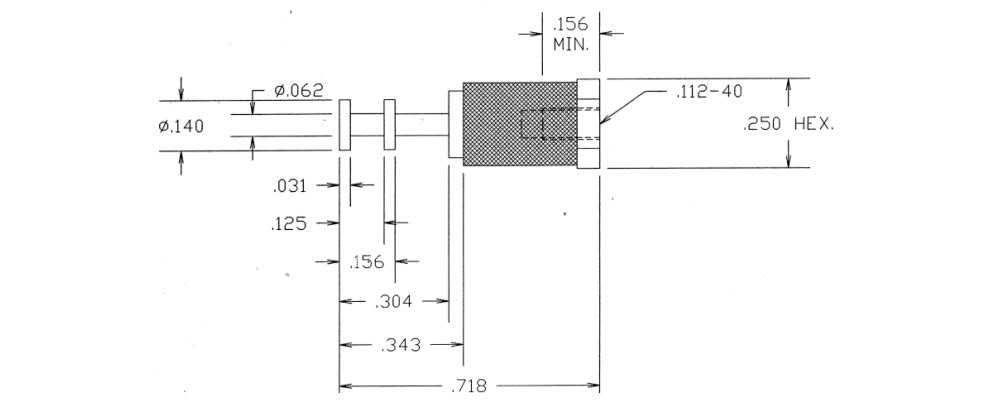

1127-04M-0510
1127-04M-0510
1127-04M-0510
0.718" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Black M55155/200H01 AA59126/200H01
