Commercial
Non-Insulated
Terminals

Filter

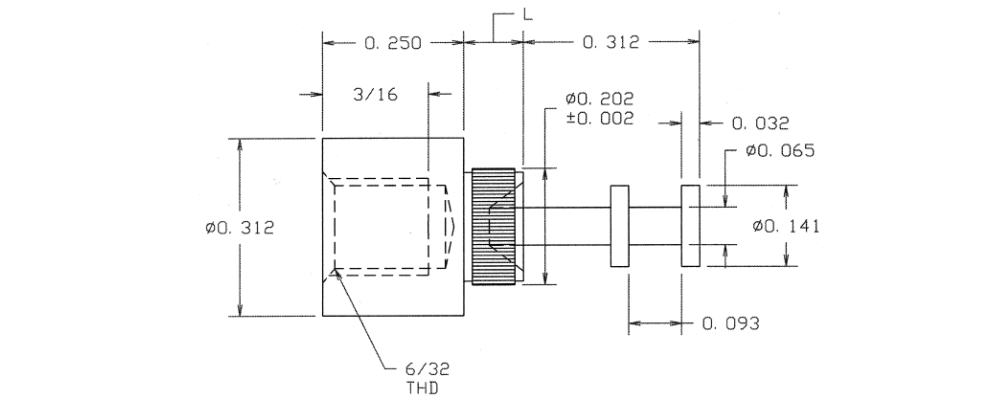

10-714-4-01
10-714-4-01
10-714-4-01
0.727" - DOUBLE TURRET/THREAD Swage Mount 0.165" 1/8 0.204 Brass Silver YES

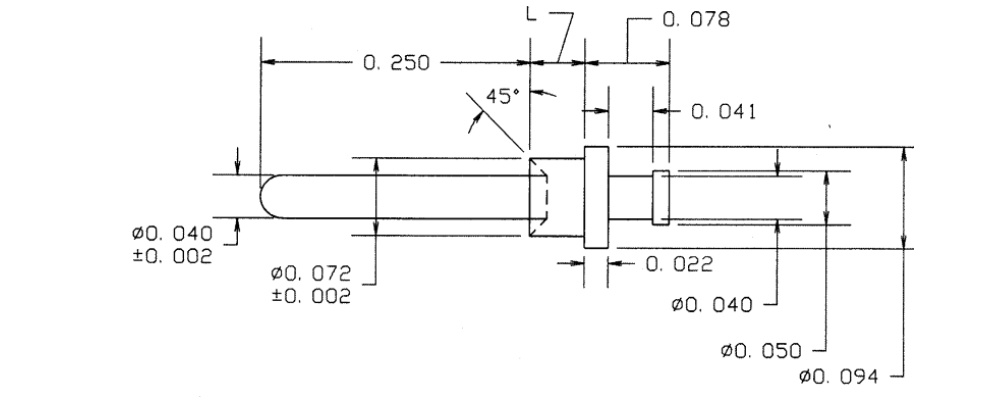

10-801-6-01
10-801-6-01
10-801-6-01
0.535" 0.040 TURRET/PIN Swage Mount 0.207" 3/16 0.076 Brass Silver YES

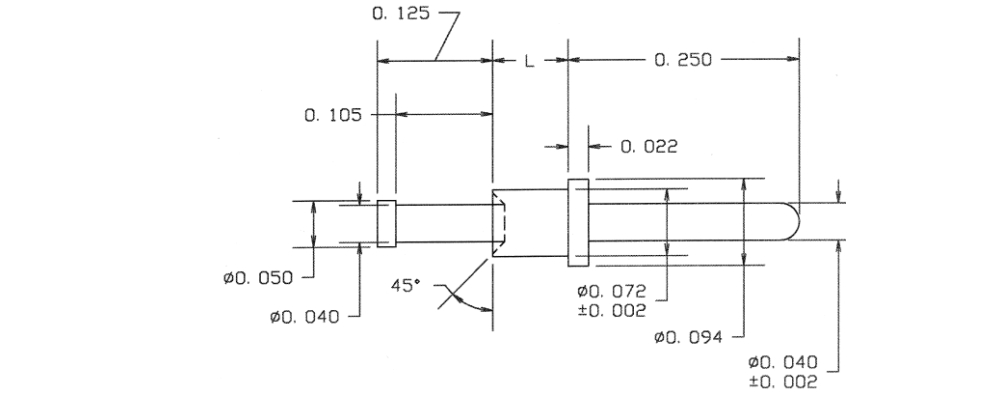

10-803-1-05
10-803-1-05
10-803-1-05
0.426" 0.040 TURRET/PIN Swage Mount 0.051" 1/32 0.076 Brass Electro Solder NO

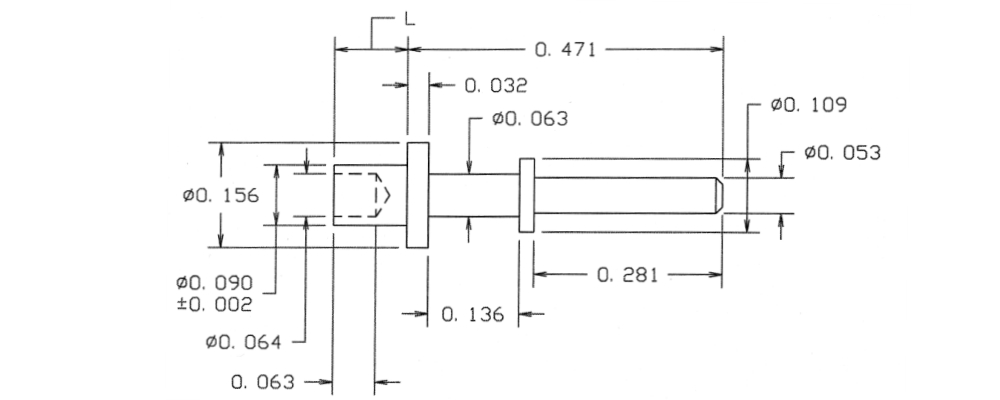

10-808-8-03
10-808-8-03
10-808-8-03
0.768" - - Swage Mount 0.297" 1/4 0.094 Brass Gold YES

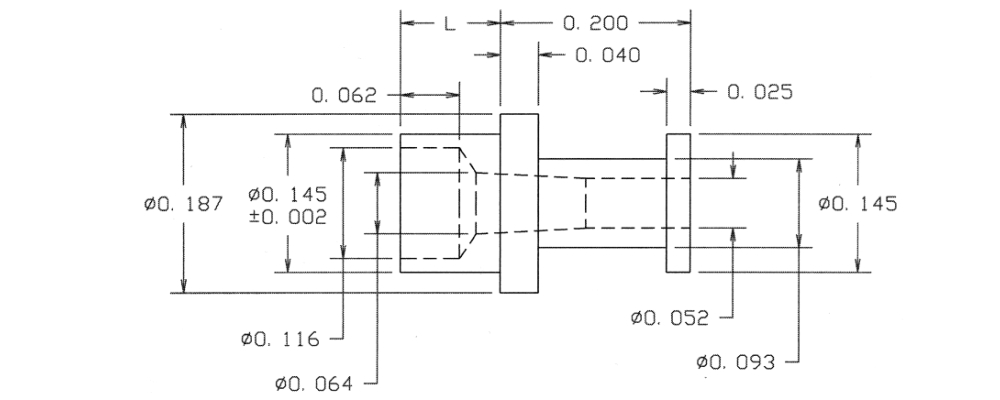

10-815-6-044
10-815-6-044
10-815-6-044
0.430" - - Swage Mount 0.230" 3/16 0.1495 Brass Bright Tin YES

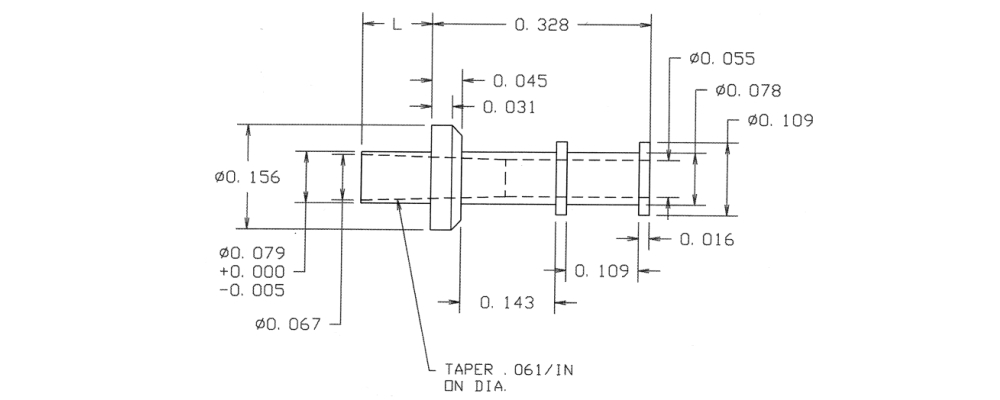

10-826-1-01
10-826-1-01
10-826-1-01
0.403" - - Swage Mount 0.075" 1/32 0.081 Brass Silver YES

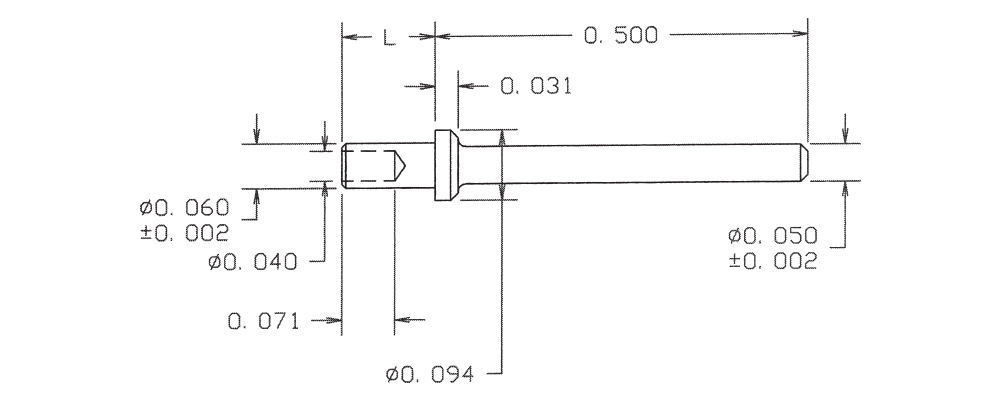

10-836-2-088
10-836-2-088
10-836-2-088
0.594" 0.050 - Swage Mount 0.094" 1/16 0.064 Brass Bright Tin-Lead NO

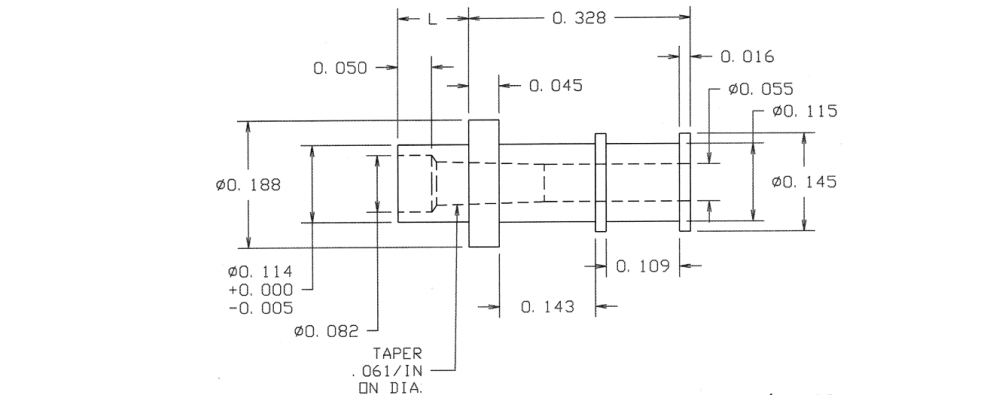

10-846-6-04
10-846-6-04
10-846-6-04
0.558" - - Swage Mount 0.230" 3/16 0.116 Brass Electro-Tin YES

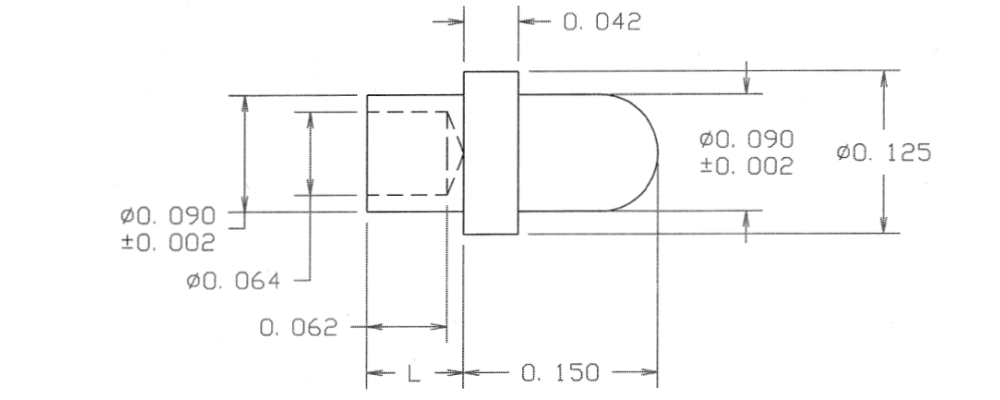

10-873-1-01
10-873-1-01
10-873-1-01
0.225" 0.090 - Swage Mount 0.075" 1/32 0.094 Brass Silver YES

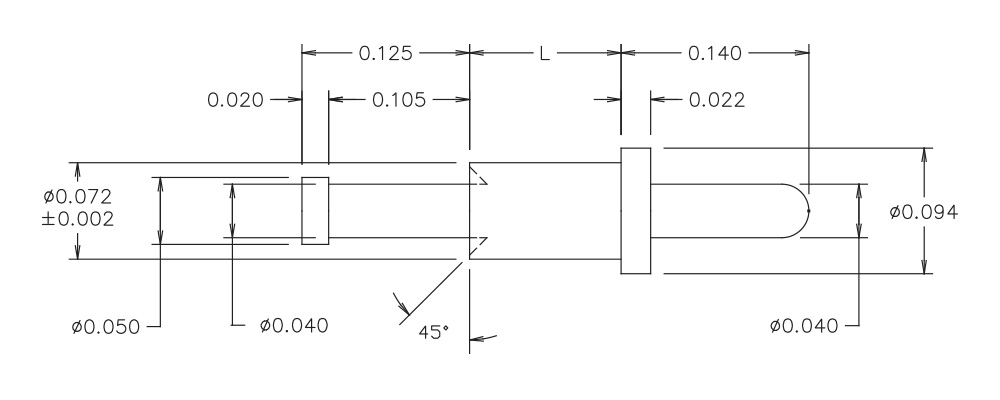

10-894-1-05
10-894-1-05
10-894-1-05
0.316" 0.040 TURRET/PIN Swage Mount 0.051" 1/32 0.076 Brass Electro Solder NO

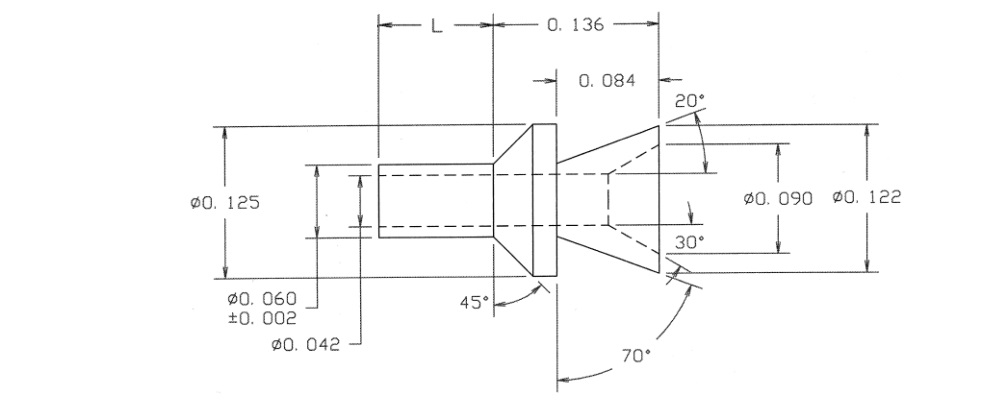

10-906-4-04
10-906-4-04
10-906-4-04
0.292" - - Swage Mount 0.156" 1/8 0.0635 Brass Electro-Tin YES

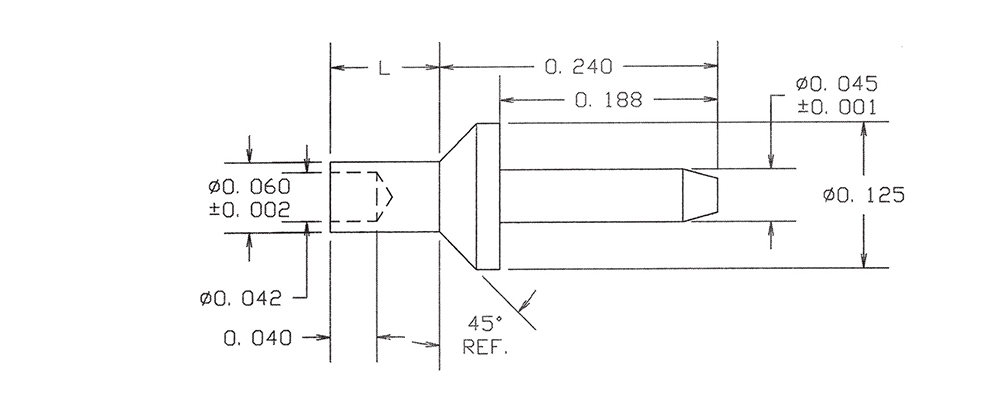

10-922-1-04
10-922-1-04
10-922-1-04
0.302" 0.045 - Swage Mount 0.062" 1/32 0.064 Brass Electro-Tin YES

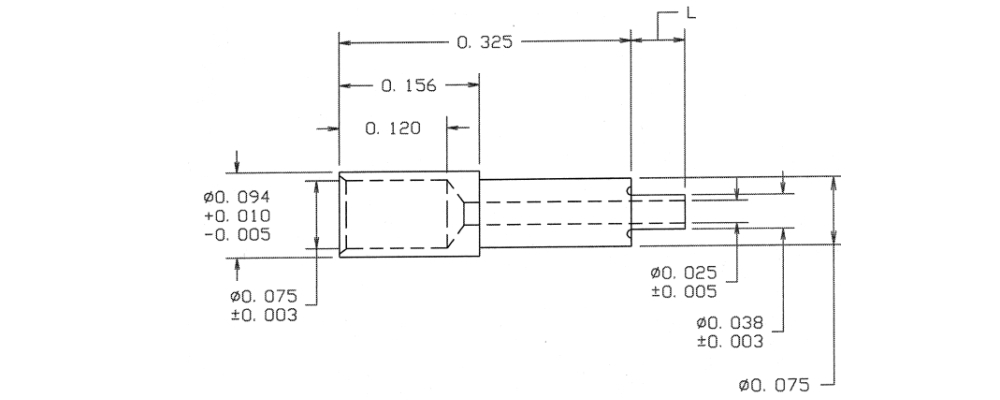

10-938-2-088
10-938-2-088
10-938-2-088
0.417" 0.038 - Swage Mount 0.092" 1/16 0.042 Brass Bright Tin-Lead NO

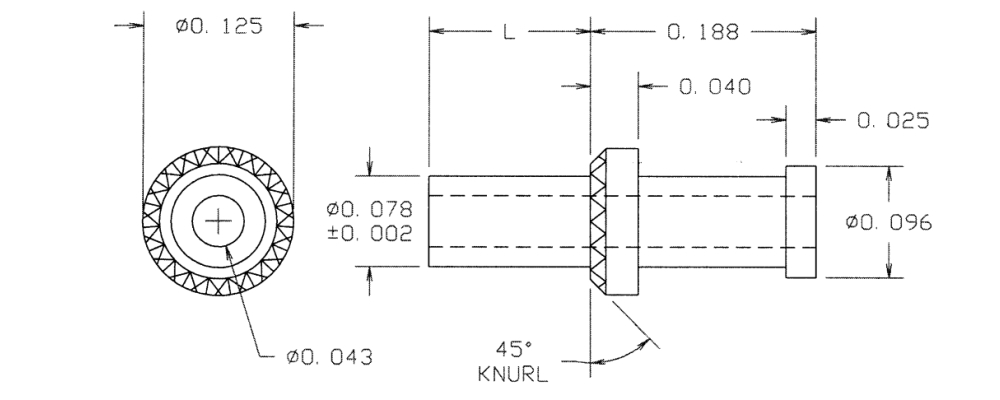

14-346-4A-01
14-346-4A-01
14-346-4A-01
0.340" - - Swage Mount 0.152" 1/8 0.082 LEADED Red Brass Silver YES

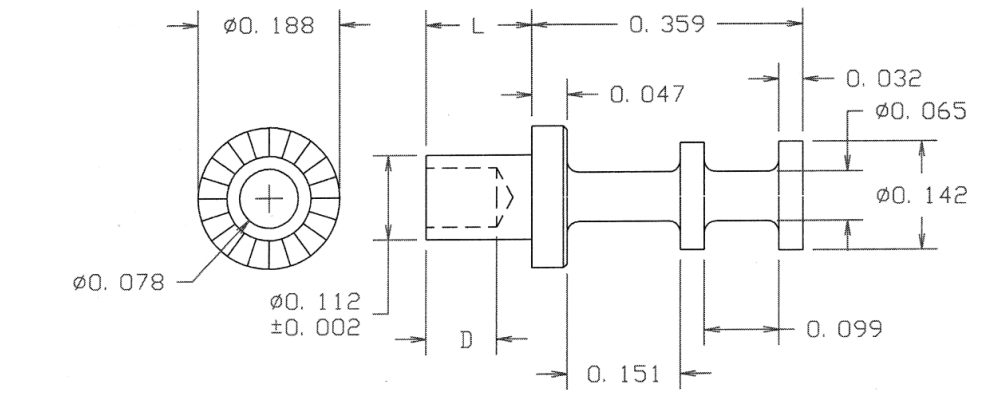

19-246-6-01
19-246-6-01
19-246-6-01
0.593" - - Swage Mount 0.234" 3/16 0.116 LEADED Red Brass Silver YES

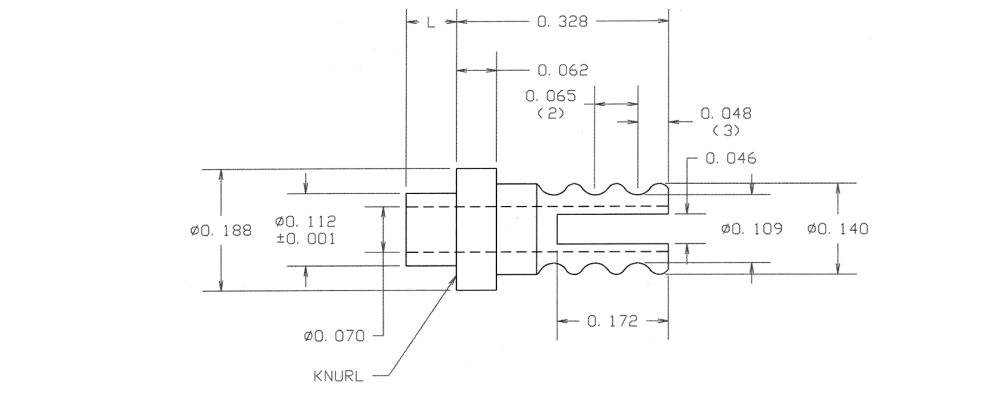

10-410-1-044
10-410-1-044
10-410-1-044
0.403" - - Swage Mount 0.075" 1/32 0.116 Brass Bright Tin YES

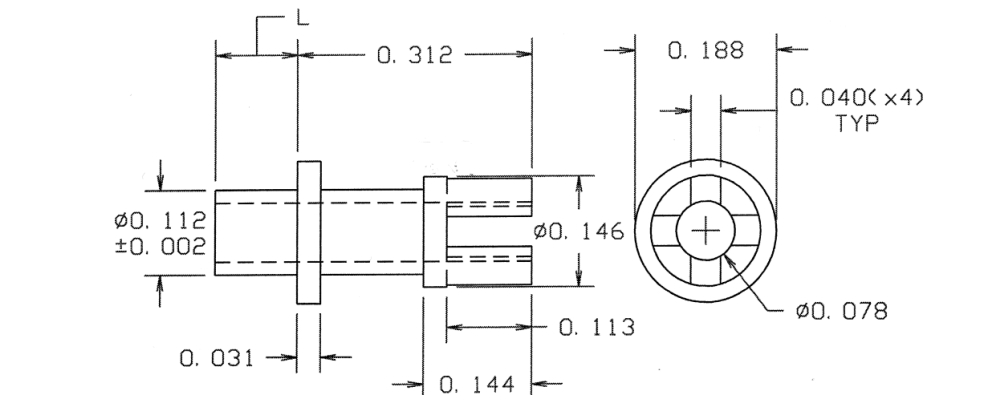

10-438-8-03
10-438-8-03
10-438-8-03
0.609" - - Swage Mount 0.297" 1/4 0.116 Brass Gold YES

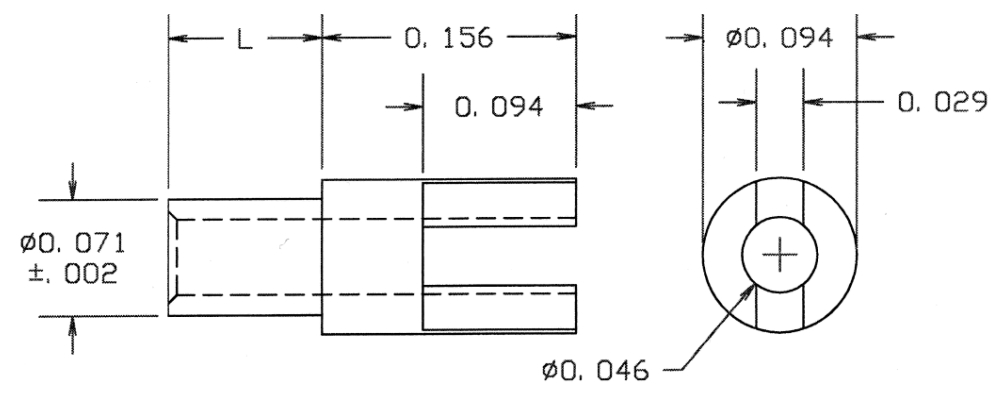

10-457-3-05
10-457-3-05
10-457-3-05
0.281" - - Swage Mount 0.125" 3/32 0.076 Brass Electro Solder NO

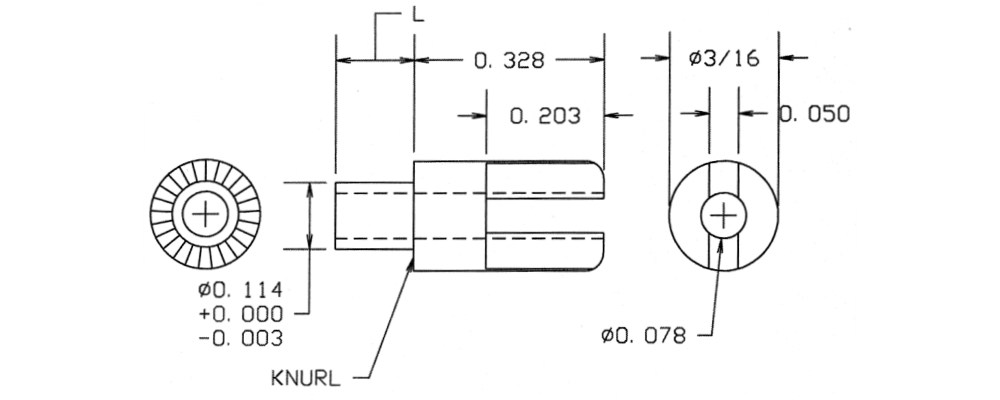

10-483-4-035
10-483-4-035
10-483-4-035
0.493" - - Swage Mount 0.165" 1/8 0.116 Brass Gold YES

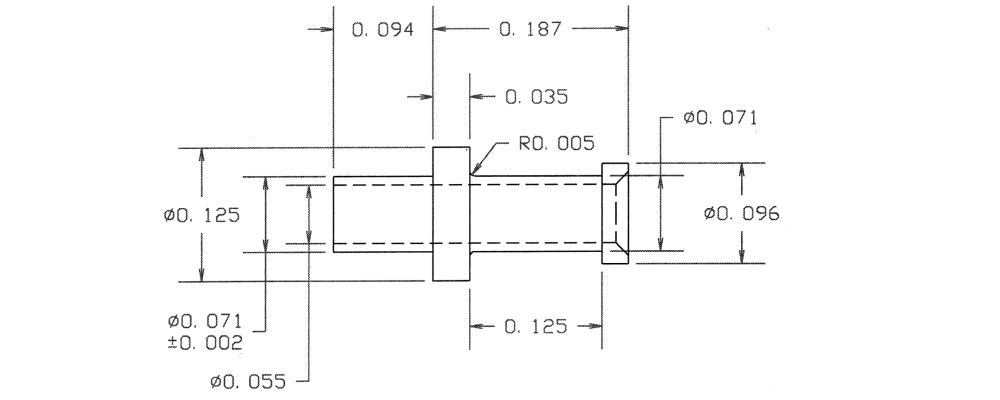

09-0026-2-035
09-0026-2-035
09-0026-2-035
0.281" - - Swage Mount 0.094" 1/16 0.076 Brass Gold YES
