Commercial
Non-Insulated
Terminals

Filter

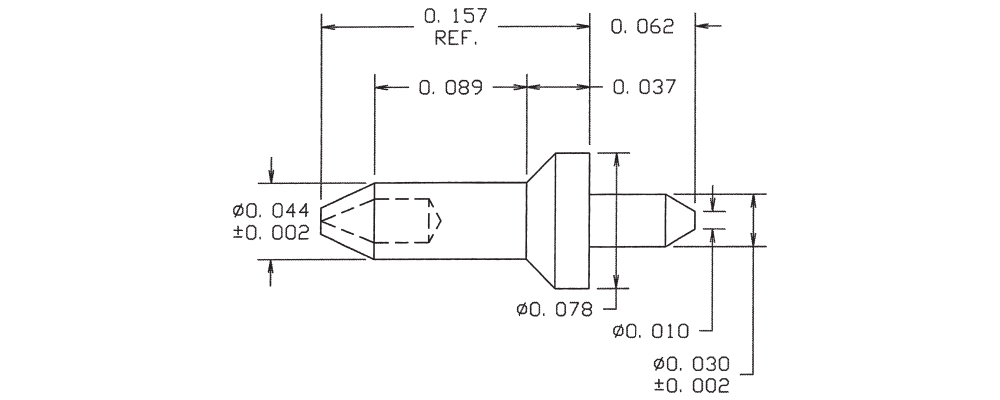

09-7147-2-01
09-7147-2-01
09-7147-2-01
0.219" 0.030 - RIVET MOUNT 0.089" 1/16 0.048 Brass Silver YES

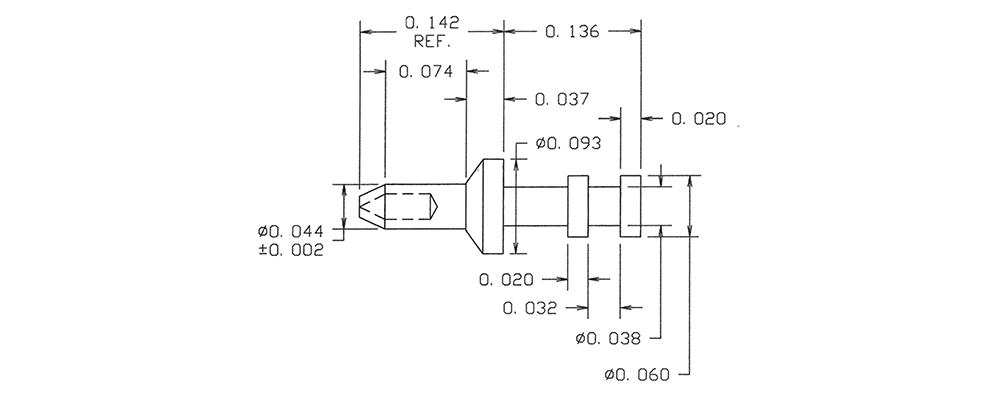

09-7177-1B-044
09-7177-1B-044
09-7177-1B-044
0.278" - - RIVET MOUNT 0.074" 3/64 0.047 Brass Bright Tin YES
09-8018-2-03
09-8018-2-03
09-8018-2-03
1.050" 0.020 - Solder 0.100" 1/16 0.024 Brass Gold YES

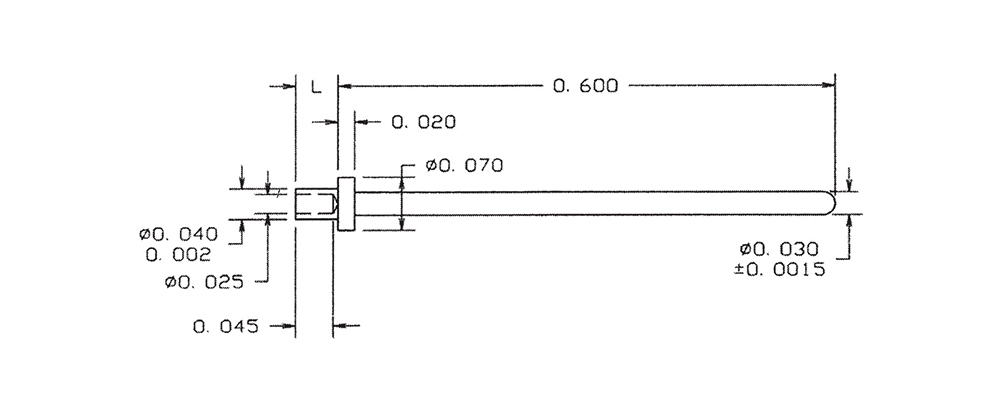

09-8055-1-044
09-8055-1-044
09-8055-1-044
0.651" 0.0305 - Swage Mount 0.051" 1/32 0.043 Brass Bright Tin YES
09-8094-2A-03
09-8094-2A-03
09-8094-2A-03
0.182" 0.025 - Swage Mount 0.082" 1/16 0.035 Brass Gold YES
09-8151-2-05
09-8151-2-05
09-8151-2-05
0.344" 0.038 - Swage Mount 0.094" 1/16 0.0635 Brass Electro Solder NO

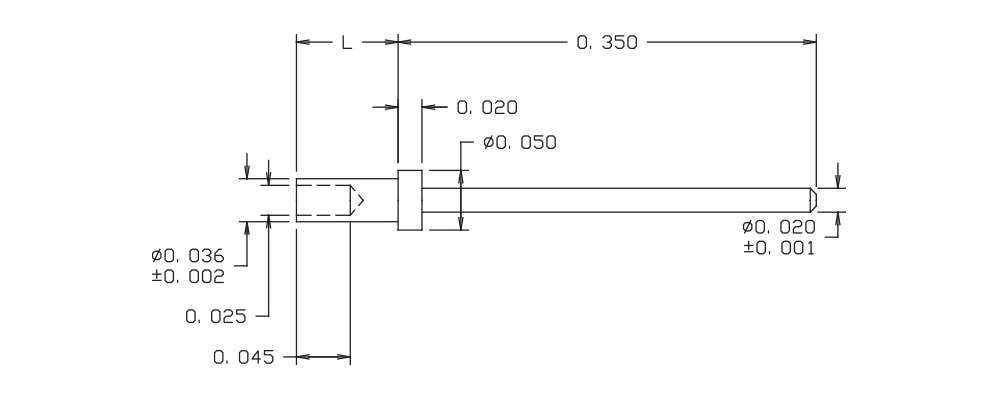

09-8180-2-035
09-8180-2-035
09-8180-2-035
0.435" 0.020 - Swage Mount 0.085" 1/16 0.039 Brass Gold YES

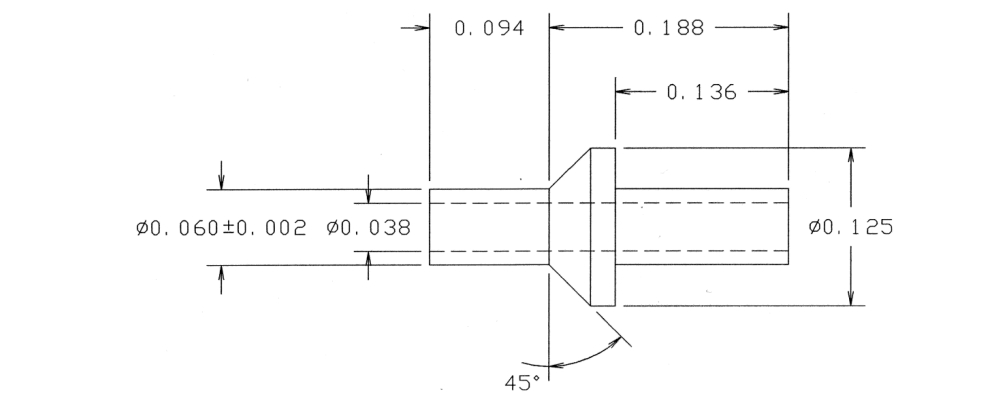

09-8343-2-035
09-8343-2-035
09-8343-2-035
0.282" - - Swage Mount 0.094" 1/16 0.067 Brass Gold YES

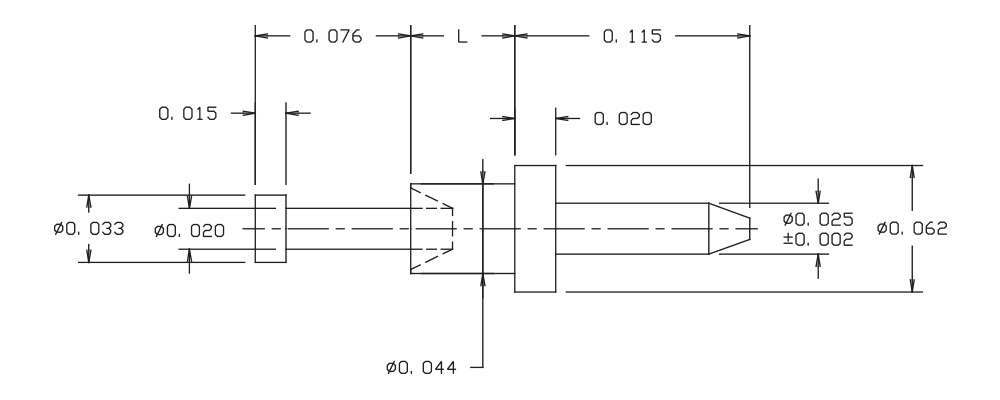

09-8584-1-01
09-8584-1-01
09-8584-1-01
0.242" 0.025 TURRET/PIN Swage Mount 0.051" 1/32 0.047 Brass Silver YES
09-8705-2-01
09-8705-2-01
09-8705-2-01
0.439" - - Swage Mount 0.109" 1/16 0.094 LEADED Red Brass Silver YES
09-8810-2-05
09-8810-2-05
09-8810-2-05
0.300" 0.040 - Swage Mount 0.094" 1/16 0.067 Brass Electro Solder NO

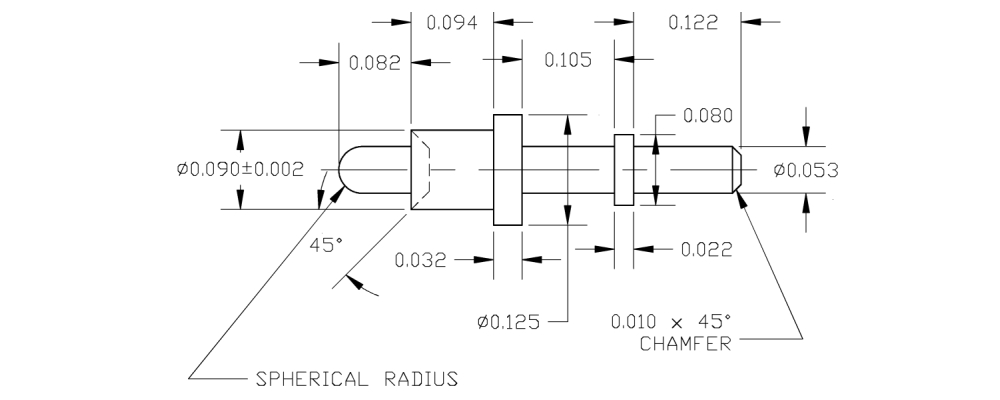

09-8885-2-035
09-8885-2-035
09-8885-2-035
0.457" 0.053 TURRET/PIN Swage Mount 0.094" 1/16 0.096 LEADED Red Brass Gold YES
10-105-1-044
10-105-1-044
10-105-1-044
0.162" - - Swage Mount 0.053" 1/32 0.076 Brass Bright Tin YES
10-112-1-044
10-112-1-044
10-112-1-044
0.256" - - Swage Mount 0.075" 1/32 0.082 Brass Bright Tin YES
10-133-3-088
10-133-3-088
10-133-3-088
0.155" - - Swage Mount 0.115" 3/32 0.033 Brass Bright Tin-Lead NO
10-204-2-044
10-204-2-044
10-204-2-044
0.468" - - Swage Mount 0.109" 1/16 0.116 Brass Bright Tin YES
10-211-8-088
10-211-8-088
10-211-8-088
0.797" - - Swage Mount 0.297" 1/4 0.266 Brass Bright Tin-Lead NO
10-218-3-035
10-218-3-035
10-218-3-035
0.372" - - Swage Mount 0.135" 3/32 0.094 Brass Gold YES
10-229-3-088
10-229-3-088
10-229-3-088
0.185" - - Swage Mount 0.115" 3/32 0.035 Brass Bright Tin-Lead NO
10-254-1-03
10-254-1-03
10-254-1-03
0.210" - - Swage Mount 0.054" 1/32 0.063 Brass Gold YES
