Commercial
Non-Insulated
Terminals

Filter
09-0078-2-035
09-0078-2-035
09-0078-2-035
0.252" - - Swage Mount 0.096" 1/16 0.076 Brass Gold YES

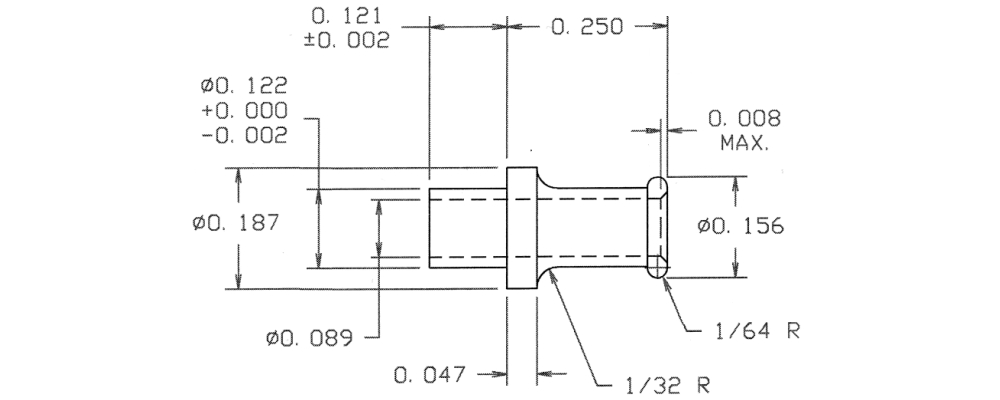

09-0164-3-04
09-0164-3-04
09-0164-3-04
0.371" - - Swage Mount 0.121" 3/32 0.125 Brass Electro-Tin YES

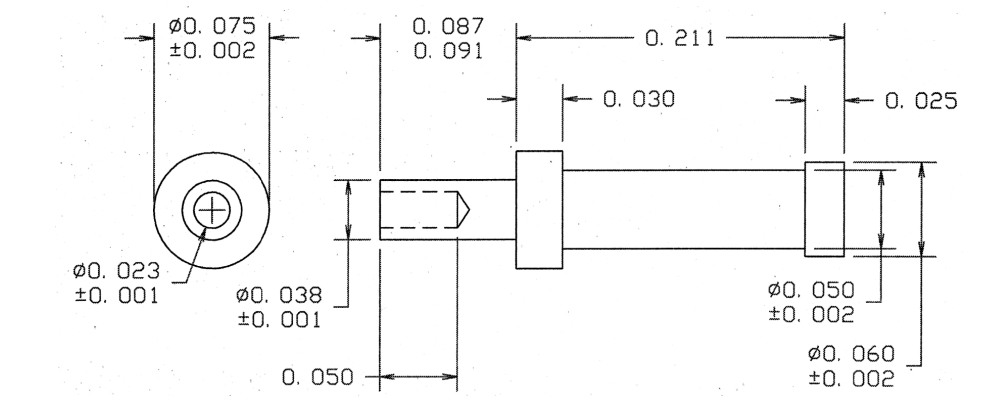

09-0191-2-095
09-0191-2-095
09-0191-2-095
0.300" - - Swage Mount 0.091" 1/16 0.041 Brass Hot Solder Dip NO

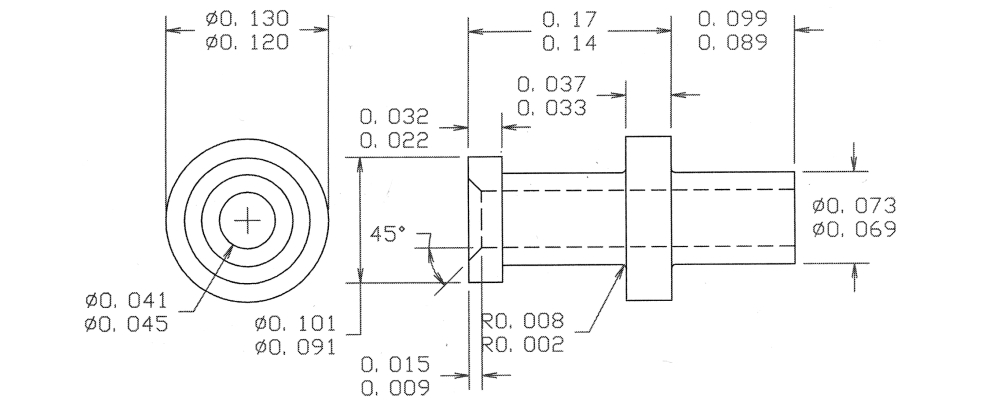

09-0236-2-044
09-0236-2-044
09-0236-2-044
0.264" - - Swage Mount 0.094" 1/16 0.076 Brass Bright Tin YES

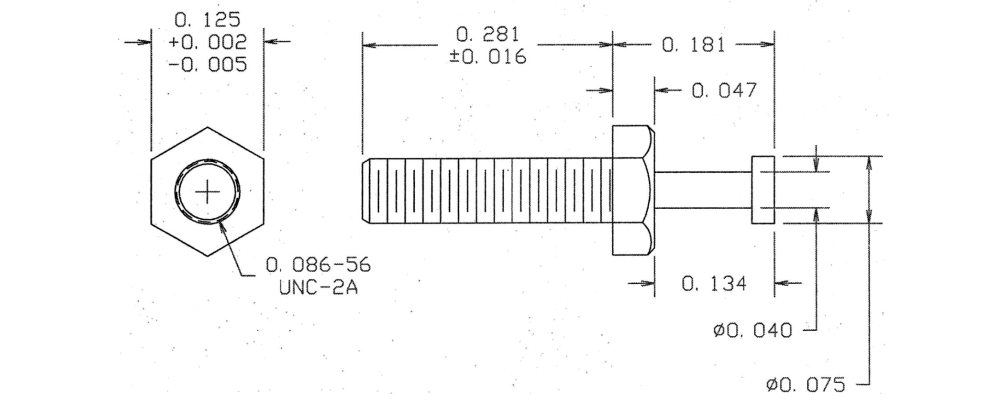

09-0284-9-05
09-0284-9-05
09-0284-9-05
0.462" - - 2-56 - - 2-56 THREAD Brass Electro Solder NO

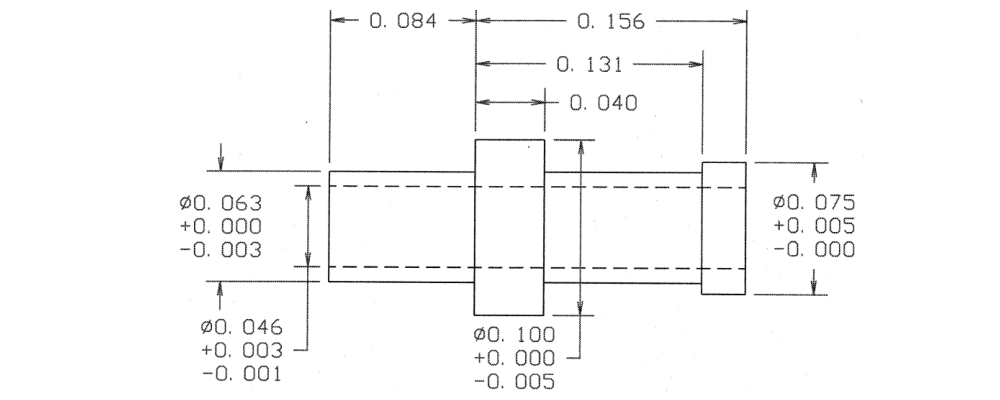

09-0346-2-05
09-0346-2-05
09-0346-2-05
0.240" - - Swage Mount 0.084" 1/16 0.067 Brass Electro Solder NO
09-7010-4-044
09-7010-4-044
09-7010-4-044
0.291" 0.050 - Swage Mount 0.150" 1/8 0.055 Brass Bright Tin YES
09-7113-2-05
09-7113-2-05
09-7113-2-05
0.203" 0.030 - RIVET MOUNT 0.083" 1/16 0.035 Brass Electro Solder NO

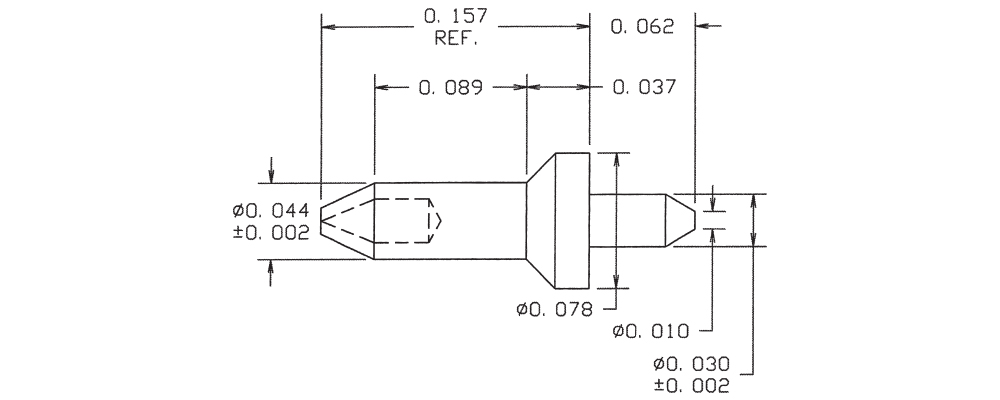

09-7147-2-035
09-7147-2-035
09-7147-2-035
0.219" 0.030 - RIVET MOUNT 0.089" 1/16 0.048 Brass Gold YES

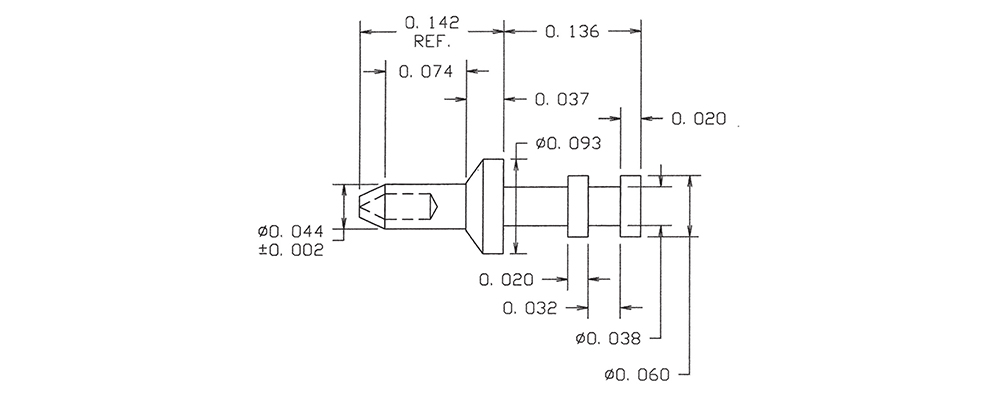

09-7177-1B-088
09-7177-1B-088
09-7177-1B-088
0.278" - - RIVET MOUNT 0.074" 3/64 0.047 Brass Bright Tin-Lead NO

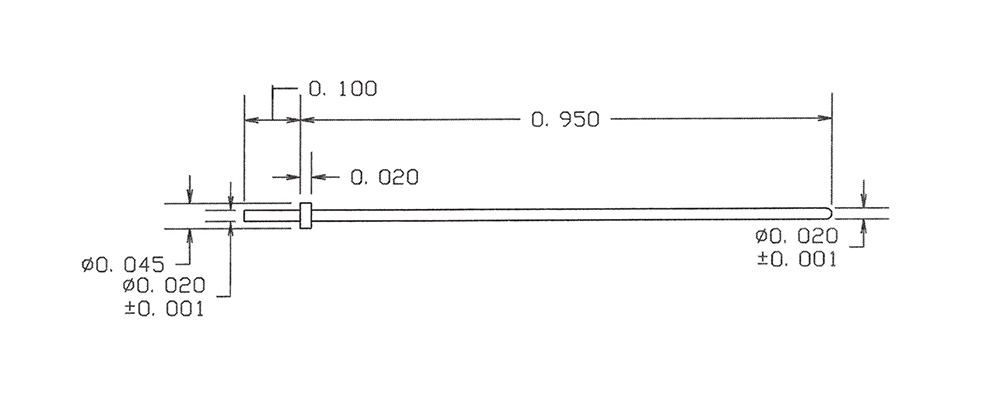

09-8018-2-04
09-8018-2-04
09-8018-2-04
1.050" 0.020 - Solder 0.100" 1/16 0.024 Brass Electro-Tin YES

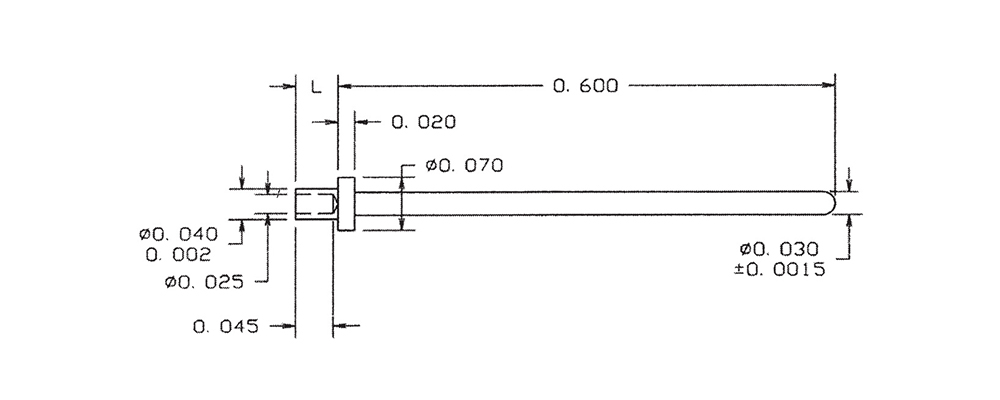

09-8055-1-088
09-8055-1-088
09-8055-1-088
0.651" 0.0305 - Swage Mount 0.051" 1/32 0.043 Brass Bright Tin-Lead NO
09-8094-2A-04
09-8094-2A-04
09-8094-2A-04
0.182" 0.025 - Swage Mount 0.082" 1/16 0.035 Brass Electro-Tin YES

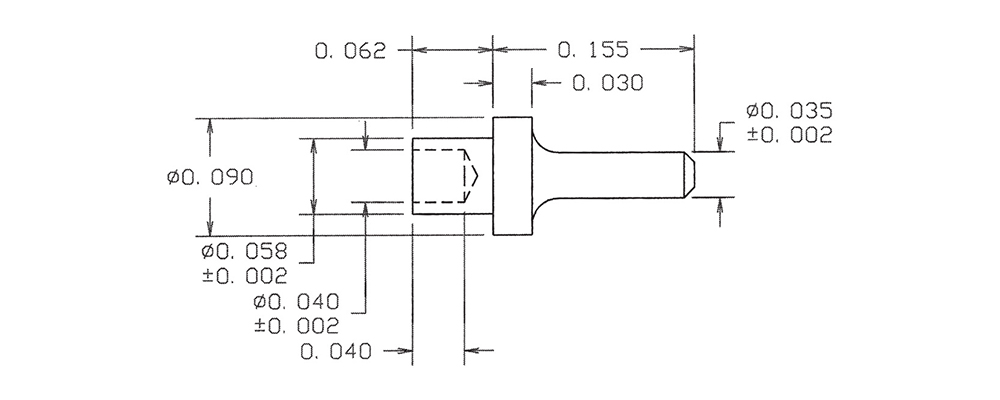

09-8152-1-01
09-8152-1-01
09-8152-1-01
0.217" 0.035 - Swage Mount 0.062" 1/32 0.0625 Brass Silver YES

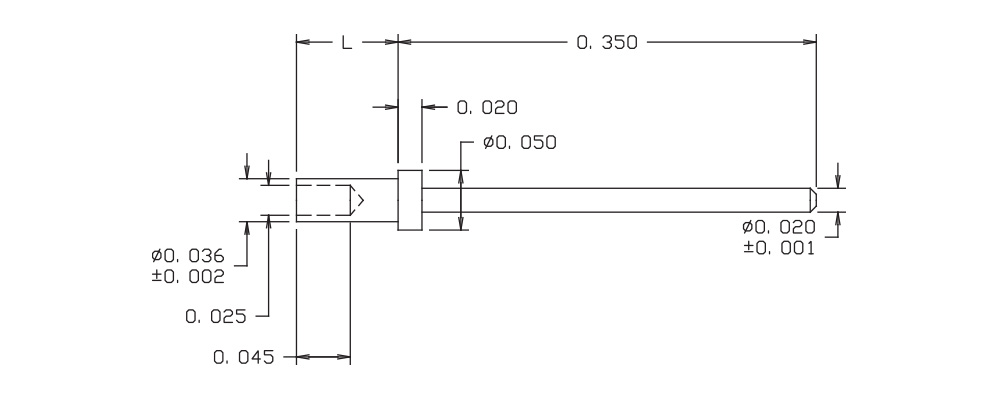

09-8180-2-044
09-8180-2-044
09-8180-2-044
0.435" 0.020 - Swage Mount 0.085" 1/16 0.039 Brass Bright Tin YES
09-8343-2-044
09-8343-2-044
09-8343-2-044
0.282" - - Swage Mount 0.094" 1/16 0.067 Brass Bright Tin YES

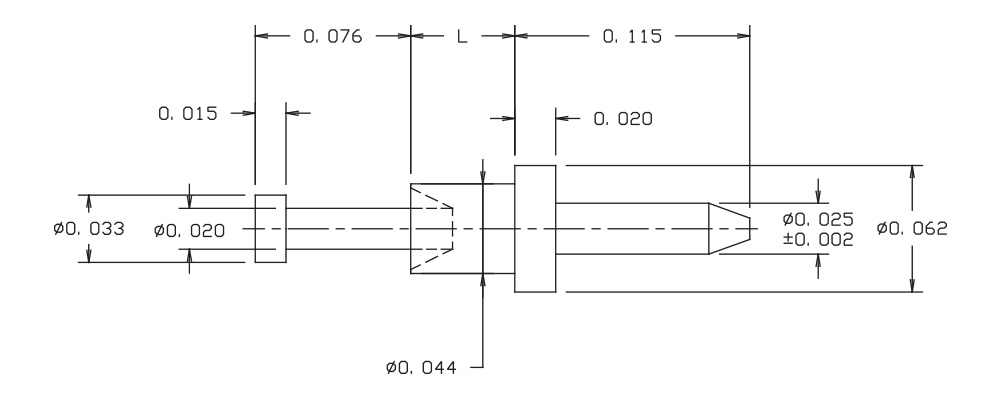

09-8584-1-035
09-8584-1-035
09-8584-1-035
0.242" 0.025 TURRET/PIN Swage Mount 0.051" 1/32 0.047 Brass Gold YES
09-8705-2-035
09-8705-2-035
09-8705-2-035
0.439" - - Swage Mount 0.109" 1/16 0.094 LEADED Red Brass Gold YES

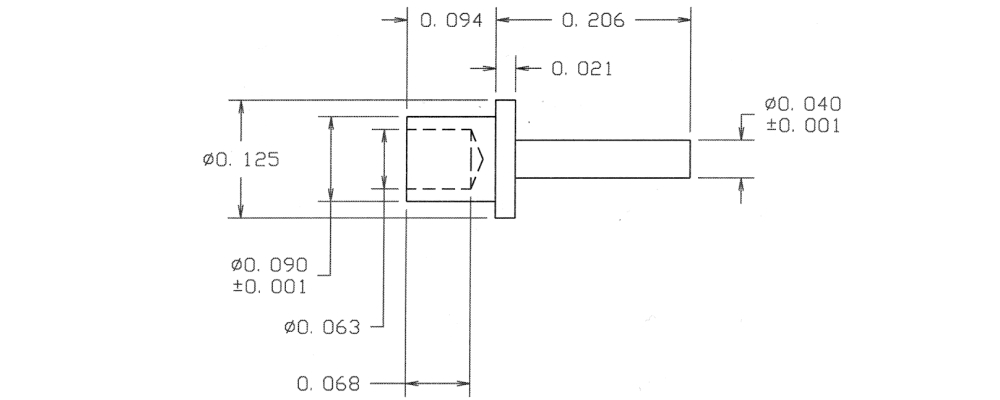

09-8810-2-095
09-8810-2-095
09-8810-2-095
0.300" 0.040 - Swage Mount 0.094" 1/16 0.067 Brass Hot Solder Dip NO

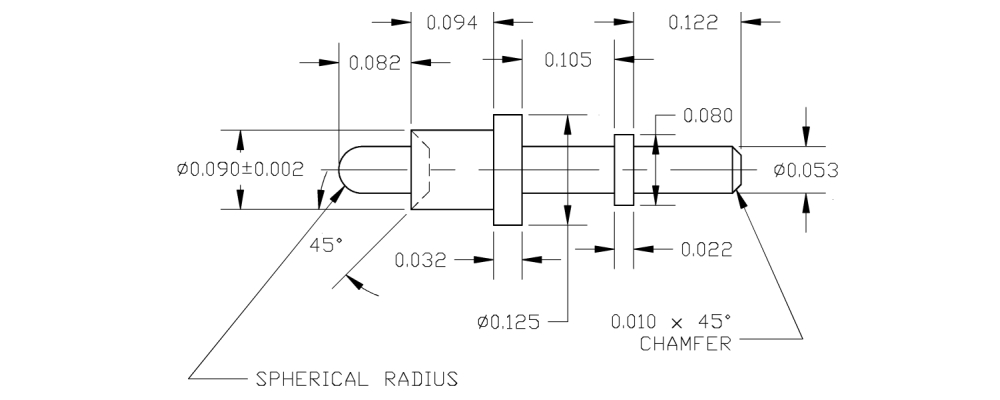

09-8885-2-044
09-8885-2-044
09-8885-2-044
0.457" 0.053 TURRET/PIN Swage Mount 0.094" 1/16 0.096 LEADED Red Brass Bright Tin YES
