Commercial
Non-Insulated
Terminals

Filter

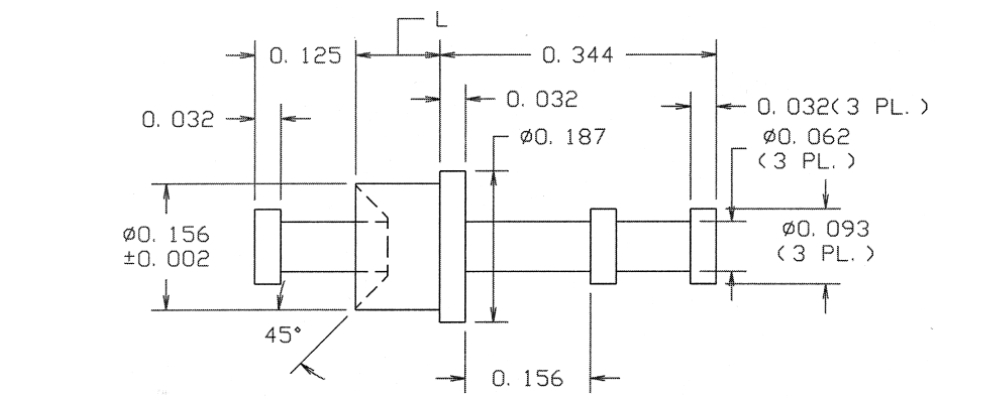

10-530-3-095
10-530-3-095
10-530-3-095
0.604" - TURRET/DOUBLE TURRET Swage Mount 0.135" 3/32 0.159 Brass Hot Solder Dip NO

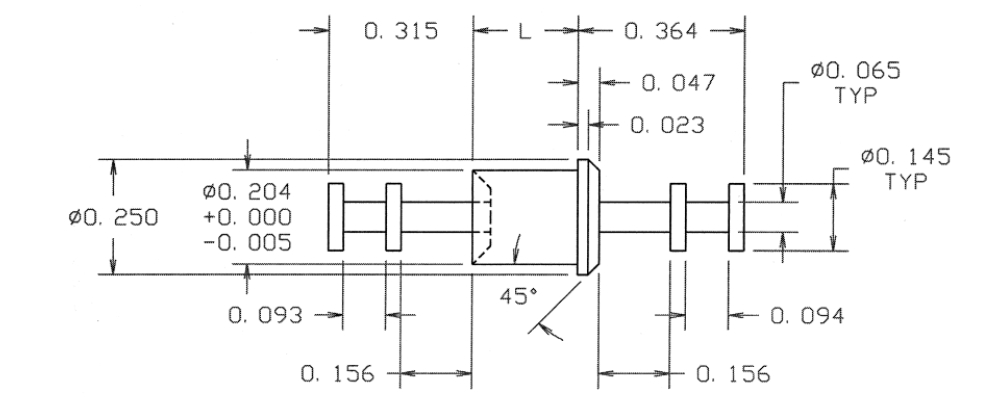

10-549-2-095
10-549-2-095
10-549-2-095
0.784" - Double Turret/Double Turret Swage Mount 0.105" 1/16 0.206 Brass Hot Solder Dip NO

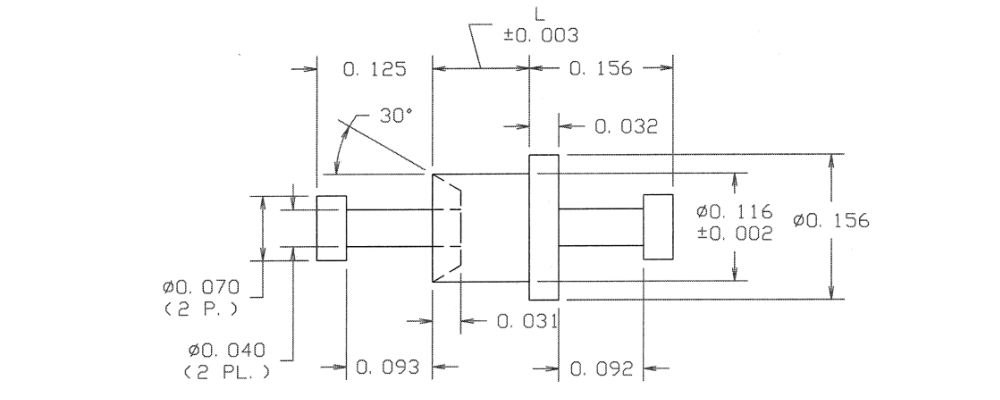

10-576-2-095
10-576-2-095
10-576-2-095
0.386" - Turret/Turret Swage Mount 0.105" 1/16 0.120 Brass Hot Solder Dip NO

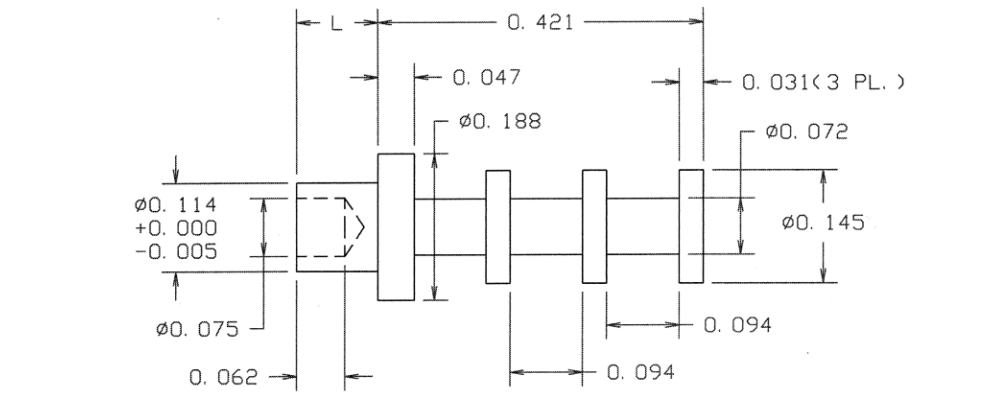

10-607-3-04
10-607-3-04
10-607-3-04
0.556" - - Swage Mount 0.135" 3/32 0.116 Brass Electro-Tin YES

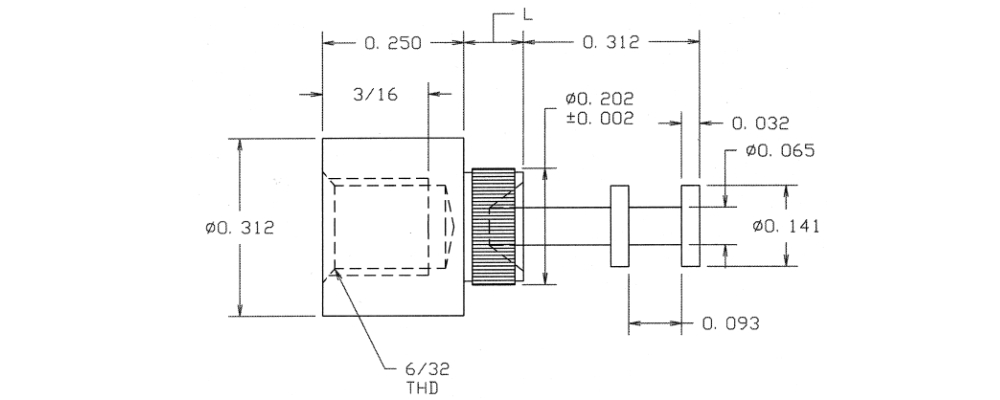

10-714-4-03
10-714-4-03
10-714-4-03
0.727" - DOUBLE TURRET/THREAD Swage Mount 0.165" 1/8 0.204 Brass Gold YES

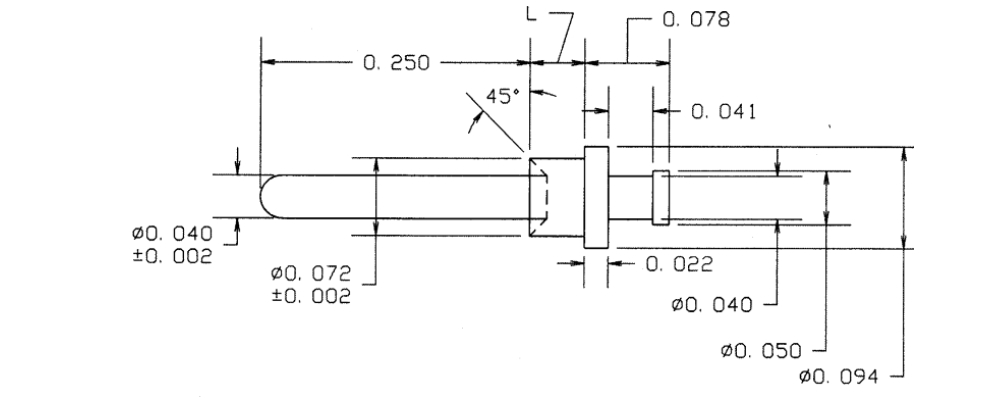

10-801-6-03
10-801-6-03
10-801-6-03
0.535" 0.040 TURRET/PIN Swage Mount 0.207" 3/16 0.076 Brass Gold YES

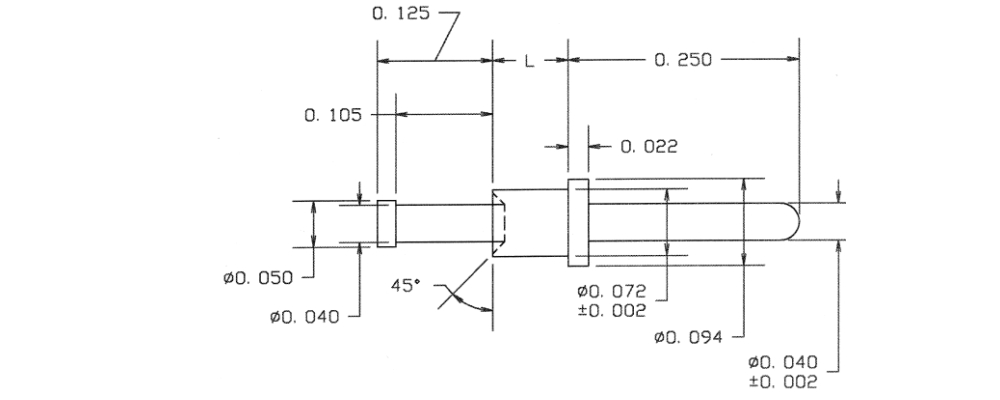

10-803-1-088
10-803-1-088
10-803-1-088
0.426" 0.040 TURRET/PIN Swage Mount 0.051" 1/32 0.076 Brass Bright Tin-Lead NO

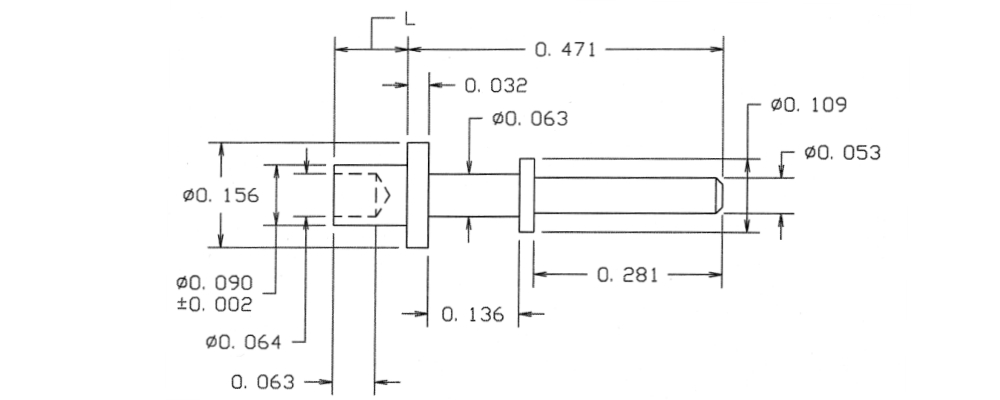

10-808-8-035
10-808-8-035
10-808-8-035
0.768" - - Swage Mount 0.297" 1/4 0.094 Brass Gold YES

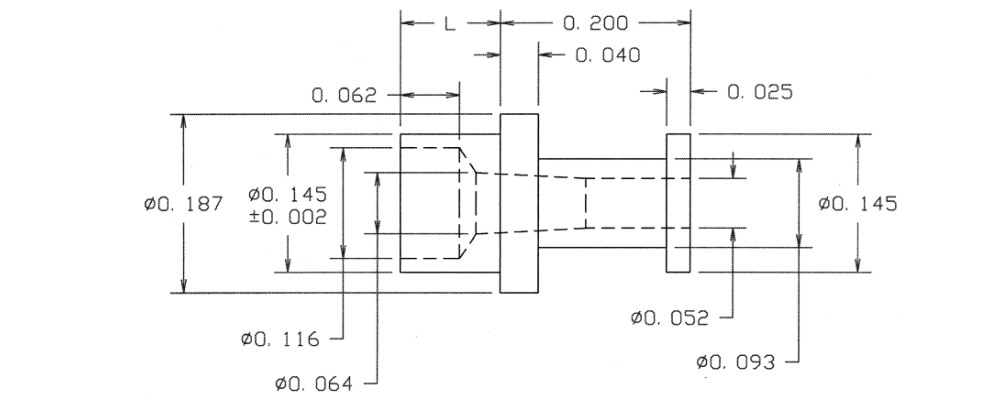

10-815-6-05
10-815-6-05
10-815-6-05
0.430" - - Swage Mount 0.230" 3/16 0.1495 Brass Electro Solder NO

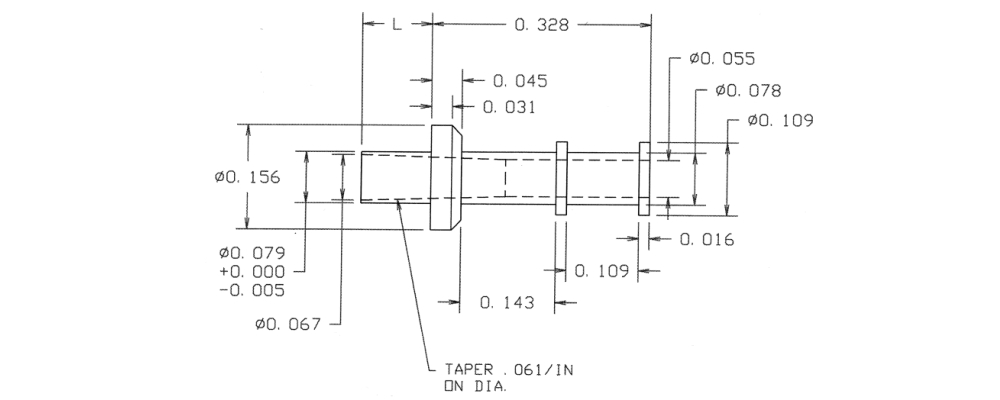

10-826-1-03
10-826-1-03
10-826-1-03
0.403" - - Swage Mount 0.075" 1/32 0.081 Brass Gold YES

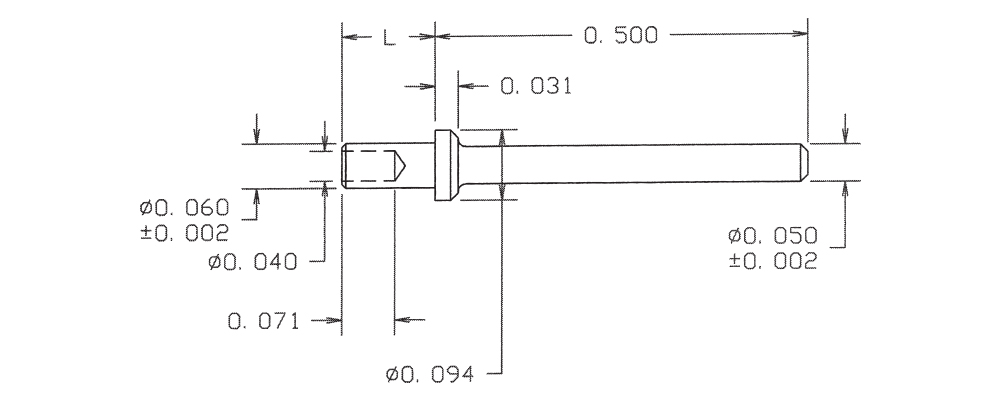

10-836-3-01
10-836-3-01
10-836-3-01
0.625" 0.050 - Swage Mount 0.125" 3/32 0.064 Brass Silver YES

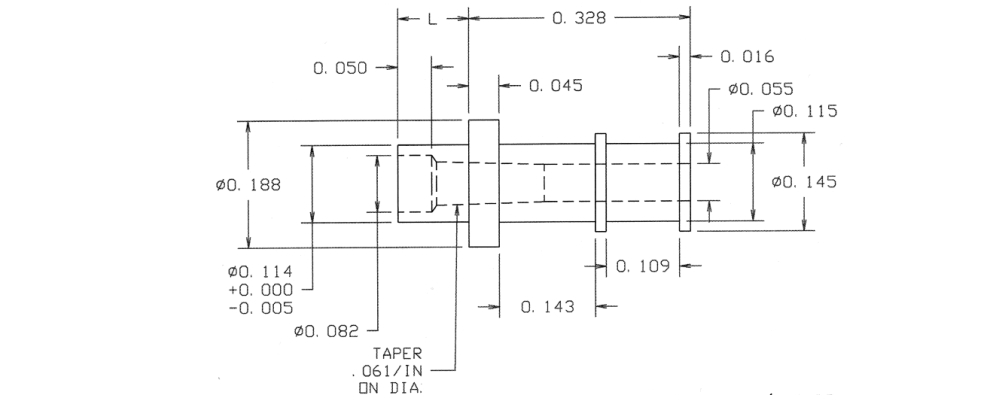

10-846-6-044
10-846-6-044
10-846-6-044
0.558" - - Swage Mount 0.230" 3/16 0.116 Brass Bright Tin YES

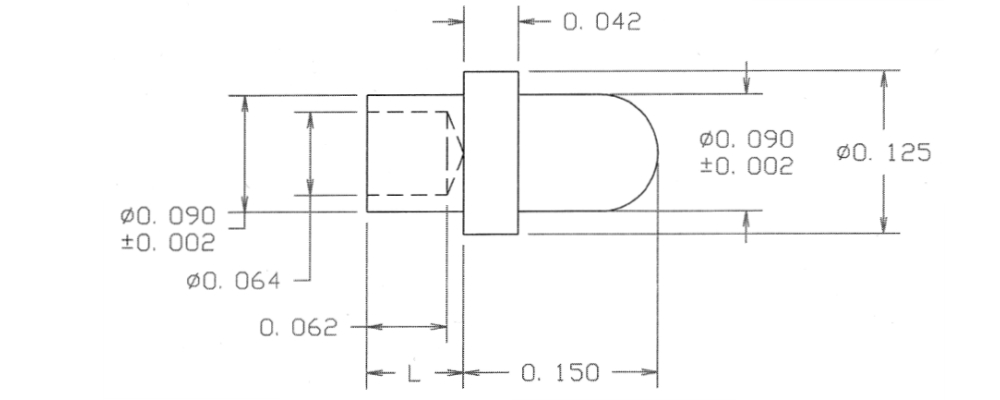

10-873-1-03
10-873-1-03
10-873-1-03
0.225" 0.090 - Swage Mount 0.075" 1/32 0.094 Brass Gold YES

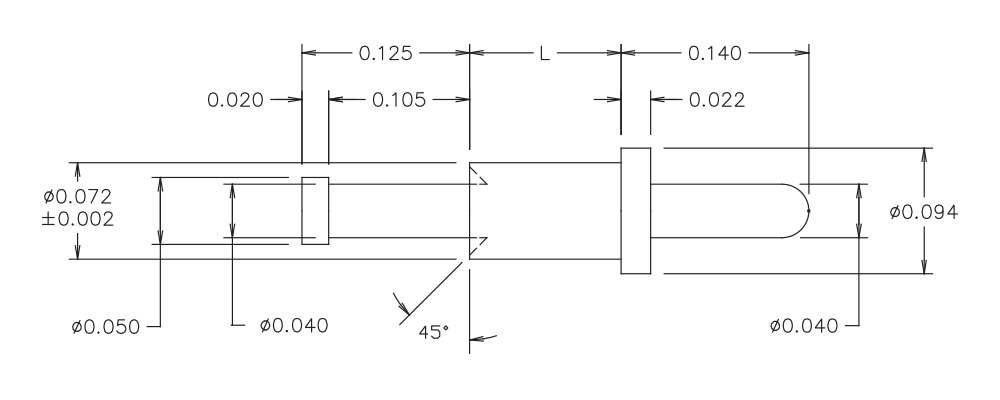

10-894-1-088
10-894-1-088
10-894-1-088
0.316" 0.040 TURRET/PIN Swage Mount 0.051" 1/32 0.076 Brass Bright Tin-Lead NO

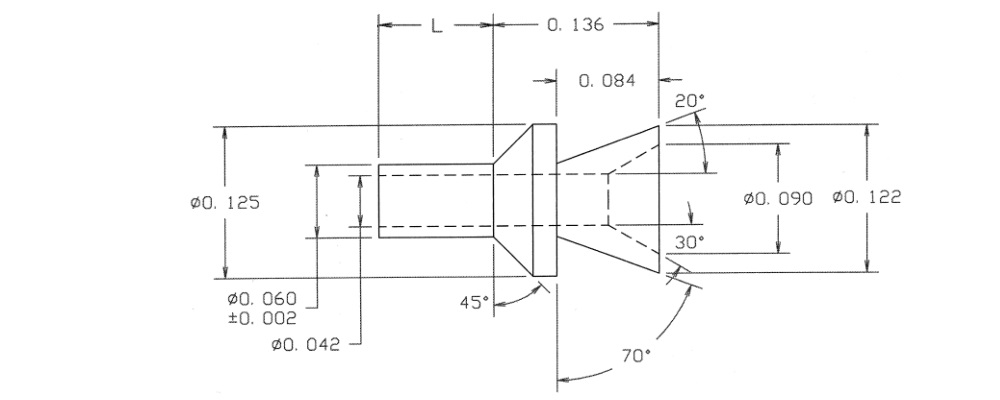

10-906-4-044
10-906-4-044
10-906-4-044
0.292" - - Swage Mount 0.156" 1/8 0.0635 Brass Bright Tin YES

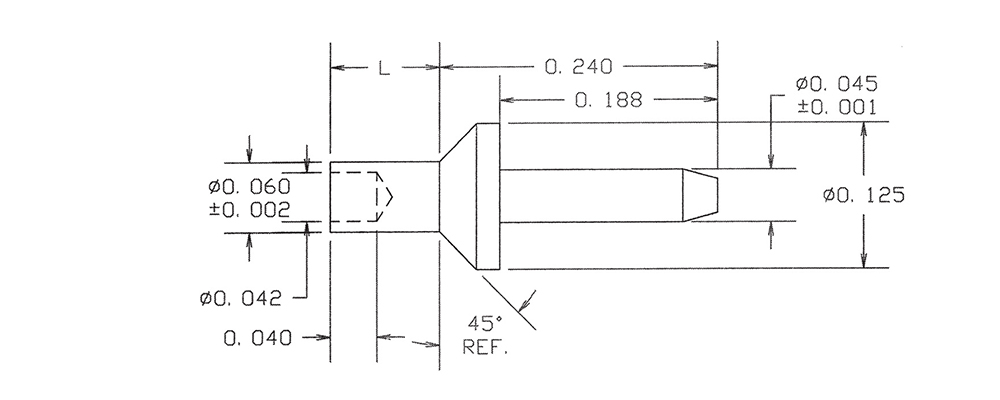

10-922-1-044
10-922-1-044
10-922-1-044
0.302" 0.045 - Swage Mount 0.062" 1/32 0.064 Brass Bright Tin YES

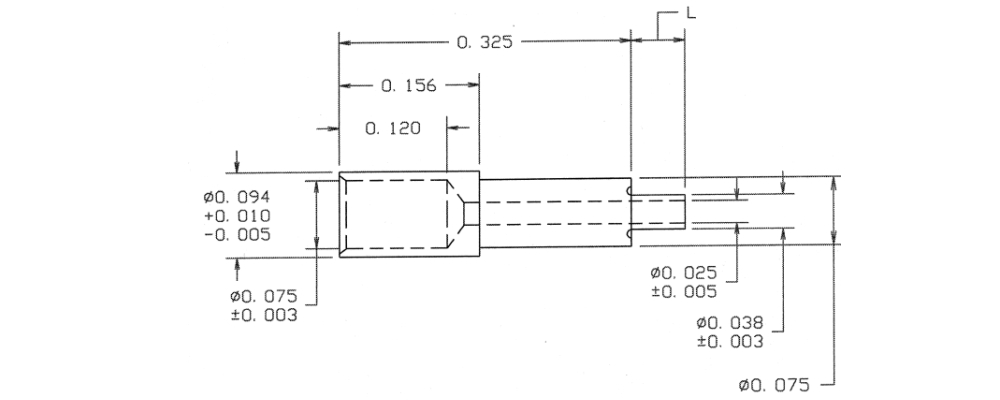

10-938-3-01
10-938-3-01
10-938-3-01
0.457" 0.038 - Swage Mount 0.132" 3/32 0.042 Brass Silver YES

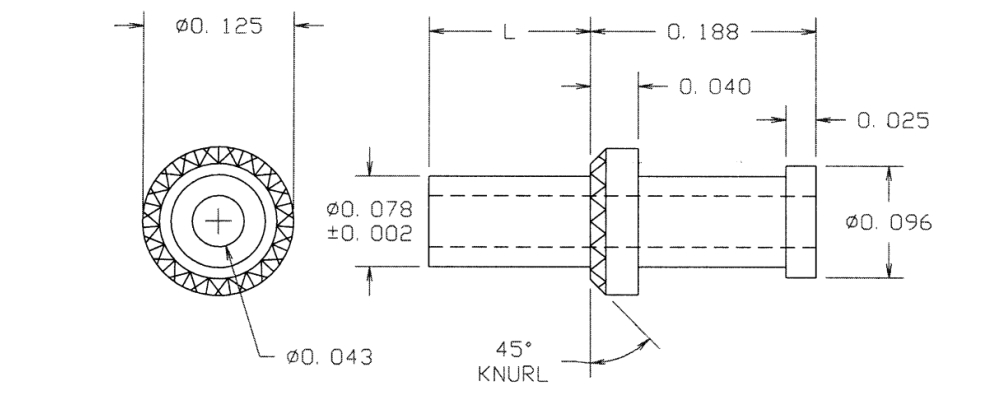

14-346-4A-03
14-346-4A-03
14-346-4A-03
0.340" - - Swage Mount 0.152" 1/8 0.082 LEADED Red Brass Gold YES
19-246-6-03
19-246-6-03
19-246-6-03
0.593" - - Swage Mount 0.234" 3/16 0.116 LEADED Red Brass Gold YES
10-410-1-05
10-410-1-05
10-410-1-05
0.403" - - Swage Mount 0.075" 1/32 0.116 Brass Electro Solder NO
