Commercial
Non-Insulated
Terminals

Filter
10-305-2-088
10-305-2-088
10-305-2-088
0.297" - - Swage Mount 0.109" 1/16 0.113 Brass Bright Tin-Lead NO
10-312-5-04
10-312-5-04
10-312-5-04
0.523" - - Swage Mount 0.195" 5/32 0.082 Brass Electro-Tin YES

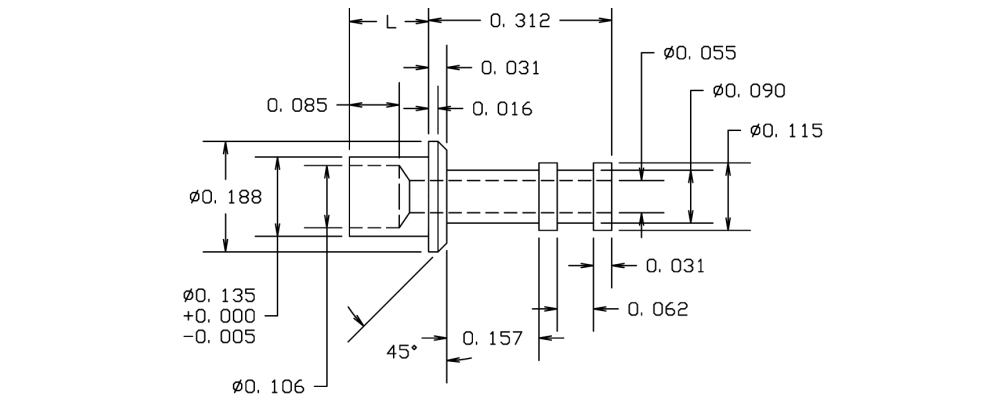

10-325-2-01
10-325-2-01
10-325-2-01
0.312" - - Swage Mount 0.105" 1/16 0.1405 Brass Silver YES
10-372-3-044
10-372-3-044
10-372-3-044
0.271" - - Swage Mount 0.115" 3/32 0.064 Brass Bright Tin YES
10-418-1-035
10-418-1-035
10-418-1-035
0.606" - Turret/Turret Swage Mount 0.075" 1/32 0.120 Brass Gold YES
10-431-1-05
10-431-1-05
10-431-1-05
0.125" - - Swage Mount 0.045" 1/32 0.036 Brass Electro Solder NO
10-444-4-035
10-444-4-035
10-444-4-035
0.272" - - Swage Mount 0.147" 1/8 0.043 Brass Gold YES
10-460-3-04
10-460-3-04
10-460-3-04
0.396" - - Swage Mount 0.115" 3/32 0.063 Brass Electro-Tin YES
10-482-5-035
10-482-5-035
10-482-5-035
0.562" - - Swage Mount 0.234" 3/16 0.116 Brass Gold YES
10-503-3-05
10-503-3-05
10-503-3-05
0.463" - Double Turret/Double Turret Swage Mount 0.113" 3/32 0.076 Brass Electro Solder NO
10-509-4-05
10-509-4-05
10-509-4-05
0.813" - Double Turret/Double Turret Swage Mount 0.156" 1/8 0.204 Brass Electro Solder NO
10-515-6-05
10-515-6-05
10-515-6-05
0.996" 0.094 TURRET/PIN Swage Mount 0.230" 3/16 0.185 Brass Electro Solder NO
10-530-3-05
10-530-3-05
10-530-3-05
0.604" - TURRET/DOUBLE TURRET Swage Mount 0.135" 3/32 0.159 Brass Electro Solder NO
10-549-2-05
10-549-2-05
10-549-2-05
0.784" - Double Turret/Double Turret Swage Mount 0.105" 1/16 0.206 Brass Electro Solder NO

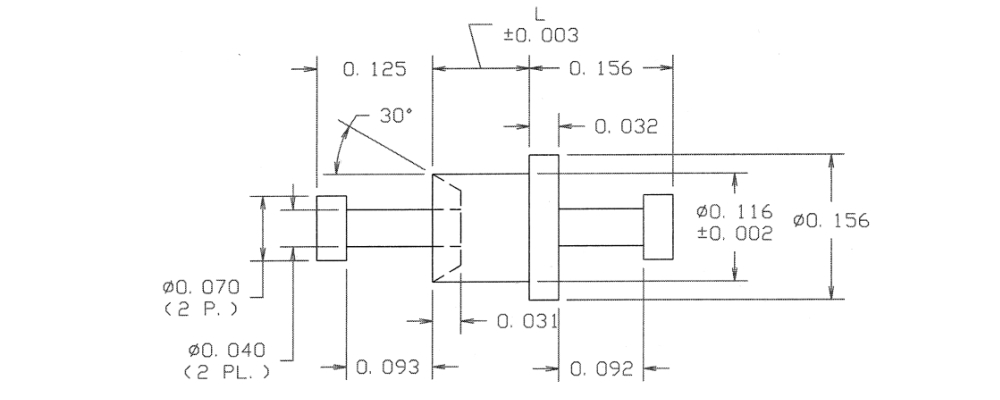

10-576-2-05
10-576-2-05
10-576-2-05
0.386" - Turret/Turret Swage Mount 0.105" 1/16 0.120 Brass Electro Solder NO
10-607-3-03
10-607-3-03
10-607-3-03
0.556" - - Swage Mount 0.135" 3/32 0.116 Brass Gold YES
10-714-3-088
10-714-3-088
10-714-3-088
0.697" - DOUBLE TURRET/THREAD Swage Mount 0.135" 3/32 0.204 Brass Bright Tin-Lead NO
10-8015-8-088
10-8015-8-088
10-8015-8-088
0.645" 0.040 TURRET/PIN Swage Mount 0.270" 1/4 0.076 Brass Bright Tin-Lead NO
10-803-1-044
10-803-1-044
10-803-1-044
0.426" 0.040 TURRET/PIN Swage Mount 0.051" 1/32 0.076 Brass Bright Tin YES
10-808-8-01
10-808-8-01
10-808-8-01
0.768" - - Swage Mount 0.297" 1/4 0.094 Brass Silver YES
