Commercial
Non-Insulated
Terminals

Filter
09-8348-3-03
09-8348-3-03
09-8348-3-03
0.410" 0.020 - Solder 0.140" 1/64 TO 1/8 0.0225 Brass Gold YES
09-8623-1-03
09-8623-1-03
09-8623-1-03
0.398" 0.041 - Press Fit/Solder 0.045" 1/64 0.038 Brass Gold YES
09-0050-4-03
09-0050-4-03
09-0050-4-03
0.484" - - Swage Mount 0.172" 1/8 0.140 Brass Gold YES

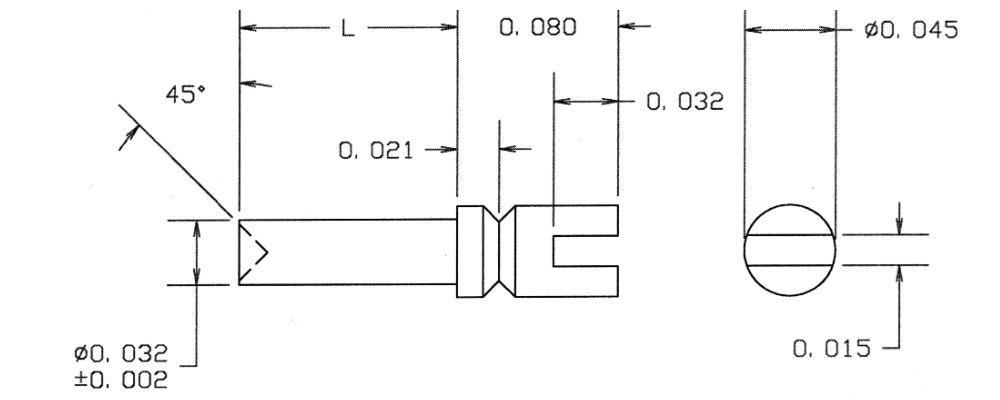

10-431-1-03
10-431-1-03
10-431-1-03
0.125" - - Swage Mount 0.045" 1/32 0.036 Brass Gold YES
10-201-8-01
10-201-8-01
10-201-8-01
0.456" - - Swage Mount 0.270" 1/4 0.076 Brass Silver YES
10-466-2-01
10-466-2-01
10-466-2-01
0.340" - TURRET/THREAD Swage Mount 0.082" 1/16 0.076 Brass Silver YES
09-8841-1-03
09-8841-1-03
09-8841-1-03
0.300" 0.040 - - - - - Brass Gold YES
10-490-4-044
10-490-4-044
10-490-4-044
0.571" - TURRET/SLOTTED Swage Mount 0.165" 1/8 0.120 Brass Bright Tin YES
10-709-3-01
10-709-3-01
10-709-3-01
0.550" - DOUBLE TURRET/THREAD Swage Mount 0.125" 3/32 0.129 Brass Silver YES
09-0216-3-04
09-0216-3-04
09-0216-3-04
0.514" - - Swage Mount 0.094" 1/16 0.067 Brass Electro-Tin YES
09-0216-3-095
09-0216-3-095
09-0216-3-095
0.514" - - Swage Mount 0.094" 1/16 0.067 Brass Hot Solder Dip NO
09-0218-1-035
09-0218-1-035
09-0218-1-035
0.520" 0.025 PIN/TERMINAL Solder 0.030" 1/64 TO 1/32 0.0635 Brass Gold YES
09-8850-1-05
09-8850-1-05
09-8850-1-05
0.196" 0.020 - Swage Mount 0.051" 1/32 0.035 Brass Electro Solder NO
10-137-3-04
10-137-3-04
10-137-3-04
0.300" - - Swage Mount 0.141" 3/32 0.094 Brass Electro-Tin YES
10-233-3-03
10-233-3-03
10-233-3-03
0.344" - - Swage Mount 0.125" 3/32 0.073 Brass Gold YES
10-806-8-035
10-806-8-035
10-806-8-035
0.724" - - Swage Mount 0.297" 1/4 0.094 Brass Gold YES
10-862-3-03
10-862-3-03
10-862-3-03
0.375" 0.040 - Swage Mount 0.125" 3/32 0.094 Brass Gold YES
09-0310-2-044
09-0310-2-044
09-0310-2-044
0.240" - - Swage Mount 0.084" 1/16 0.043 Brass Bright Tin YES
09-7155-2-03
09-7155-2-03
09-7155-2-03
0.326" 0.058 - RIVET MOUNT 0.095" 1/16 0.060 Brass Gold YES
09-8040-2-088
09-8040-2-088
09-8040-2-088
0.614" 0.020 - Solder 0.063" 1/32 0.022 Brass Bright Tin-Lead NO

About the Company

CONCORD ELECTRONICS, INC. is a leading manufacturer of high reliability, precision-machined interconnect components, hardware and test accessories. A majority of our parts are proudly Made in the USA and used in a wide variety of industries including: automotive, avionics, energy, industrial, instrumentation, marine, medical, military and telecommunications.  We are a MIL-DTL-39024 recognized manufacturer of both MIL-T-55155 (Group A) and A-A-59126 components
