Commercial
Insulated
Pin Terminals

Filter
1167-20-0412
1167-20-0412
1167-20-0412
0.843" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Red YES
1167-67-04418
1167-67-04418
1167-67-04418
0.875" - - 6-32 Nut 1/8 0.144 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Gray YES
1169-08-08814
1169-08-08814
1169-08-08814
0.499" - - 2-56 Nut 1/32 0.094 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Yellow NO
1169-37-0310
1169-37-0310
1169-37-0310
0.750" - - 4-40 Nut 1/8 0.120 Brass Gold ZINC Brass DIALLYL PHTHALATE Black YES

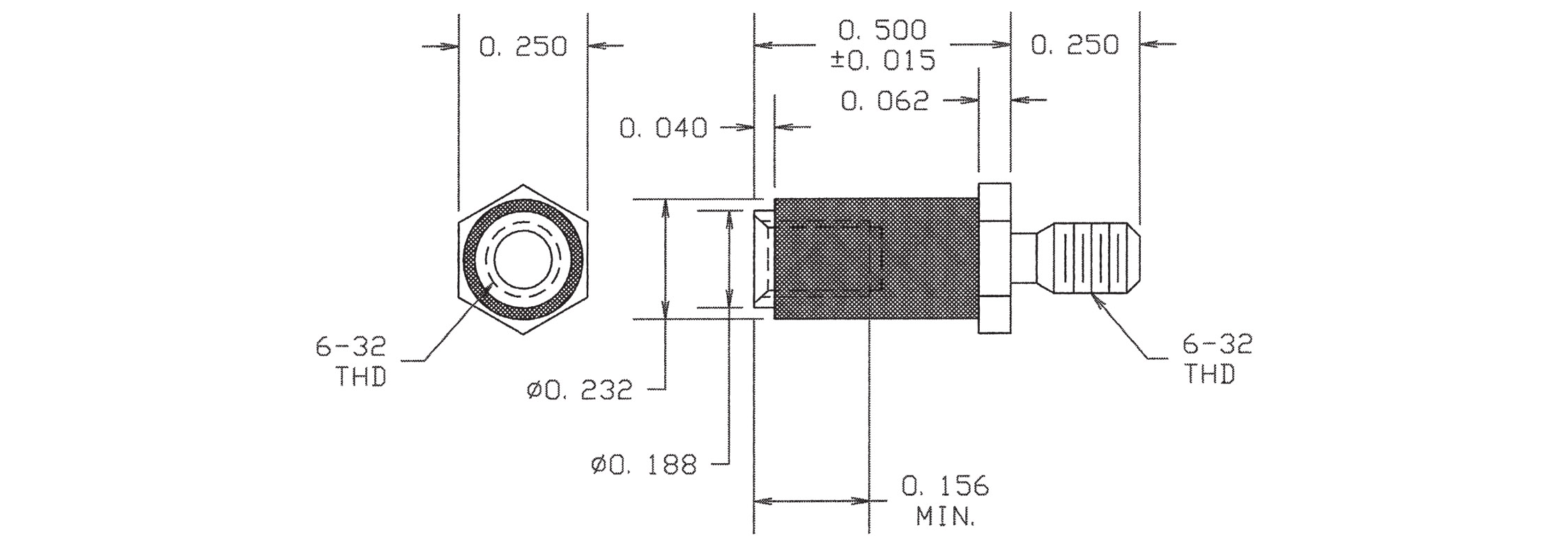

1170-03-07516
1170-03-07516
1170-03-07516
0.750" - - 6-32 Nut 1/8 0.144 Brass ZINC ZINC Brass DIALLYL PHTHALATE Blue YES
1170-22-0412
1170-22-0412
1170-22-0412
0.968" - - 6-32 Nut Up to 1/4 0.144 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Red YES
1175-012-04418
1175-012-04418
1175-012-04418
0.640" 0.047 Pin/Pin PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Bright Tin - - PTFE Gray NO

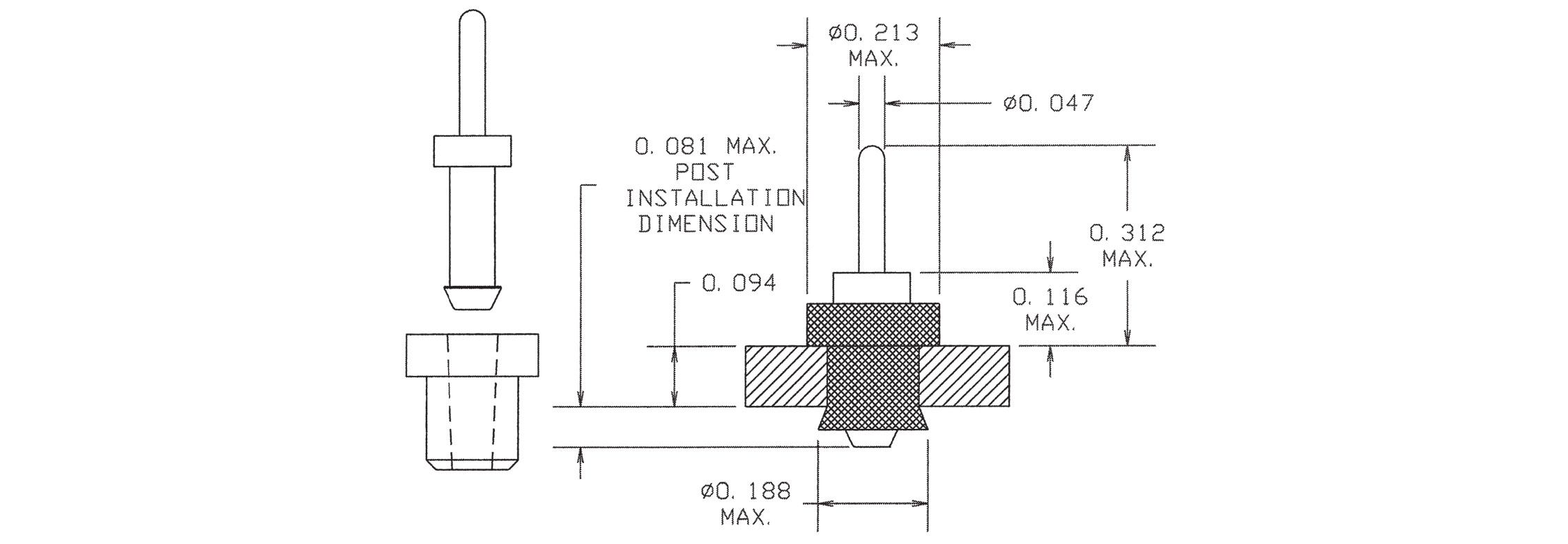

1175-023-08814
1175-023-08814
1175-023-08814
0.487" 0.047 - PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Yellow NO
1175-351-0310
1175-351-0310
1175-351-0310
0.342" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Gold - - PTFE Black YES
1175-372-0416
1175-372-0416
1175-372-0416
0.736" 0.040 DOUBLE TURRET/PIN PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Electro-Tin - - PTFE Blue YES

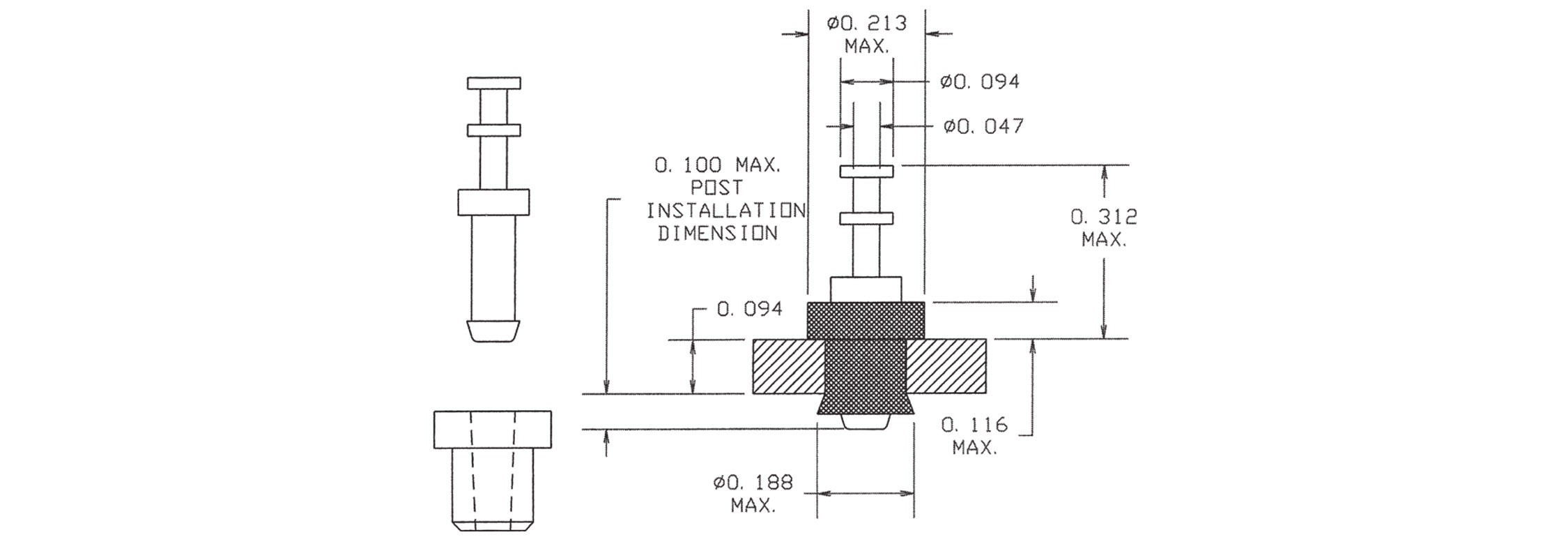

1175-403-0512
1175-403-0512
1175-403-0512
0.506" - - PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Red NO
1175-413-08818
1175-413-08818
1175-413-08818
0.611" - DOUBLE Turret/Turret PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Gray NO
1175-424-0314
1175-424-0314
1175-424-0314
0.756" - Double Turret/Double Turret PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Gold - - PTFE Yellow NO
1175-434-04410
1175-434-04410
1175-434-04410
0.537" - - PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Bright Tin - - PTFE Black YES

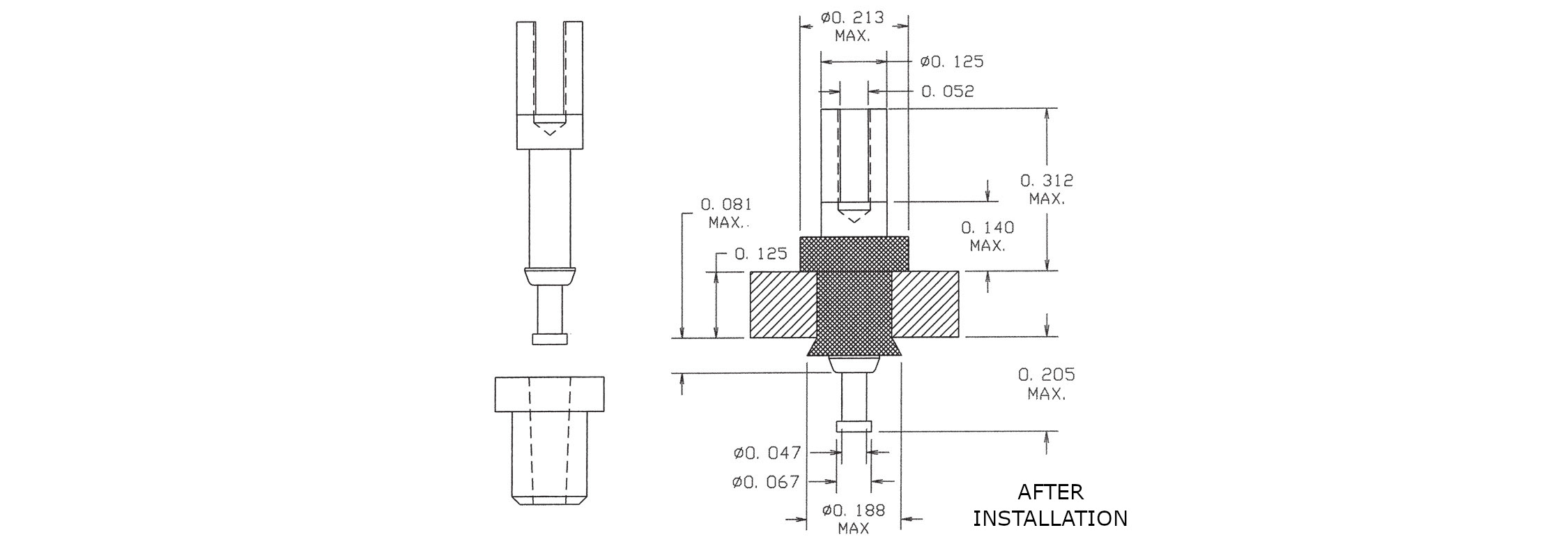

1175-444-0516
1175-444-0516
1175-444-0516
0.642" - TURRET/SLOTTED PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Blue NO

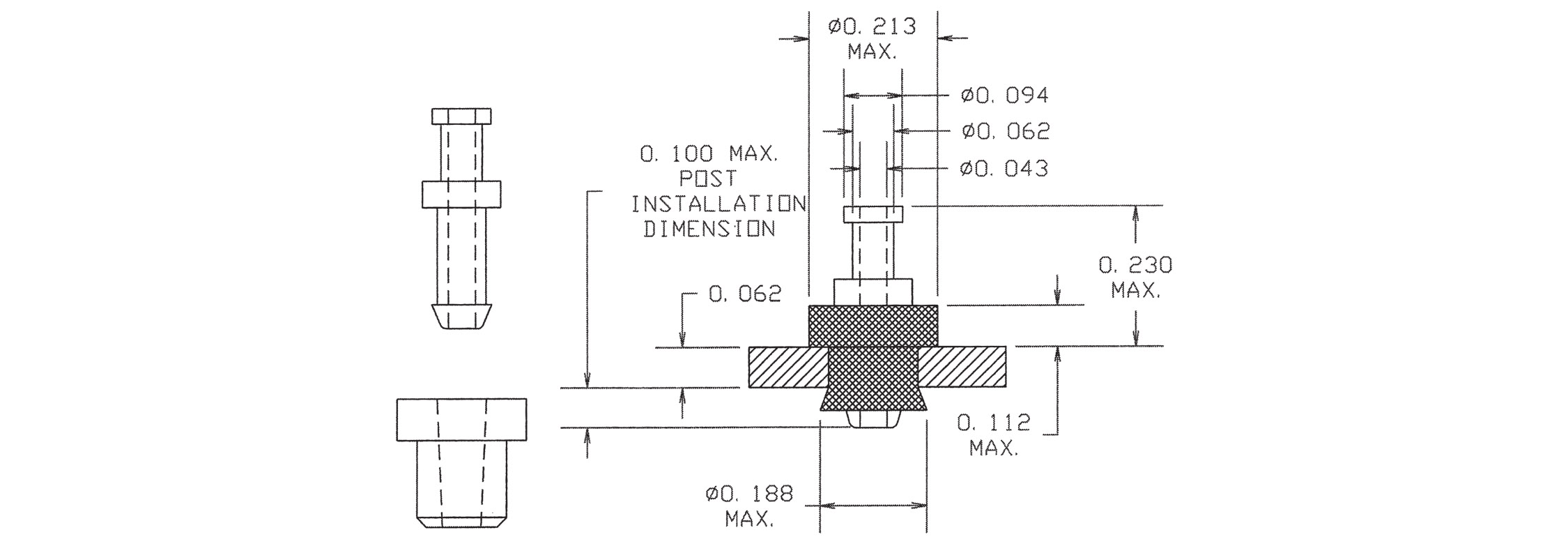

1175-462-0112
1175-462-0112
1175-462-0112
0.392" - - PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Silver - - PTFE Red NO
1175-473-0318
1175-473-0318
1175-473-0318
0.575" - - PRESS LOCK 3/32 0.188 (+0.003/-0.001) Brass Gold - - PTFE Gray NO

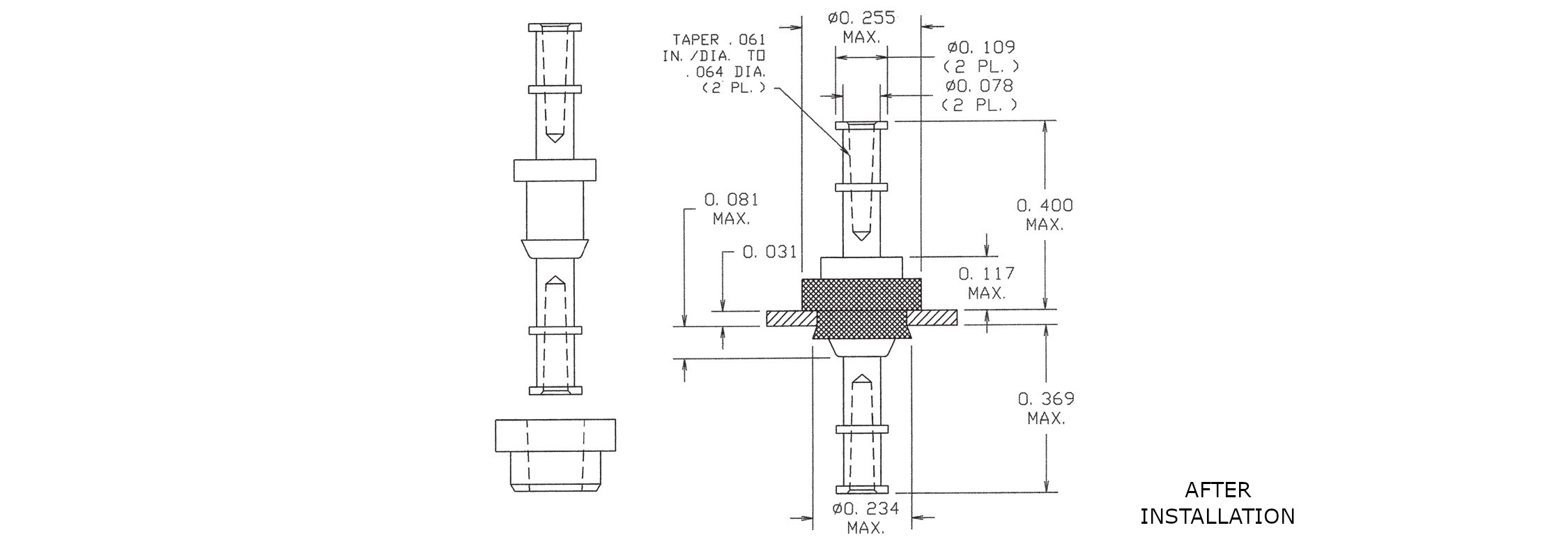

1175-491-04414
1175-491-04414
1175-491-04414
0.800" - Double Turret/Double Turret PRESS LOCK 1/32 0.188 (+0.003/-0.001) Brass Bright Tin - - PTFE Yellow NO

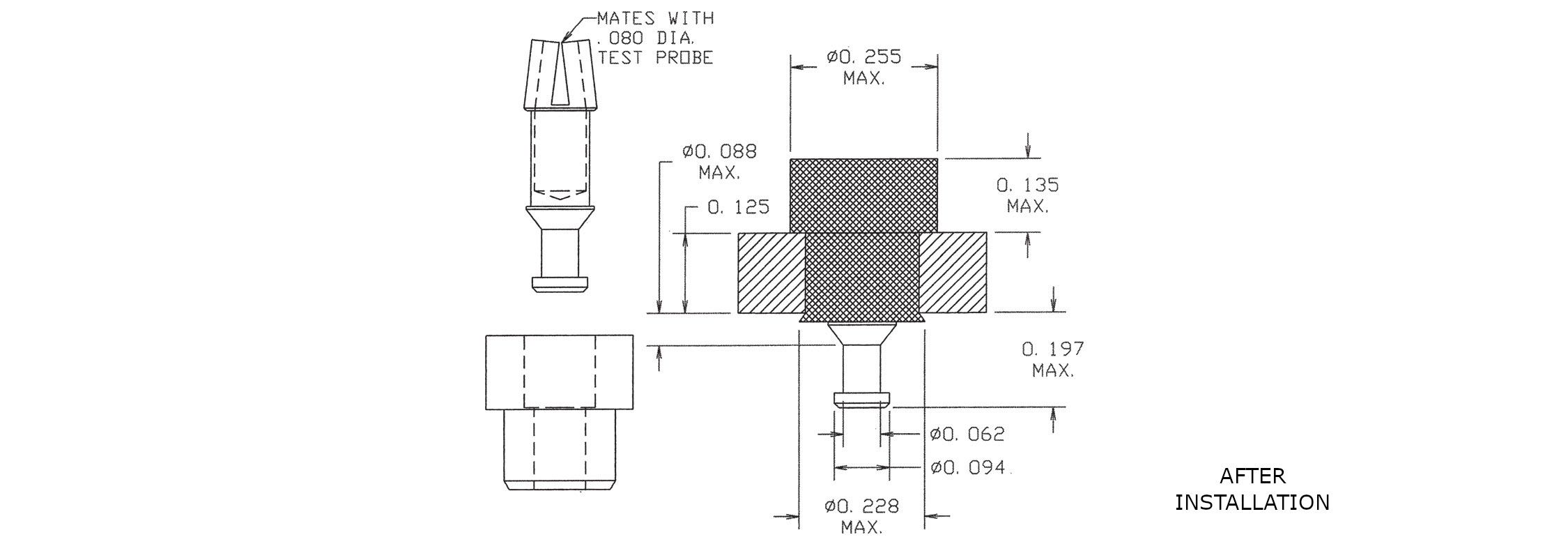

1175-514-08810
1175-514-08810
1175-514-08810
0.457" - - PRESS LOCK 1/8 0.189 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Black NO
1175-702-0116
1175-702-0116
1175-702-0116
0.474" - - PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Silver - - PTFE Blue YES
