Commercial
Insulated
Pin Terminals

Filter

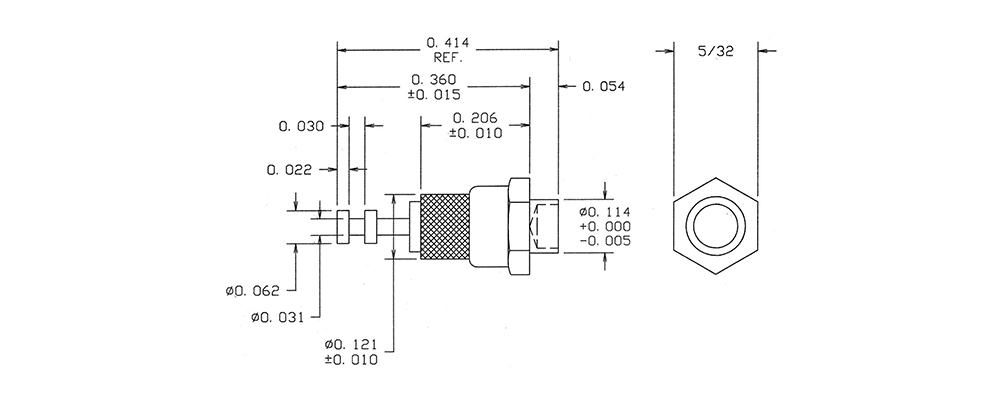

1125-06-0512
1125-06-0512
1125-06-0512
0.414" - - Swage Mount 1/32 0.116 ±0.002 Brass Electro Solder Electro-Tin Brass PTFE Red NO

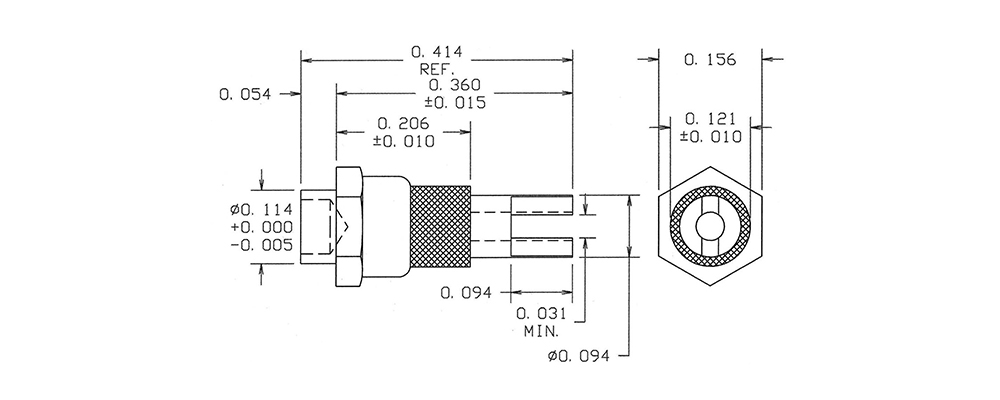

1125-10-08818
1125-10-08818
1125-10-08818
0.414" - - Swage Mount 1/32 0.116 ±0.002 Brass Bright Tin-Lead Electro-Tin Brass PTFE Gray NO

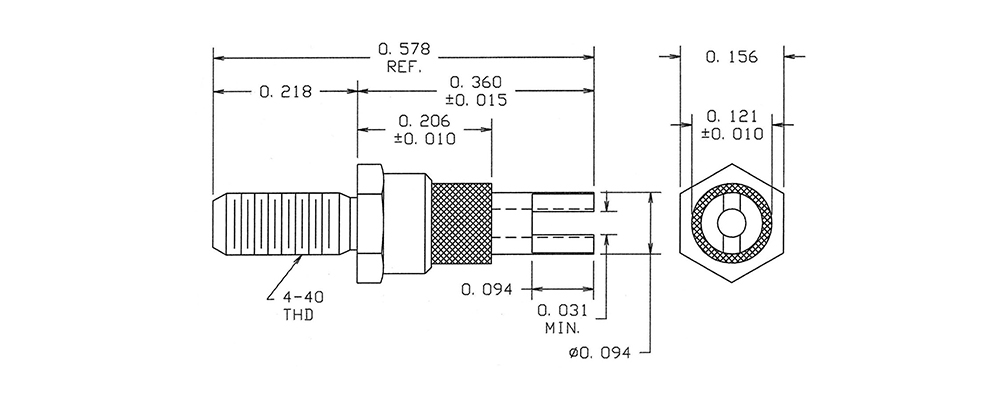

1125-15-0314
1125-15-0314
1125-15-0314
0.578" - - 4-40 Nut 7/64 0.120 Brass Gold Electro-Tin Brass PTFE Yellow NO

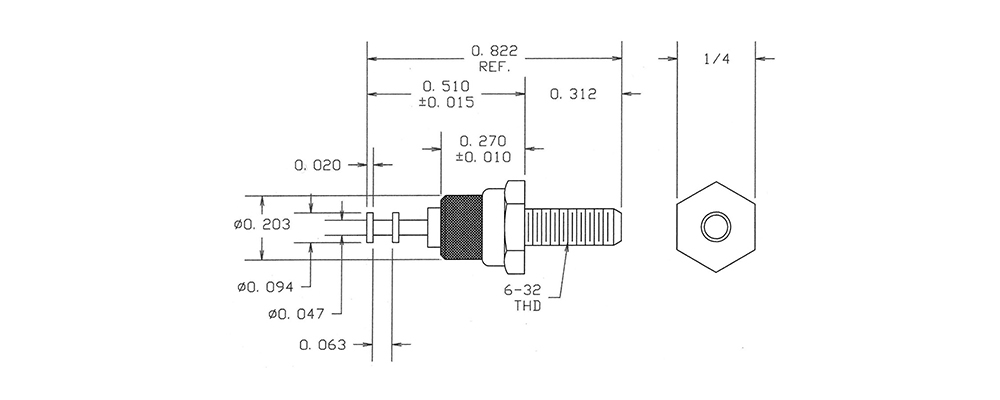

1125-19-04410
1125-19-04410
1125-19-04410
0.822" - - 6-32 Nut Up to 3/16 0.144 Brass Bright Tin Electro-Tin Brass PTFE Black YES
1125-23-0516
1125-23-0516
1125-23-0516
0.822" - - 4-40 Nut Up to 3/16 0.120 Brass Electro Solder Electro-Tin Brass PTFE Blue NO
1125-28-0112
1125-28-0112
1125-28-0112
0.615" - - Swage Mount 1/16 0.116 ±0.001 Brass Silver Electro-Tin Brass PTFE Red NO
09-2128-1-0318
09-2128-1-0318
09-2128-1-0318
0.443" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Gold - - PTFE Gray NO
1100-47-04414
1100-47-04414
1100-47-04414
0.350" 0.040 - Press Fit 1/16 0.166 Brass Bright Tin - - PTFE Yellow NO
1100R-22-08810
1100R-22-08810
1100R-22-08810
0.310" 0.040 - Press Fit 1/32 0.136 Brass Bright Tin-Lead - - PTFE Black NO
1100R-36-0116
1100R-36-0116
1100R-36-0116
0.390" 0.040 - Press Fit 3/32 0.136 Brass Silver - - PTFE Blue YES
1100R-53-0412
1100R-53-0412
1100R-53-0412
0.756" 0.040 - Press Fit 15/32 0.172 Brass Electro-Tin - - PTFE Red NO
1100R-70-04418
1100R-70-04418
1100R-70-04418
0.750" 0.040 - Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Gray NO
1102-43-08814
1102-43-08814
1102-43-08814
0.796" - - Press Fit 1/8 0.152 Brass Bright Tin-Lead - - PTFE Yellow NO
09-2078-1-0315
09-2078-1-0315
09-2078-1-0315
0.856" 0.025 SQ. TURRET/PIN Press Fit 5/64 0.086 Brass Gold - - PTFE Green YES
1110-39-0311
1110-39-0311
1110-39-0311
0.515" 0.040 Pin/Pin Press Fit 1/16 0.144 Brass Gold - - PTFE Brown NO

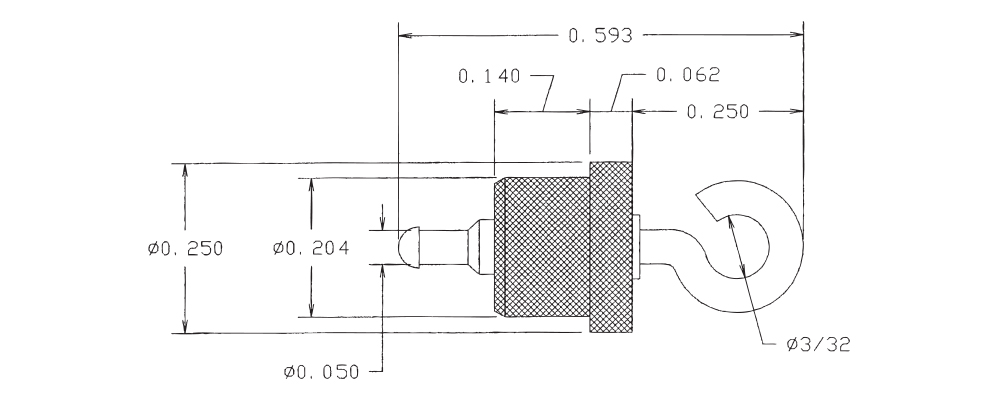

09-2094-1-04411
09-2094-1-04411
09-2094-1-04411
0.593" 0.050 ± 0.010 Pin/Hook Press Fit 3/32 0.191 Brass Bright Tin - - PTFE Brown NO
1111-19-0417
1111-19-0417
1111-19-0417
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.136 Brass Electro-Tin - - PTFE Violet YES
09-2101-1-0517
09-2101-1-0517
09-2101-1-0517
0.572" - - PRESS LOCK 1/32 - 1/16 0.173 Brass Electro Solder - - PTFE Violet NO
1112-05-0513
1112-05-0513
1112-05-0513
0.200" - - Press Fit 1/32 0.113 Brass Electro Solder - - PTFE Orange NO
09-2112-1-0113
09-2112-1-0113
09-2112-1-0113
0.838" - - 6-32 Nut 1/8 0.144 Brass Silver Nickel Brass PTFE Orange NO
