Commercial
Insulated
Pin Terminals

Filter
1123-08-0112
1123-08-0112
1123-08-0112
1.197" 0.050 TIP/SLOTTED Press Fit 15/32 0.158 Brass Silver - - PTFE Red NO
1123-72-0318
1123-72-0318
1123-72-0318
0.495" 0.040 TIP/SLOTTED Press Fit 3/32 0.136 Brass Gold - - PTFE Gray NO
1123R-05-04414
1123R-05-04414
1123R-05-04414
0.947" 0.050 TIP/SLOTTED Press Fit 7/32 0.158 Brass Bright Tin - - PTFE Yellow NO
1123R-62-08810
1123R-62-08810
1123R-62-08810
0.586" 0.050 Pin/Slotted Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE Black NO
1125-35-0116
1125-35-0116
1125-35-0116
0.850" - - 6-32 Nut 1/8 0.144 Brass Silver Electro-Tin Brass PTFE Blue YES
1125-40-0412
1125-40-0412
1125-40-0412
0.912" - - 4-40 Nut Up to 3/16 0.120 Brass Electro-Tin Electro-Tin Brass PTFE Red NO
1125-44-04418
1125-44-04418
1125-44-04418
0.718" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Bright Tin ZINC Brass PTFE Gray NO

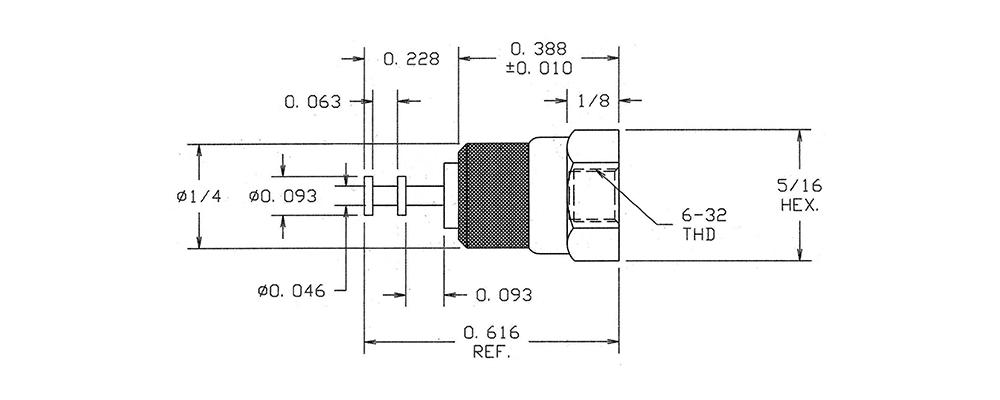

1125-48-08814
1125-48-08814
1125-48-08814
0.388" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Bright Tin-Lead ZINC Brass PTFE Yellow NO
1125-53-0310
1125-53-0310
1125-53-0310
0.975" - - 6-32 Nut Up to 1/4 0.144 Brass Gold Electro-Tin Brass PTFE Black YES
1125-57-0416
1125-57-0416
1125-57-0416
0.975" - - 4-40 Nut Up to 1/4 0.120 Brass Electro-Tin Electro-Tin Brass PTFE Blue YES
1125-62-0512
1125-62-0512
1125-62-0512
0.421" 0.040 - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Electro Solder ZINC Brass PTFE Red NO
1125-73-08818
1125-73-08818
1125-73-08818
0.822" - - 6-32 Nut 1/8 0.144 Brass Bright Tin-Lead ZINC Brass PTFE Gray NO
1125-78-0314
1125-78-0314
1125-78-0314
0.697" - - Swage Mount 3/32 0.194 Brass Gold ZINC Brass PTFE Yellow NO
1125-83-04410
1125-83-04410
1125-83-04410
0.725" - - Swage Mount 3/32 0.191 Brass Bright Tin Electro-Tin Brass PTFE Black YES
1125-87-0516
1125-87-0516
1125-87-0516
0.461" 0.040 - 2-56 - 2-56 THREAD Brass Electro Solder ZINC Brass PTFE Blue NO
1125-93-0112
1125-93-0112
1125-93-0112
0.594" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Silver ZINC Brass PTFE Red NO
1125-97-0318
1125-97-0318
1125-97-0318
0.672" - - 6-32 Nut 1/8 0.144 Brass Gold ZINC Brass PTFE Gray NO
1126-27-04414
1126-27-04414
1126-27-04414
0.484" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Bright Tin ZINC Brass PTFE Yellow NO
1126-33-08810
1126-33-08810
1126-33-08810
1.172" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Bright Tin-Lead ZINC Brass PTFE Black NO
1126-38-0116
1126-38-0116
1126-38-0116
1.469" - - 4-40 Nut 1/8 0.120 Brass Silver ZINC Brass PTFE Blue YES
