Commercial
Insulated
Pin Terminals

Filter
1175-712-0412
1175-712-0412
1175-712-0412
0.579" - DOUBLE Turret/Turret PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Electro-Tin - - PTFE Red NO
1175-722-04418
1175-722-04418
1175-722-04418
0.693" - Double Turret/Double Turret PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Bright Tin - - PTFE Gray NO

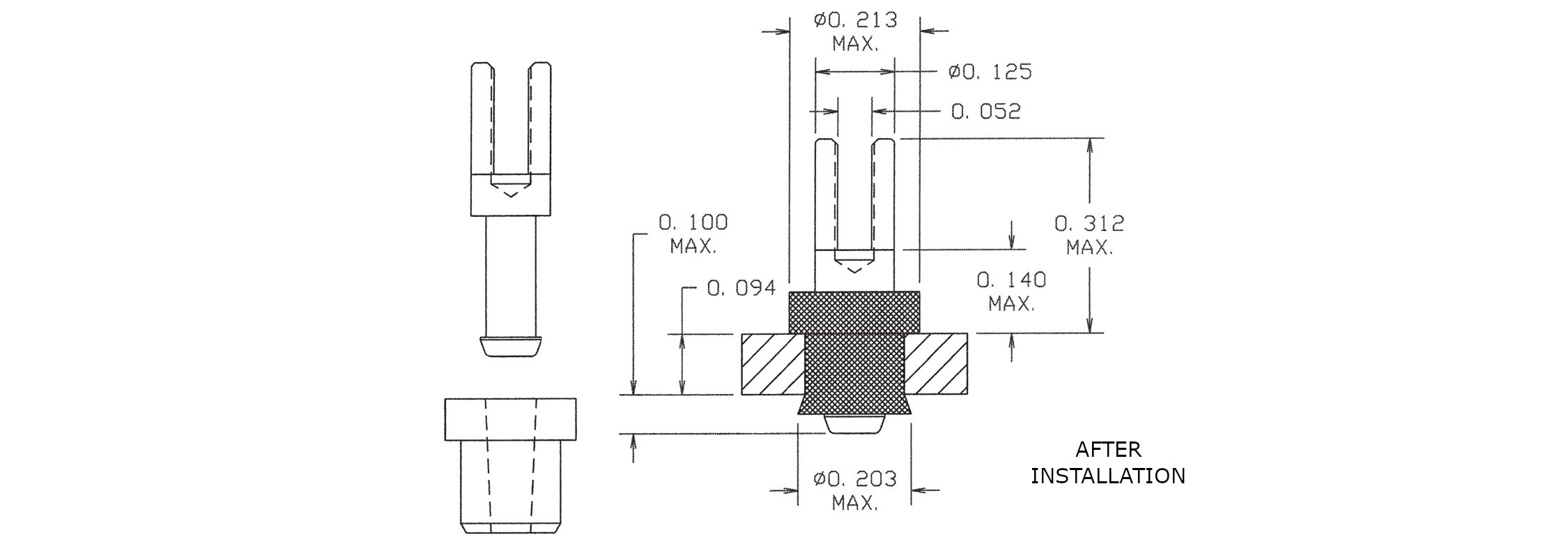

1175-733-08814
1175-733-08814
1175-733-08814
0.506" - - PRESS LOCK 3/32 0.154 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Yellow NO
1175-751-0310
1175-751-0310
1175-751-0310
0.655" - DOUBLE TURRET/SLOTTED PRESS LOCK 1/32 0.154 (+0.003/-0.001) Brass Gold - - PTFE Black YES
1175-762-0416
1175-762-0416
1175-762-0416
0.387" - - PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Electro-Tin - - PTFE Blue YES
1175-821-0512
1175-821-0512
1175-821-0512
0.402" - - PRESS LOCK 1/32 0.126 (+0.003/-0.001) Brass Electro Solder - - PTFE Red NO

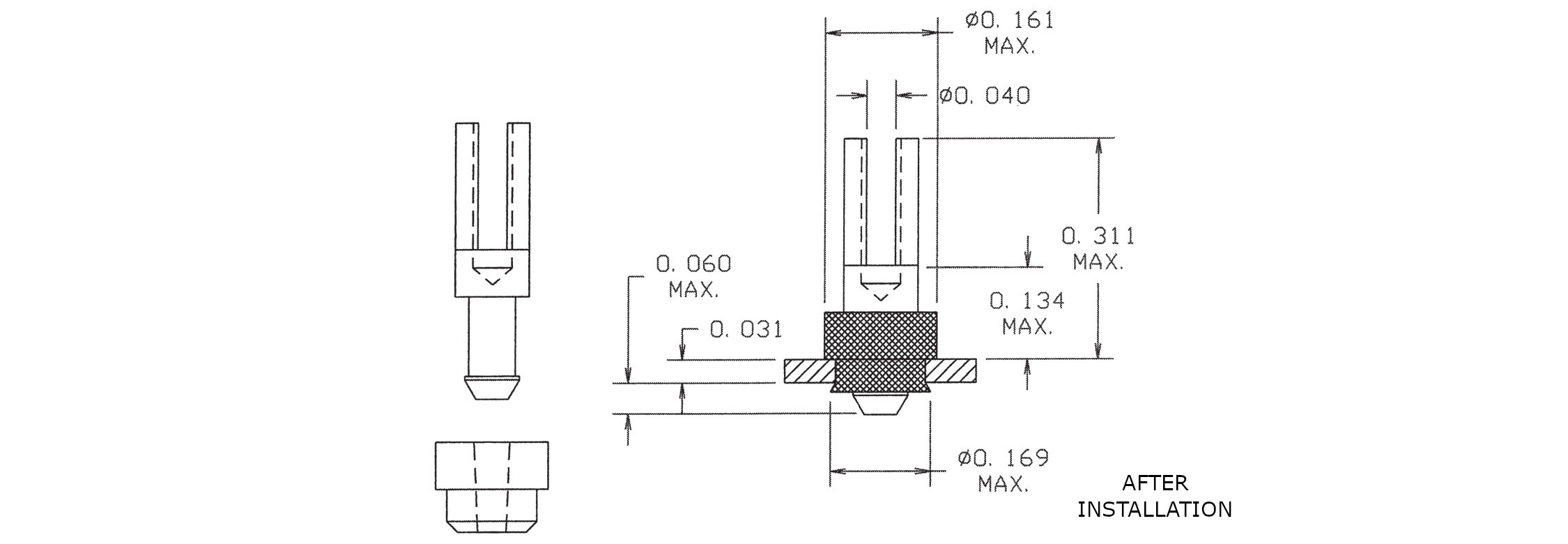

1175-841-08818
1175-841-08818
1175-841-08818
0.402" - - PRESS LOCK 1/32 0.126 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Gray NO
1175-872-0314
1175-872-0314
1175-872-0314
0.591" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/16 0.126 (+0.003/-0.001) Brass Gold - - PTFE Yellow NO
1177-02-04410
1177-02-04410
1177-02-04410
0.272" 0.040 - PRESS LOCK 1/32 - 1/16 0.093 Brass Bright Tin - - PTFE Black YES

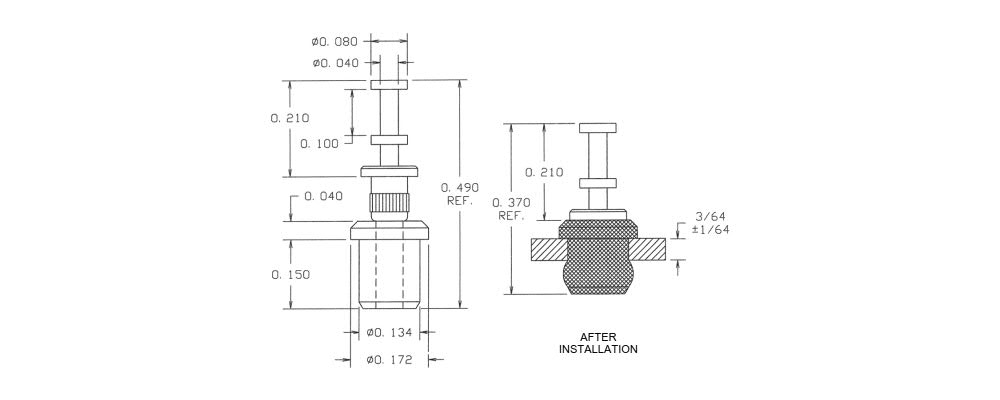

1177-11-0516
1177-11-0516
1177-11-0516
0.370" - - PRESS LOCK 1/32 - 1/16 0.136 Brass Electro Solder - - PTFE Blue NO

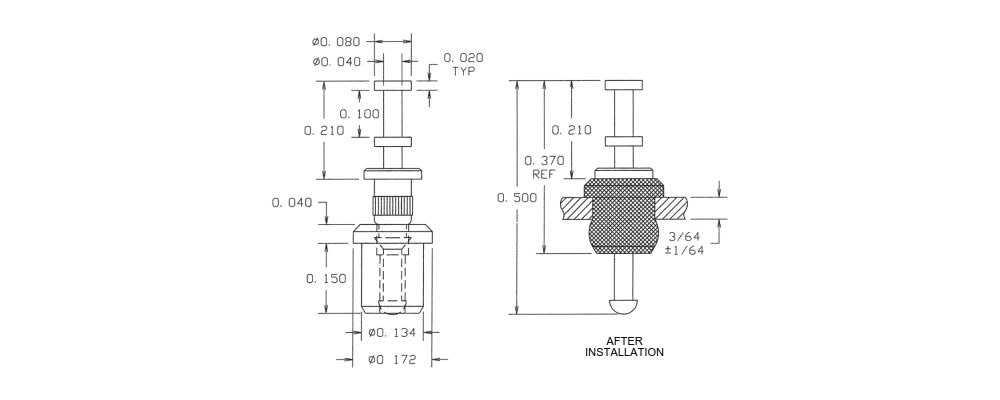

1177-32-0112
1177-32-0112
1177-32-0112
0.500" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/32 - 1/16 0.136 Brass Silver - - PTFE Red NO

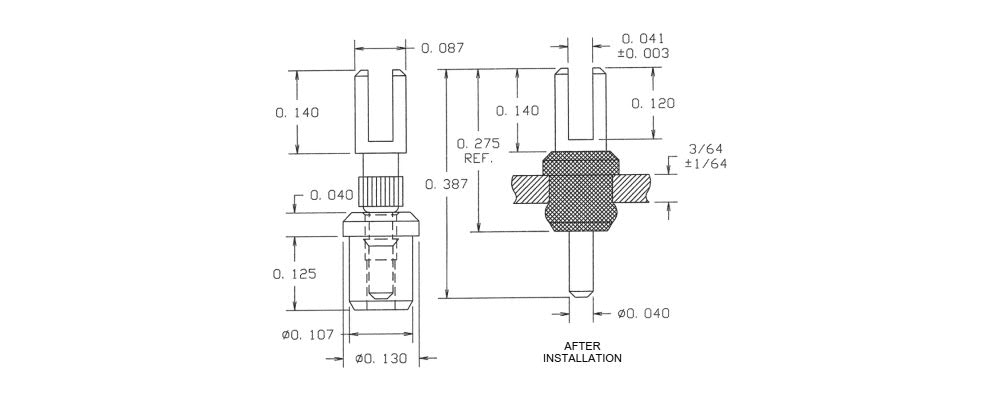

1177-41-0318
1177-41-0318
1177-41-0318
0.387" 0.040 Pin/Slotted PRESS LOCK 1/32 - 1/16 0.109 Brass Gold - - PTFE Gray NO
1177-52-04414
1177-52-04414
1177-52-04414
0.515" 0.040 Pin/Pin PRESS LOCK 1/32 - 1/16 0.086 Brass Bright Tin - - PTFE Yellow NO

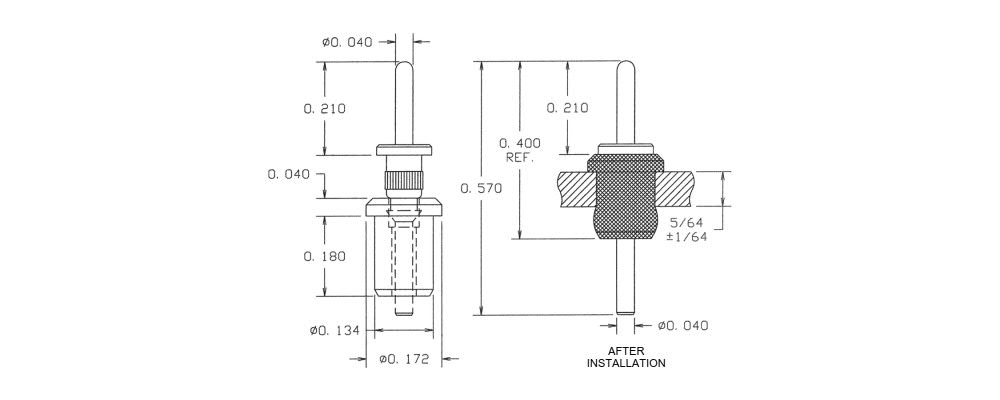

1177-56-08810
1177-56-08810
1177-56-08810
0.570" 0.040 Pin/Pin PRESS LOCK 1/16 - 3/32 0.136 Brass Bright Tin-Lead - - PTFE Black NO
1177-61-0116
1177-61-0116
1177-61-0116
0.446" 0.040 Pin/Pin PRESS LOCK 1/64 0.138 Brass Silver - - PTFE Blue YES

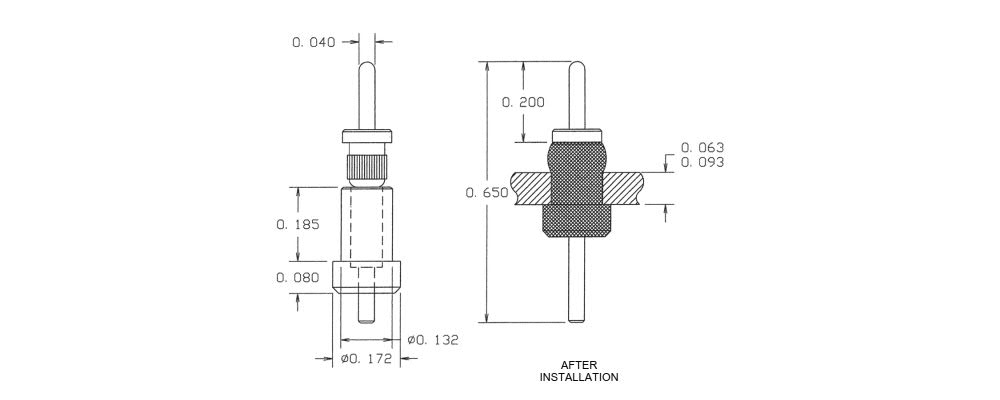

1178R-03-0412
1178R-03-0412
1178R-03-0412
0.650" 0.040 Pin/Pin PRESS LOCK 1/16 - 3/32 0.134 Brass Electro-Tin - - PTFE Red NO

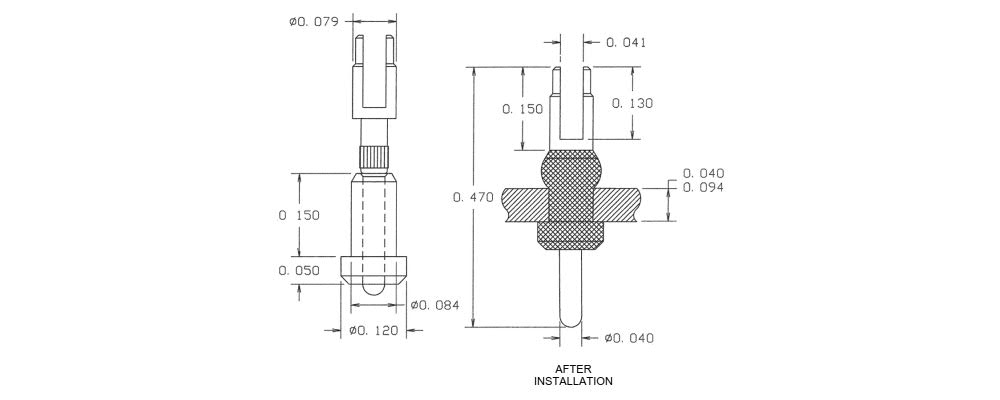

1178R-10-04418
1178R-10-04418
1178R-10-04418
0.470" 0.040 Pin/Slotted PRESS LOCK 1/32 - 3/32 0.086 Brass Bright Tin - - PTFE Gray NO

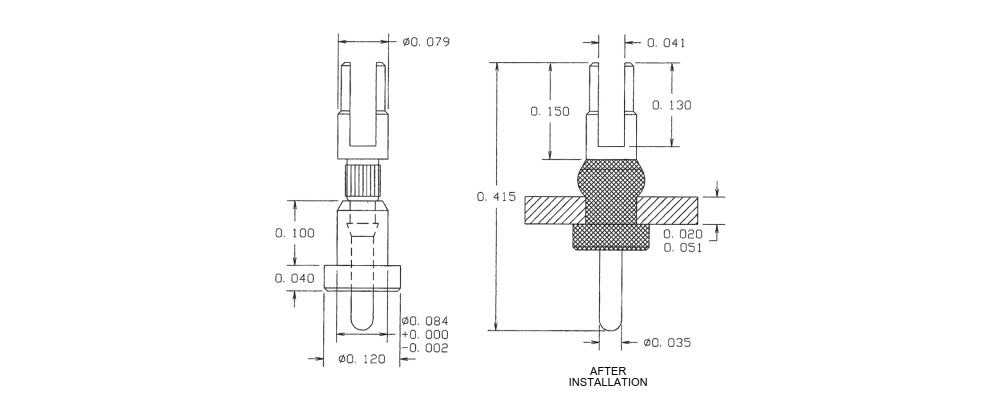

1178R-14-08814
1178R-14-08814
1178R-14-08814
0.415" 0.035 Pin/Slotted PRESS LOCK 1/64 - 3/64 0.086 Brass Bright Tin-Lead - - PTFE Yellow NO

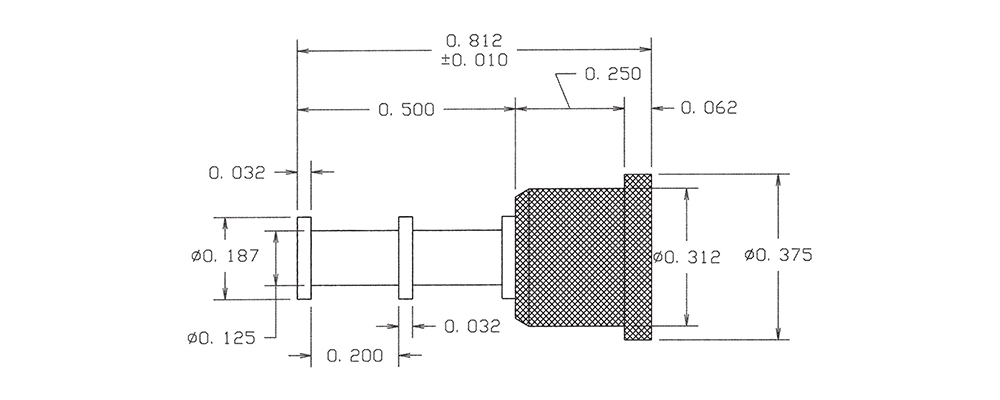

1102R-95-0310
1102R-95-0310
1102R-95-0310
0.812" - - Press Fit 13/64 0.297 Brass Gold - - PTFE Black YES
1125-02-0416
1125-02-0416
1125-02-0416
0.578" - - 2-56 Nut 7/64 0.094 Brass Electro-Tin Electro-Tin Brass PTFE Blue YES
