Commercial
Insulated
Pin Terminals

Filter
1151-51-0112
1151-51-0112
1151-51-0112
1.234" - - Press Fit 5/32 0.203 Brass Silver - - PTFE Red NO

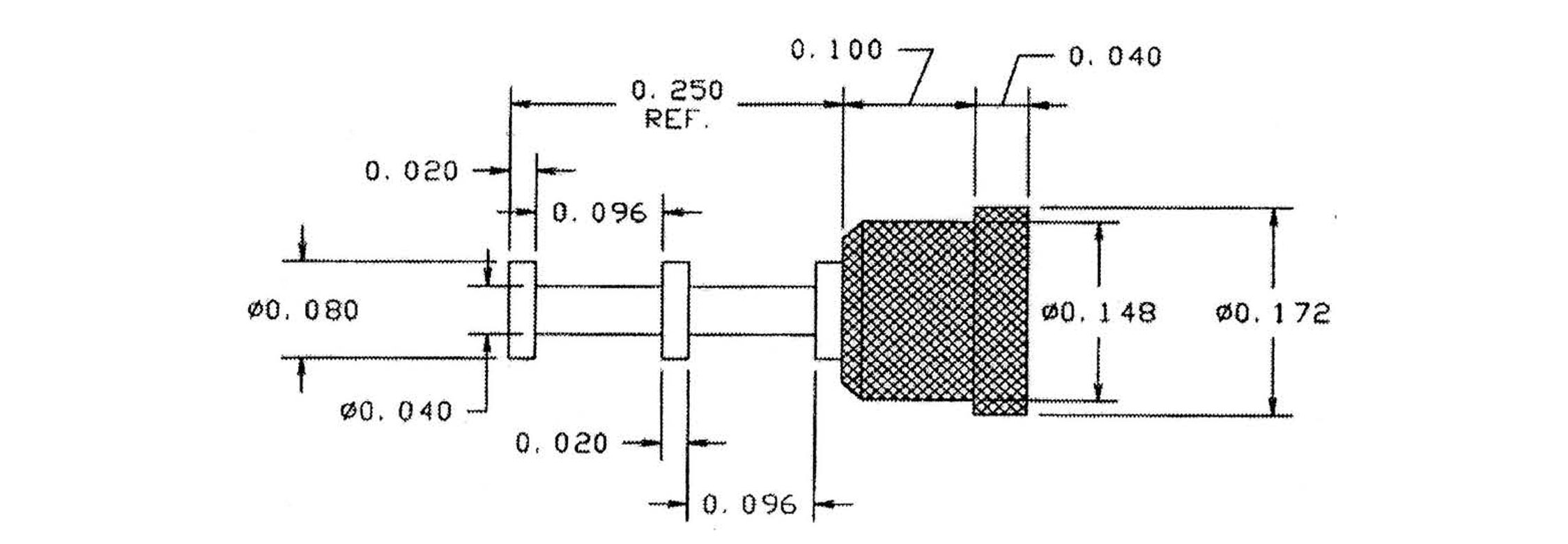

1151R-09-0318
1151R-09-0318
1151R-09-0318
0.390" - - Press Fit 1/16 0.136 Brass Gold - - PTFE Gray NO
1151R-38-04414
1151R-38-04414
1151R-38-04414
0.390" - - Press Fit 1/16 0.158 Brass Bright Tin - - PTFE Yellow NO

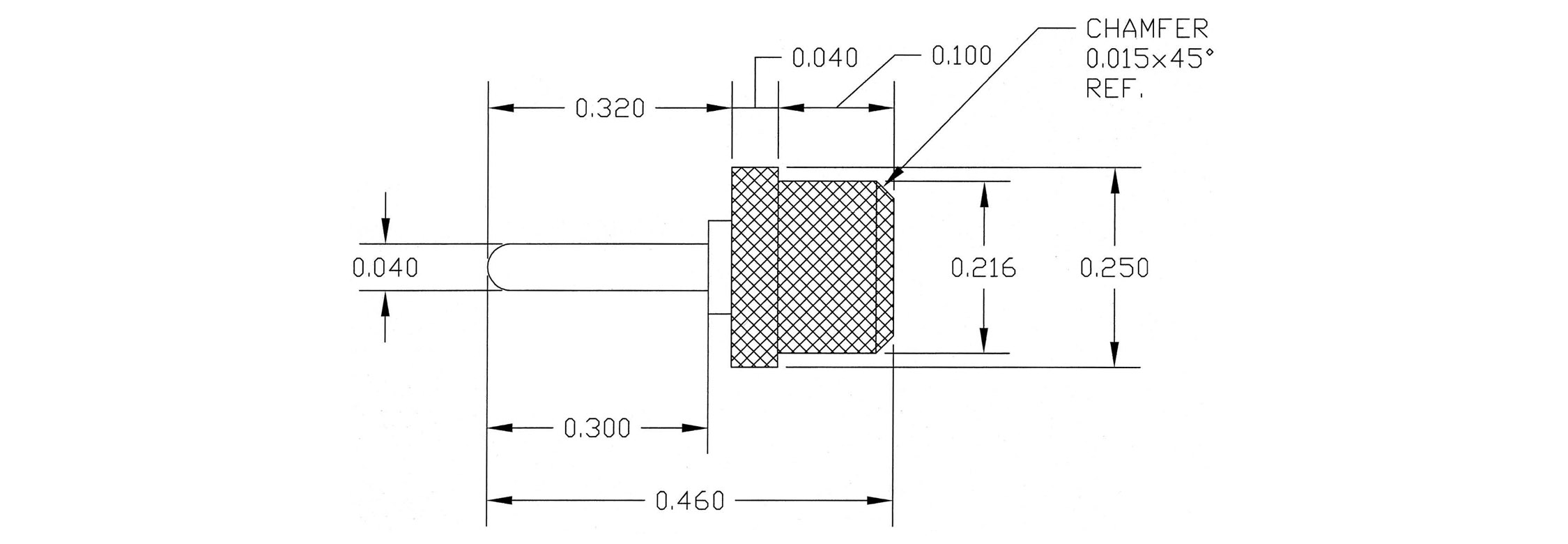

1152-29-08810
1152-29-08810
1152-29-08810
0.460" 0.040 - Press Fit 1/16 0.204 Brass Bright Tin-Lead - - PTFE Black NO
1152R-17-0116
1152R-17-0116
1152R-17-0116
0.615" 0.040 - Press Fit 1/8 0.136 Brass Silver - - PTFE Blue YES

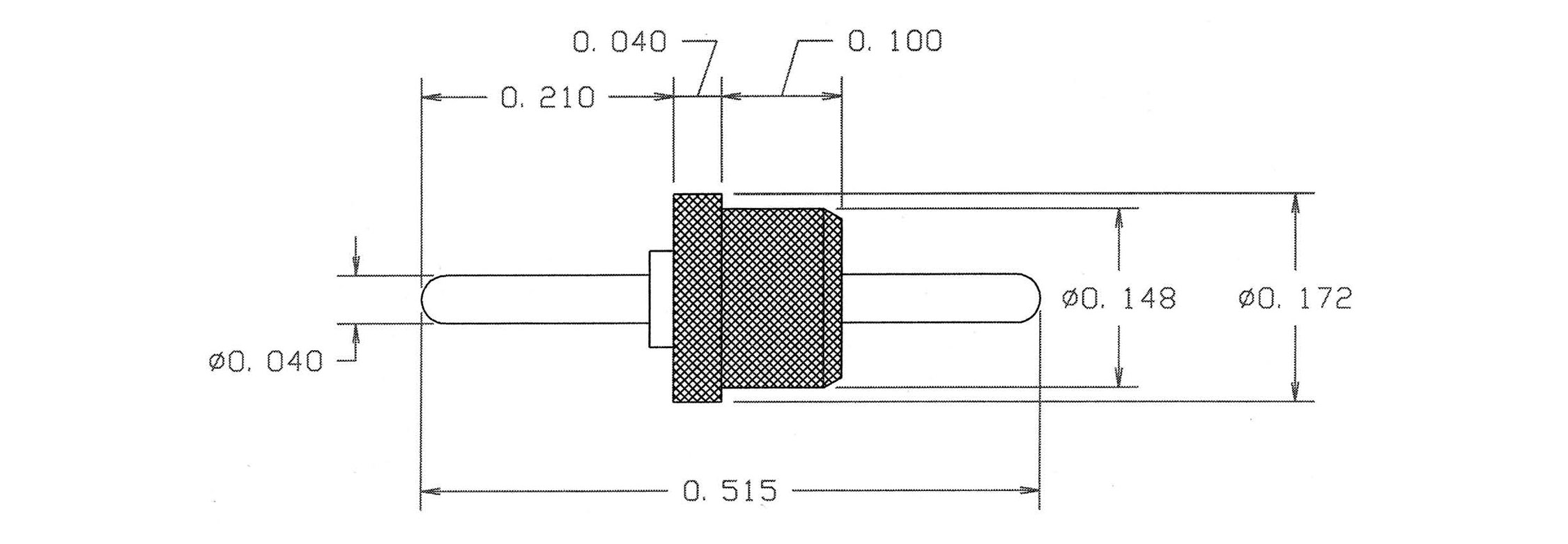

1153-06-0412
1153-06-0412
1153-06-0412
0.515" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Red NO
1153-31-04418
1153-31-04418
1153-31-04418
0.675" 0.040 Pin/Pin Press Fit 1/8 0.152 Brass Bright Tin - - PTFE Gray NO

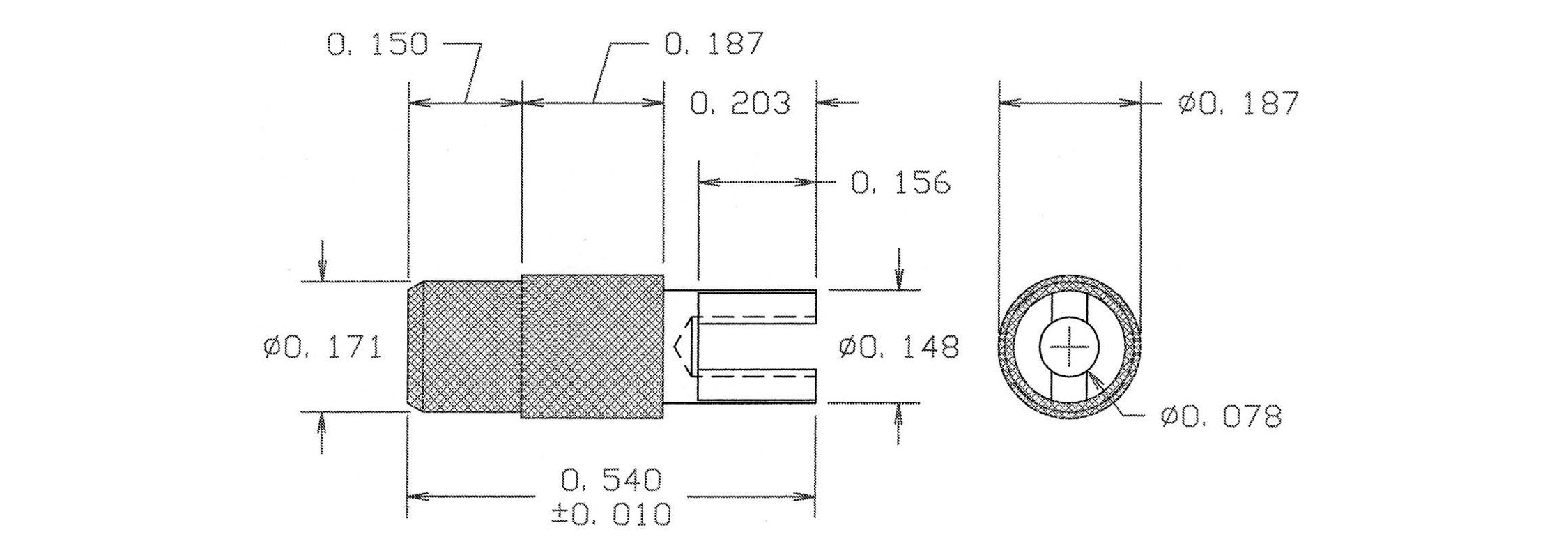

1154-08-08814
1154-08-08814
1154-08-08814
0.540" - - Press Fit 1/8 0.158 Brass Bright Tin-Lead - - PTFE Yellow NO
1154-44-0310
1154-44-0310
1154-44-0310
0.821" 0.050 Pin/Slotted Press Fit Up to 3/16 0.158 Brass Gold - - PTFE Black YES

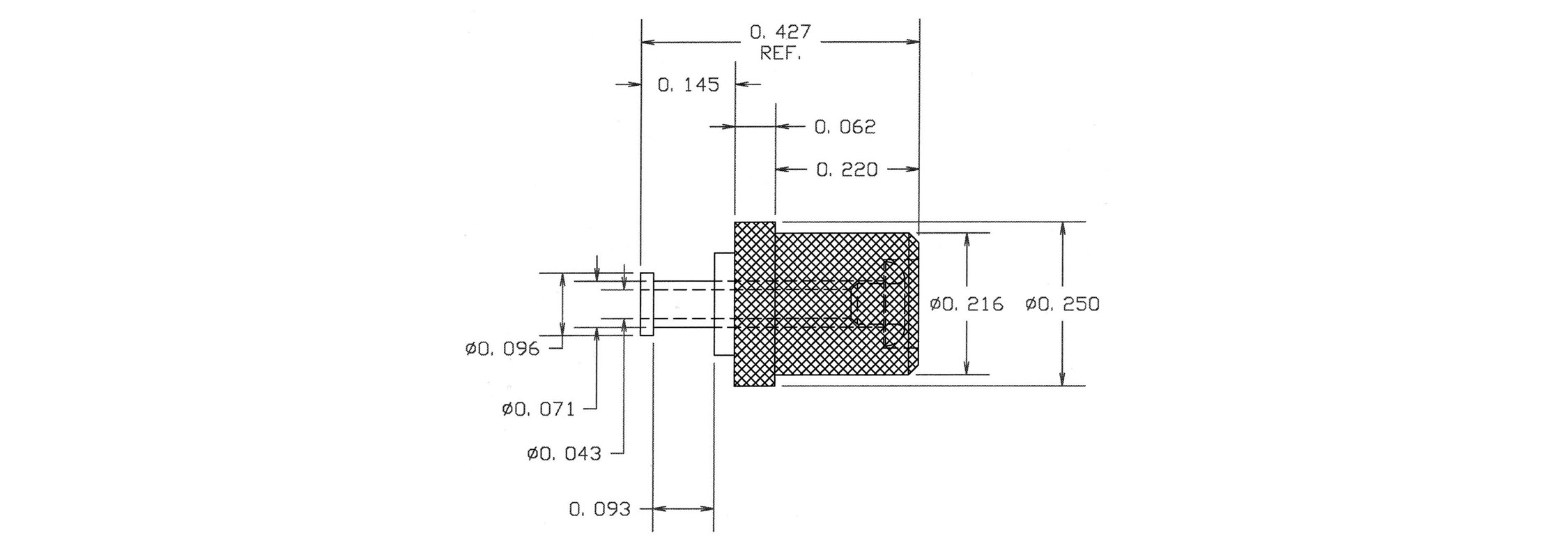

1155-01-0416
1155-01-0416
1155-01-0416
0.427" - - Press Fit Up to 3/16 0.204 Brass Electro-Tin - - PTFE Blue YES
1155-07-0512
1155-07-0512
1155-07-0512
0.347" - - Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Red NO

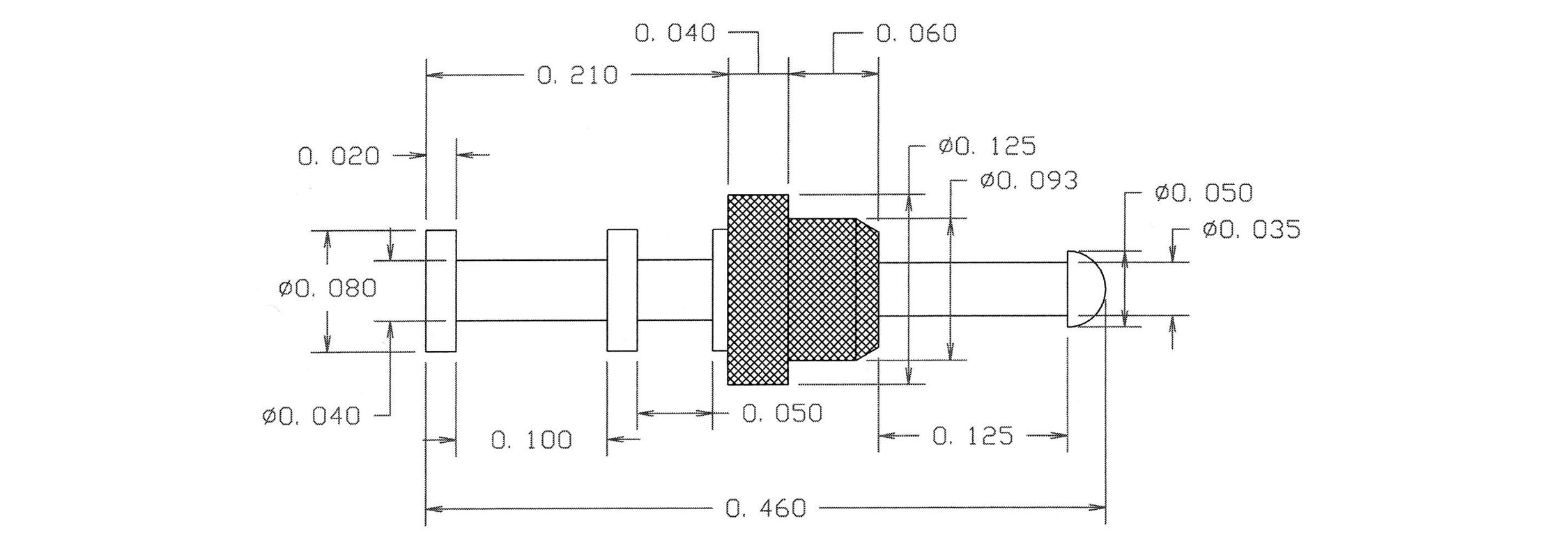

1156-01-08818
1156-01-08818
1156-01-08818
0.460" - DOUBLE Turret/Tip Press Fit 1/32 0.086 Brass Bright Tin-Lead - - PTFE Gray NO

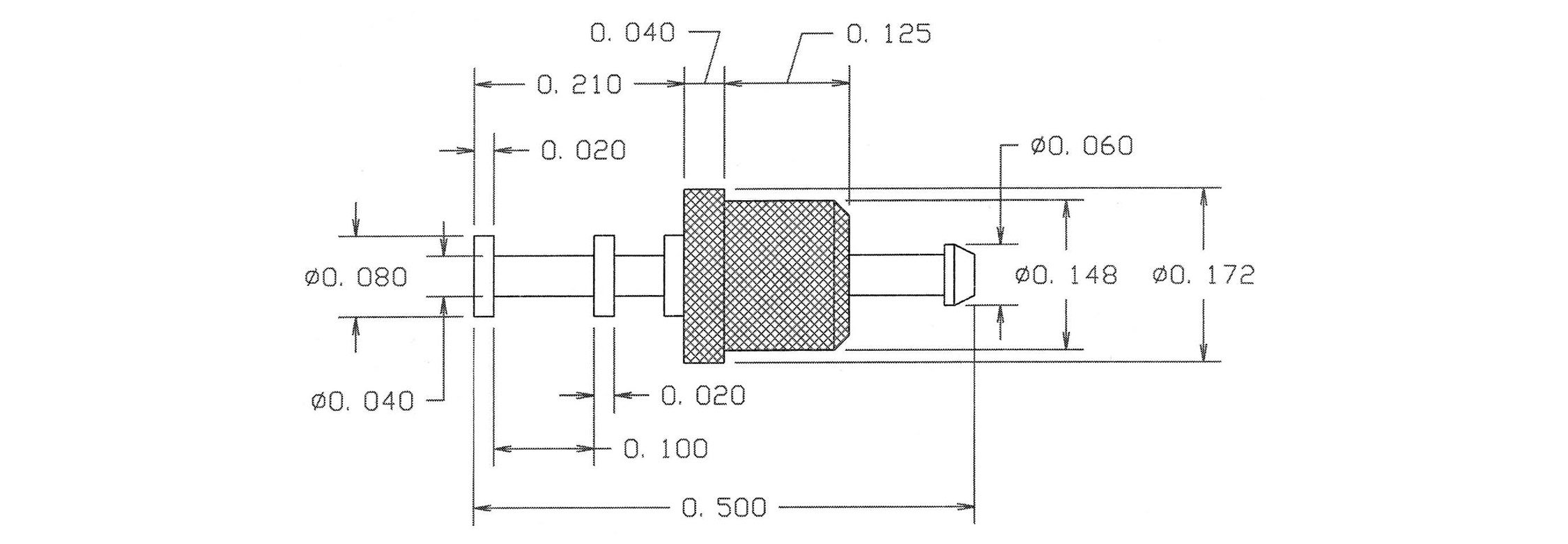

1156-07-0314
1156-07-0314
1156-07-0314
0.500" 0.040 DOUBLE TURRET/PIN Press Fit 3/32 0.136 Brass Gold - - PTFE Yellow NO

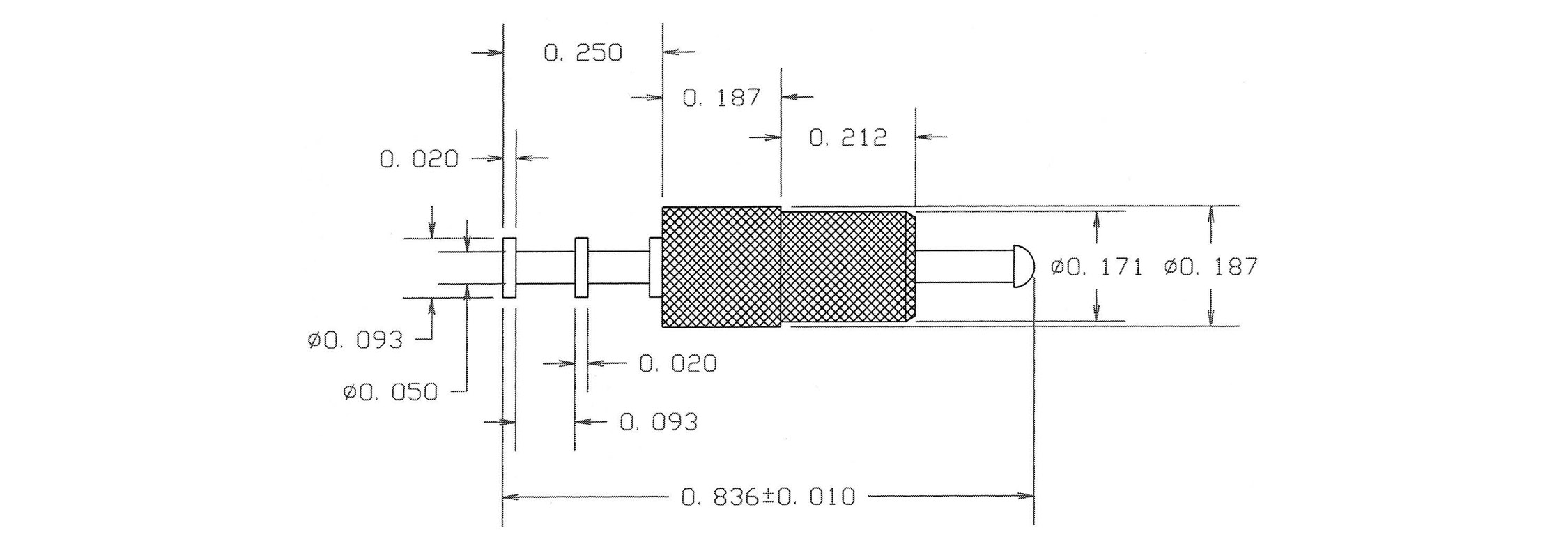

1156-14-04410
1156-14-04410
1156-14-04410
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.158 Brass Bright Tin - - PTFE Black YES

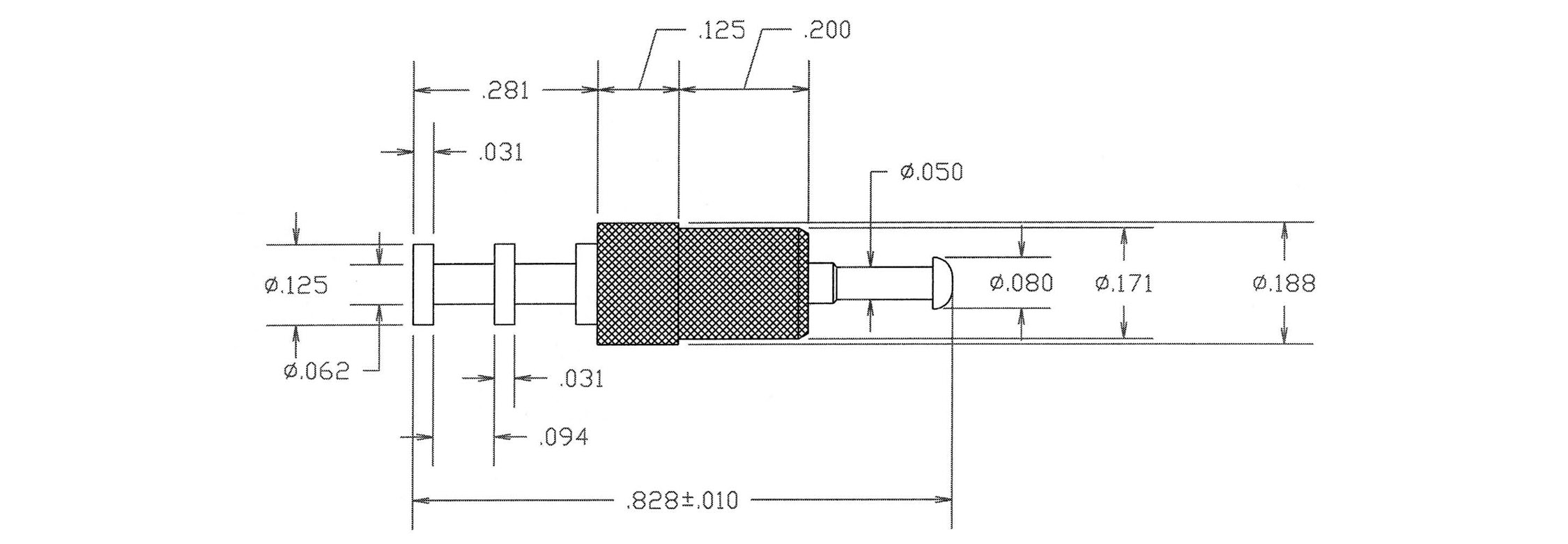

1156-18-0516
1156-18-0516
1156-18-0516
0.828" 0.050 DOUBLE Turret/Tip Press Fit 5/32 0.158 Brass Electro Solder - - PTFE Blue NO

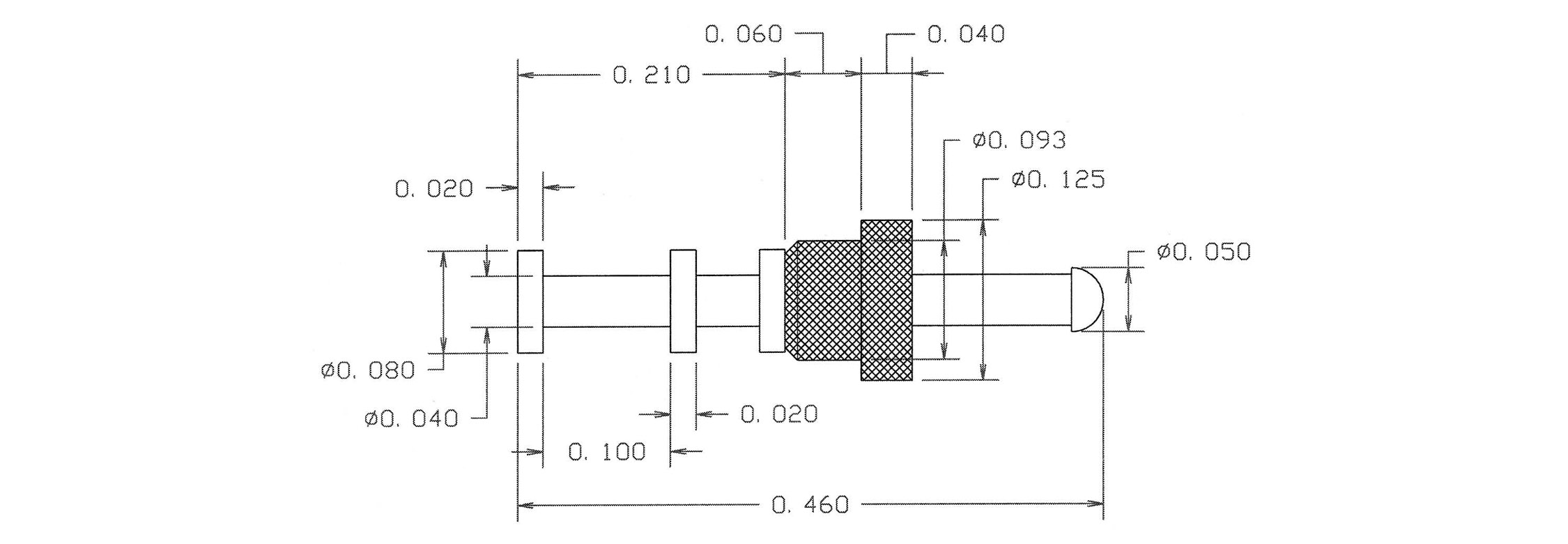

1156R-01-0112
1156R-01-0112
1156R-01-0112
0.460" 0.040 DOUBLE Turret/Tip Press Fit 1/32 0.086 Brass Silver - - PTFE Red NO

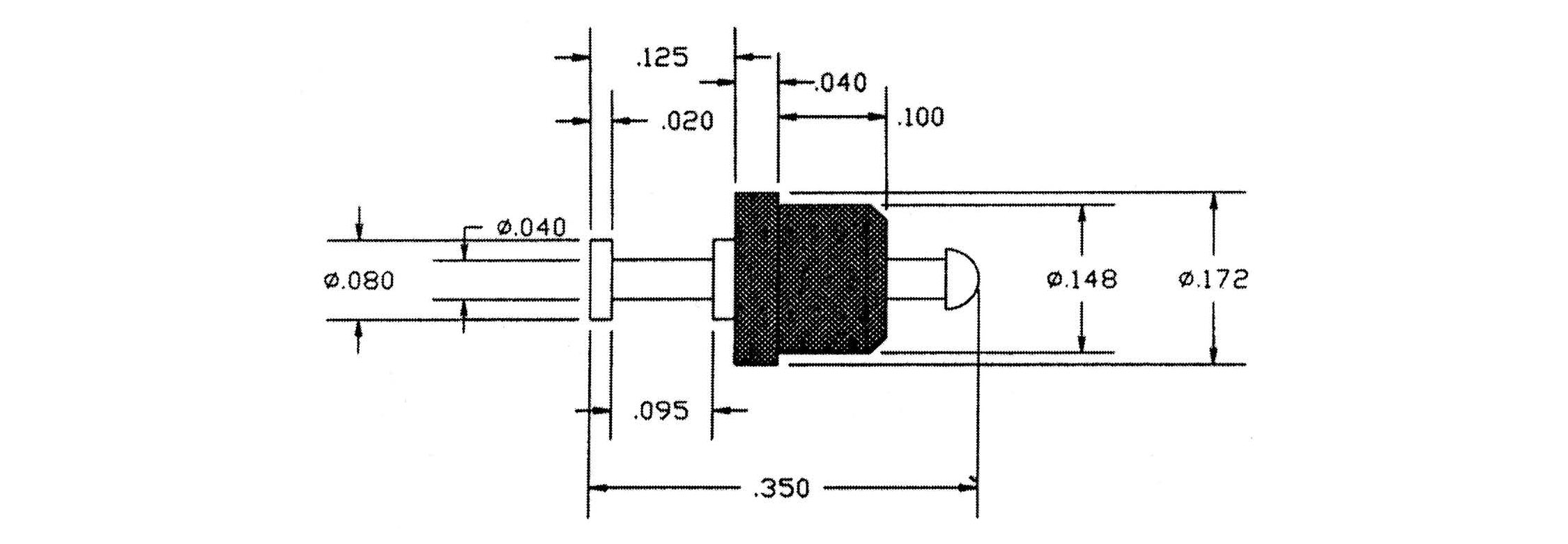

1157-01-0318
1157-01-0318
1157-01-0318
0.350" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Gold - - PTFE Gray NO

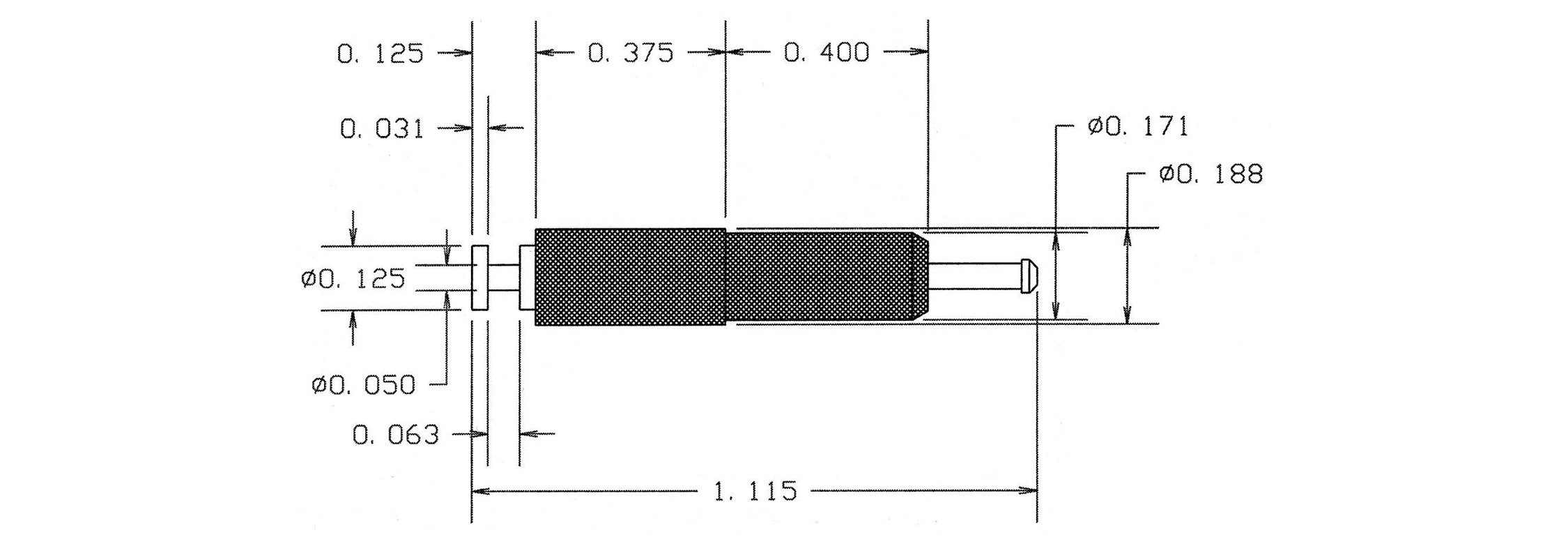

1157-06-04414
1157-06-04414
1157-06-04414
1.115" 0.050 TURRET/PIN Press Fit 11/32 0.158 Brass Bright Tin - - PTFE Yellow NO

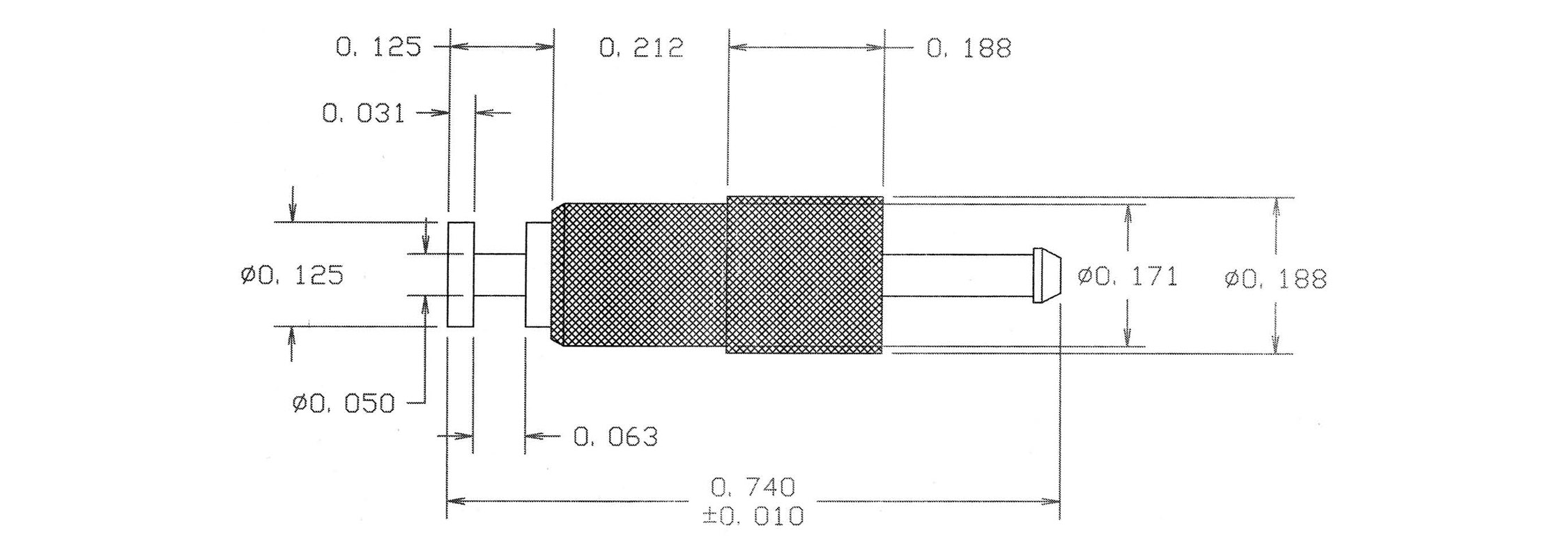

1157R-04-08810
1157R-04-08810
1157R-04-08810
0.740" 0.050 TURRET/PIN Press Fit Up to 3/16 0.158 Brass Bright Tin-Lead - - PTFE Black NO

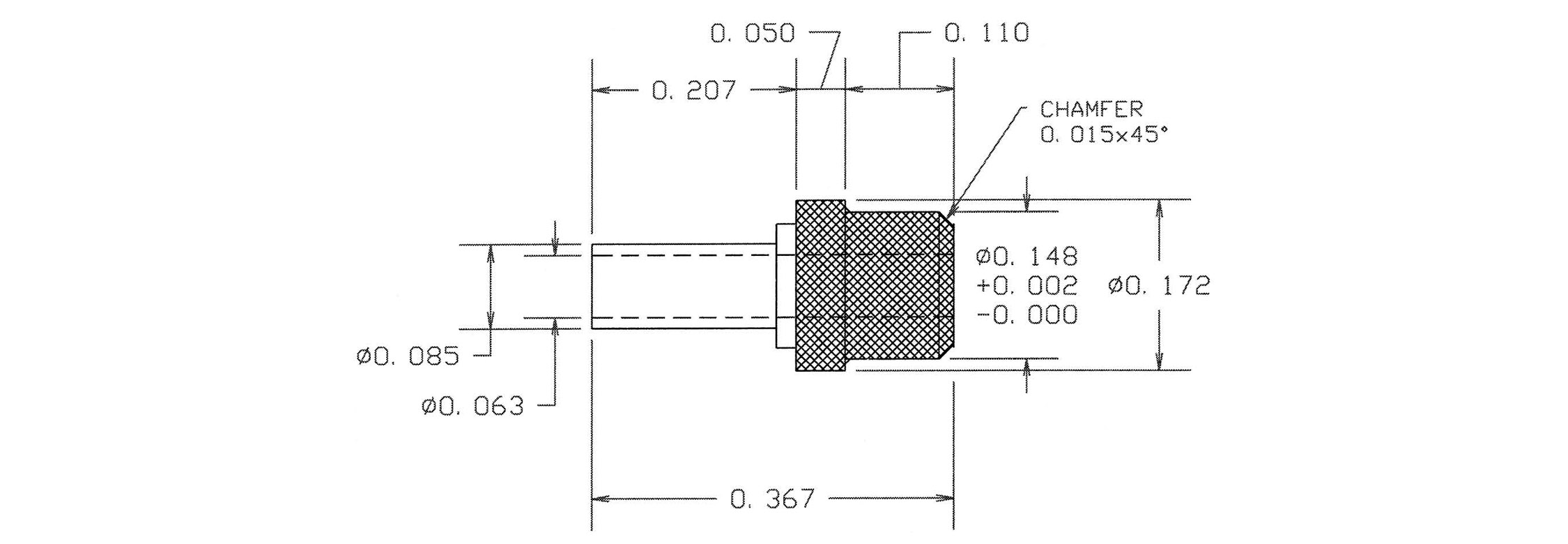

1160-13-0116
1160-13-0116
1160-13-0116
0.367" 0.085 - Press Fit 1/16 0.136 Brass Silver - - PTFE Blue YES
