Commercial
Insulated
Pin Terminals

Filter
1126-42-0412
1126-42-0412
1126-42-0412
0.766" - - 6-32 Nut 1/8 0.144 Brass Electro-Tin ZINC Brass PTFE Red NO
1126-46-04418
1126-46-04418
1126-46-04418
1.343" - - 6-32 Nut 1/8 0.144 Brass Bright Tin ZINC Brass PTFE Gray NO
1127-03-08814
1127-03-08814
1127-03-08814
0.594" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Bright Tin-Lead Bright Tin-Lead Brass DIALLYL PHTHALATE Yellow NO
1127-08-0310
1127-08-0310
1127-08-0310
0.884" 0.070 - 4-40 Nut 3/32 0.120 Brass Gold ZINC Brass DIALLYL PHTHALATE Black YES
1127-12-0416
1127-12-0416
1127-12-0416
0.821" 0.070 - Swage Mount 1/8 0.104 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Blue YES
1127-16-0512
1127-16-0512
1127-16-0512
0.813" - - 4-40 Nut 3/32 0.120 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Red NO
1127-20-08818
1127-20-08818
1127-20-08818
0.907" - - Swage Mount 1/16 0.104 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Gray NO
1127-25-0314
1127-25-0314
1127-25-0314
0.938" - - Swage Mount 3/32 0.147 Brass Gold ZINC Brass DIALLYL PHTHALATE Yellow YES
1127-30-04410
1127-30-04410
1127-30-04410
0.813" - - 4-40 Nut 3/32 0.120 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Black YES
1127-34-0516
1127-34-0516
1127-34-0516
0.688" - - Swage Mount 1/16 0.147 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Blue NO
1127-39-0112
1127-39-0112
1127-39-0112
0.594" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Silver ZINC Brass DIALLYL PHTHALATE Red YES
1127-43-0318
1127-43-0318
1127-43-0318
0.969" - - 6-32 Nut 1/8 0.144 Brass Gold ZINC Brass DIALLYL PHTHALATE Gray YES
1127-47-04414
1127-47-04414
1127-47-04414
0.844" - - Swage Mount 3/32 0.104 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Yellow YES
1127-51-08810
1127-51-08810
1127-51-08810
0.844" - - Swage Mount 3/32 0.147 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Black NO

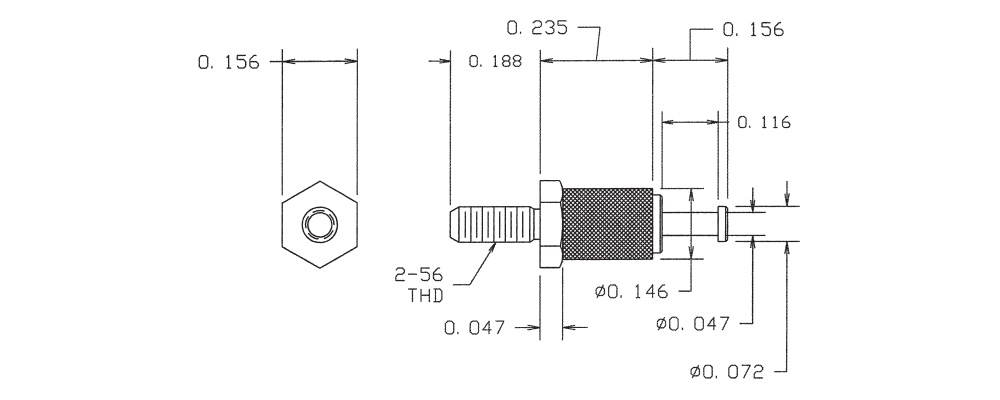

1127-57-0116
1127-57-0116
1127-57-0116
0.579" - - 2-56 Nut 1/16 0.094 Brass Silver ZINC Brass DIALLYL PHTHALATE Blue YES
1127-61-0412
1127-61-0412
1127-61-0412
0.704" - - 2-56 Nut 1/8 0.094 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Red YES
1127-65-04418
1127-65-04418
1127-65-04418
0.547" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Gray YES

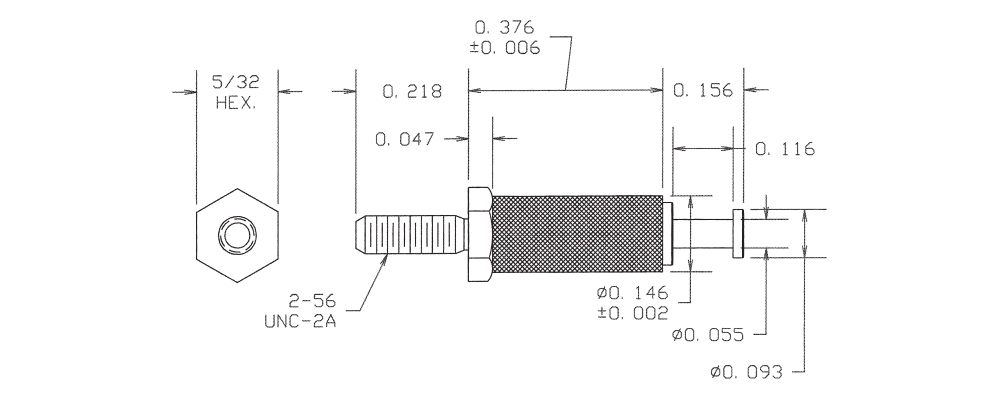

1127-69-08814
1127-69-08814
1127-69-08814
0.750" - - 2-56 Nut 3/32 0.094 Brass Bright Tin-Lead Bright Tin-Lead Brass DIALLYL PHTHALATE Yellow NO
1127-74-0310
1127-74-0310
1127-74-0310
1.000" - - 4-40 Nut 3/32 0.120 Brass Gold ZINC Brass DIALLYL PHTHALATE Black YES

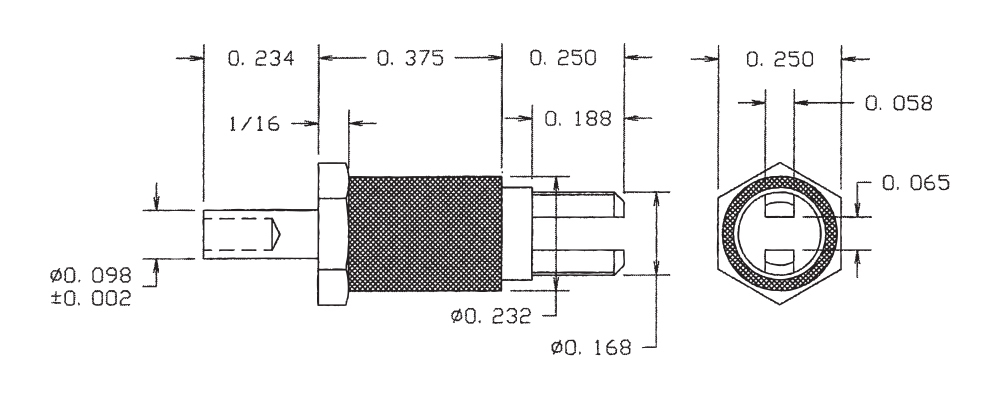

1127-78-0416
1127-78-0416
1127-78-0416
0.859" - - Swage Mount 3/16 0.104 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Blue YES
