Commercial
Insulated
Pin Terminals

Filter

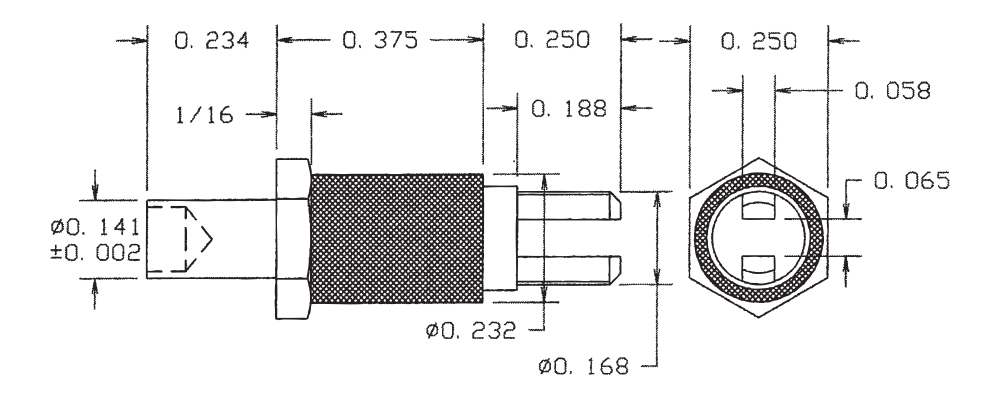

1127-82-0512
1127-82-0512
1127-82-0512
0.859" - - Swage Mount 3/16 0.147 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Red NO

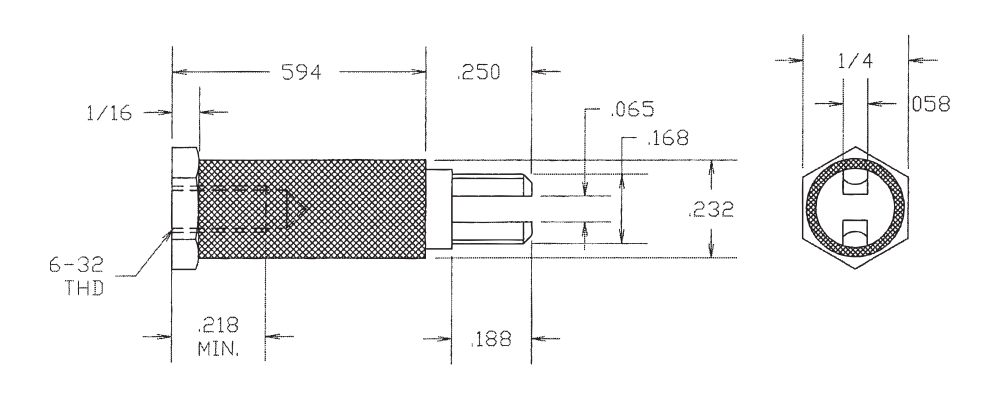

1127-86-08818
1127-86-08818
1127-86-08818
0.844" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Gray NO

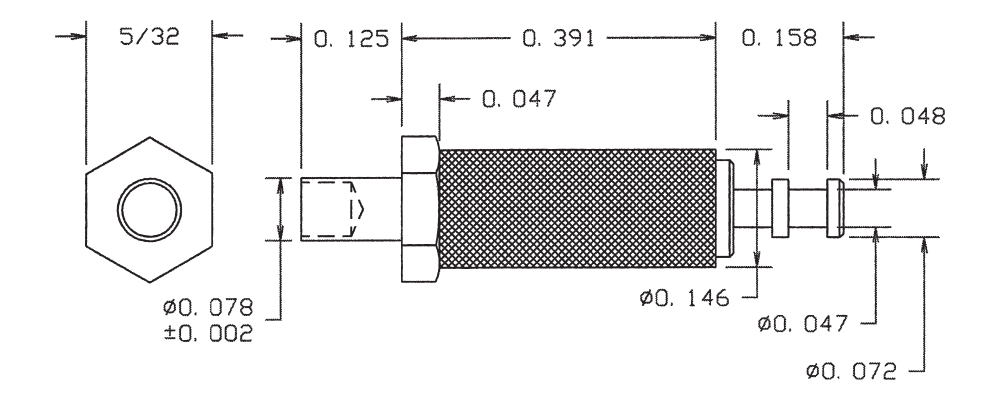

1127-91-0314
1127-91-0314
1127-91-0314
0.674" - - Swage Mount 3/32 0.082 Brass Gold ZINC Brass DIALLYL PHTHALATE Yellow YES

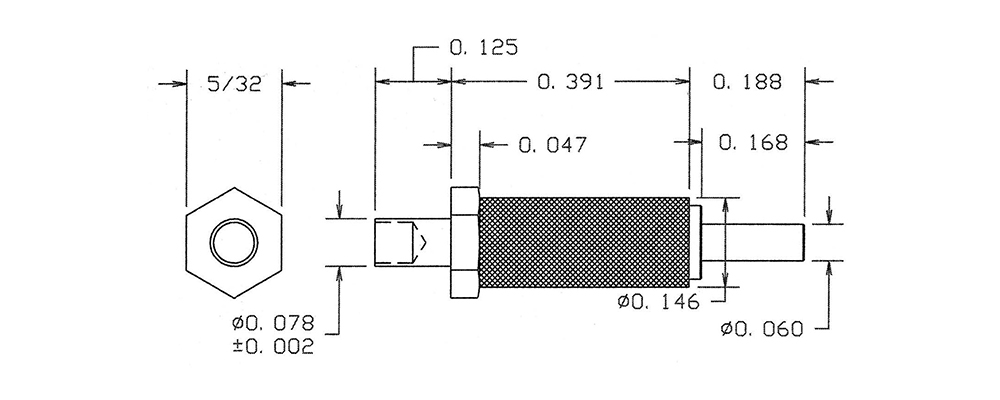

1127-95-04410
1127-95-04410
1127-95-04410
0.704" 0.060 - Swage Mount 3/32 0.082 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Black YES

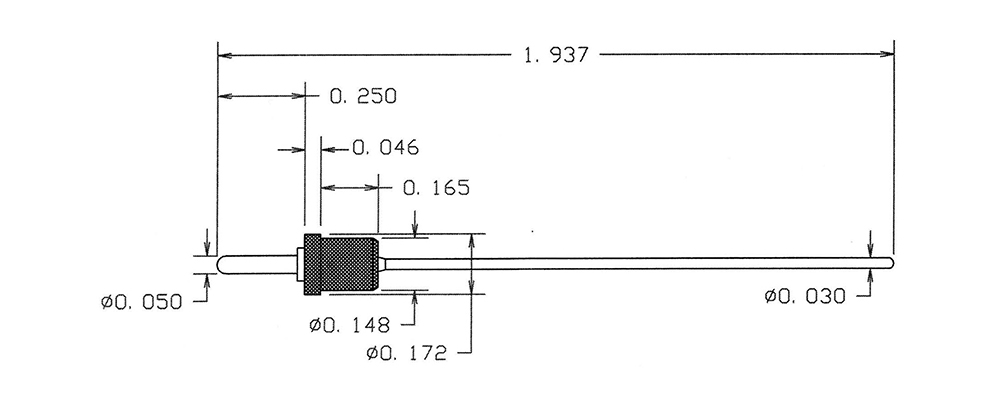

1130-01-0516
1130-01-0516
1130-01-0516
1.937" (0.030)/(0.050) Pin/Pin Press Fit 1/8 0.136 Brass Electro Solder - - PTFE Blue NO

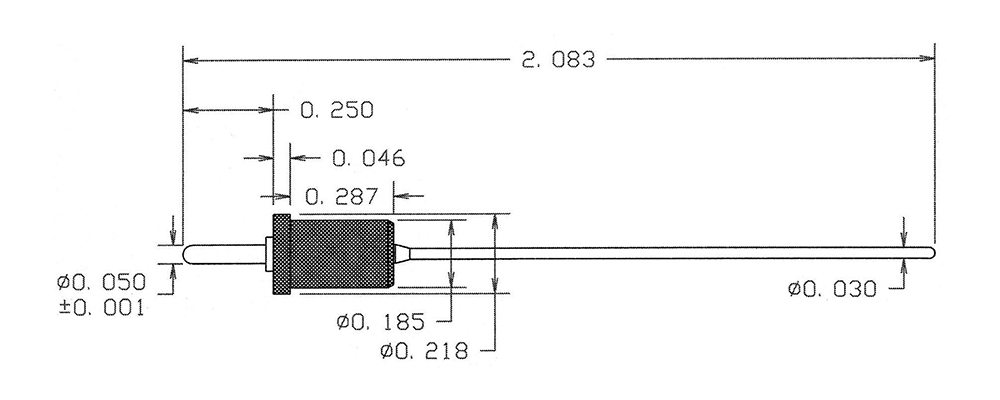

1130-07-0112
1130-07-0112
1130-07-0112
2.083" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Silver - - PTFE Red NO

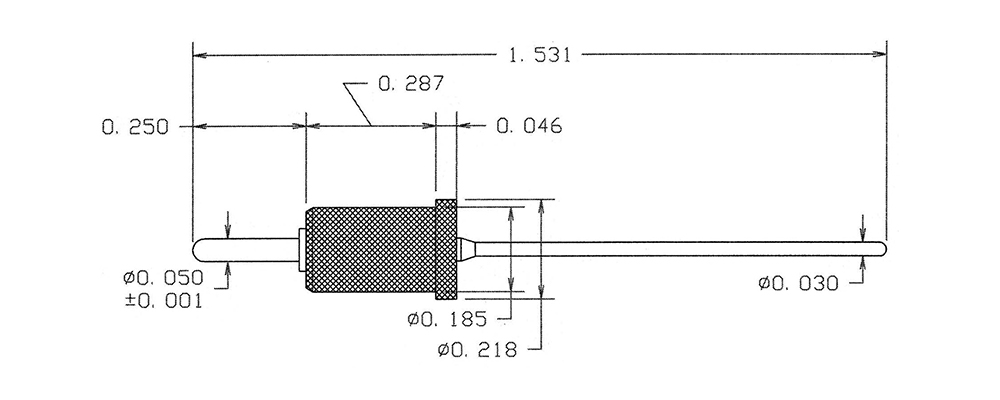

1130R-05-0318
1130R-05-0318
1130R-05-0318
1.531" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Gold - - PTFE Gray NO

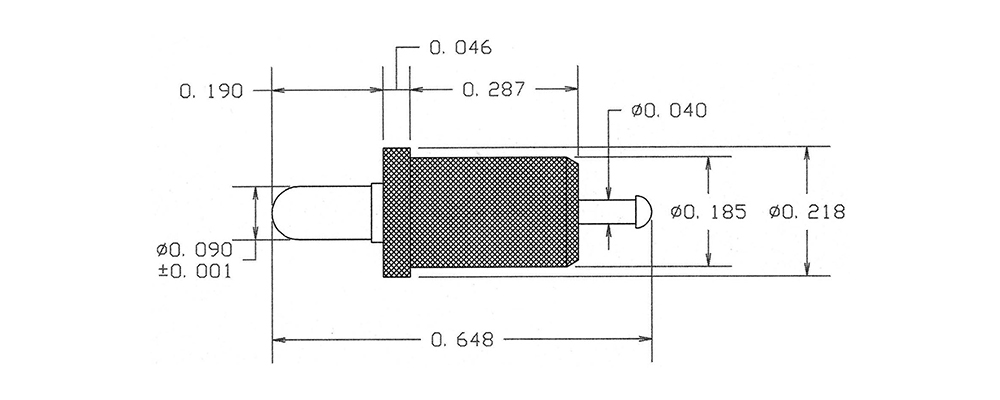

1131-02-04414
1131-02-04414
1131-02-04414
0.648" (0.040)/(0.090) Pin/Tip Press Fit Up to 1/4 0.172 Brass Bright Tin - - PTFE Yellow NO

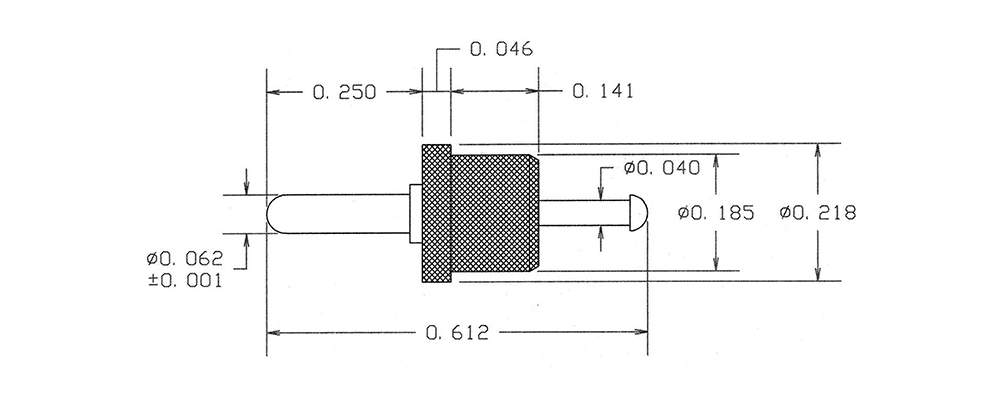

1131-06-08810
1131-06-08810
1131-06-08810
0.612" (0.040)/(0.062) Pin/Tip Press Fit 3/32 0.172 Brass Bright Tin-Lead - - PTFE Black NO

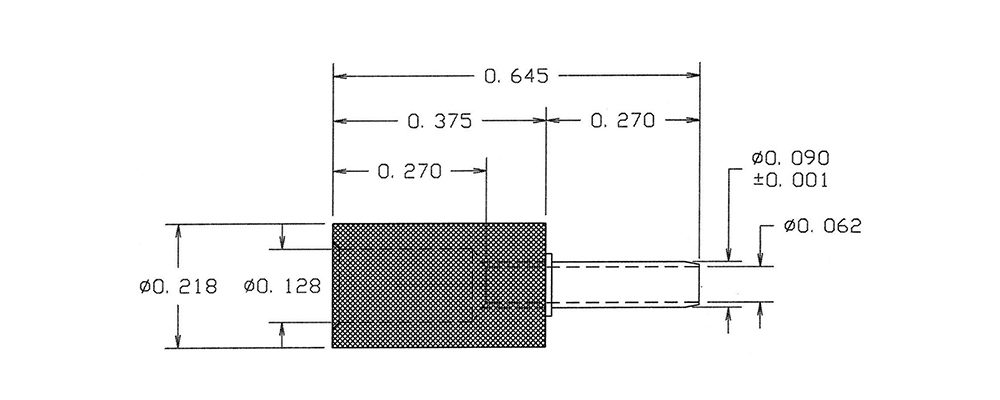

1132-01-0116
1132-01-0116
1132-01-0116
0.645" 0.090 - Solder 7/32 0.0935 Brass Silver - - PTFE Blue YES

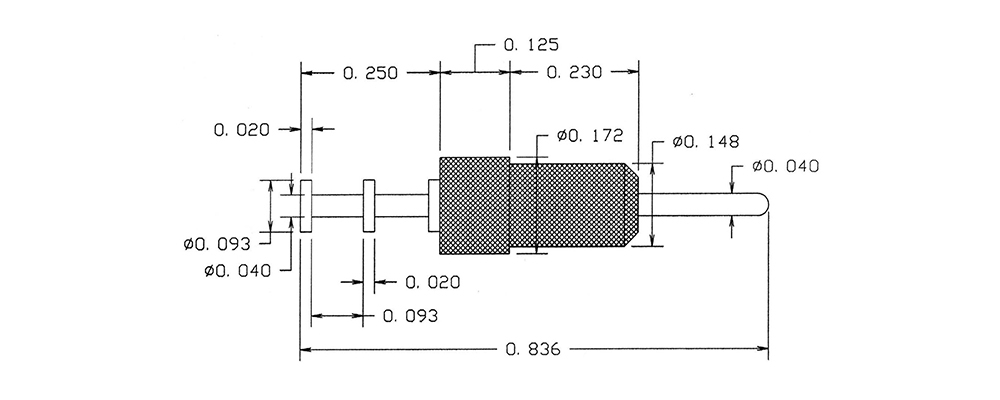

1133-02-0412
1133-02-0412
1133-02-0412
0.836" 0.040 DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 Brass Electro-Tin - - PTFE Red NO
1133R-05-04418
1133R-05-04418
1133R-05-04418
0.450" 0.040 TURRET/PIN Press Fit 1/32 0.136 Brass Bright Tin - - PTFE Gray NO
1135-04-08814
1135-04-08814
1135-04-08814
0.320" 0.030 Pin/Slotted Press Fit 3/32 0.072 Brass Bright Tin-Lead - - PTFE Yellow NO

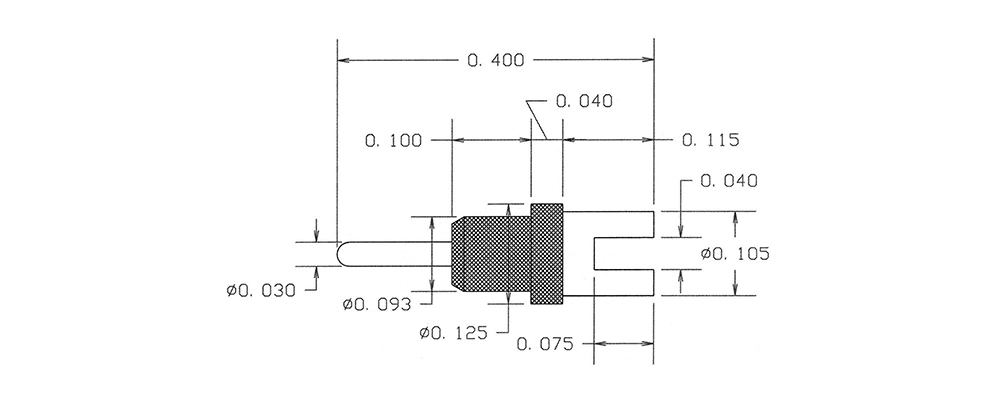

1135-09-0310
1135-09-0310
1135-09-0310
0.400" 0.030 Pin/Slotted Press Fit 1/16 0.086 Brass Gold - - PTFE Black YES

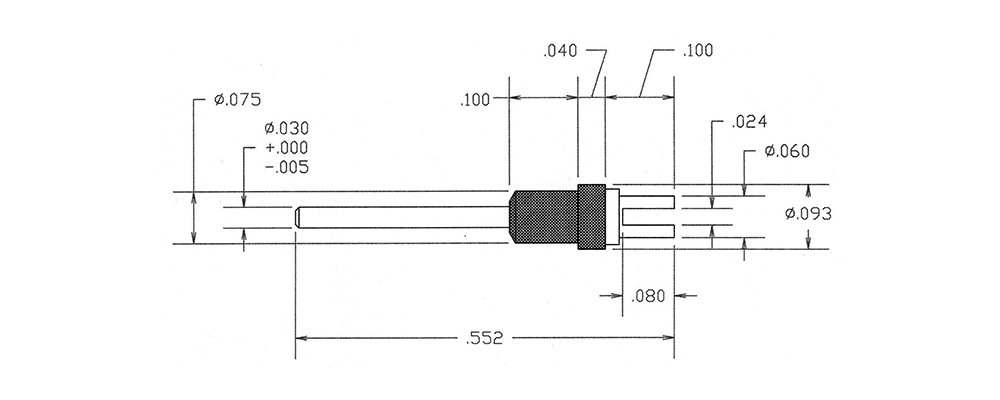

1137-02-0416
1137-02-0416
1137-02-0416
0.552" 0.030 (+0.000/-0.005) Pin/Slotted Press Fit 1/16 0.070 Brass Electro-Tin - - PTFE Blue YES

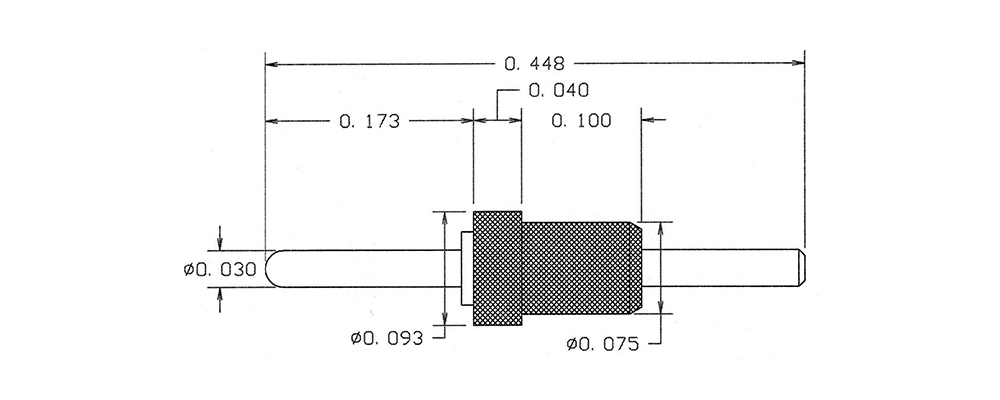

1139-03-0512
1139-03-0512
1139-03-0512
0.448" 0.030 Pin/Pin Press Fit 1/16 0.070 Brass Electro Solder - - PTFE Red NO

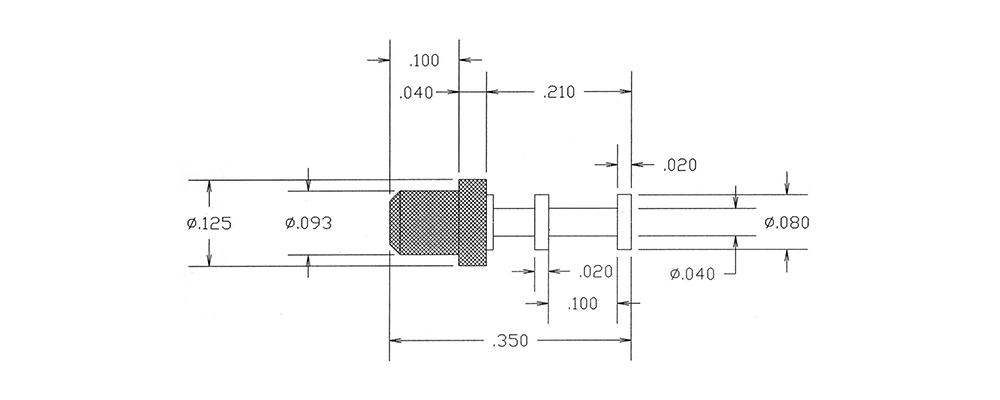

1151-02-08818
1151-02-08818
1151-02-08818
0.350" - - Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE Gray NO
1151-11-0314
1151-11-0314
1151-11-0314
0.455" - - Press Fit 1/8 0.136 Brass Gold - - PTFE Yellow NO
1151-19-04410
1151-19-04410
1151-19-04410
0.444" - - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Black YES
1151-38-0516
1151-38-0516
1151-38-0516
0.390" - - Press Fit 1/16 0.158 Brass Electro Solder - - PTFE Blue NO
