Commercial
Insulated
Pin Terminals

Filter
1155-05-0511
1155-05-0511
1155-05-0511
0.265" 0.040 - Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Brown NO
1133R-05-0319
1133R-05-0319
1133R-05-0319
0.450" 0.040 TURRET/PIN Press Fit 1/32 0.136 Brass Gold - - PTFE White YES

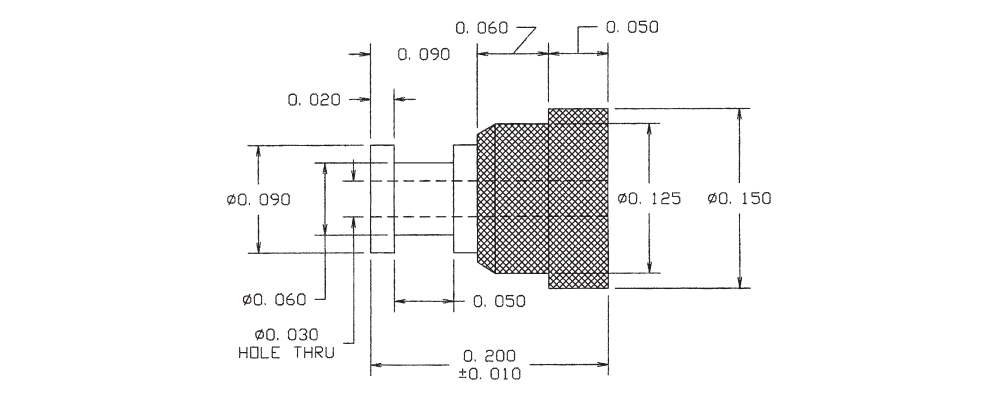

1112R-05-0118
1112R-05-0118
1112R-05-0118
0.200" - - Press Fit 1/32 0.113 Brass Silver - - PTFE Gray NO
1160-05-04412
1160-05-04412
1160-05-04412
0.375" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Red NO
1121-05-0412
1121-05-0412
1121-05-0412
0.493" 0.040 Turret/Tip Press Fit 1/8 0.136 Brass Electro-Tin - - PTFE Red NO
1110-05-0416
1110-05-0416
1110-05-0416
0.515" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Electro-Tin - - PTFE Blue YES
1112R-05-04412
1112R-05-04412
1112R-05-04412
0.200" - - Press Fit 1/32 0.113 Brass Bright Tin - - PTFE Red NO
1135-05-08819
1135-05-08819
1135-05-08819
0.552" 0.030 (+0.000/-0.005) Pin/Slotted Press Fit 1/16 0.070 Brass Bright Tin-Lead - - PTFE White NO
1110-05-0419
1110-05-0419
1110-05-0419
0.515" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Electro-Tin - - PTFE White YES
1121R-05-0417
1121R-05-0417
1121R-05-0417
0.493" 0.040 Turret/Tip Press Fit 1/8 0.136 Brass Electro-Tin - - PTFE Violet YES
1121R-05-0416
1121R-05-0416
1121R-05-0416
0.493" 0.040 Turret/Tip Press Fit 1/8 0.136 Brass Electro-Tin - - PTFE Blue YES
1160-05-0115
1160-05-0115
1160-05-0115
0.375" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Silver - - PTFE Green YES
1125-05-0113
1125-05-0113
1125-05-0113
0.390" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Silver Electro-Tin Brass PTFE Orange NO
1125-05-0419
1125-05-0419
1125-05-0419
0.390" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Electro-Tin Electro-Tin Brass PTFE White YES
1125-05-0416
1125-05-0416
1125-05-0416
0.390" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Electro-Tin Electro-Tin Brass PTFE Blue YES
1135-05-08817
1135-05-08817
1135-05-08817
0.552" 0.030 (+0.000/-0.005) Pin/Slotted Press Fit 1/16 0.070 Brass Bright Tin-Lead - - PTFE Violet NO
1135-05-08816
1135-05-08816
1135-05-08816
0.552" 0.030 (+0.000/-0.005) Pin/Slotted Press Fit 1/16 0.070 Brass Bright Tin-Lead - - PTFE Blue NO
1130R-05-0112
1130R-05-0112
1130R-05-0112
1.531" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Silver - - PTFE Red NO
1121-05-0316
1121-05-0316
1121-05-0316
0.493" 0.040 Turret/Tip Press Fit 1/8 0.136 Brass Gold - - PTFE Blue YES
1121R-05-0415
1121R-05-0415
1121R-05-0415
0.493" 0.040 Turret/Tip Press Fit 1/8 0.136 Brass Electro-Tin - - PTFE Green YES
