Commercial
Insulated
Pin Terminals

Filter

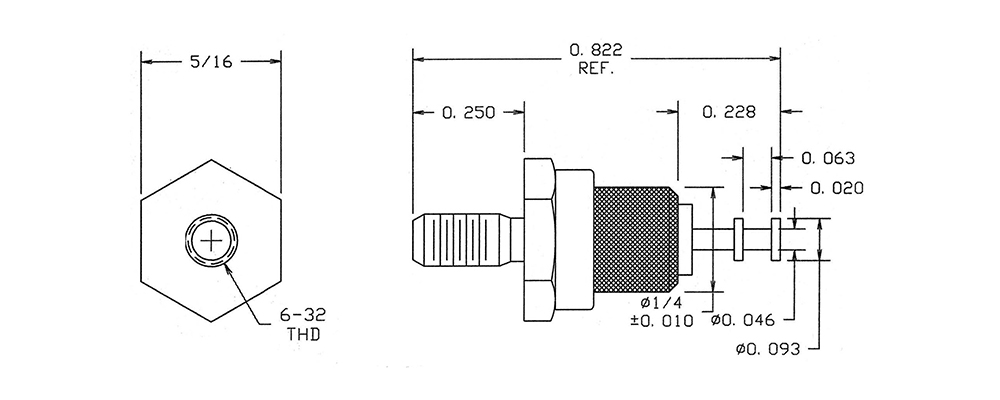

1125-73-0515
1125-73-0515
1125-73-0515
0.822" - - 6-32 Nut 1/8 0.144 Brass Electro Solder ZINC Brass PTFE Green NO
1125-78-0111
1125-78-0111
1125-78-0111
0.697" - - Swage Mount 3/32 0.194 Brass Silver ZINC Brass PTFE Brown NO
1125-83-0317
1125-83-0317
1125-83-0317
0.725" - - Swage Mount 3/32 0.191 Brass Gold Electro-Tin Brass PTFE Violet YES
1125-87-04413
1125-87-04413
1125-87-04413
0.461" 0.040 - 2-56 - 2-56 THREAD Brass Bright Tin ZINC Brass PTFE Orange NO

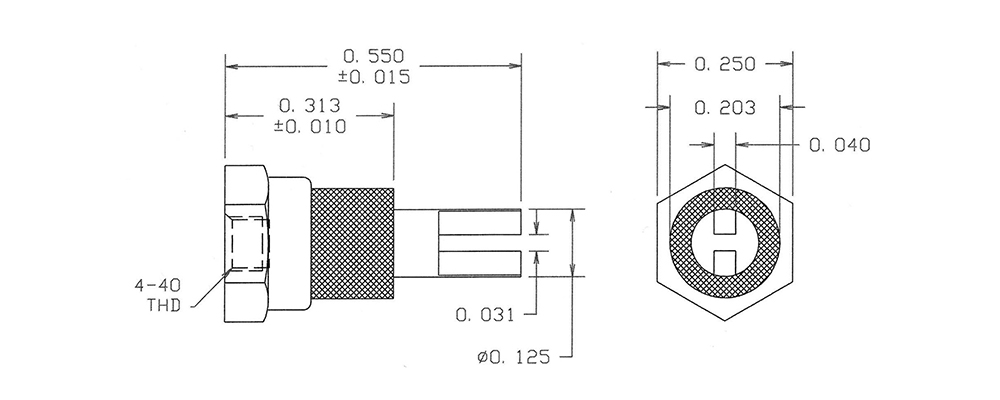

1125-92-0519
1125-92-0519
1125-92-0519
0.550" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Electro Solder Electro-Tin Brass PTFE White NO
1125-97-0115
1125-97-0115
1125-97-0115
0.672" - - 6-32 Nut 1/8 0.144 Brass Silver ZINC Brass PTFE Green YES
1126-27-0411
1126-27-0411
1126-27-0411
0.484" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Electro-Tin ZINC Brass PTFE Brown NO
1126-33-04417
1126-33-04417
1126-33-04417
1.172" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Bright Tin ZINC Brass PTFE Violet YES
1126-37-08813
1126-37-08813
1126-37-08813
0.750" - - 6-32 Nut 1/8 0.144 Brass Bright Tin-Lead ZINC Brass PTFE Orange NO
1126-42-0119
1126-42-0119
1126-42-0119
0.766" - - 6-32 Nut 1/8 0.144 Brass Silver ZINC Brass PTFE White YES
1126-46-0415
1126-46-0415
1126-46-0415
1.343" - - 6-32 Nut 1/8 0.144 Brass Electro-Tin ZINC Brass PTFE Green YES
1127-03-0511
1127-03-0511
1127-03-0511
0.594" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Electro Solder Electro Solder Brass DIALLYL PHTHALATE Brown NO
1127-07-08817
1127-07-08817
1127-07-08817
0.938" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Bright Tin-Lead Bright Tin-Lead Brass DIALLYL PHTHALATE Violet NO
1127-12-0313
1127-12-0313
1127-12-0313
0.821" 0.070 - Swage Mount 1/8 0.104 Brass Gold ZINC Brass DIALLYL PHTHALATE Orange YES
1127-16-0419
1127-16-0419
1127-16-0419
0.813" - - 4-40 Nut 3/32 0.120 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE White YES
1127-20-0515
1127-20-0515
1127-20-0515
0.907" - - Swage Mount 1/16 0.104 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Green NO
1127-25-0111
1127-25-0111
1127-25-0111
0.938" - - Swage Mount 3/32 0.147 Brass Silver ZINC Brass DIALLYL PHTHALATE Brown YES
1127-30-0317
1127-30-0317
1127-30-0317
0.813" - - 4-40 Nut 3/32 0.120 Brass Gold ZINC Brass DIALLYL PHTHALATE Violet YES
1127-34-04413
1127-34-04413
1127-34-04413
0.688" - - Swage Mount 1/16 0.147 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Orange YES

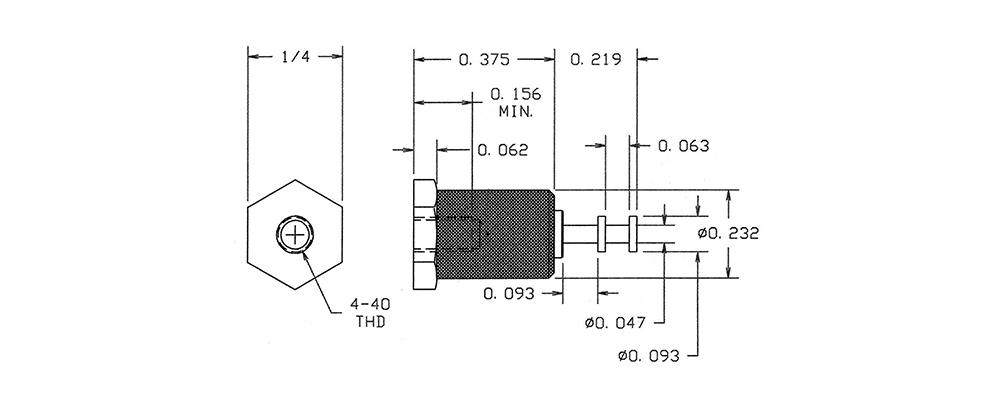

1127-38-0519
1127-38-0519
1127-38-0519
0.594" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Electro Solder ZINC Brass DIALLYL PHTHALATE White NO
