Commercial
Insulated
Pin Terminals

Filter
1113-57-0115
1113-57-0115
1113-57-0115
0.407" 0.040 PIN/Solder CUP Press Fit 1/32 0.136 Brass Silver - - PTFE Green YES
1114-03-0411
1114-03-0411
1114-03-0411
0.215" 0.040 - Press Fit 1/64 0.086 Brass Electro-Tin - - PTFE Brown NO
1114-07-04417
1114-07-04417
1114-07-04417
0.405" 0.040 - Press Fit 1/32 0.086 Brass Bright Tin - - PTFE Violet YES

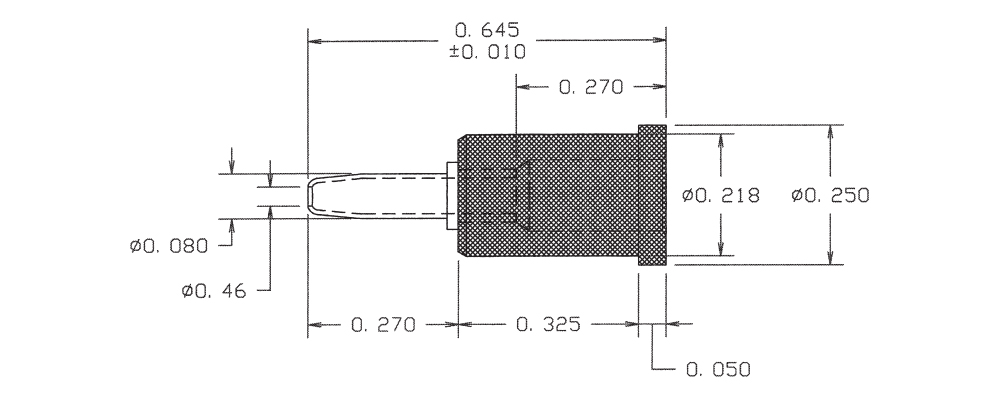

1114-30-08813
1114-30-08813
1114-30-08813
0.645" 0.080 - Press Fit 9/32 0.205 Brass Bright Tin-Lead - - PTFE Orange NO
1114-74-0119
1114-74-0119
1114-74-0119
0.367" - - Press Fit 1/16 0.136 Brass Silver - - PTFE White YES
1114R-12-0415
1114R-12-0415
1114R-12-0415
0.247" 0.045 (+0.000/-0.005) - Press Fit 1/32 0.113 Brass Electro-Tin - - PTFE Green YES

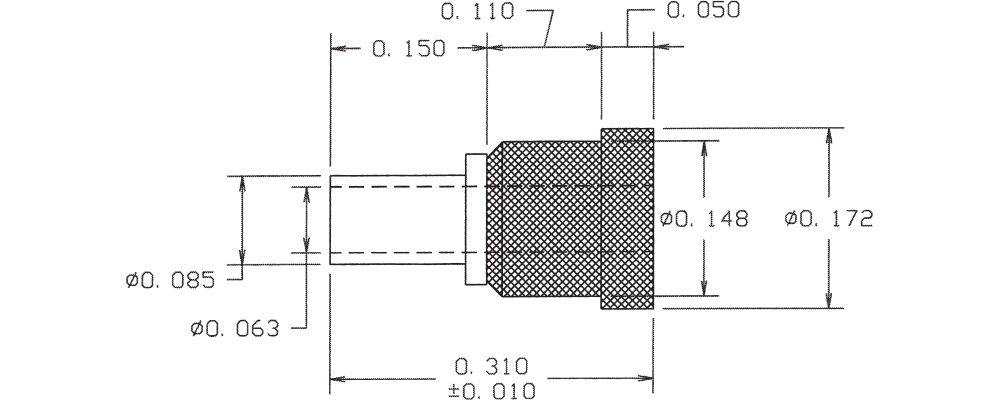

1114R-19-0511
1114R-19-0511
1114R-19-0511
0.310" 0.085 - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Brown NO
1114R-68-08817
1114R-68-08817
1114R-68-08817
0.150" - - Press Fit 1/32 0.113 Brass Bright Tin-Lead - - PTFE Violet NO
1115-06-0313
1115-06-0313
1115-06-0313
0.367" 0.040 - Press Fit 1/16 0.187 Brass Gold - - PTFE Orange NO
1115-50-0419
1115-50-0419
1115-50-0419
0.353" - - Press Fit 3/32 0.187 Brass Electro-Tin - - PTFE White YES
1115-54-0515
1115-54-0515
1115-54-0515
0.500" - Turret/Turret Press Fit 3/32 0.187 Brass Electro Solder - - PTFE Green NO
1116-26-0111
1116-26-0111
1116-26-0111
0.281" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Silver - - PTFE Brown NO
1117-15-0317
1117-15-0317
1117-15-0317
0.990" - Double Turret/Double Turret 10-32 Nut 1/8 0.196 Brass Gold Nickel Brass PTFE Violet YES
1117-19-04413
1117-19-04413
1117-19-04413
1.000" - Double Turret/Double Turret 1/4-28 Nut 1/8 0.257 Brass Bright Tin Nickel Brass PTFE Orange NO
1117-53-0519
1117-53-0519
1117-53-0519
1.060" 0.029 Pin/Pin 4-40 Nut 1/16 0.120 Brass Electro Solder Nickel Brass PTFE White NO
1118-32-0115
1118-32-0115
1118-32-0115
0.346" - TURRET/SLOTTED Press Fit 3/32 0.093 Brass Silver - - PTFE Green YES
1119-22-0411
1119-22-0411
1119-22-0411
1.500" 0.030 TURRET/PIN Press Fit 3/32 0.070 Brass Electro-Tin - - PTFE Brown NO
1119-32-04417
1119-32-04417
1119-32-04417
0.836" 0.050 TURRET/PIN Press Fit Up to 3/16 0.158 Brass Bright Tin - - PTFE Violet YES

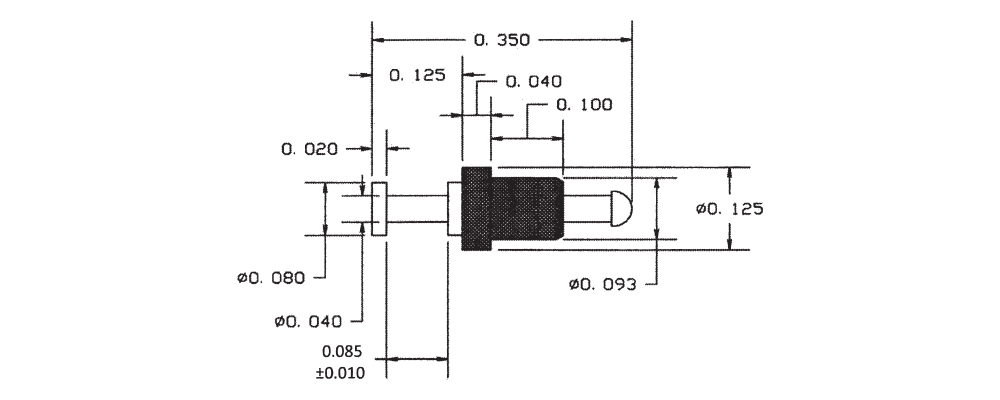

1121-01-08813
1121-01-08813
1121-01-08813
0.350" 0.040 Turret/Tip Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE Orange NO
1121-06-0119
1121-06-0119
1121-06-0119
0.493" 0.040 Turret/Tip Press Fit 1/8 0.136 Brass Silver - - PTFE White YES
