Commercial
Insulated
Pin Terminals

Filter
1110-05-04410
1110-05-04410
1110-05-04410
0.515" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Bright Tin - - PTFE Black YES
1108-05-0114
1108-05-0114
1108-05-0114
0.819" - Double Turret/Double Turret Press Fit Up to 3/16 0.136 Brass Silver - - PTFE Yellow NO
1106-05-0519
1106-05-0519
1106-05-0519
0.540" - - Press Fit 1/8 0.158 Brass Electro Solder - - PTFE White NO
1101-05-08818
1101-05-08818
1101-05-08818
0.428" - - Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE Gray NO
1102-05-08811
1102-05-08811
1102-05-08811
0.359" - - Press Fit 1/16 0.091 Brass Bright Tin-Lead - - PTFE Brown NO
1115-05-08818
1115-05-08818
1115-05-08818
0.417" 0.085 - Press Fit 1/8 0.158 Brass Bright Tin-Lead - - PTFE Gray NO
1106-05-0517
1106-05-0517
1106-05-0517
0.540" - - Press Fit 1/8 0.158 Brass Electro Solder - - PTFE Violet NO
1114-05-0515
1114-05-0515
1114-05-0515
0.317" 0.040 - Press Fit 1/32 0.086 Brass Electro Solder - - PTFE Green NO
1106-05-0515
1106-05-0515
1106-05-0515
0.540" - - Press Fit 1/8 0.158 Brass Electro Solder - - PTFE Green NO
1155-05-0112
1155-05-0112
1155-05-0112
0.265" 0.040 - Press Fit 1/16 0.086 Brass Silver - - PTFE Red NO
1155-05-0115
1155-05-0115
1155-05-0115
0.265" 0.040 - Press Fit 1/16 0.086 Brass Silver - - PTFE Green YES
1102R-74-0410
1102R-74-0410
1102R-74-0410
0.375" - - Press Fit 3/32 0.172 Brass Electro-Tin - - PTFE Black YES
1155-04-0110
1155-04-0110
1155-04-0110
0.510" 0.040 - Press Fit 1/32 0.086 Brass Silver - - PTFE Black YES

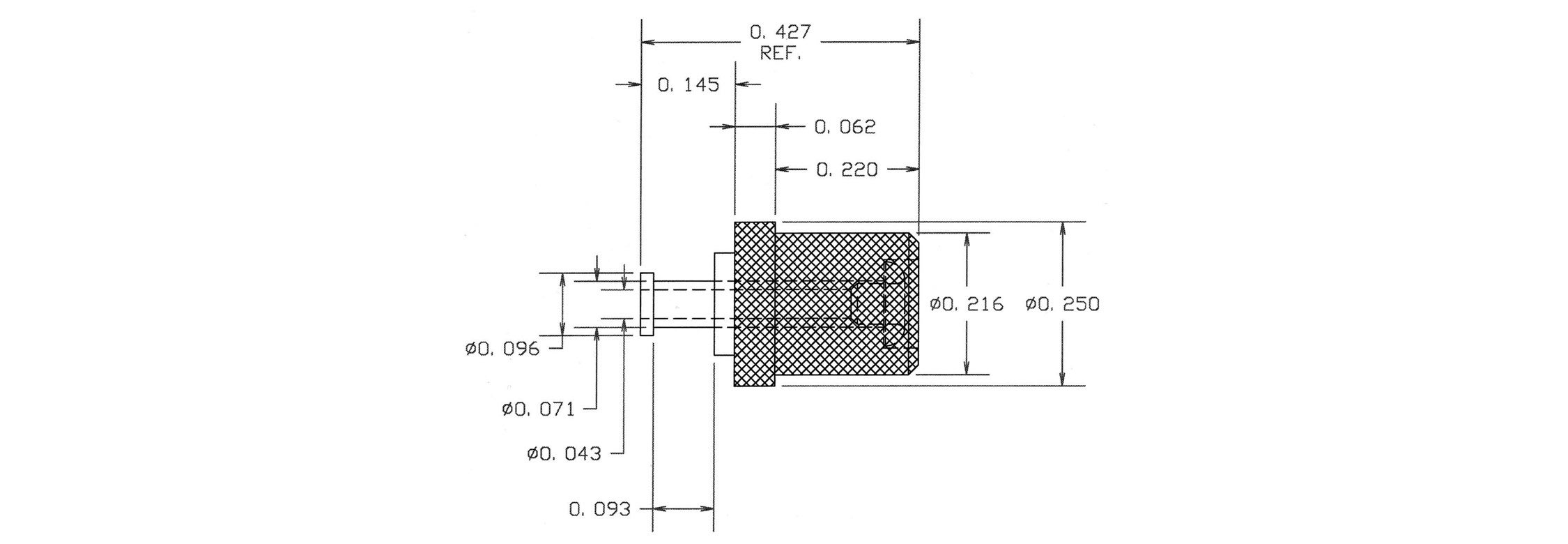

1155-01-0110
1155-01-0110
1155-01-0110
0.427" - - Press Fit Up to 3/16 0.204 Brass Silver - - PTFE Black YES
1154-20-0410
1154-20-0410
1154-20-0410
0.500" - - Press Fit Up to 3/16 0.204 Brass Electro-Tin - - PTFE Black YES
1102R-73-0510
1102R-73-0510
1102R-73-0510
0.487" - - Press Fit Up to 1/4 0.172 Brass Electro Solder - - PTFE Black NO
1103R-01-0110
1103R-01-0110
1103R-01-0110
0.250" - - Press Fit 1/16 0.136 Brass Silver - - PTFE Black YES
1103-07-0510
1103-07-0510
1103-07-0510
0.519" - - Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE Black NO
1111-15-0310
1111-15-0310
1111-15-0310
0.609" 0.040 DOUBLE Turret/Tip Press Fit 3/32 0.136 Brass Gold - - PTFE Black YES
1110-64-0410
1110-64-0410
1110-64-0410
0.443" 0.040 Pin/Pin Press Fit 1/16 0.113 Brass Electro-Tin - - PTFE Black YES
