Commercial
Insulated
Pin Terminals

Filter
1127-43-0115
1127-43-0115
1127-43-0115
0.969" - - 6-32 Nut 1/8 0.144 Brass Silver ZINC Brass DIALLYL PHTHALATE Green YES
1127-47-0411
1127-47-0411
1127-47-0411
0.844" - - Swage Mount 3/32 0.104 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Brown YES
1127-51-04417
1127-51-04417
1127-51-04417
0.844" - - Swage Mount 3/32 0.147 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Violet YES

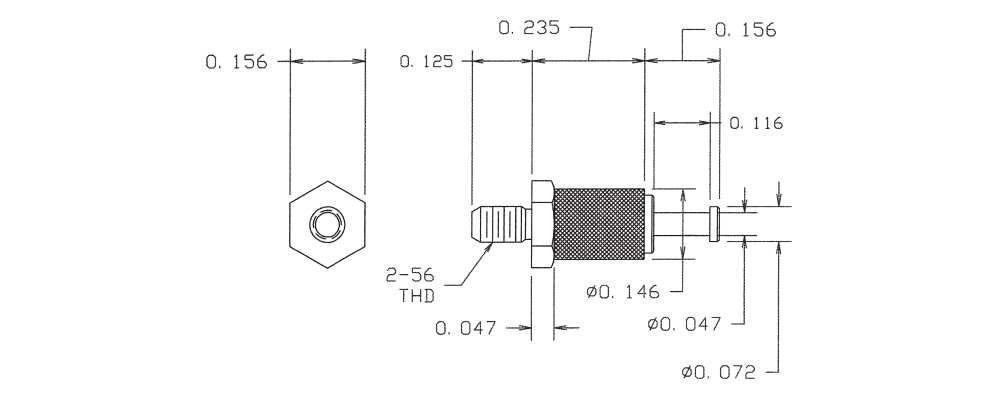

1127-56-08813
1127-56-08813
1127-56-08813
0.516" - - 2-56 Nut 1/32 0.094 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Orange NO
1127-61-0119
1127-61-0119
1127-61-0119
0.704" - - 2-56 Nut 1/8 0.094 Brass Silver ZINC Brass DIALLYL PHTHALATE White YES
1127-65-0415
1127-65-0415
1127-65-0415
0.547" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Green YES
1127-69-0511
1127-69-0511
1127-69-0511
0.750" - - 2-56 Nut 3/32 0.094 Brass Electro Solder Electro Solder Brass DIALLYL PHTHALATE Brown NO

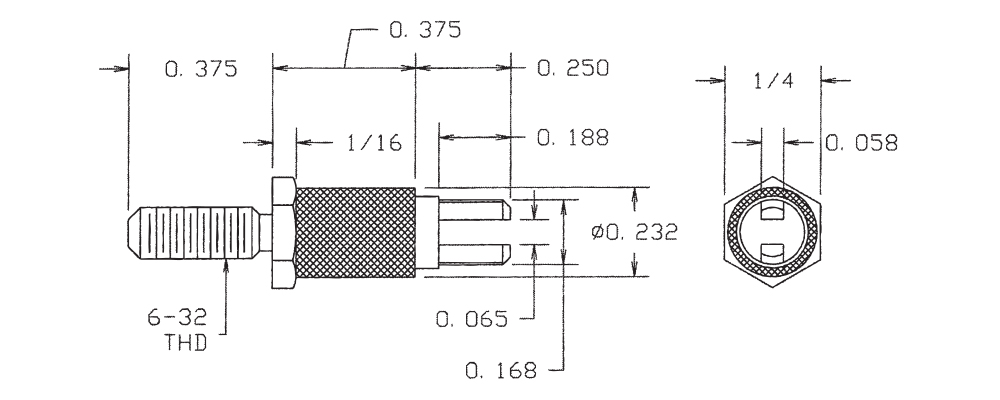

1127-73-08817
1127-73-08817
1127-73-08817
1.000" - - 6-32 Nut Up to 1/4 0.144 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Violet NO
1127-78-0313
1127-78-0313
1127-78-0313
0.859" - - Swage Mount 3/16 0.104 Brass Gold ZINC Brass DIALLYL PHTHALATE Orange YES

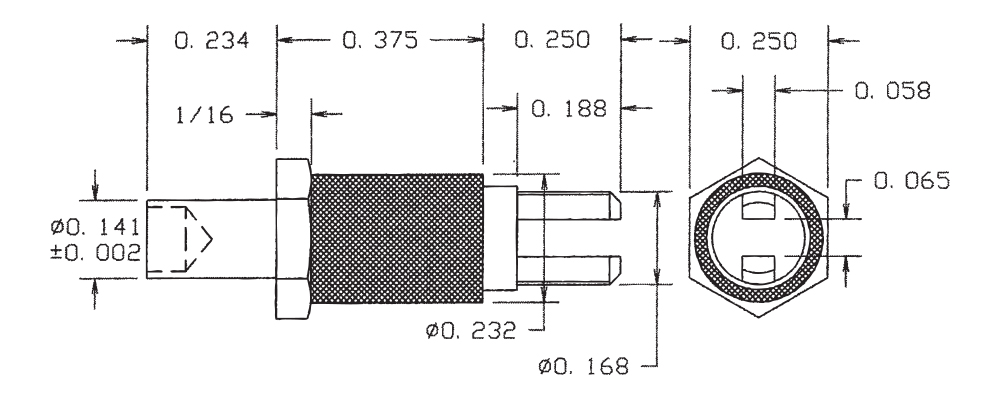

1127-82-0419
1127-82-0419
1127-82-0419
0.859" - - Swage Mount 3/16 0.147 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE White YES

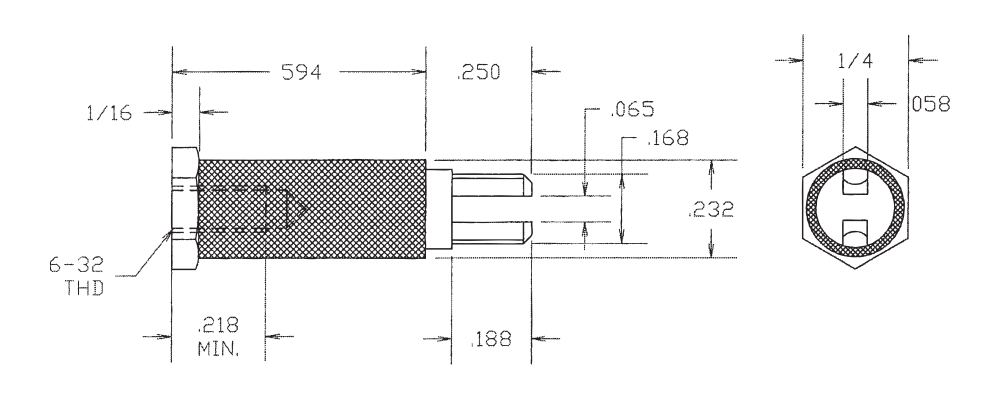

1127-86-0515
1127-86-0515
1127-86-0515
0.844" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Green NO

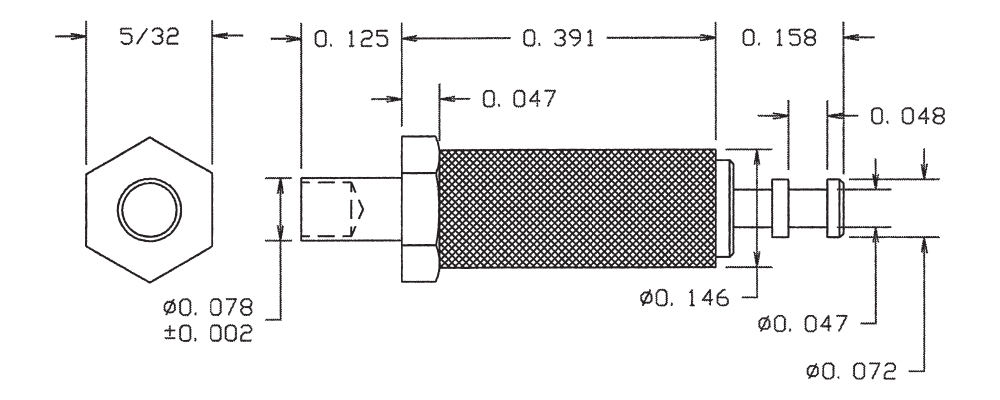

1127-91-0111
1127-91-0111
1127-91-0111
0.674" - - Swage Mount 3/32 0.082 Brass Silver ZINC Brass DIALLYL PHTHALATE Brown YES

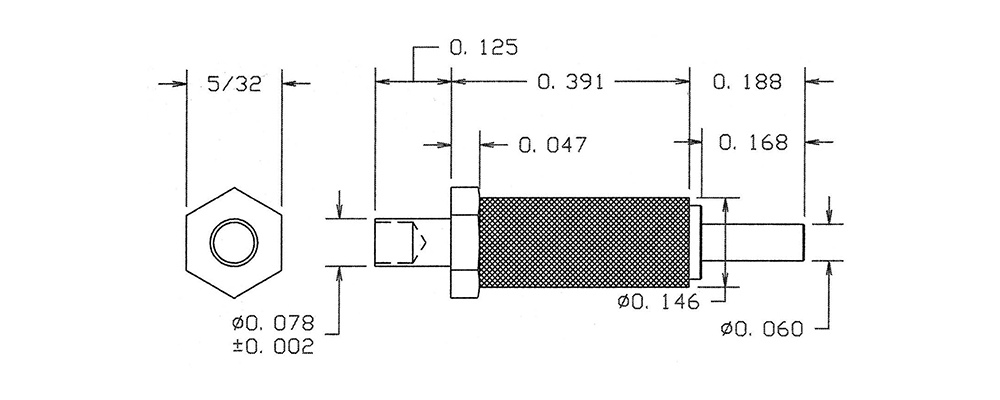

1127-95-0317
1127-95-0317
1127-95-0317
0.704" 0.060 - Swage Mount 3/32 0.082 Brass Gold ZINC Brass DIALLYL PHTHALATE Violet YES

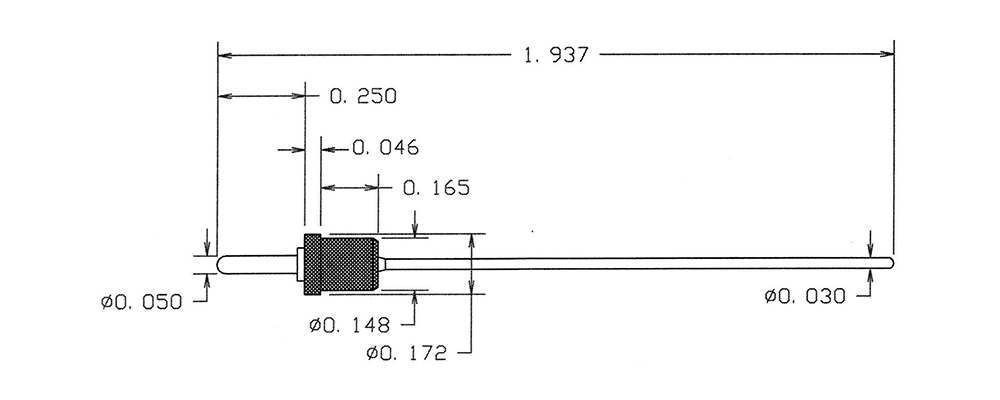

1130-01-04413
1130-01-04413
1130-01-04413
1.937" (0.030)/(0.050) Pin/Pin Press Fit 1/8 0.136 Brass Bright Tin - - PTFE Orange NO
1130-06-0519
1130-06-0519
1130-06-0519
1.937" (0.030)/(0.050) Pin/Pin Press Fit 3/32 0.172 Brass Electro Solder - - PTFE White NO

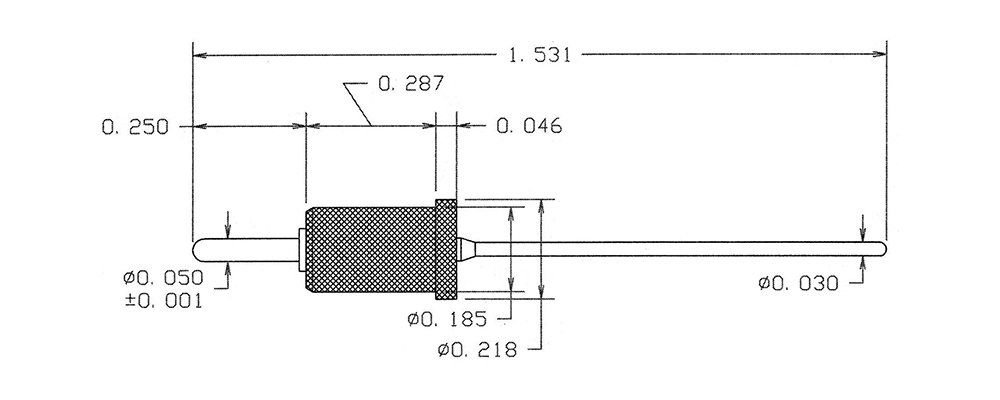

1130R-05-0115
1130R-05-0115
1130R-05-0115
1.531" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Silver - - PTFE Green YES

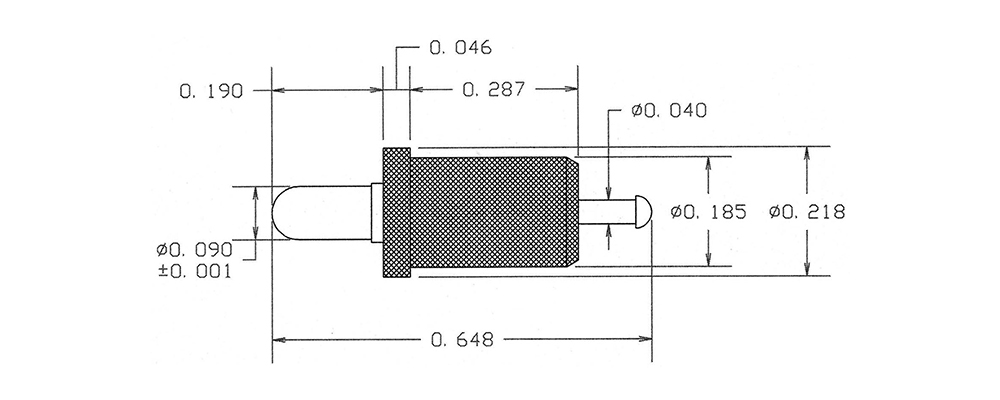

1131-02-0411
1131-02-0411
1131-02-0411
0.648" (0.040)/(0.090) Pin/Tip Press Fit Up to 1/4 0.172 Brass Electro-Tin - - PTFE Brown NO
1131-06-04417
1131-06-04417
1131-06-04417
0.612" (0.040)/(0.062) Pin/Tip Press Fit 3/32 0.172 Brass Bright Tin - - PTFE Violet YES

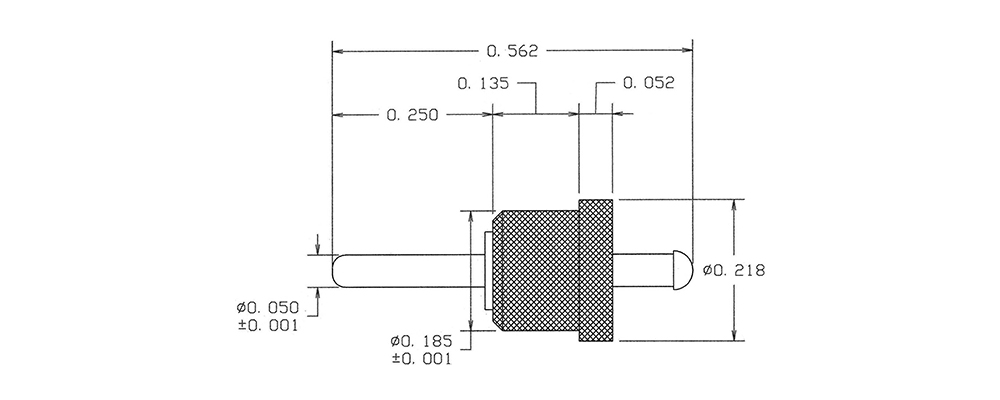

1131R-50-08813
1131R-50-08813
1131R-50-08813
0.562" 0.050 Pin/Tip Press Fit 3/32 0.172 Brass Bright Tin-Lead - - PTFE Orange NO
1133-02-0119
1133-02-0119
1133-02-0119
0.836" 0.040 DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 Brass Silver - - PTFE White YES
