Commercial
Insulated
Pin Terminals

Filter
1156-01-0515
1156-01-0515
1156-01-0515
0.460" - DOUBLE Turret/Tip Press Fit 1/32 0.086 Brass Electro Solder - - PTFE Green NO
1156-07-0111
1156-07-0111
1156-07-0111
0.500" 0.040 DOUBLE TURRET/PIN Press Fit 3/32 0.136 Brass Silver - - PTFE Brown NO

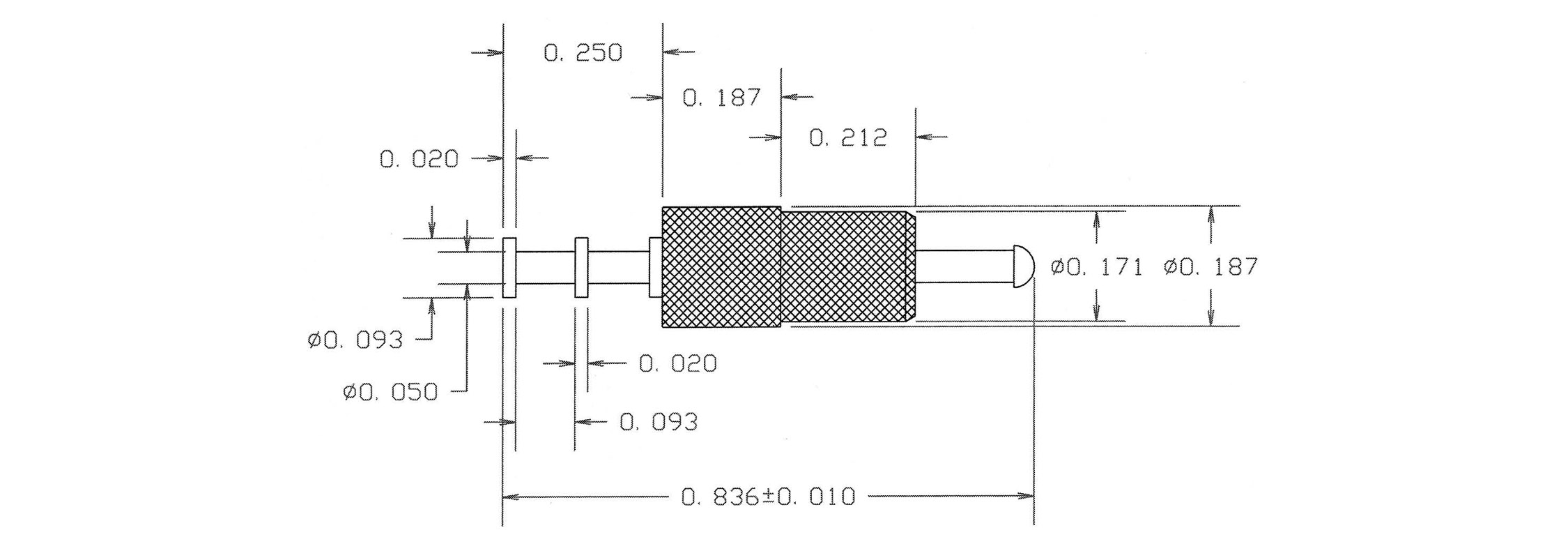

1156-14-0317
1156-14-0317
1156-14-0317
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.158 Brass Gold - - PTFE Violet YES
1156-18-04413
1156-18-04413
1156-18-04413
0.828" 0.050 DOUBLE Turret/Tip Press Fit 5/32 0.158 Brass Bright Tin - - PTFE Orange NO
1156-26-0519
1156-26-0519
1156-26-0519
0.500" 0.040 DOUBLE TURRET/PIN Press Fit 1/16 0.136 Brass Electro Solder - - PTFE White NO
1157-01-0115
1157-01-0115
1157-01-0115
0.350" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Silver - - PTFE Green YES

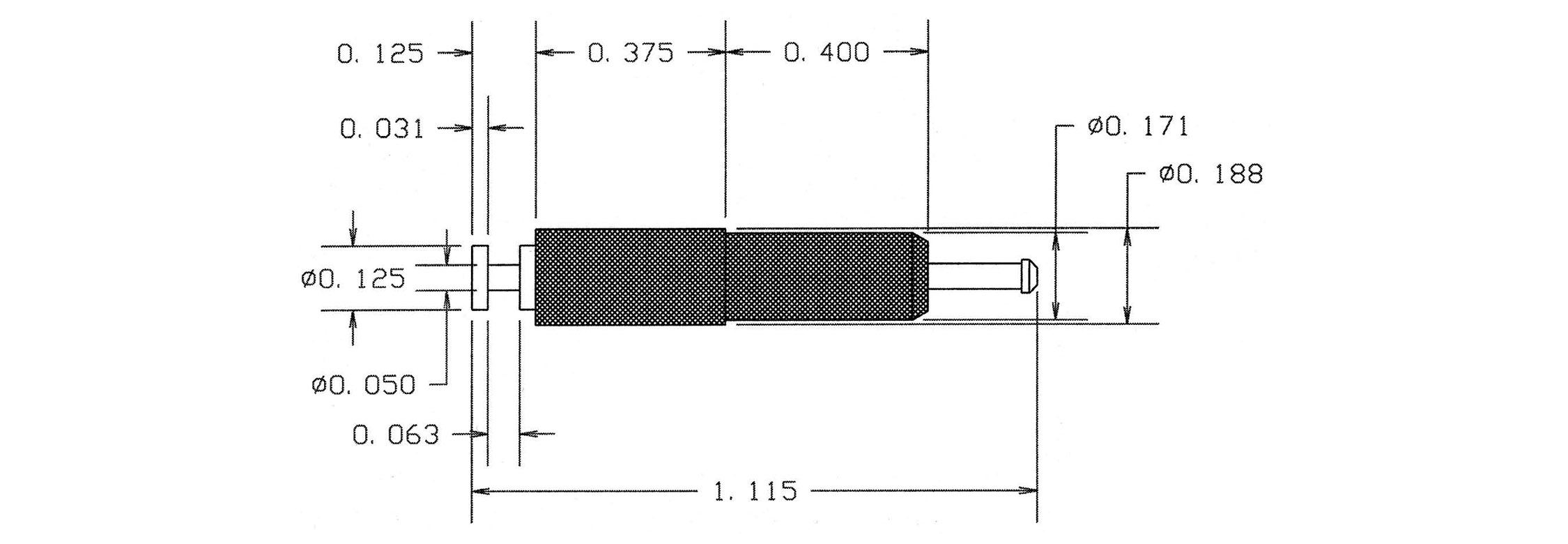

1157-06-0411
1157-06-0411
1157-06-0411
1.115" 0.050 TURRET/PIN Press Fit 11/32 0.158 Brass Electro-Tin - - PTFE Brown NO
1157R-04-04417
1157R-04-04417
1157R-04-04417
0.740" 0.050 TURRET/PIN Press Fit Up to 3/16 0.158 Brass Bright Tin - - PTFE Violet YES

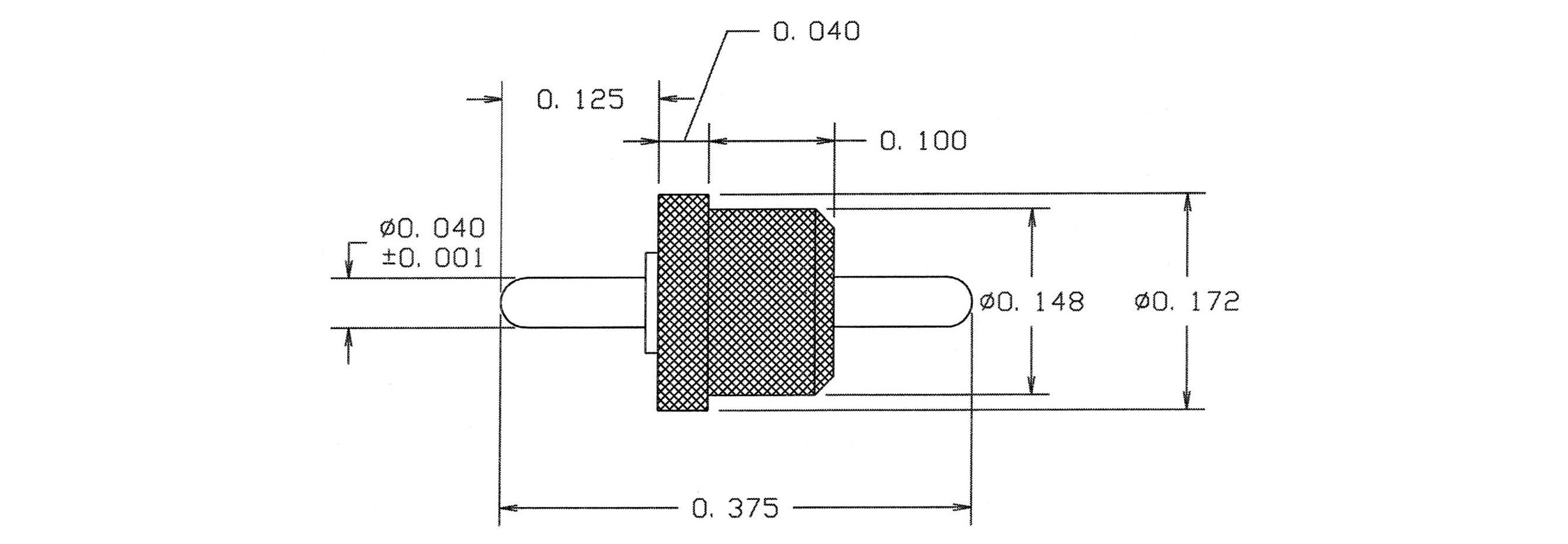

1160-05-08813
1160-05-08813
1160-05-08813
0.375" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Orange NO

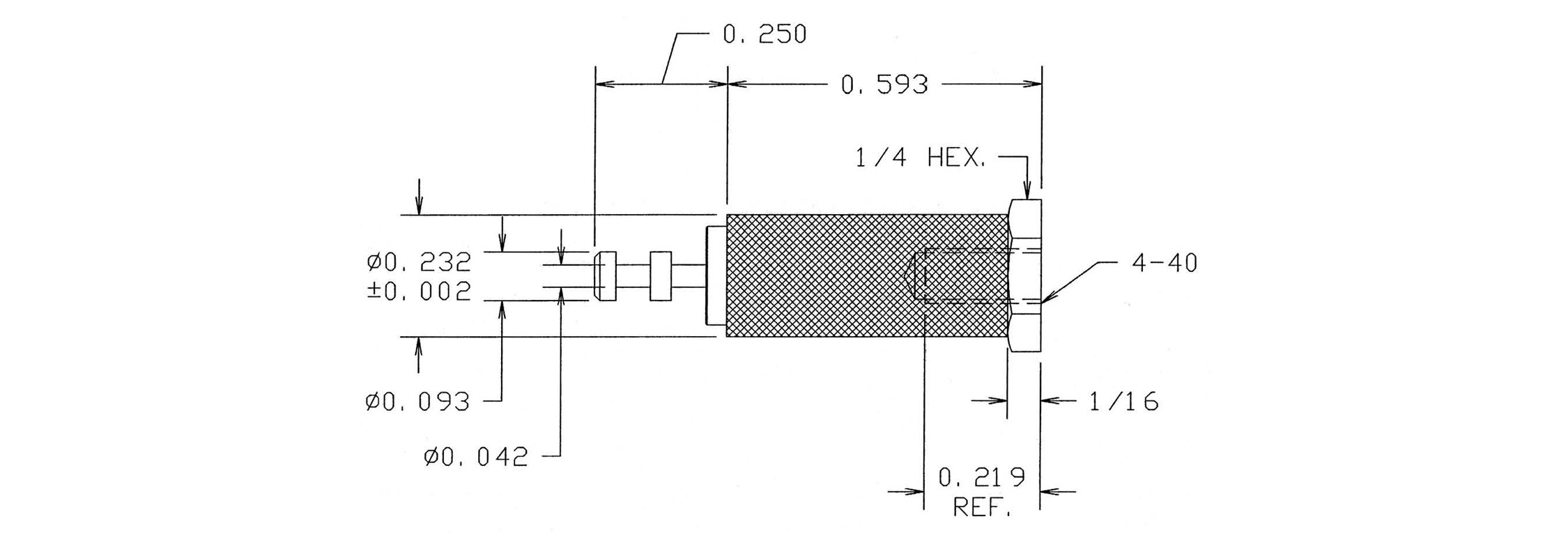

1167-20-0119
1167-20-0119
1167-20-0119
0.843" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Silver ZINC Brass DIALLYL PHTHALATE White YES
1167-67-0415
1167-67-0415
1167-67-0415
0.875" - - 6-32 Nut 1/8 0.144 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Green YES

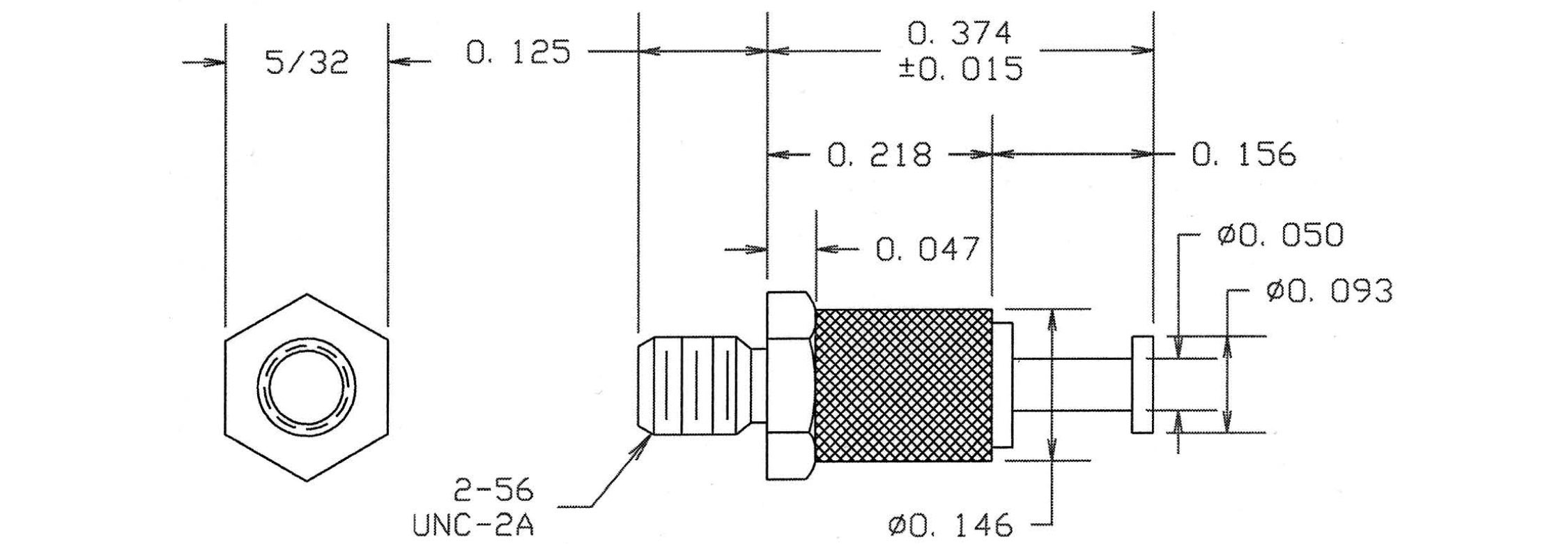

1169-08-0511
1169-08-0511
1169-08-0511
0.499" - - 2-56 Nut 1/32 0.094 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Brown NO

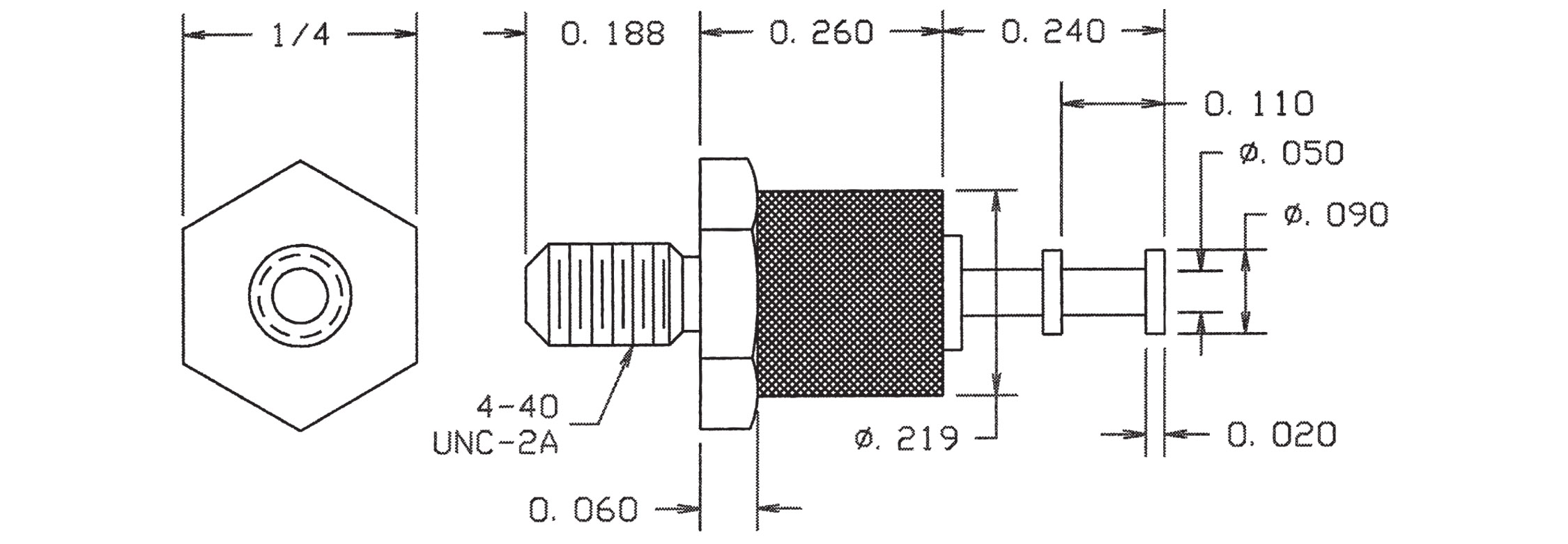

1169-36-08817
1169-36-08817
1169-36-08817
0.688" - - 4-40 Nut 1/16 0.120 Brass Bright Tin-Lead Bright Tin-Lead Brass DIALLYL PHTHALATE Violet NO

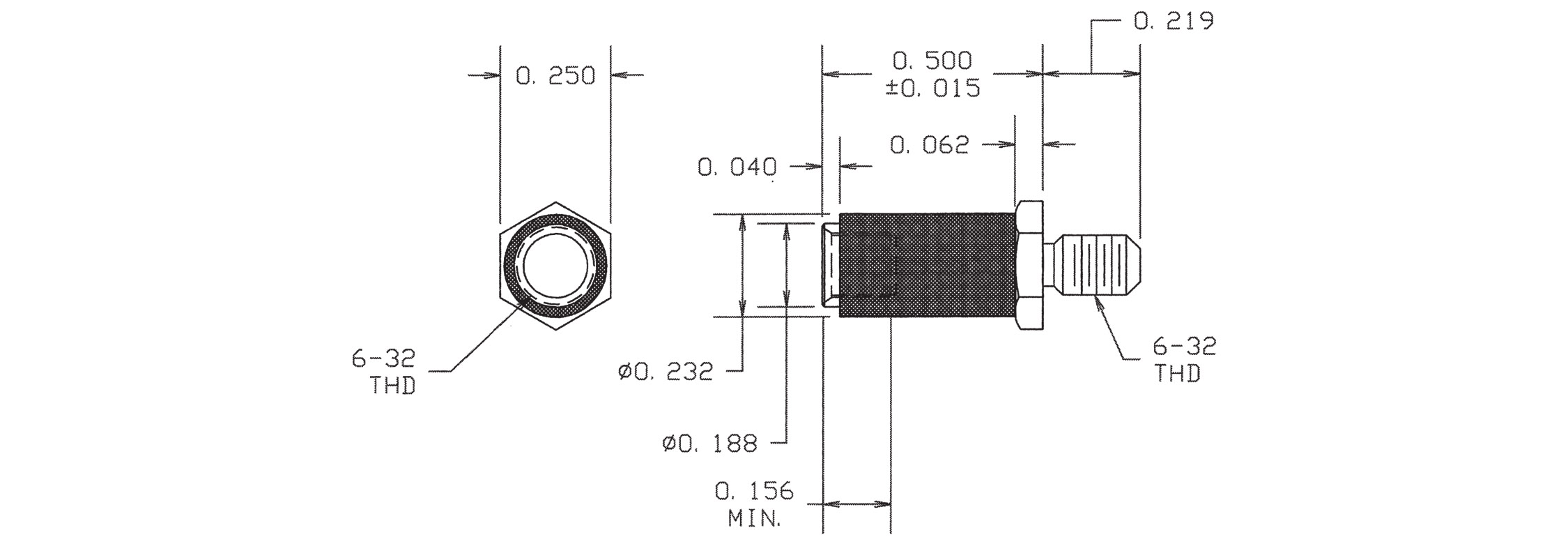

1170-02-07513
1170-02-07513
1170-02-07513
0.719" - - 6-32 Nut 3/32 0.144 Brass ZINC ZINC Brass DIALLYL PHTHALATE Orange YES

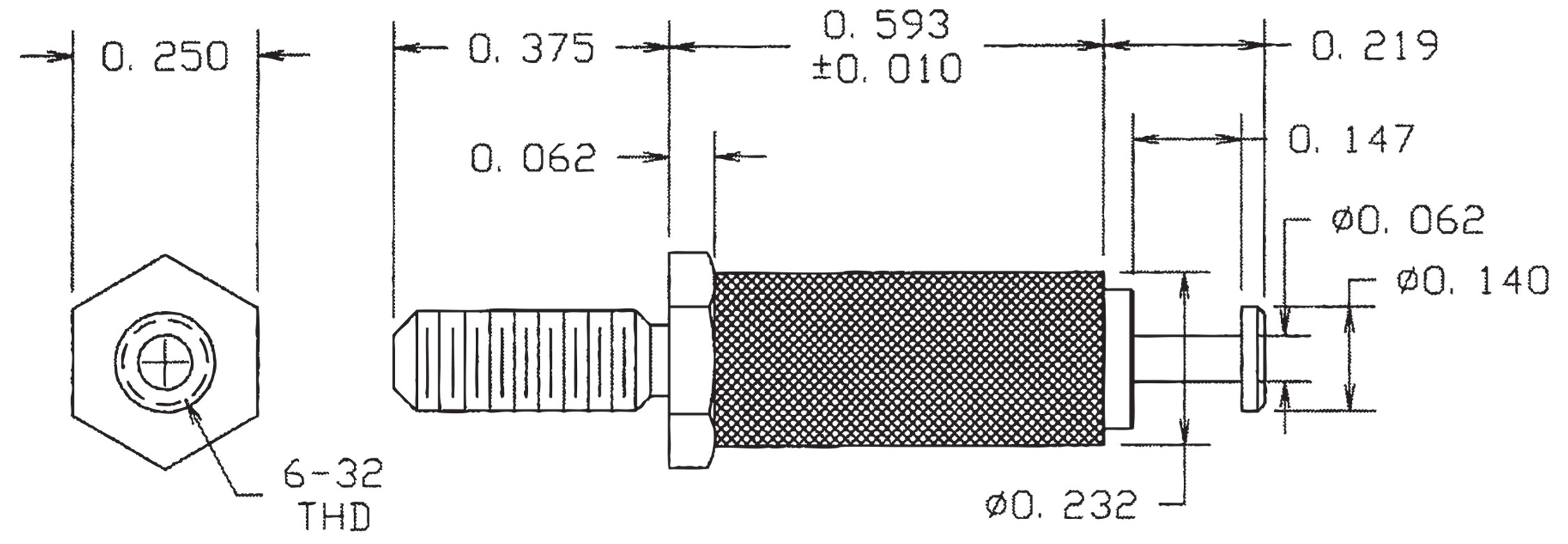

1170-22-0119
1170-22-0119
1170-22-0119
0.968" - - 6-32 Nut Up to 1/4 0.144 Brass Silver ZINC Brass DIALLYL PHTHALATE White YES
1175-012-0415
1175-012-0415
1175-012-0415
0.640" 0.047 Pin/Pin PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Electro-Tin - - PTFE Green YES

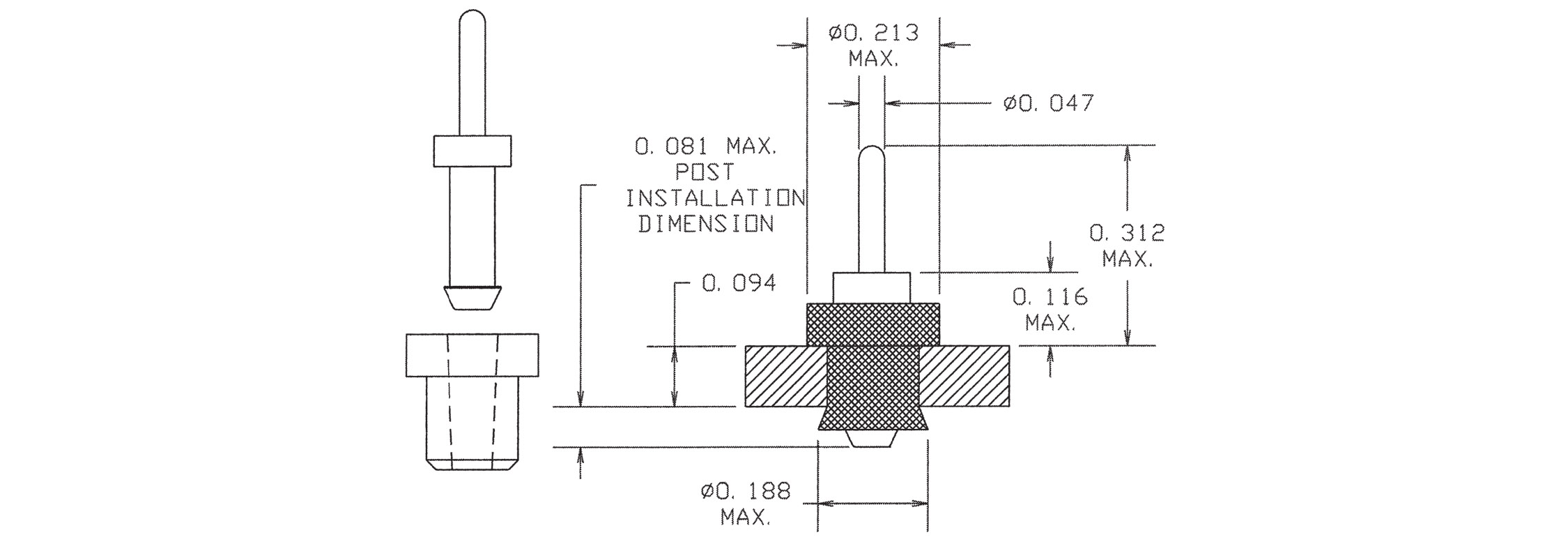

1175-023-0511
1175-023-0511
1175-023-0511
0.487" 0.047 - PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Brown NO
1175-304-08817
1175-304-08817
1175-304-08817
0.554" - - PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Violet NO

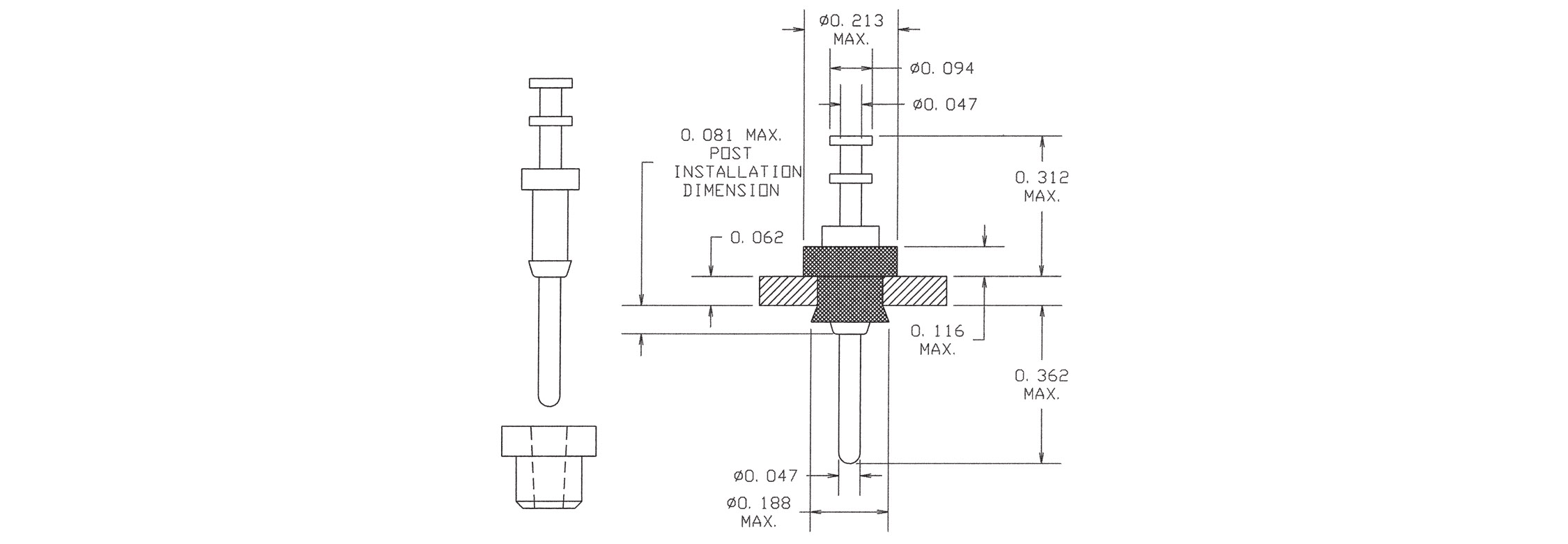

1175-372-0313
1175-372-0313
1175-372-0313
0.736" 0.040 DOUBLE TURRET/PIN PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Gold - - PTFE Orange NO

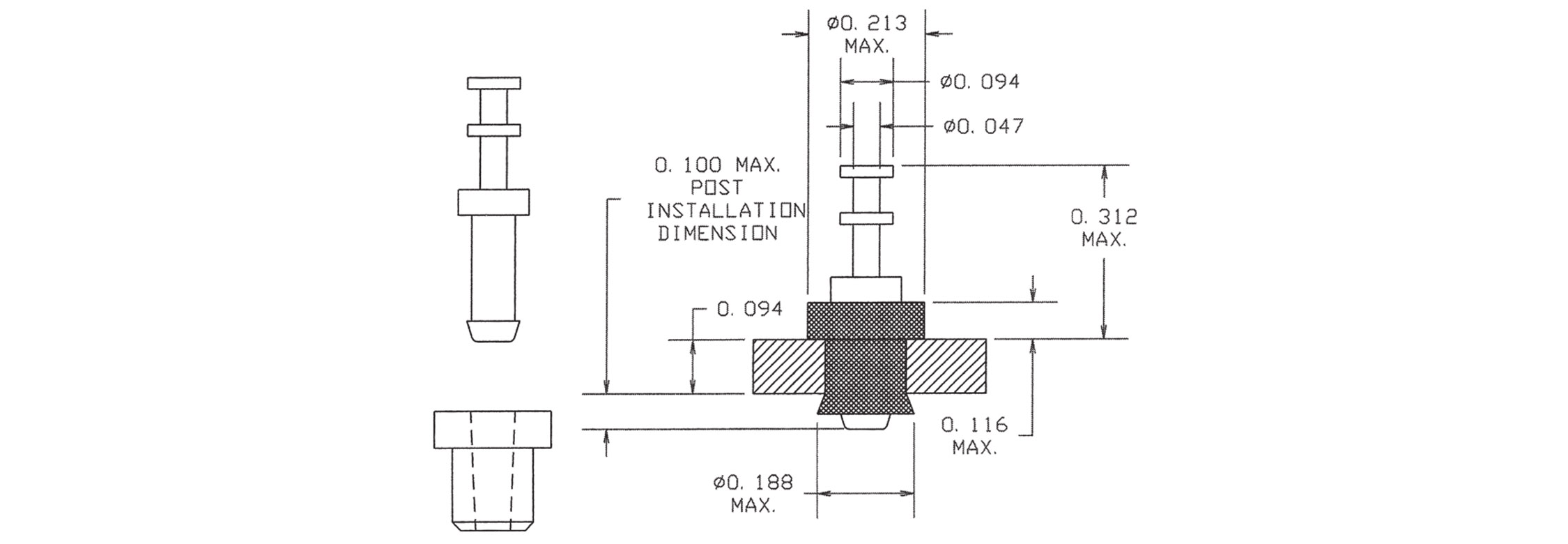

1175-403-0419
1175-403-0419
1175-403-0419
0.506" - - PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Electro-Tin - - PTFE White YES
