Commercial
Insulated
Pin Terminals

Filter
1121-11-0415
1121-11-0415
1121-11-0415
0.500" 0.048 Turret/Tip Press Fit 3/32 0.158 Brass Electro-Tin - - PTFE Green YES

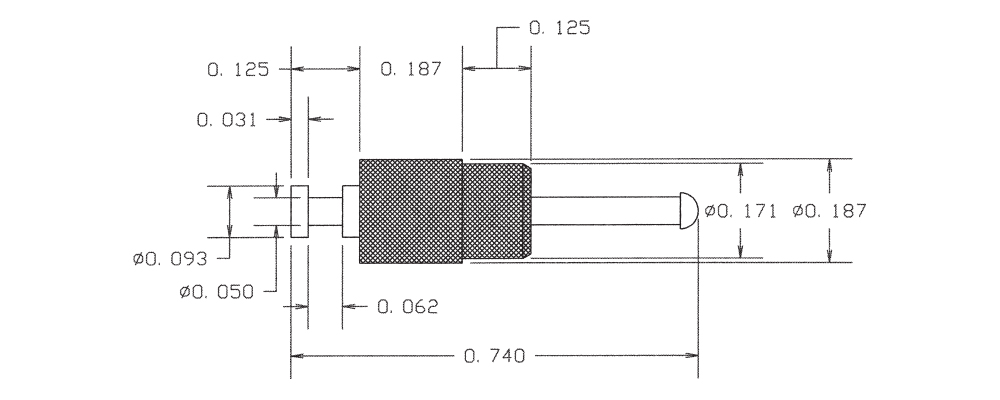

1121-15-0511
1121-15-0511
1121-15-0511
0.740" 0.050 Turret/Tip Press Fit 3/32 0.158 Brass Electro Solder - - PTFE Brown NO

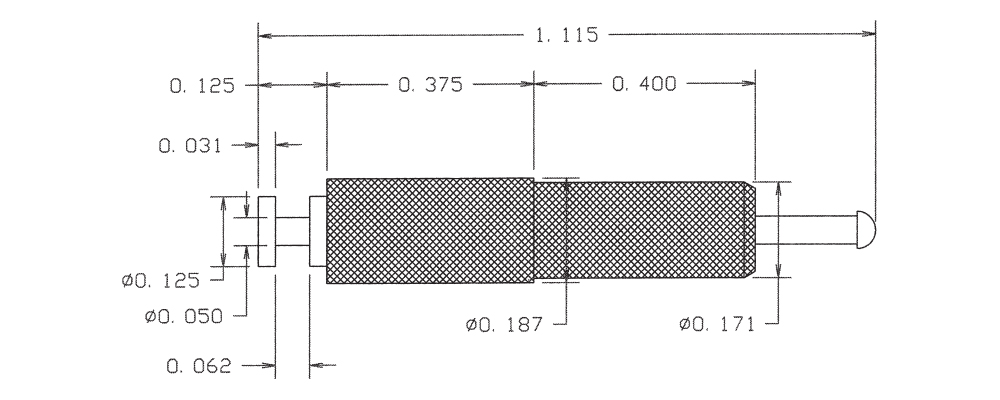

1121-19-08817
1121-19-08817
1121-19-08817
1.115" 0.050 Turret/Tip Press Fit 11/32 0.158 Brass Bright Tin-Lead - - PTFE Violet NO
1121-24-0313
1121-24-0313
1121-24-0313
0.640" 0.046 Turret/Tip Press Fit Up to 3/16 0.172 Brass Gold - - PTFE Orange NO
1121-30-0419
1121-30-0419
1121-30-0419
0.540" 0.046 Turret/Tip Press Fit 1/8 0.158 Brass Electro-Tin - - PTFE White YES

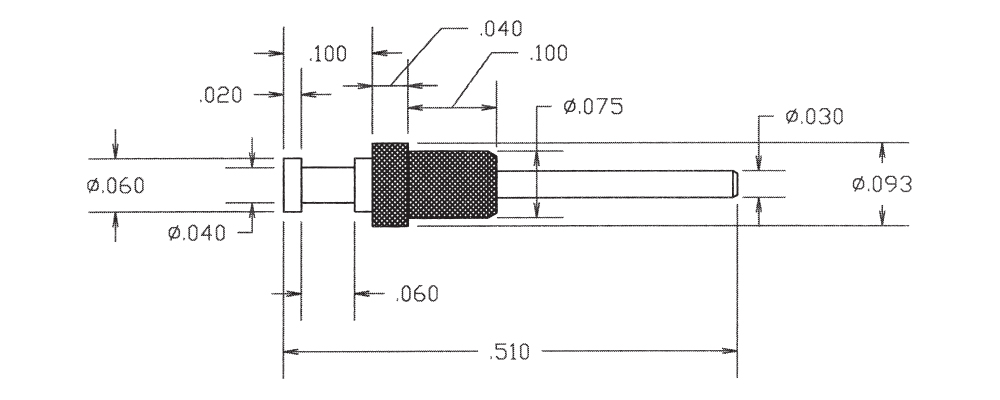

1121-51-0515
1121-51-0515
1121-51-0515
0.510" 0.030 TURRET/PIN Press Fit 1/16 0.070 Brass Electro Solder - - PTFE Green NO
1121R-06-0111
1121R-06-0111
1121R-06-0111
0.493" 0.040 Turret/Tip Press Fit 1/8 0.136 Brass Silver - - PTFE Brown NO
1121R-50-0317
1121R-50-0317
1121R-50-0317
0.433" 0.040 TURRET/PIN Press Fit 1/16 0.136 Brass Gold - - PTFE Violet YES
1123-03-04413
1123-03-04413
1123-03-04413
0.821" 0.050 TIP/SLOTTED Press Fit Up to 3/16 0.158 Brass Bright Tin - - PTFE Orange NO
1123-07-0519
1123-07-0519
1123-07-0519
1.197" 0.050 TIP/SLOTTED Press Fit 11/32 0.158 Brass Electro Solder - - PTFE White NO
1123-72-0115
1123-72-0115
1123-72-0115
0.495" 0.040 TIP/SLOTTED Press Fit 3/32 0.136 Brass Silver - - PTFE Green YES
1123R-05-0411
1123R-05-0411
1123R-05-0411
0.947" 0.050 TIP/SLOTTED Press Fit 7/32 0.158 Brass Electro-Tin - - PTFE Brown NO
1123R-62-04417
1123R-62-04417
1123R-62-04417
0.586" 0.050 Pin/Slotted Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Violet YES

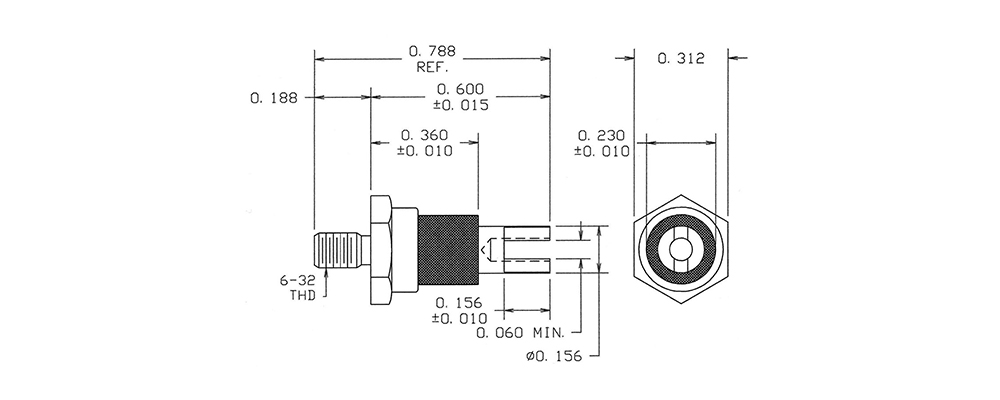

1125-34-08813
1125-34-08813
1125-34-08813
0.788" - - 6-32 Nut 1/16 0.144 Brass Bright Tin-Lead Electro-Tin Brass PTFE Orange NO
1125-40-0119
1125-40-0119
1125-40-0119
0.912" - - 4-40 Nut Up to 3/16 0.120 Brass Silver Electro-Tin Brass PTFE White YES
1125-44-0415
1125-44-0415
1125-44-0415
0.718" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Electro-Tin ZINC Brass PTFE Green YES

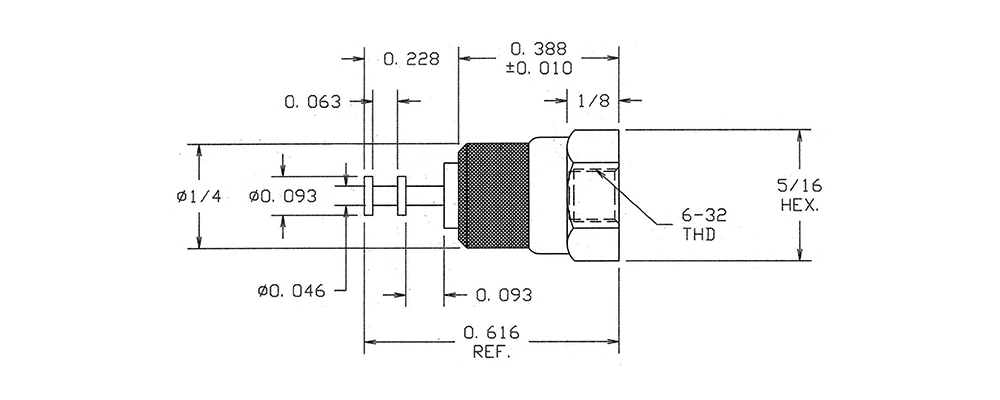

1125-48-0511
1125-48-0511
1125-48-0511
0.388" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Electro Solder ZINC Brass PTFE Brown NO
1125-52-08817
1125-52-08817
1125-52-08817
0.912" - - 6-32 Nut Up to 3/16 0.144 Brass Bright Tin-Lead Electro-Tin Brass PTFE Violet NO
1125-57-0313
1125-57-0313
1125-57-0313
0.975" - - 4-40 Nut Up to 1/4 0.120 Brass Gold Electro-Tin Brass PTFE Orange NO
1125-62-0419
1125-62-0419
1125-62-0419
0.421" 0.040 - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Electro-Tin ZINC Brass PTFE White YES
