Commercial
Insulated
Pin Terminals

Filter

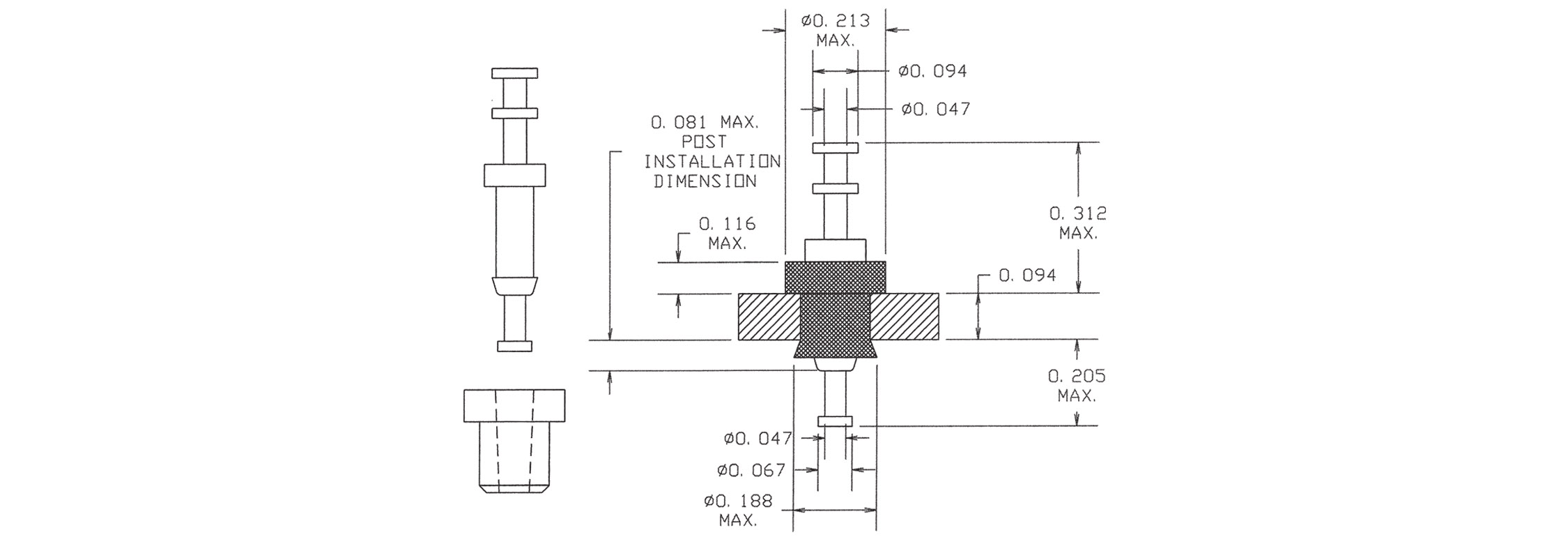

1175-413-0515
1175-413-0515
1175-413-0515
0.611" - DOUBLE Turret/Turret PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Green NO
1175-424-0111
1175-424-0111
1175-424-0111
0.756" - Double Turret/Double Turret PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Silver - - PTFE Brown NO
1175-434-0317
1175-434-0317
1175-434-0317
0.537" - - PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Gold - - PTFE Violet YES
1175-444-04413
1175-444-04413
1175-444-04413
0.642" - TURRET/SLOTTED PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Bright Tin - - PTFE Orange NO
1175-461-0519
1175-461-0519
1175-461-0519
0.361" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE White NO
1175-473-0115
1175-473-0115
1175-473-0115
0.575" - - PRESS LOCK 3/32 0.188 (+0.003/-0.001) Brass Silver - - PTFE Green YES
1175-491-0411
1175-491-0411
1175-491-0411
0.800" - Double Turret/Double Turret PRESS LOCK 1/32 0.188 (+0.003/-0.001) Brass Electro-Tin - - PTFE Brown NO

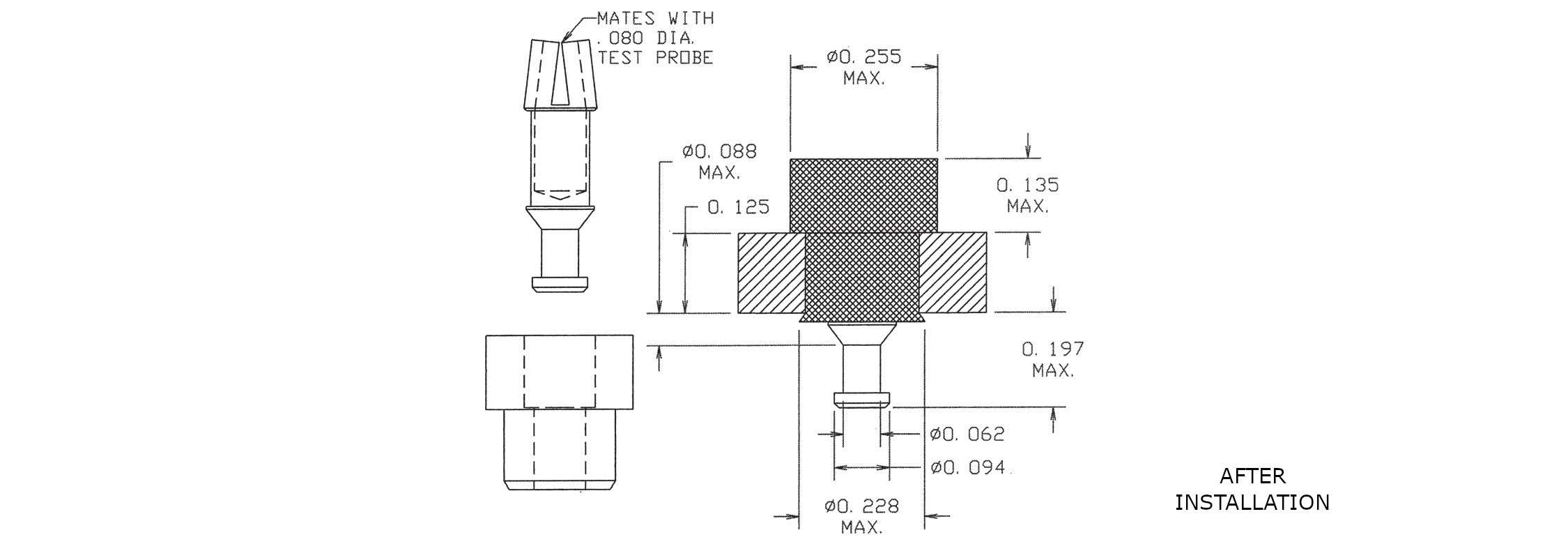

1175-514-04417
1175-514-04417
1175-514-04417
0.457" - - PRESS LOCK 1/8 0.189 (+0.003/-0.001) Brass Bright Tin - - PTFE Violet YES
1175-701-08813
1175-701-08813
1175-701-08813
0.443" - - PRESS LOCK 1/32 0.154 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Orange NO
1175-712-0119
1175-712-0119
1175-712-0119
0.579" - DOUBLE Turret/Turret PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Silver - - PTFE White YES
1175-722-0415
1175-722-0415
1175-722-0415
0.693" - Double Turret/Double Turret PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Electro-Tin - - PTFE Green YES
1175-733-0511
1175-733-0511
1175-733-0511
0.506" - - PRESS LOCK 3/32 0.154 (+0.003/-0.001) Brass Electro Solder - - PTFE Brown NO
1175-743-08817
1175-743-08817
1175-743-08817
0.606" - TURRET/SLOTTED PRESS LOCK 3/32 0.154 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Violet NO
1175-762-0313
1175-762-0313
1175-762-0313
0.387" - - PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Gold - - PTFE Orange NO
1175-821-0419
1175-821-0419
1175-821-0419
0.402" - - PRESS LOCK 1/32 0.126 (+0.003/-0.001) Brass Electro-Tin - - PTFE White YES

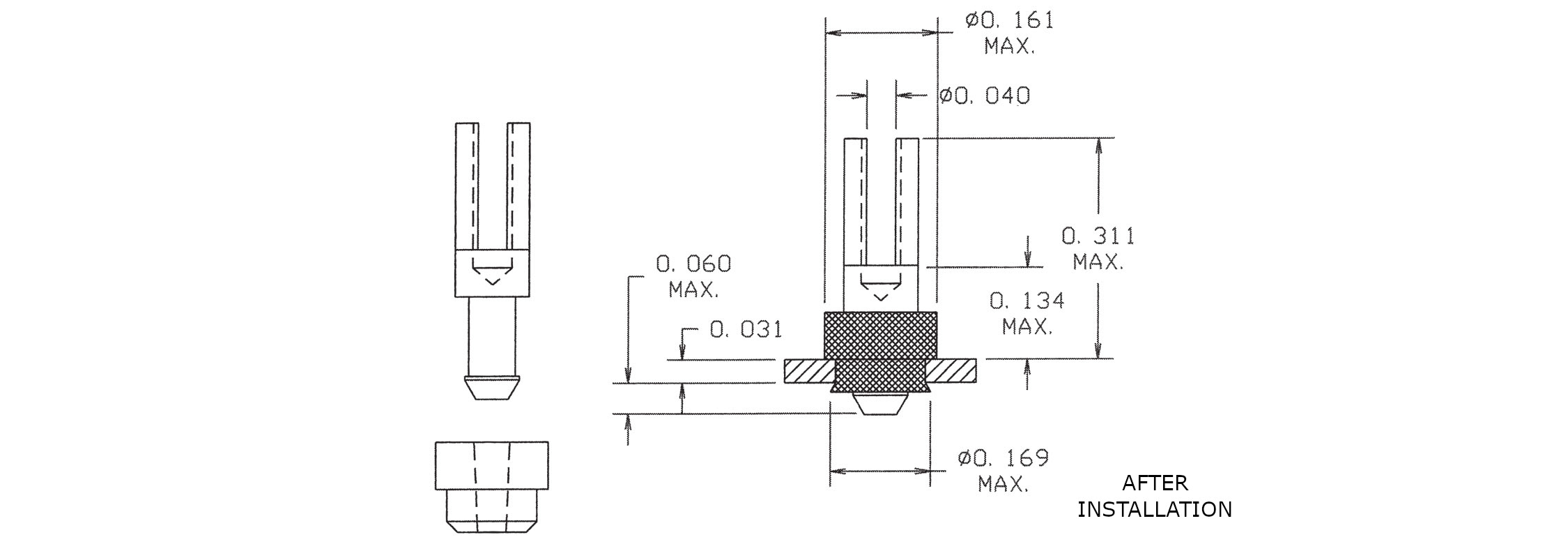

1175-841-0515
1175-841-0515
1175-841-0515
0.402" - - PRESS LOCK 1/32 0.126 (+0.003/-0.001) Brass Electro Solder - - PTFE Green NO
1175-872-0111
1175-872-0111
1175-872-0111
0.591" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/16 0.126 (+0.003/-0.001) Brass Silver - - PTFE Brown NO
1177-02-0317
1177-02-0317
1177-02-0317
0.272" 0.040 - PRESS LOCK 1/32 - 1/16 0.093 Brass Gold - - PTFE Violet YES

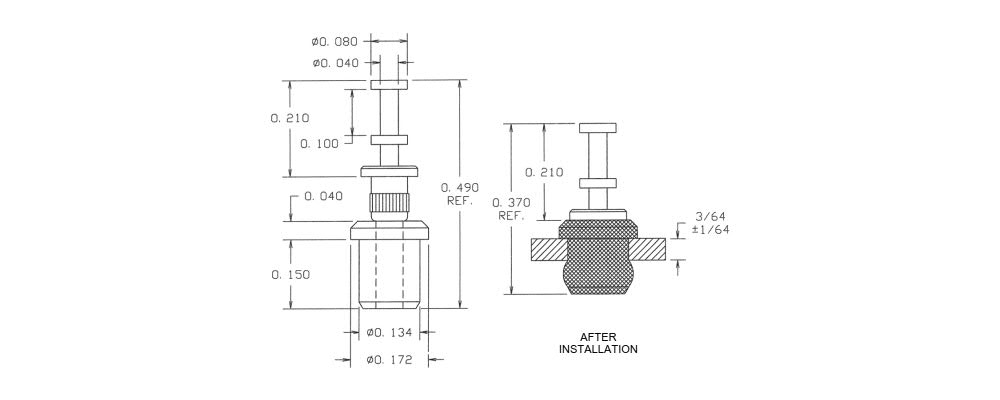

1177-11-04413
1177-11-04413
1177-11-04413
0.370" - - PRESS LOCK 1/32 - 1/16 0.136 Brass Bright Tin - - PTFE Orange NO

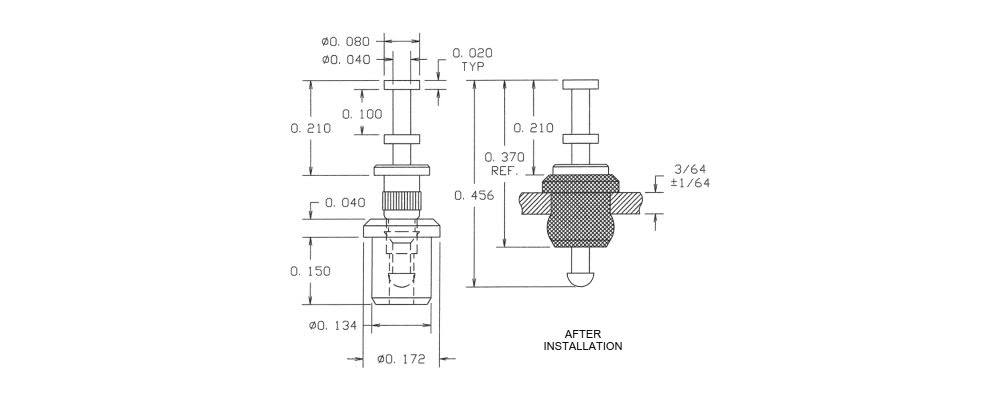

1177-31-0519
1177-31-0519
1177-31-0519
0.456" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/32 - 1/16 0.136 Brass Electro Solder - - PTFE White NO
