Commercial
Insulated
Pin Terminals

Filter
1106R-50-0415
1106R-50-0415
1106R-50-0415
0.350" - - Press Fit 1/16 0.091 Brass Electro-Tin - - PTFE Green YES
1107-02-0511
1107-02-0511
1107-02-0511
0.560" 0.040 Pin/Pin Press Fit 1/8 0.136 Brass Electro Solder - - PTFE Brown NO

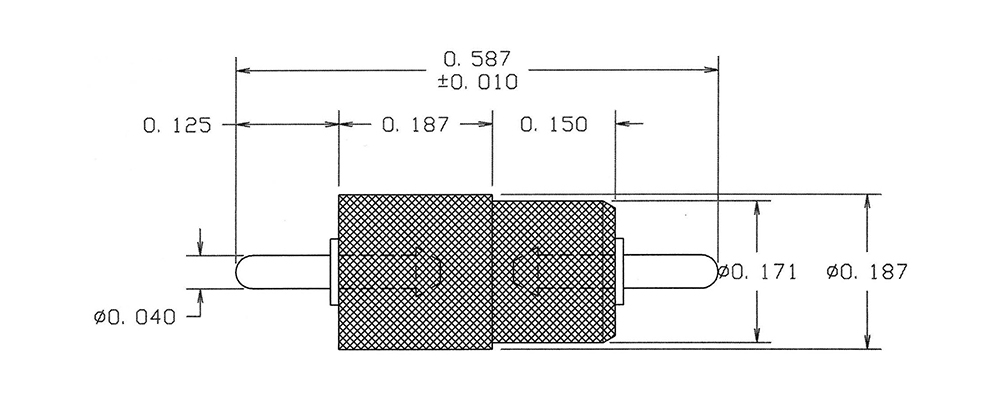

1107-07-08817
1107-07-08817
1107-07-08817
0.587" 0.040 Pin/Pin Press Fit 1/8 0.158 Brass Bright Tin-Lead - - PTFE Violet NO
1108-01-0313
1108-01-0313
1108-01-0313
1.687" - Double Turret/Double Turret Press Fit 9/16 0.205 Brass Gold - - PTFE Orange NO
1108-05-0419
1108-05-0419
1108-05-0419
0.819" - Double Turret/Double Turret Press Fit Up to 3/16 0.136 Brass Electro-Tin - - PTFE White YES

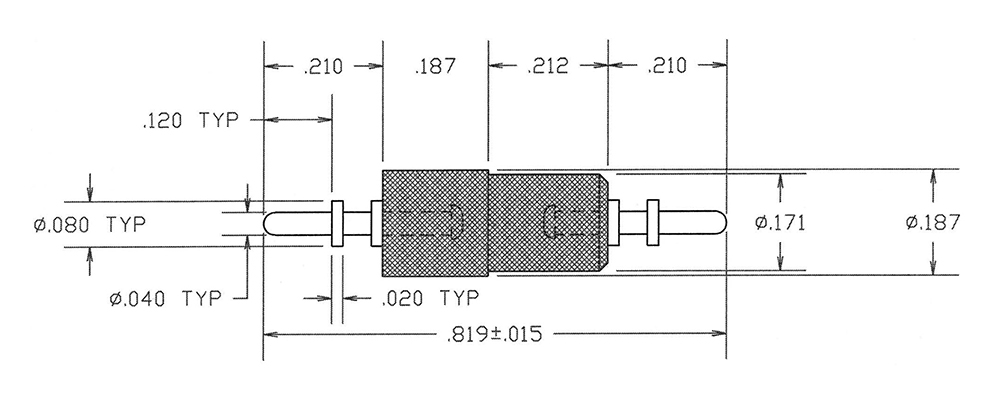

1108-30-0515
1108-30-0515
1108-30-0515
0.819" - Turret/Turret Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE Green NO
1110-06-0111
1110-06-0111
1110-06-0111
0.987" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Silver - - PTFE Brown NO
1110-10-0317
1110-10-0317
1110-10-0317
0.453" 0.030 Pin/Pin Press Fit 1/16 0.086 Brass Gold - - PTFE Violet YES
1110-15-04413
1110-15-04413
1110-15-04413
0.431" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Orange NO

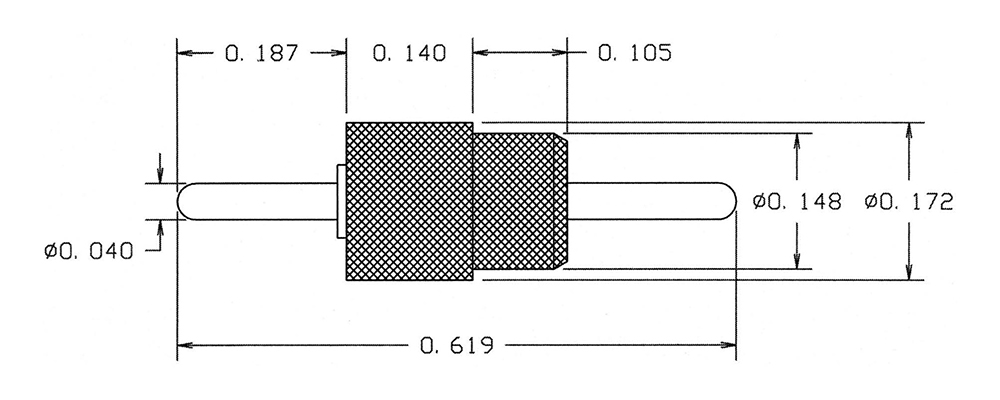

1110-19-0519
1110-19-0519
1110-19-0519
0.619" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro Solder - - PTFE White NO
1110-24-0115
1110-24-0115
1110-24-0115
0.535" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Silver - - PTFE Green YES
1110-28-0411
1110-28-0411
1110-28-0411
0.562" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Brown NO
1110-32-04417
1110-32-04417
1110-32-04417
0.710" 0.040 Pin/Pin Press Fit Up to 3/16 0.136 Brass Bright Tin - - PTFE Violet YES

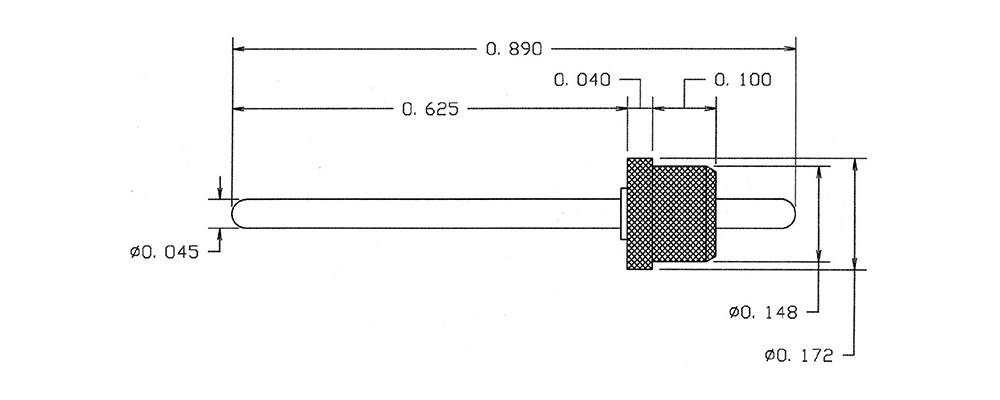

1110-37-08813
1110-37-08813
1110-37-08813
0.890" 0.045 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Orange NO
1110-44-0119
1110-44-0119
1110-44-0119
2.500" 0.049 Pin/Pin Press Fit 1/16 0.156 Brass Silver - - PTFE White YES
1110-48-0415
1110-48-0415
1110-48-0415
0.540" 0.046 Pin/Pin Press Fit 1/8 0.158 Brass Electro-Tin - - PTFE Green YES
1110-53-0511
1110-53-0511
1110-53-0511
0.437" 0.050 TURRET/PIN Press Fit 3/32 0.172 Brass Electro Solder - - PTFE Brown NO
1110-60-08817
1110-60-08817
1110-60-08817
0.443" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE Violet NO
1110-66-0313
1110-66-0313
1110-66-0313
0.890" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Gold - - PTFE Orange NO
1110-70-0419
1110-70-0419
1110-70-0419
1.950" 0.049 Pin/Pin Press Fit 1/16 0.156 Brass Electro-Tin - - PTFE White YES
