Commercial
Insulated
Pin Terminals

1153-12-0411
1153-12-0411
1153-12-0411
0.594" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Electro-Tin - - PTFE Brown NO
1100-34-0511
1100-34-0511
1100-34-0511
0.410" 0.040 - Press Fit 1/8 0.136 Brass Electro Solder - - PTFE Brown NO
1110-95-04417
1110-95-04417
1110-95-04417
0.778" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Violet YES
1100-43-08817
1100-43-08817
1100-43-08817
0.485" 0.040 - Press Fit 1/8 0.152 Brass Bright Tin-Lead - - PTFE Violet NO
1100-56-0313
1100-56-0313
1100-56-0313
0.300" 0.030 - Press Fit 1/32 0.070 Brass Gold - - PTFE Orange NO
1100-93-0419
1100-93-0419
1100-93-0419
0.315" 0.030 - Press Fit 1/16 0.086 Brass Electro-Tin - - PTFE White YES
1100R-08A-0515
1100R-08A-0515
1100R-08A-0515
0.250" 0.040 - Press Fit 1/16 0.091 Brass Electro Solder - - PTFE Green NO
1100R-23-0111
1100R-23-0111
1100R-23-0111
0.330" 0.040 - Press Fit 1/16 0.136 Brass Silver - - PTFE Brown NO

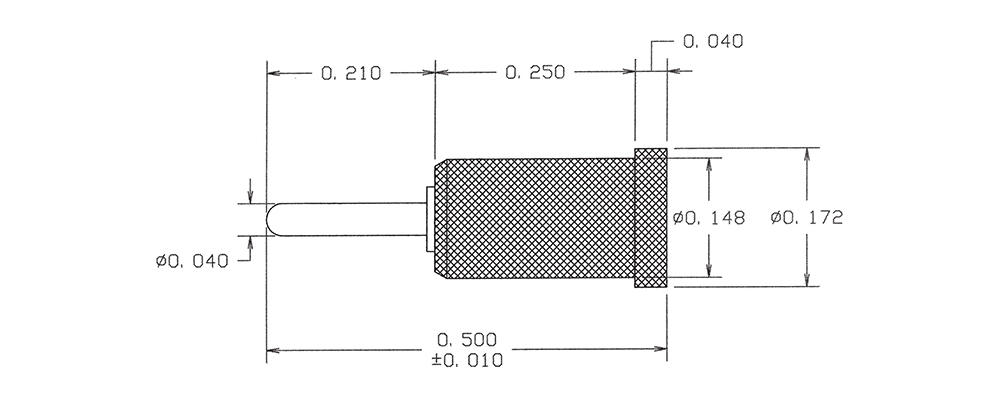

1100R-35-0317
1100R-35-0317
1100R-35-0317
0.500" 0.040 - Press Fit Up to 3/16 0.136 Brass Gold - - PTFE Violet YES
1100R-66-04413
1100R-66-04413
1100R-66-04413
0.350" 0.040 - Press Fit 1/16 0.113 Brass Bright Tin - - PTFE Orange NO
1101-05-0519
1101-05-0519
1101-05-0519
0.428" - - Press Fit 3/32 0.136 Brass Electro Solder - - PTFE White NO
1102-03-0115
1102-03-0115
1102-03-0115
0.350" - - Press Fit 1/16 0.086 Brass Silver - - PTFE Green YES
1102-07-0411
1102-07-0411
1102-07-0411
0.480" - - Press Fit 5/32 0.118 Brass Electro-Tin - - PTFE Brown NO
1102-12-04417
1102-12-04417
1102-12-04417
0.334" - - Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Violet YES
1102-16-08813
1102-16-08813
1102-16-08813
0.428" - - Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE Orange NO

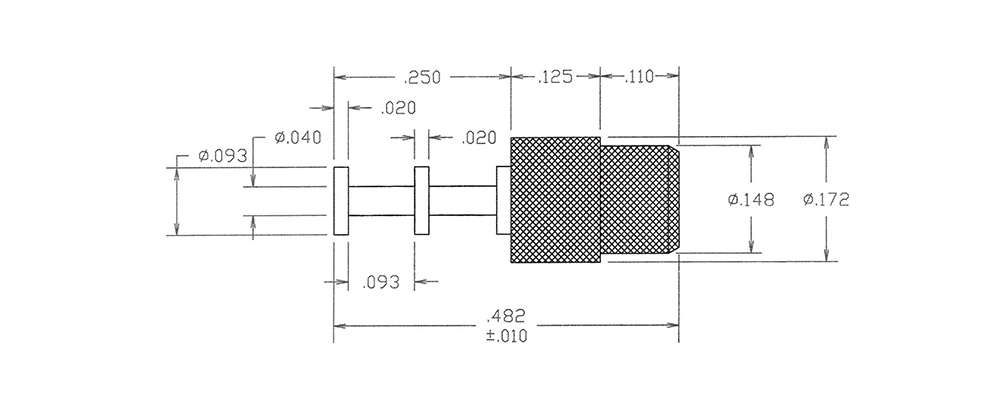

1102-23-0119
1102-23-0119
1102-23-0119
0.482" - - Press Fit 1/16 0.136 Brass Silver - - PTFE White YES
1102-27-0415
1102-27-0415
1102-27-0415
0.346" - - Press Fit 1/8 0.140 Brass Electro-Tin - - PTFE Green YES
1102-31-0511
1102-31-0511
1102-31-0511
0.431" - - Press Fit 1/8 0.152 Brass Electro Solder - - PTFE Brown NO
1102-35-08817
1102-35-08817
1102-35-08817
0.656" - - Press Fit 1/16 0.152 Brass Bright Tin-Lead - - PTFE Violet NO

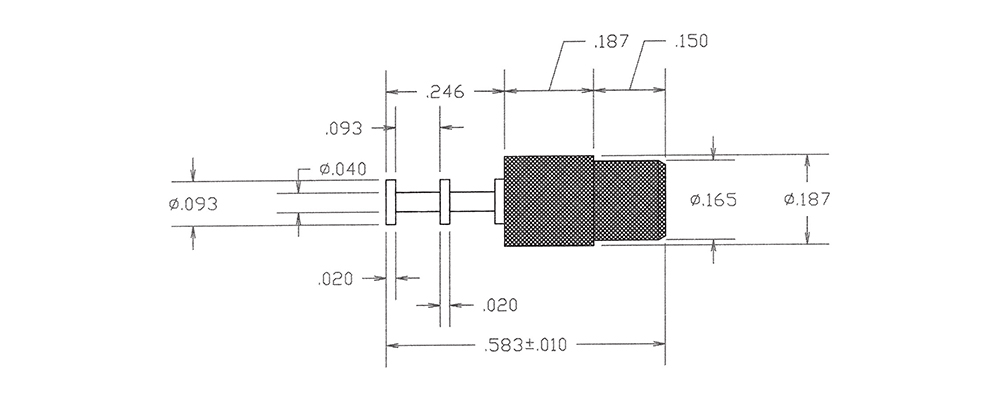

1102-41-0313
1102-41-0313
1102-41-0313
0.583" - - Press Fit 1/8 0.152 Brass Gold - - PTFE Orange NO
