Commercial
Insulated
Pin Terminals

Filter
1112-09-0419
1112-09-0419
1112-09-0419
0.293" - - Press Fit 1/64 0.113 Brass Electro-Tin - - PTFE White YES
1112-14-0515
1112-14-0515
1112-14-0515
0.293" - - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Green NO
1112-70-0111
1112-70-0111
1112-70-0111
0.313" - - Press Fit 3/32 0.158 Brass Silver - - PTFE Brown NO

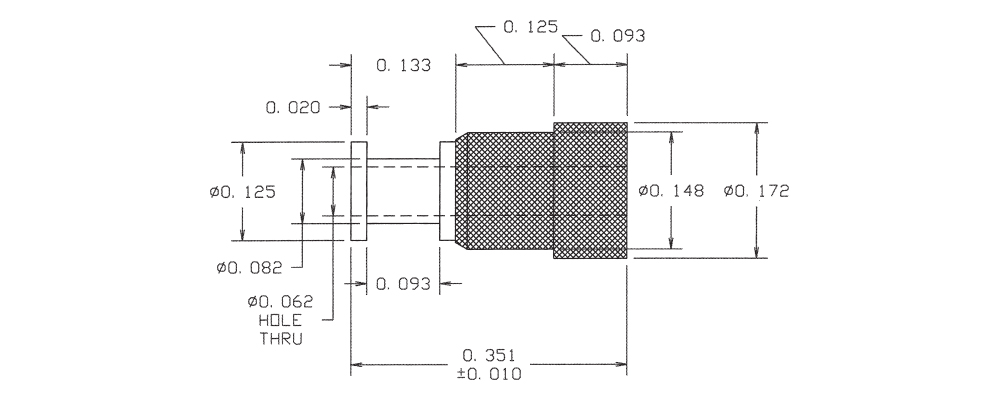

1112R-15-0317
1112R-15-0317
1112R-15-0317
0.351" - - Press Fit 3/32 0.136 Brass Gold - - PTFE Violet YES
1112R-62-04413
1112R-62-04413
1112R-62-04413
0.260" - - Press Fit 3/32 0.086 Brass Bright Tin - - PTFE Orange NO
1113-03-0519
1113-03-0519
1113-03-0519
0.333" - - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE White NO

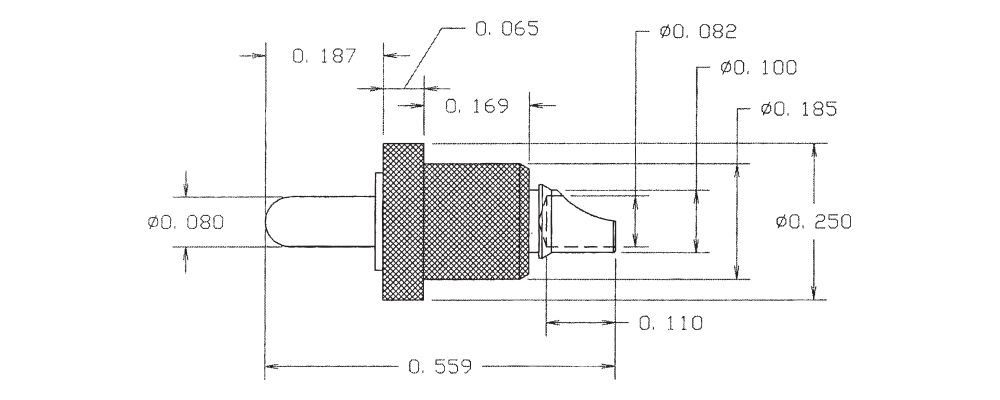

1113-58-0115
1113-58-0115
1113-58-0115
0.559" 0.080 PIN/Solder CUP Press Fit 1/8 0.172 Brass Silver - - PTFE Green YES
1114-04-0411
1114-04-0411
1114-04-0411
0.225" 0.040 - Press Fit 1/32 0.086 Brass Electro-Tin - - PTFE Brown NO
1114-08-04417
1114-08-04417
1114-08-04417
0.310" 0.040 - Press Fit 3/32 0.108 Brass Bright Tin - - PTFE Violet YES
1114-50-08813
1114-50-08813
1114-50-08813
0.270" 0.060 - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Orange NO

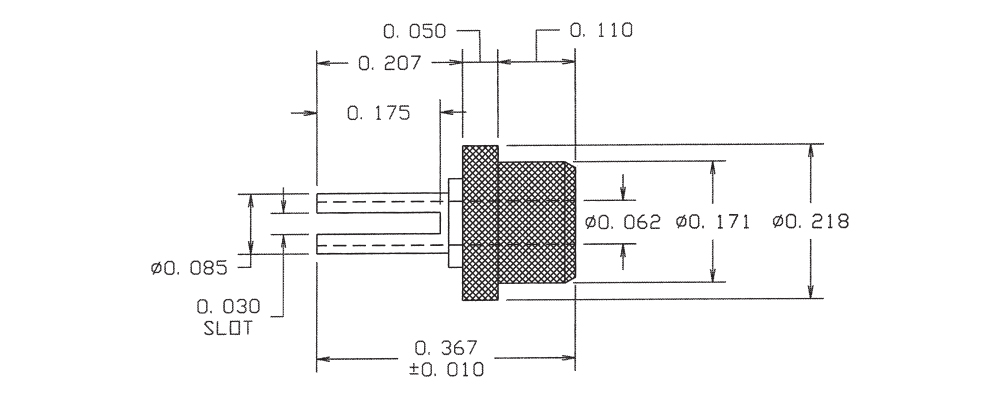

1114-75-0119
1114-75-0119
1114-75-0119
0.367" - - Press Fit 1/16 0.158 Brass Silver - - PTFE White YES

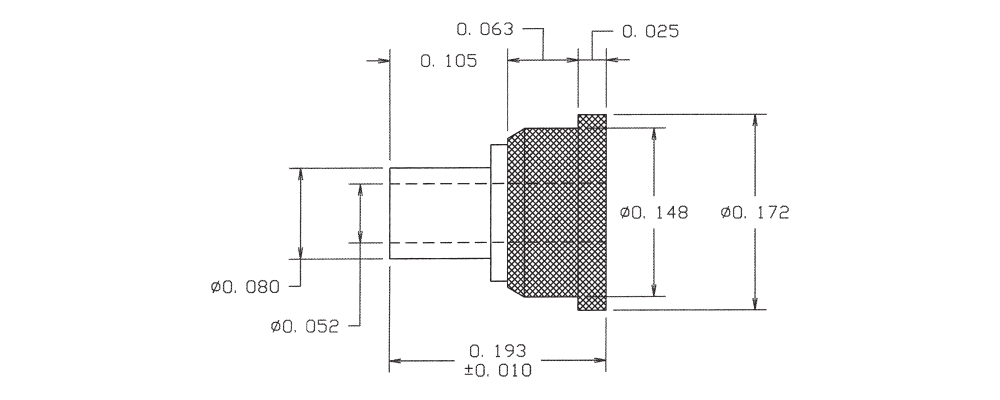

1114R-14-0415
1114R-14-0415
1114R-14-0415
0.193" 0.080 - Press Fit 1/32 0.136 Brass Electro-Tin - - PTFE Green YES
1114R-20-0511
1114R-20-0511
1114R-20-0511
0.310" 0.040 - Press Fit 1/64 0.136 Brass Electro Solder - - PTFE Brown NO
1114R-80-08817
1114R-80-08817
1114R-80-08817
0.380" 0.055 - Press Fit 1/32 0.136 Brass Bright Tin-Lead - - PTFE Violet NO
1115-07-0313
1115-07-0313
1115-07-0313
0.287" 0.060 - Press Fit 1/16 0.205 Brass Gold - - PTFE Orange NO
1115-51-0419
1115-51-0419
1115-51-0419
0.453" - - Press Fit 1/16 0.187 Brass Electro-Tin - - PTFE White YES
1115R-02-0515
1115R-02-0515
1115R-02-0515
0.282" 0.040 - Press Fit 1/32 0.136 Brass Electro Solder - - PTFE Green NO

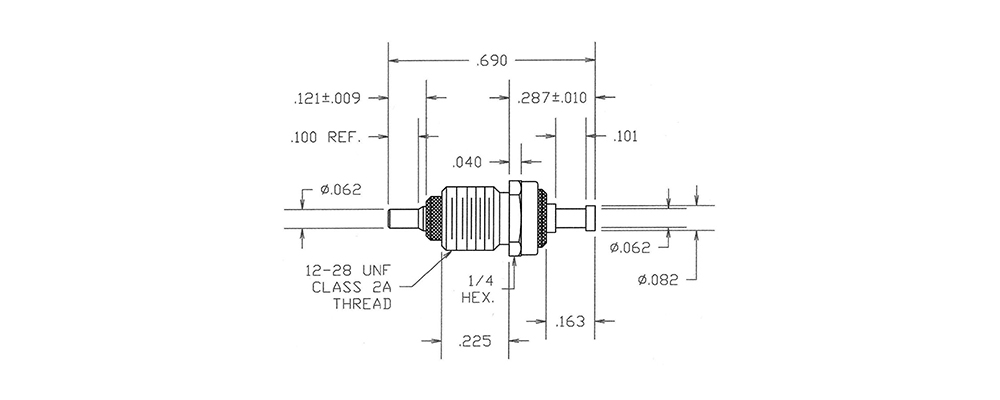

1117-01-0111
1117-01-0111
1117-01-0111
0.690" 0.062 ± 0.010 TURRET/PIN 12-28 Nut 3/32 0.221 Brass Silver Nickel Brass PTFE Brown NO
1117-16-0317
1117-16-0317
1117-16-0317
0.990" - Double Turret/Double Turret 8-32 Nut 1/8 0.169 Brass Gold Nickel Brass PTFE Violet YES
1117-50-04413
1117-50-04413
1117-50-04413
0.640" 0.029 Pin/Pin 4-40 Nut 1/8 0.120 Brass Bright Tin Nickel Brass PTFE Orange NO
