Commercial
Insulated
Pin Terminals

Filter

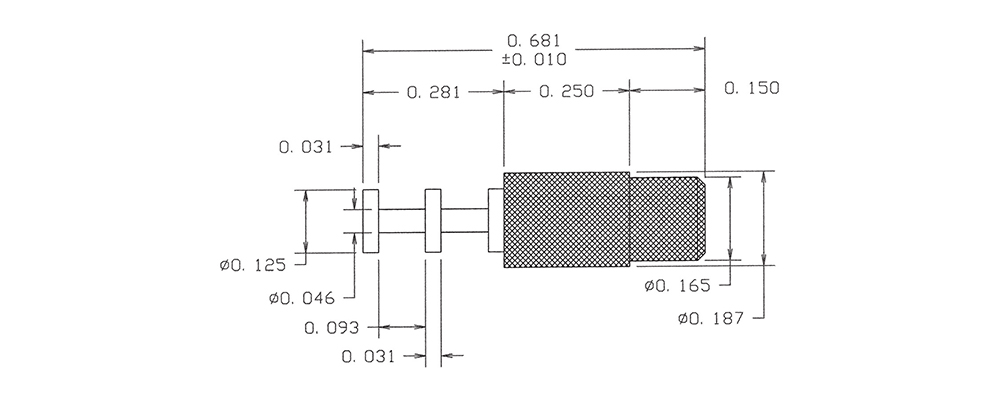

1102-49-0419
1102-49-0419
1102-49-0419
0.681" - - Press Fit 1/8 0.152 Brass Electro-Tin - - PTFE White YES
1102-53-0515
1102-53-0515
1102-53-0515
0.431" - - Press Fit 1/8 0.158 Brass Electro Solder - - PTFE Green NO

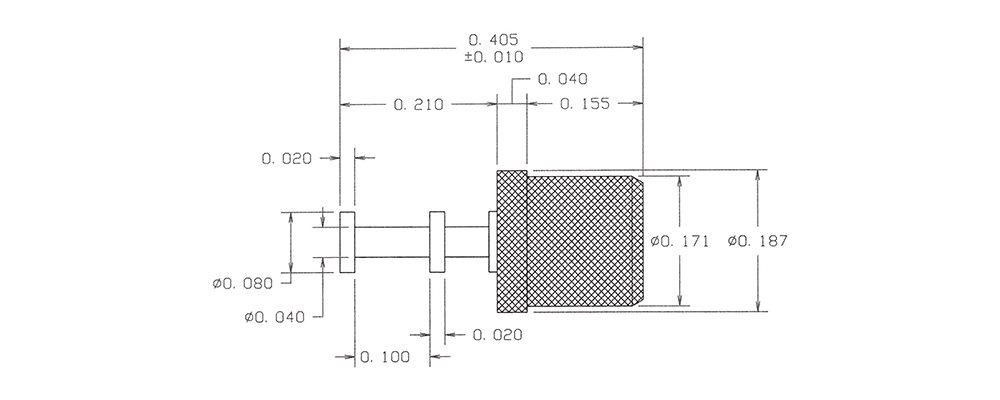

1102-58-0111
1102-58-0111
1102-58-0111
0.405" - - Press Fit 1/8 0.158 Brass Silver - - PTFE Brown NO

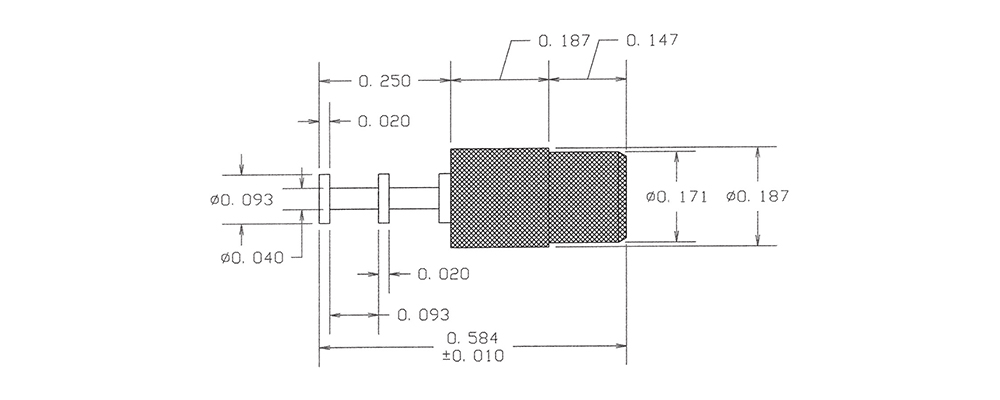

1102-63-0317
1102-63-0317
1102-63-0317
0.584" - - Press Fit 3/32 0.158 Brass Gold - - PTFE Violet YES
1102-67-04413
1102-67-04413
1102-67-04413
0.681" - - Press Fit 1/8 0.158 Brass Bright Tin - - PTFE Orange NO
1102-71-0519
1102-71-0519
1102-71-0519
1.268" - - Press Fit 5/32 0.158 Brass Electro Solder - - PTFE White NO

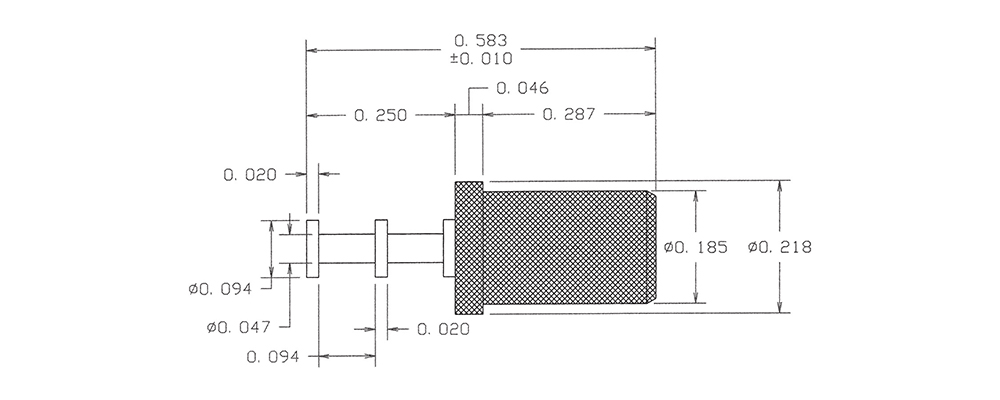

1102-77-0115
1102-77-0115
1102-77-0115
0.583" - - Press Fit Up to 1/4 0.172 Brass Silver - - PTFE Green YES

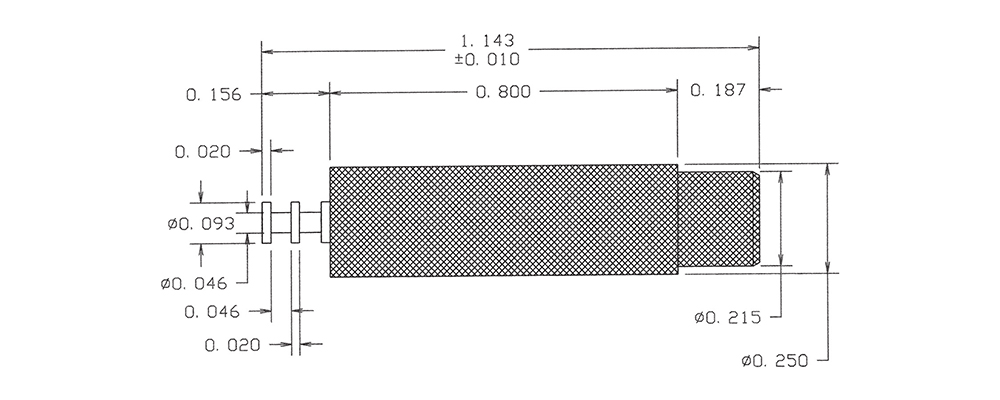

1102-81-0411
1102-81-0411
1102-81-0411
1.143" - - Press Fit 5/32 0.203 Brass Electro-Tin - - PTFE Brown NO
1102-85-04417
1102-85-04417
1102-85-04417
0.968" - - Press Fit Up to 1/4 0.203 Brass Bright Tin - - PTFE Violet YES

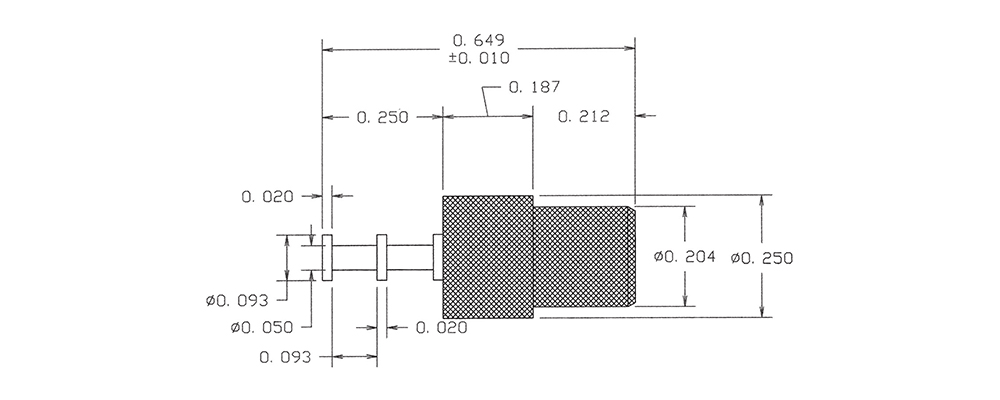

1102-94-08813
1102-94-08813
1102-94-08813
0.649" - - Press Fit Up to 3/16 0.191 Brass Bright Tin-Lead - - PTFE Orange NO
1102R-11-0119
1102R-11-0119
1102R-11-0119
0.296" - - Press Fit 1/16 0.136 Brass Silver - - PTFE White YES

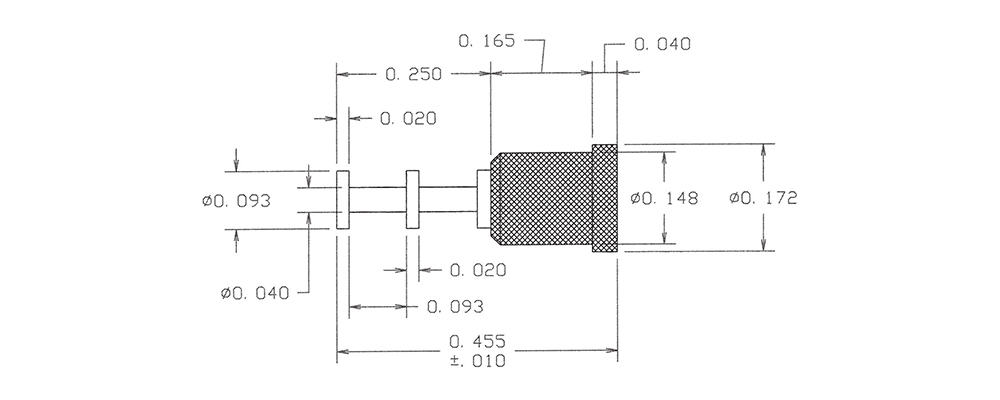

1102R-21-0415
1102R-21-0415
1102R-21-0415
0.455" - - Press Fit 1/8 0.136 Brass Electro-Tin - - PTFE Green YES

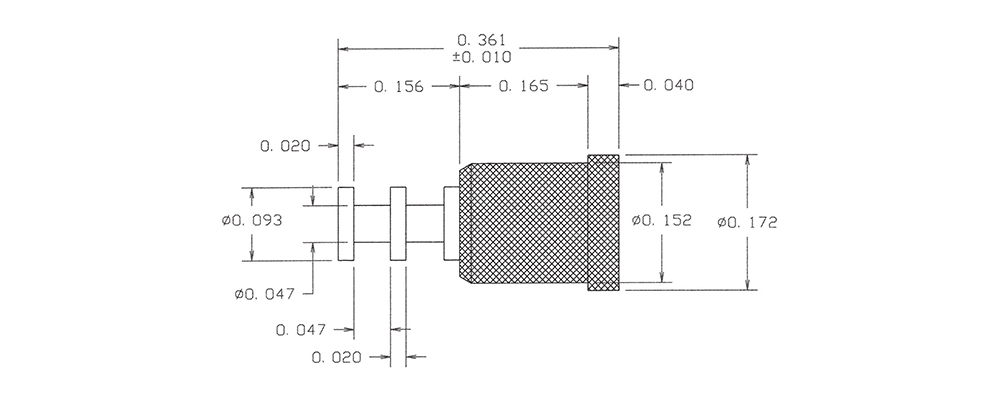

1102R-28-0511
1102R-28-0511
1102R-28-0511
0.361" - - Press Fit 1/8 0.140 Brass Electro Solder - - PTFE Brown NO
1102R-74-08817
1102R-74-08817
1102R-74-08817
0.375" - - Press Fit 3/32 0.172 Brass Bright Tin-Lead - - PTFE Violet NO
1103-01-0313
1103-01-0313
1103-01-0313
0.250" - - Press Fit 1/16 0.136 Brass Gold - - PTFE Orange NO

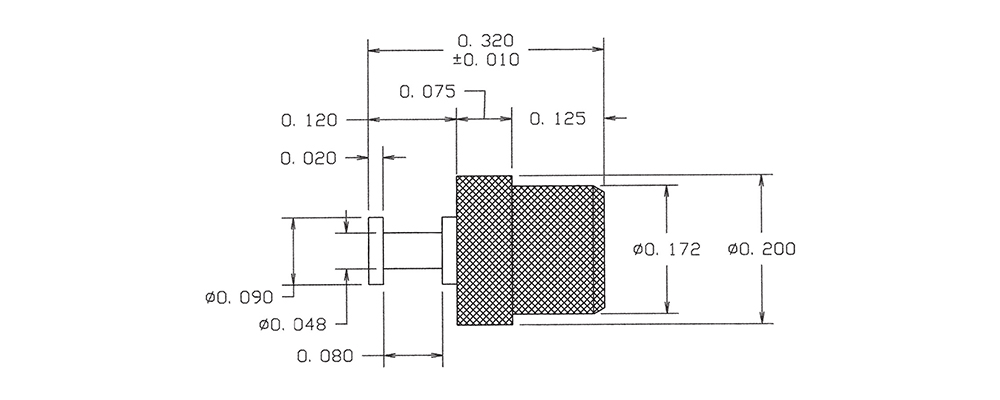

1103-08-0419
1103-08-0419
1103-08-0419
0.320" - - Press Fit 3/32 0.152 Brass Electro-Tin - - PTFE White YES
1103R-08-0515
1103R-08-0515
1103R-08-0515
0.320" - - Press Fit 3/32 0.158 Brass Electro Solder - - PTFE Green NO
1104-51-0111
1104-51-0111
1104-51-0111
0.255" - - Press Fit 1/32 0.086 Brass Silver - - PTFE Brown NO
1105-02-0317
1105-02-0317
1105-02-0317
1.687" - Double Turret/Double Turret Press Fit 9/16 0.205 Brass Gold - - PTFE Violet YES
1106-03-04413
1106-03-04413
1106-03-04413
0.478" - - Press Fit 1/8 0.158 Brass Bright Tin - - PTFE Orange NO
