Commercial
Insulated
Pin Terminals

Filter

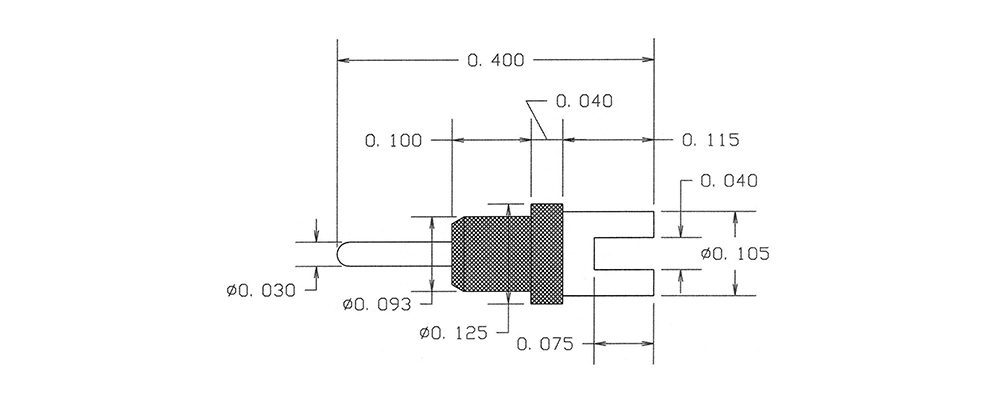

1135-09-08816
1135-09-08816
1135-09-08816
0.400" 0.030 Pin/Slotted Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE Blue NO
1137-03-0312
1137-03-0312
1137-03-0312
0.320" 0.030 Pin/Slotted Press Fit 1/16 0.070 Brass Gold - - PTFE Red NO

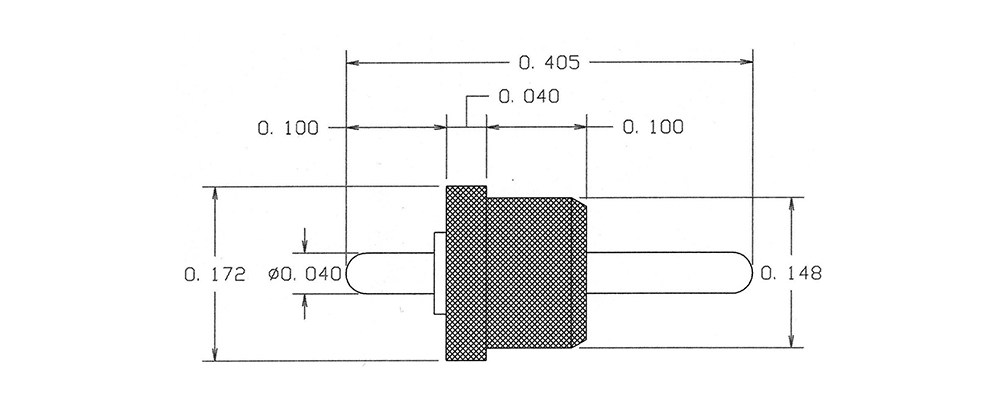

1139-04-0418
1139-04-0418
1139-04-0418
0.405" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Gray NO
1151-05-0514
1151-05-0514
1151-05-0514
0.350" - - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Yellow NO
1151-12-0110
1151-12-0110
1151-12-0110
0.540" - - Press Fit 7/32 0.136 Brass Silver - - PTFE Black YES
1151-20-0316
1151-20-0316
1151-20-0316
0.469" - - Press Fit 3/32 0.136 Brass Gold - - PTFE Blue YES
1151-39-04412
1151-39-04412
1151-39-04412
0.525" - - Press Fit 1/8 0.158 Brass Bright Tin - - PTFE Red NO
1151-51-0518
1151-51-0518
1151-51-0518
1.234" - - Press Fit 5/32 0.203 Brass Electro Solder - - PTFE Gray NO
1151R-10-0114
1151R-10-0114
1151R-10-0114
0.415" - - Press Fit 3/32 0.136 Brass Silver - - PTFE Yellow NO

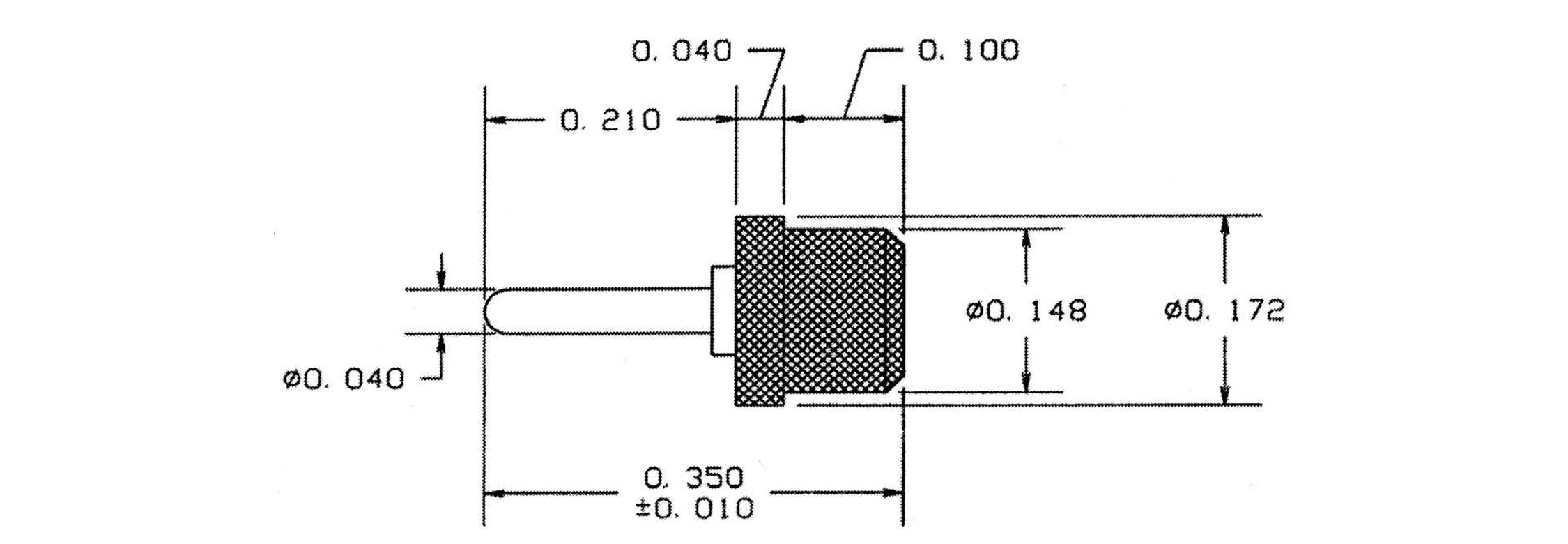

1152-01-0410
1152-01-0410
1152-01-0410
0.350" 0.040 - Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Black YES

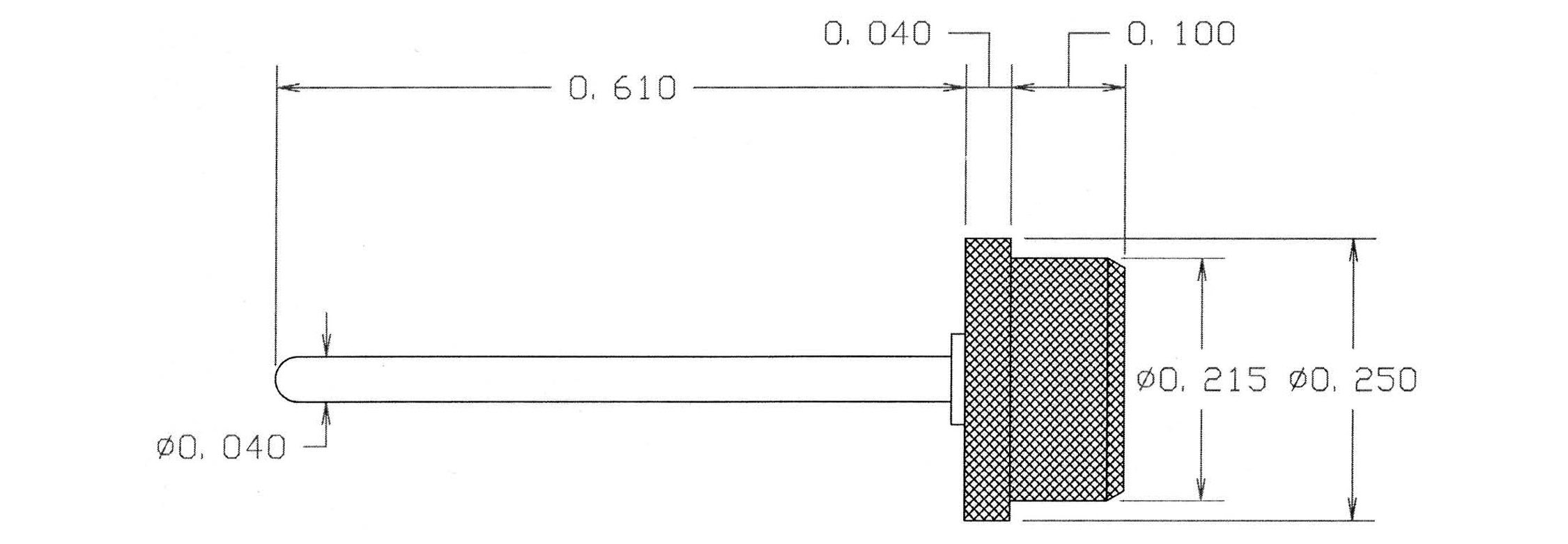

1152-31-04416
1152-31-04416
1152-31-04416
0.750" 0.040 - Press Fit 1/16 0.203 Brass Bright Tin - - PTFE Blue YES
1152R-17-08812
1152R-17-08812
1152R-17-08812
0.615" 0.040 - Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE Red NO
1153-07-0118
1153-07-0118
1153-07-0118
0.540" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Silver - - PTFE Gray NO

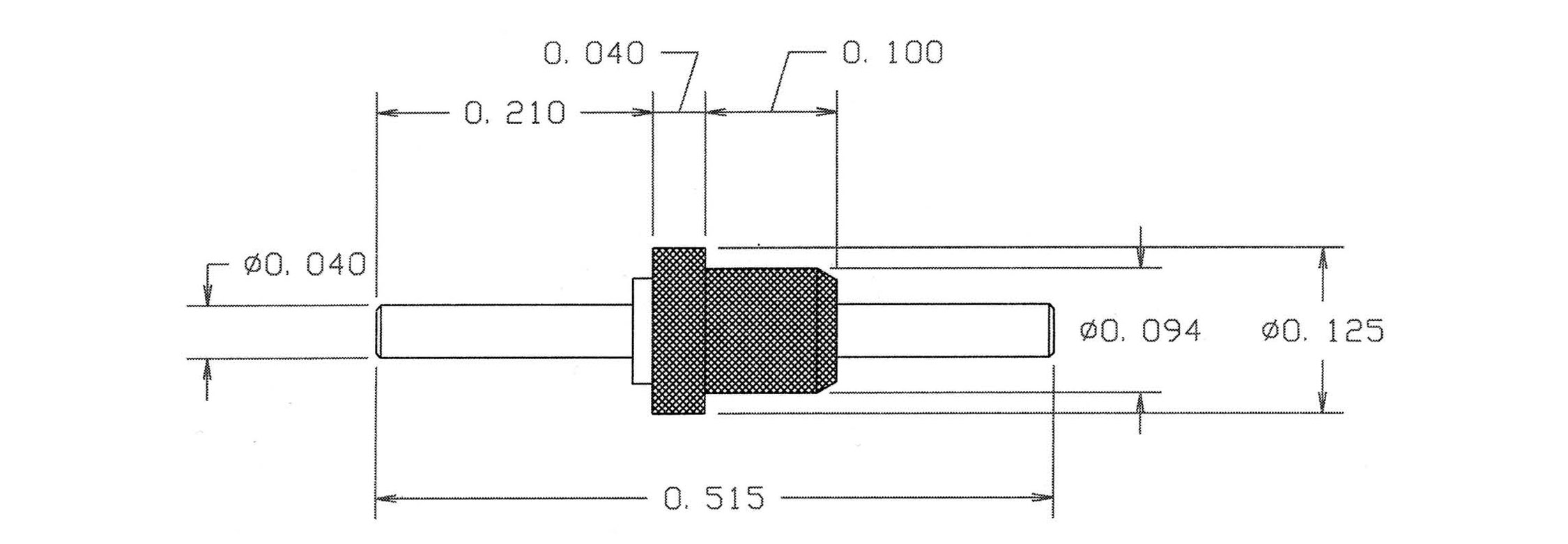

1153-32-0414
1153-32-0414
1153-32-0414
0.515" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Electro-Tin - - PTFE Yellow NO
1154-10-0510
1154-10-0510
1154-10-0510
0.753" - - Press Fit 1/8 0.158 Brass Electro Solder - - PTFE Black NO
1154-44-08816
1154-44-08816
1154-44-08816
0.821" 0.050 Pin/Slotted Press Fit Up to 3/16 0.158 Brass Bright Tin-Lead - - PTFE Blue NO

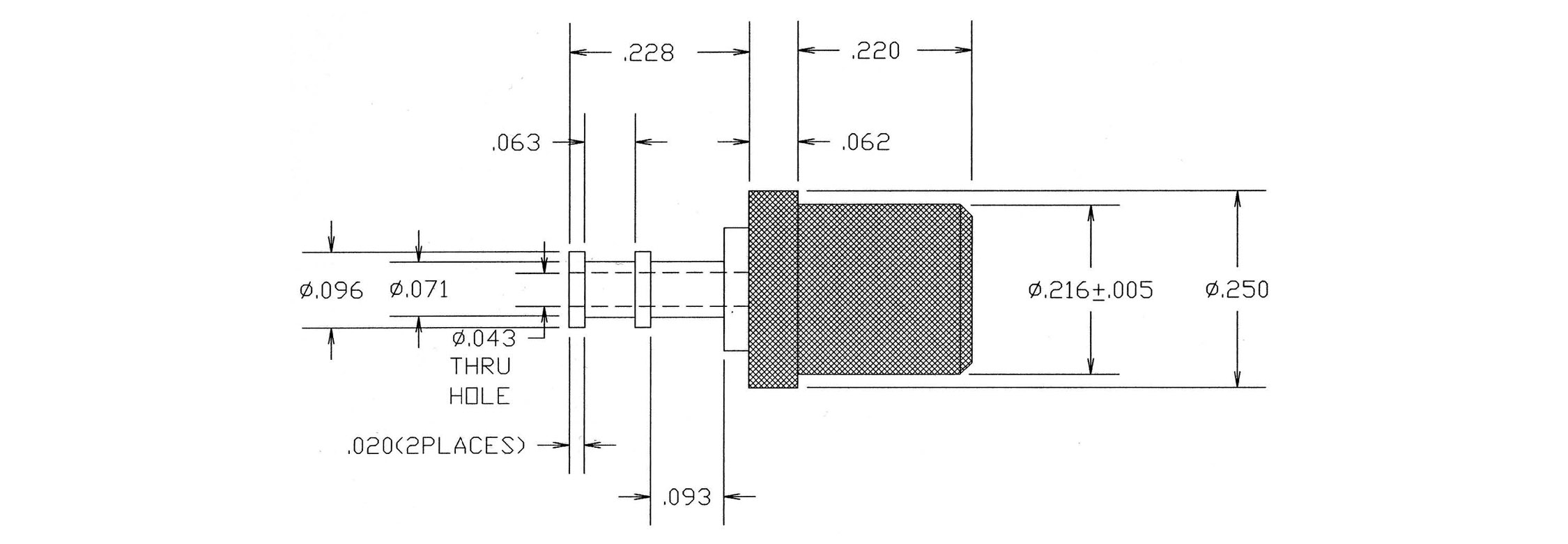

1155-02-0312
1155-02-0312
1155-02-0312
0.510" - - Press Fit Up to 3/16 0.204 Brass Gold - - PTFE Red NO

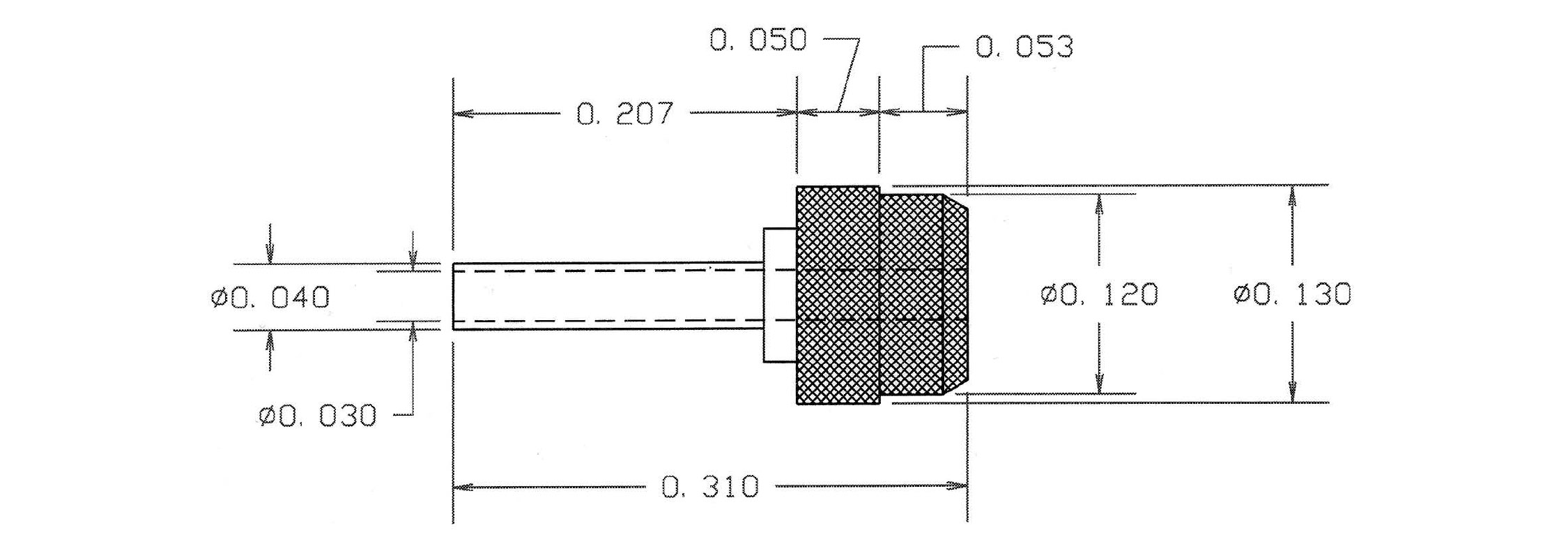

1155-13-0418
1155-13-0418
1155-13-0418
0.310" 0.040 - Press Fit 1/64 0.108 Brass Electro-Tin - - PTFE Gray NO

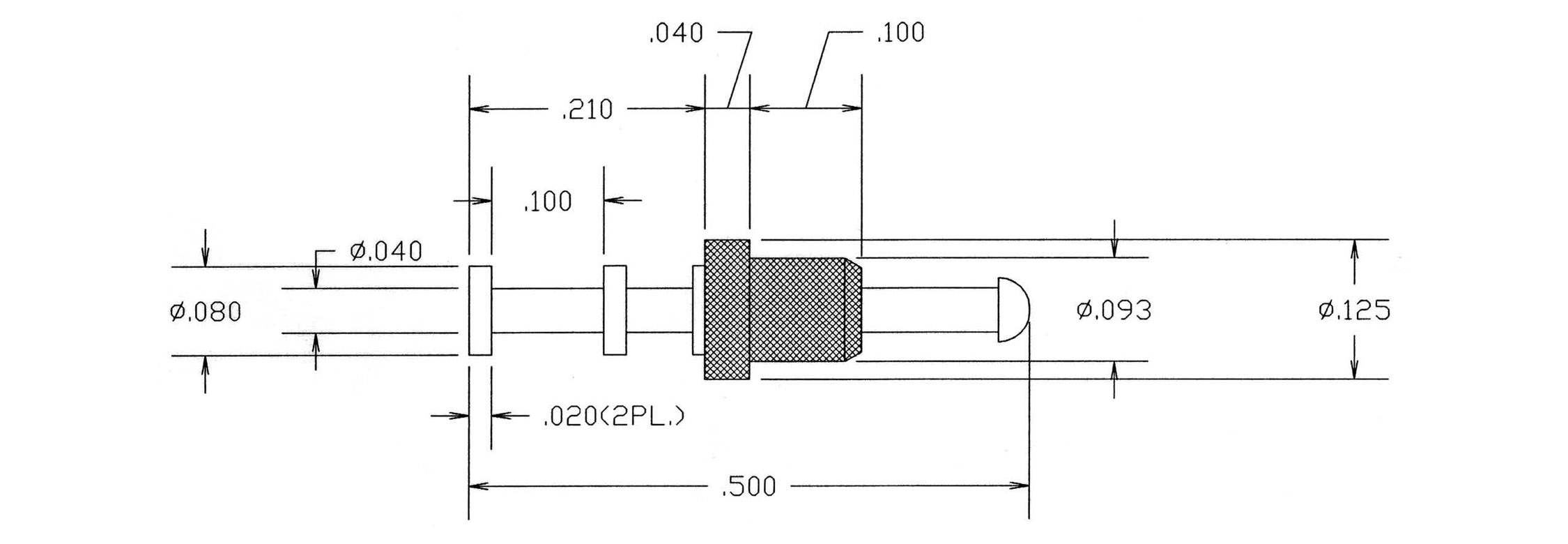

1156-02-0514
1156-02-0514
1156-02-0514
0.500" 0.035 DOUBLE Turret/Tip Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Yellow NO
1156-08-0110
1156-08-0110
1156-08-0110
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Silver - - PTFE Black YES
