Commercial
Insulated
Pin Terminals

Filter
1106-07-0519
1106-07-0519
1106-07-0519
0.602" - - Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE White NO

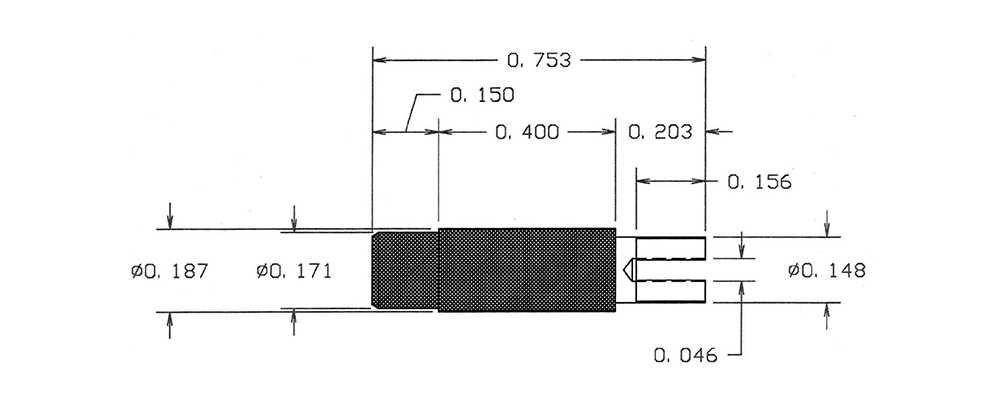

1106-12-0115
1106-12-0115
1106-12-0115
0.753" - - Press Fit 1/8 0.158 Brass Silver - - PTFE Green YES

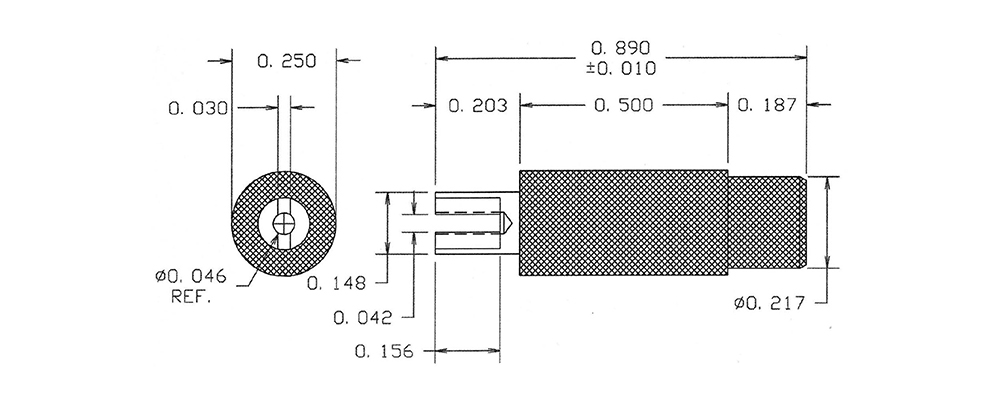

1106-16-0411
1106-16-0411
1106-16-0411
0.890" - - Press Fit 5/32 0.205 Brass Electro-Tin - - PTFE Brown NO
1106-22-04417
1106-22-04417
1106-22-04417
0.375" - - Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Violet YES
1106-52-08813
1106-52-08813
1106-52-08813
0.276" - - Press Fit 3/32 0.086 Brass Bright Tin-Lead - - PTFE Orange NO

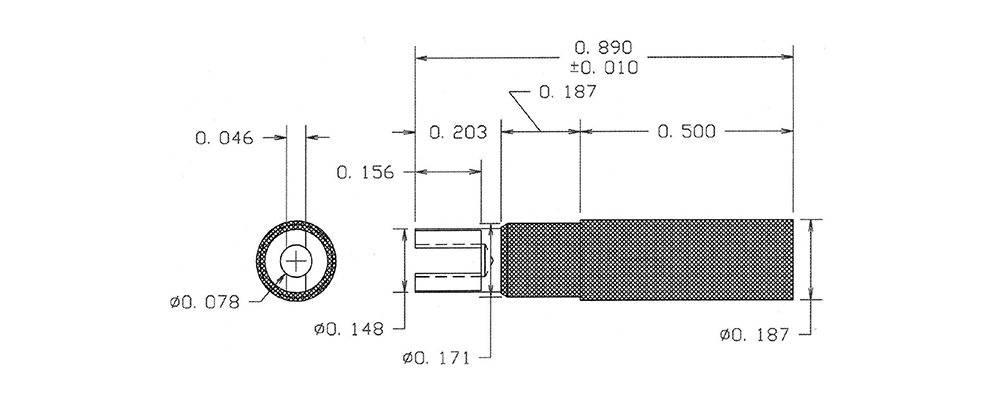

1106R-24-0119
1106R-24-0119
1106R-24-0119
0.890" - - Press Fit 5/32 0.158 Brass Silver - - PTFE White YES

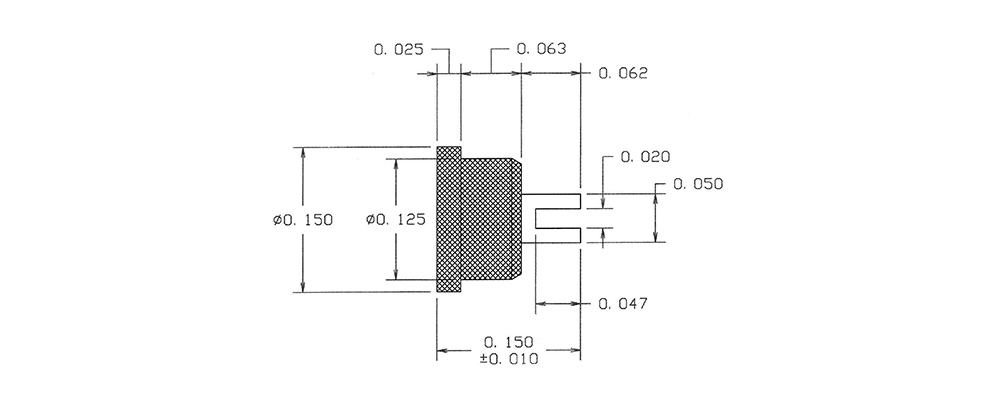

1106R-51-0415
1106R-51-0415
1106R-51-0415
0.150" - - Press Fit 1/32 0.113 Brass Electro-Tin - - PTFE Green YES
1107-03-0511
1107-03-0511
1107-03-0511
0.819" 0.040 Pin/Pin Press Fit Up to 3/16 0.136 Brass Electro Solder - - PTFE Brown NO
1107-08-08817
1107-08-08817
1107-08-08817
0.696" 0.040 Pin/Pin Press Fit Up to 3/16 0.158 Brass Bright Tin-Lead - - PTFE Violet NO

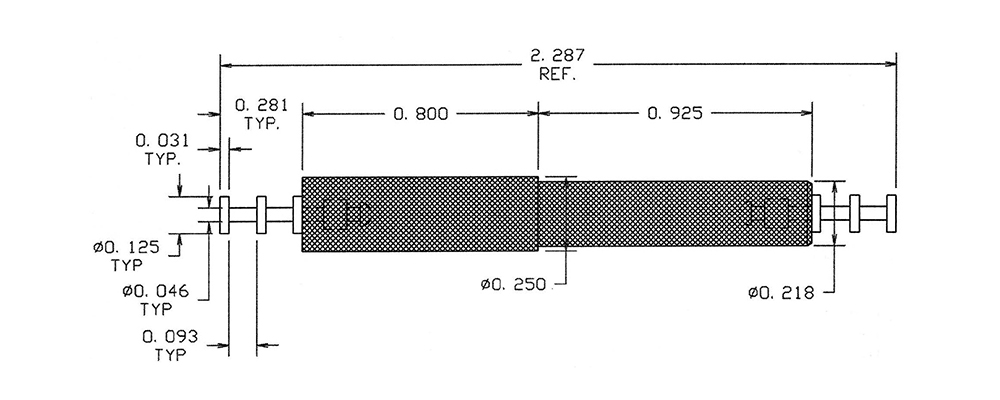

1108-02-0313
1108-02-0313
1108-02-0313
2.287" - Double Turret/Double Turret Press Fit 7/8 0.205 Brass Gold - - PTFE Orange NO
1108-06-0419
1108-06-0419
1108-06-0419
0.819" - Double Turret/Double Turret Press Fit Up to 3/16 0.174 Brass Electro-Tin - - PTFE White YES
1110-02-0515
1110-02-0515
1110-02-0515
0.438" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Green NO

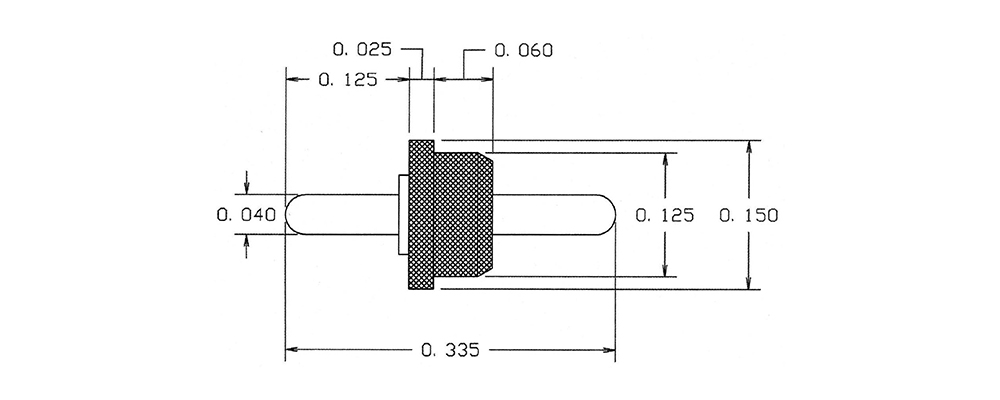

1110-07-0111
1110-07-0111
1110-07-0111
0.355" 0.040 Pin/Pin Press Fit 1/32 0.113 Brass Silver - - PTFE Brown NO
1110-11-0317
1110-11-0317
1110-11-0317
0.515" 0.040 Pin/Pin Press Fit 1/32 0.113 Brass Gold - - PTFE Violet YES

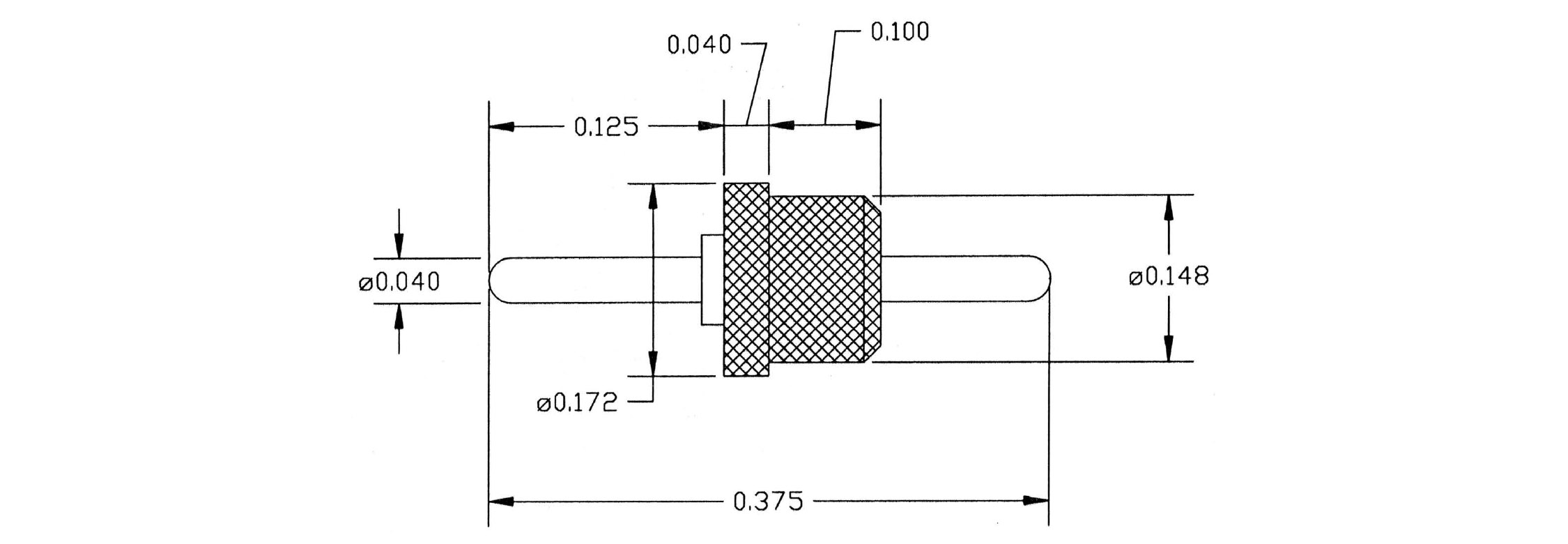

1110-16-04413
1110-16-04413
1110-16-04413
0.375" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Orange NO
1110-20-0519
1110-20-0519
1110-20-0519
0.443" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro Solder - - PTFE White NO

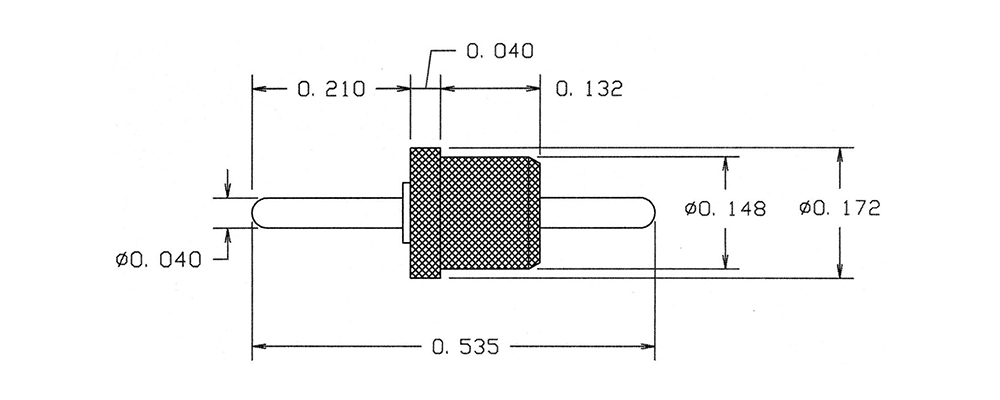

1110-25-0115
1110-25-0115
1110-25-0115
0.535" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Silver - - PTFE Green YES
1110-29-0411
1110-29-0411
1110-29-0411
0.571" 0.040 Pin/Pin Press Fit 1/8 0.136 Brass Electro-Tin - - PTFE Brown NO
1110-33-04417
1110-33-04417
1110-33-04417
0.725" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Violet YES
1110-40-08813
1110-40-08813
1110-40-08813
0.675" 0.040 Pin/Pin Press Fit 1/8 0.152 Brass Bright Tin-Lead - - PTFE Orange NO
