Commercial
Insulated
Pin Terminals

Filter
1156-15-0316
1156-15-0316
1156-15-0316
1.061" 0.050 DOUBLE TURRET/PIN Press Fit 7/32 0.158 Brass Gold - - PTFE Blue YES
1156-19-04412
1156-19-04412
1156-19-04412
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.203 Brass Bright Tin - - PTFE Red NO
1156R-01-0518
1156R-01-0518
1156R-01-0518
0.460" 0.040 DOUBLE Turret/Tip Press Fit 1/32 0.086 Brass Electro Solder - - PTFE Gray NO

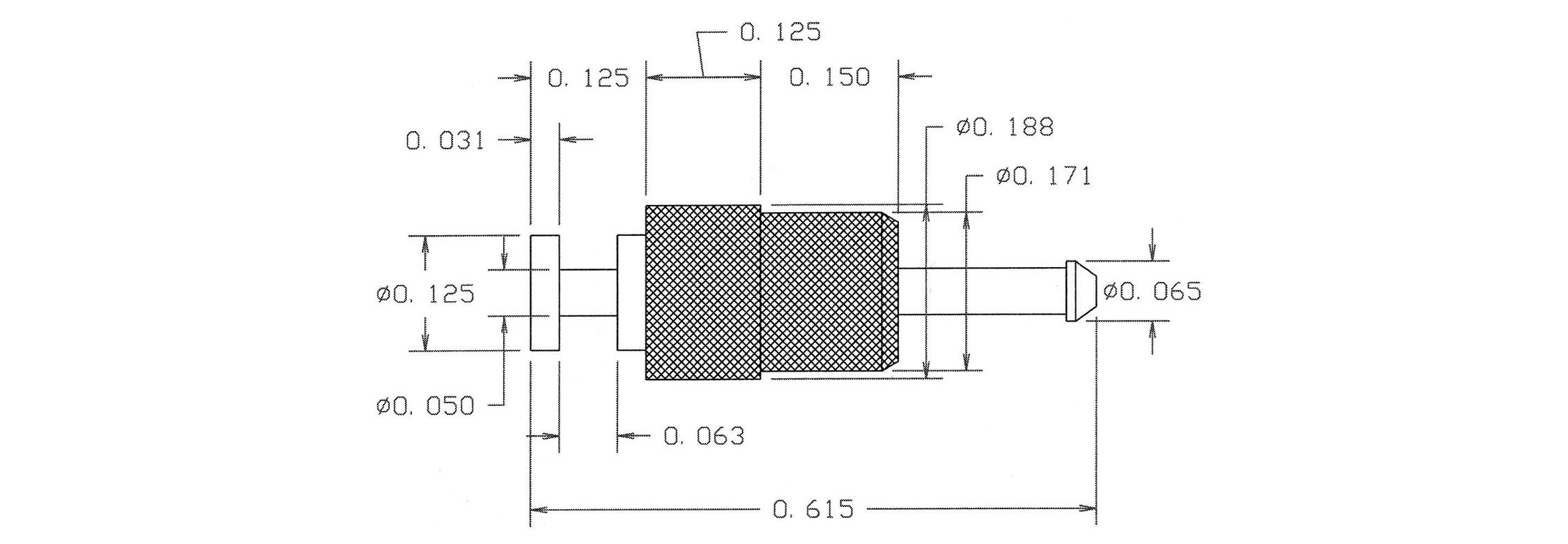

1157-03-0114
1157-03-0114
1157-03-0114
0.615" 0.050 TURRET/PIN Press Fit 1/8 0.158 Brass Silver - - PTFE Yellow NO

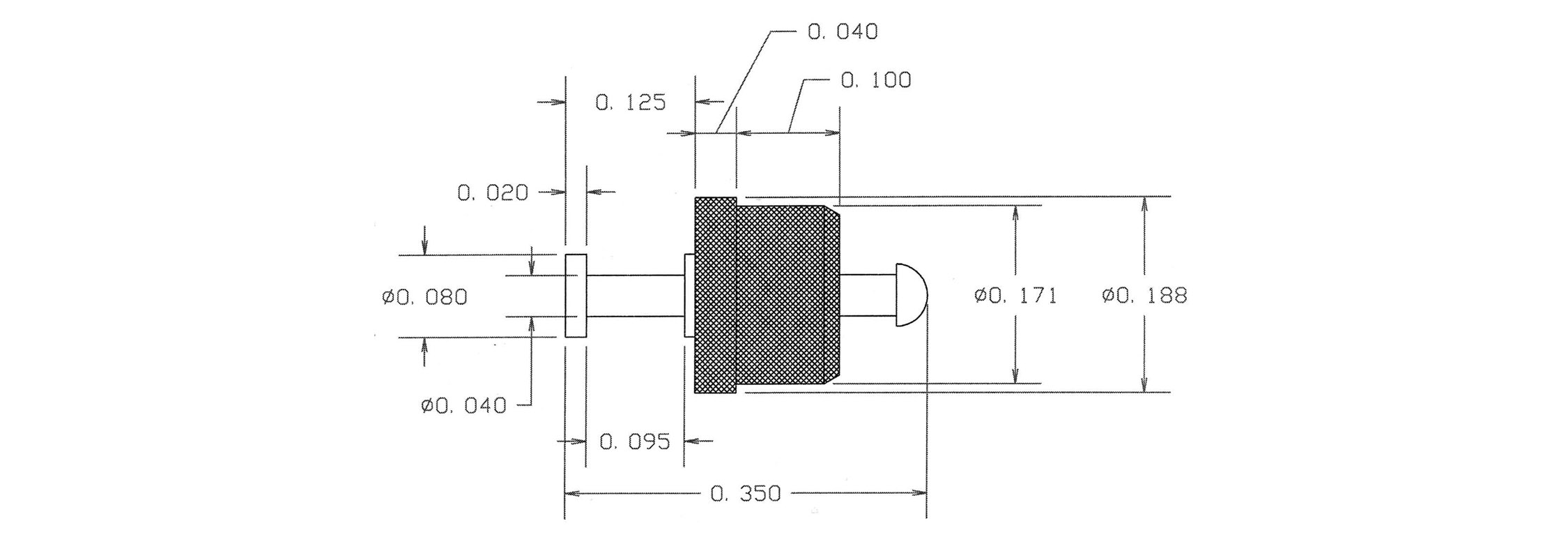

1157-07-0410
1157-07-0410
1157-07-0410
0.350" 0.040 Turret/Tip Press Fit 1/16 0.158 Brass Electro-Tin - - PTFE Black YES
1157R-05-04416
1157R-05-04416
1157R-05-04416
0.865" 0.050 TURRET/PIN Press Fit 7/32 0.158 Brass Bright Tin - - PTFE Blue YES
1160-13-08812
1160-13-08812
1160-13-08812
0.367" 0.085 - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Red NO

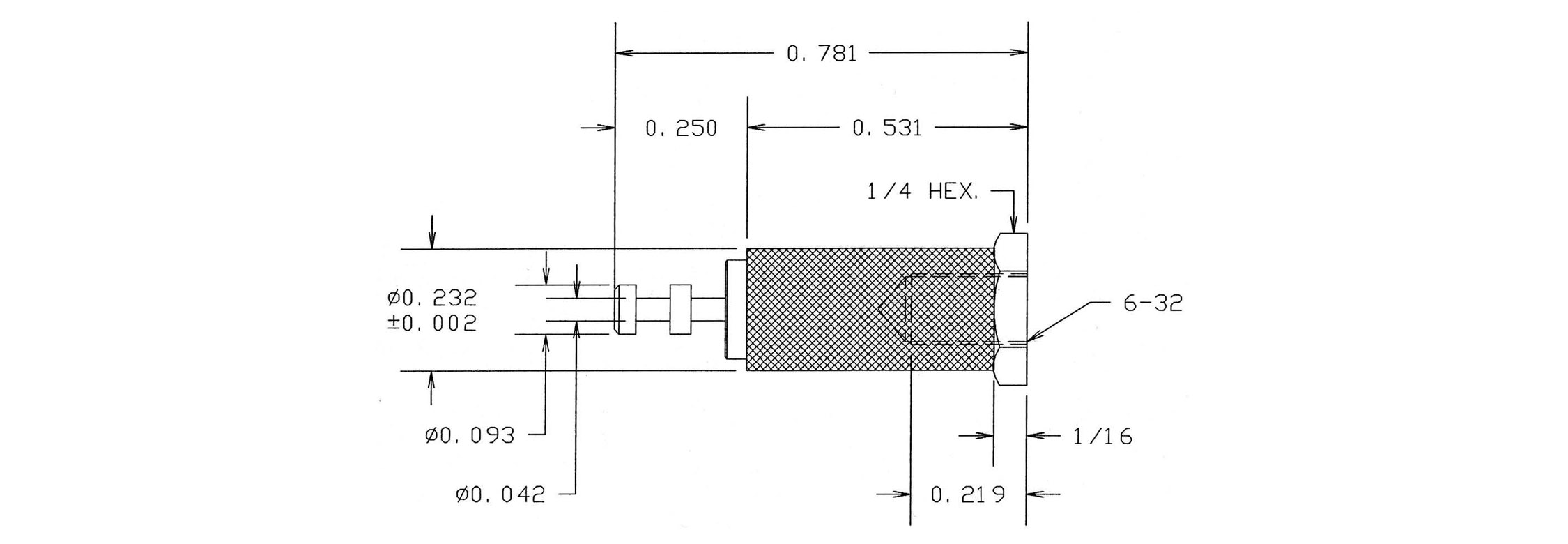

1167-24-0118
1167-24-0118
1167-24-0118
0.781" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Silver ZINC Brass DIALLYL PHTHALATE Gray YES
1167-75-0414
1167-75-0414
1167-75-0414
0.905" - - 6-32 Nut Up to 3/16 0.144 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Yellow YES
1169-30-0510
1169-30-0510
1169-30-0510
0.671" 0.060 - 2-56 Nut 1/8 0.094 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Black NO
1169-37-08816
1169-37-08816
1169-37-08816
0.750" - - 4-40 Nut 1/8 0.120 Brass Bright Tin-Lead Bright Tin-Lead Brass DIALLYL PHTHALATE Blue NO
1170-08-07512
1170-08-07512
1170-08-07512
1.000" - - 6-32 Nut Up to 1/4 0.144 Brass ZINC ZINC Brass DIALLYL PHTHALATE Red YES

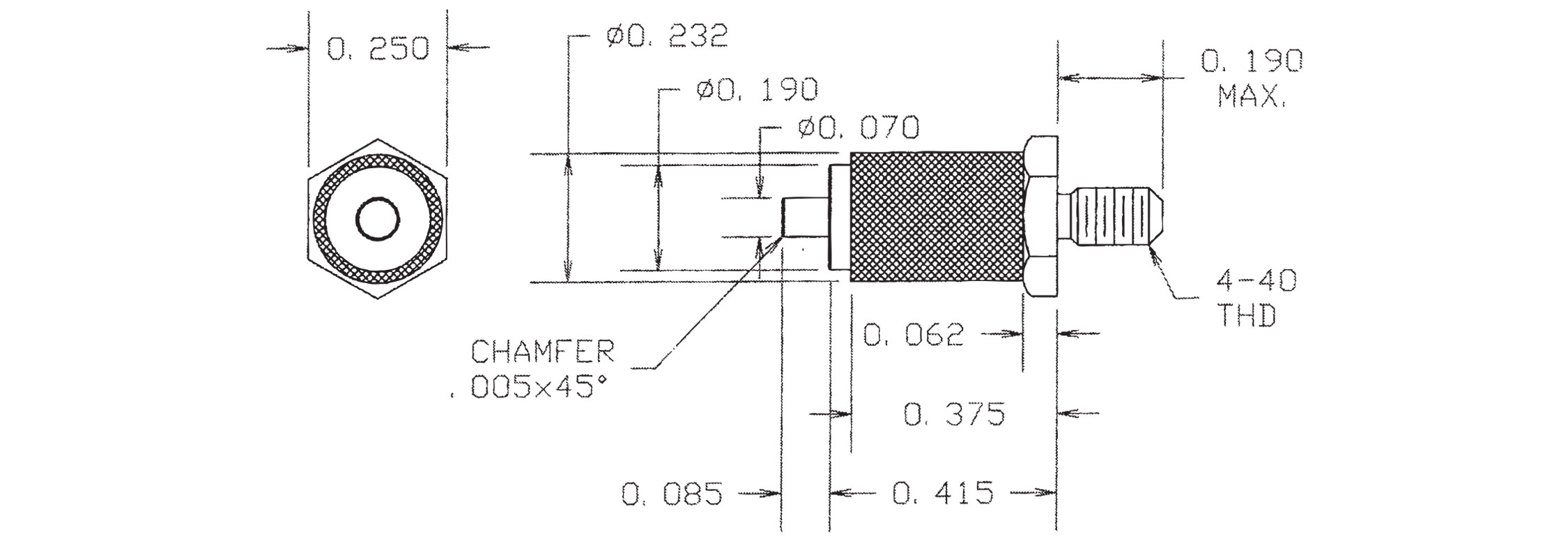

1170-23-0118
1170-23-0118
1170-23-0118
0.500" 0.070 - 4-40 Nut 1/16 0.120 Brass Silver ZINC Brass DIALLYL PHTHALATE Gray YES
1175-013-0414
1175-013-0414
1175-013-0414
0.672" 0.047 Pin/Pin PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Electro-Tin - - PTFE Yellow NO
1175-301-0510
1175-301-0510
1175-301-0510
0.460" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Black NO
1175-351-08816
1175-351-08816
1175-351-08816
0.342" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Blue NO

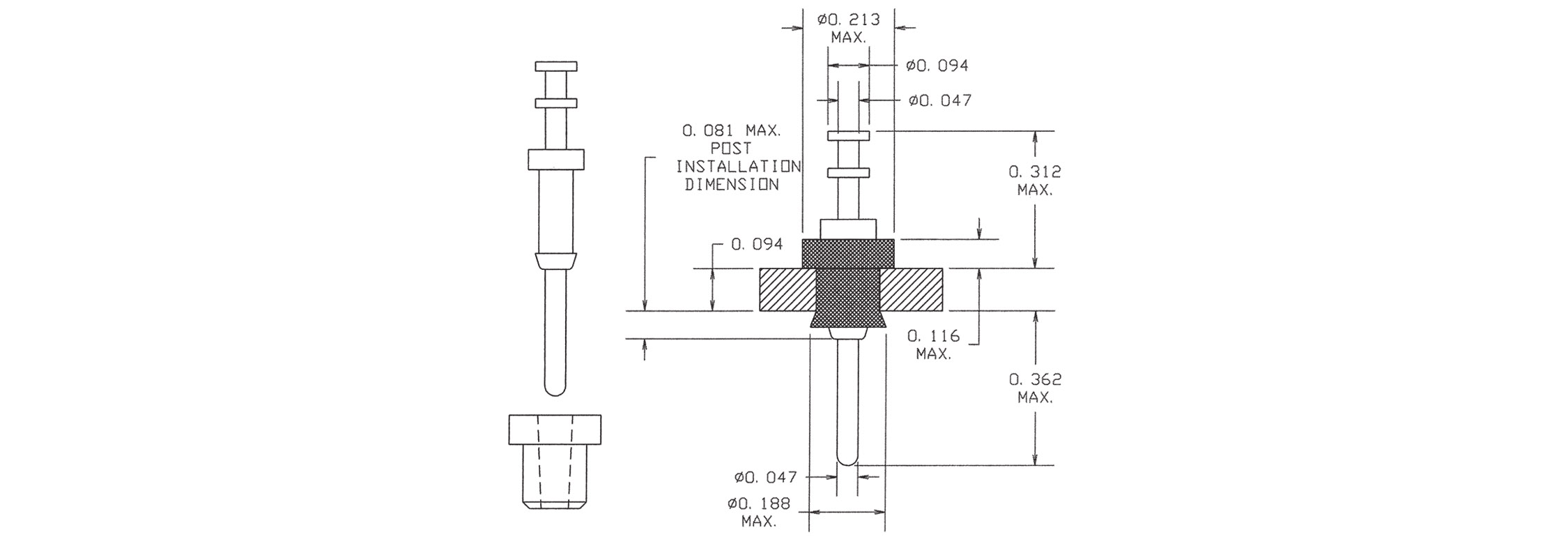

1175-373-0312
1175-373-0312
1175-373-0312
0.768" 0.040 DOUBLE TURRET/PIN PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Gold - - PTFE Red NO

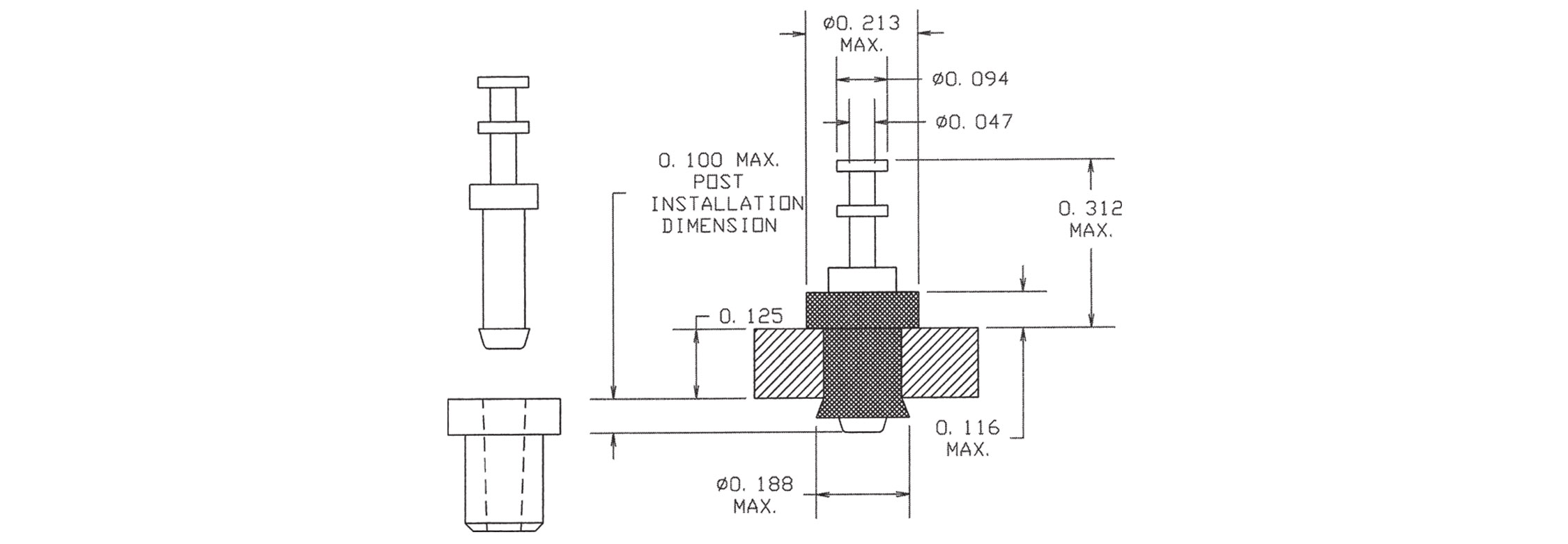

1175-404-0418
1175-404-0418
1175-404-0418
0.537" - - PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Electro-Tin - - PTFE Gray NO
1175-414-0514
1175-414-0514
1175-414-0514
0.642" - DOUBLE Turret/Turret PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Yellow NO
1175-431-0110
1175-431-0110
1175-431-0110
0.443" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Silver - - PTFE Black YES
