Commercial
Insulated
Pin Terminals

Filter
1102-44-0511
1102-44-0511
1102-44-0511
0.750" - - Press Fit 1/16 0.152 Brass Electro Solder - - PTFE Brown NO

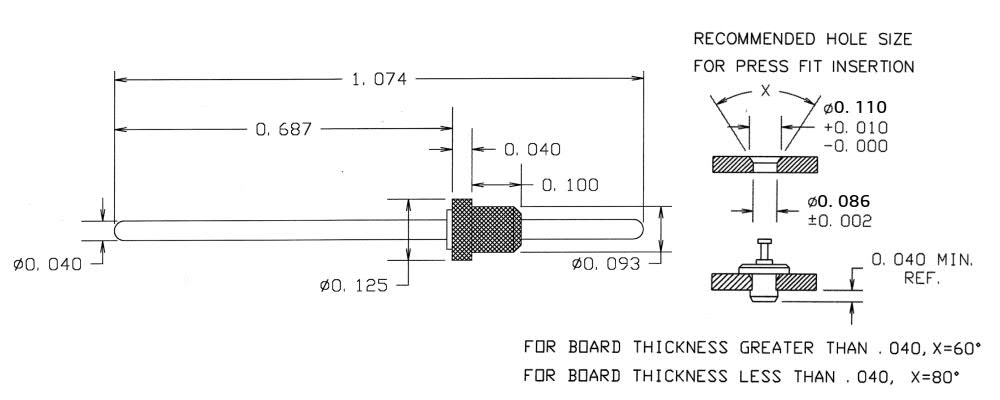

09-2084-1-0111
09-2084-1-0111
09-2084-1-0111
1.074" 0.040 ± 0.010 Pin/Pin Press Fit 1/16 0.086 Brass Silver - - PTFE Brown NO
1110-39-08817
1110-39-08817
1110-39-08817
0.515" 0.040 Pin/Pin Press Fit 1/16 0.144 Brass Bright Tin-Lead - - PTFE Violet NO

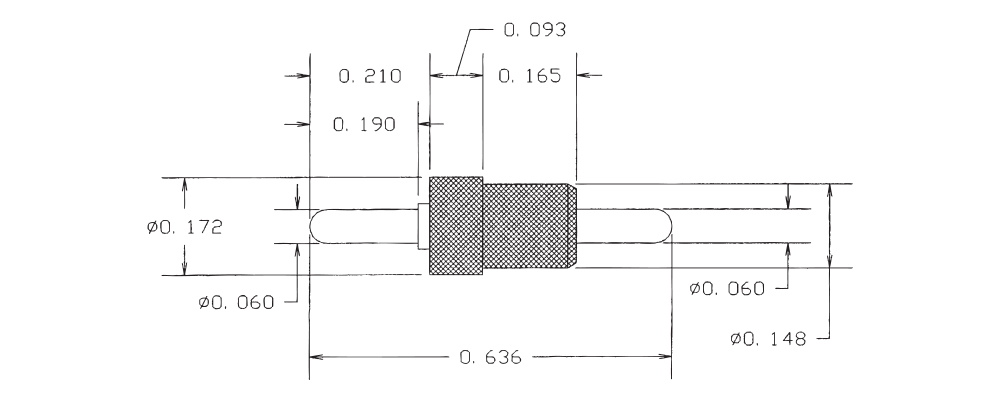

09-2095-1-0317
09-2095-1-0317
09-2095-1-0317
0.636" 0.060 ± 0.010 Pin/Pin Press Fit 1/8 0.136 Brass Gold - - PTFE Violet YES

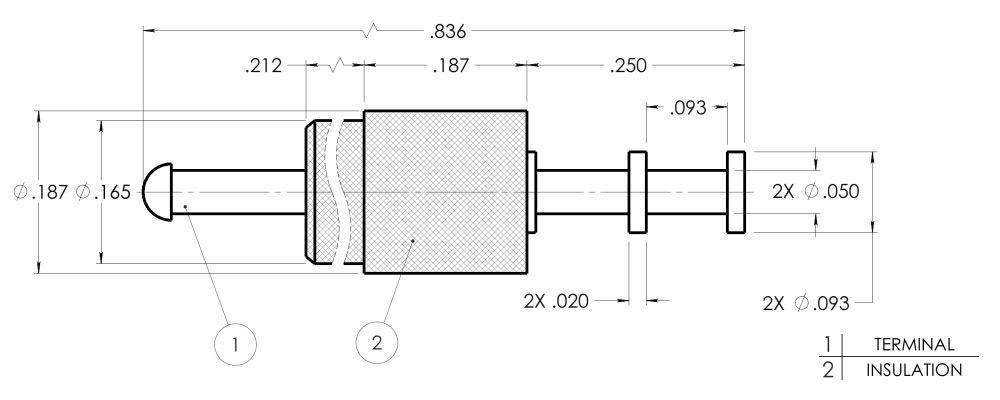

1111-25-0313
1111-25-0313
1111-25-0313
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.152 Brass Gold - - PTFE Orange NO
09-2104-1-04413
09-2104-1-04413
09-2104-1-04413
0.460" 0.036 Pin/Pin Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Orange NO
1112-07-0419
1112-07-0419
1112-07-0419
0.273" - - Press Fit 1/16 0.113 Brass Electro-Tin - - PTFE White YES
09-2112-1-0519
09-2112-1-0519
09-2112-1-0519
0.838" - - 6-32 Nut 1/8 0.144 Brass Electro Solder Nickel Brass PTFE White NO
1113-54-0515
1113-54-0515
1113-54-0515
0.327" 0.030 Pin/Pin Press Fit 1/16 0.070 Brass Electro Solder - - PTFE Green NO

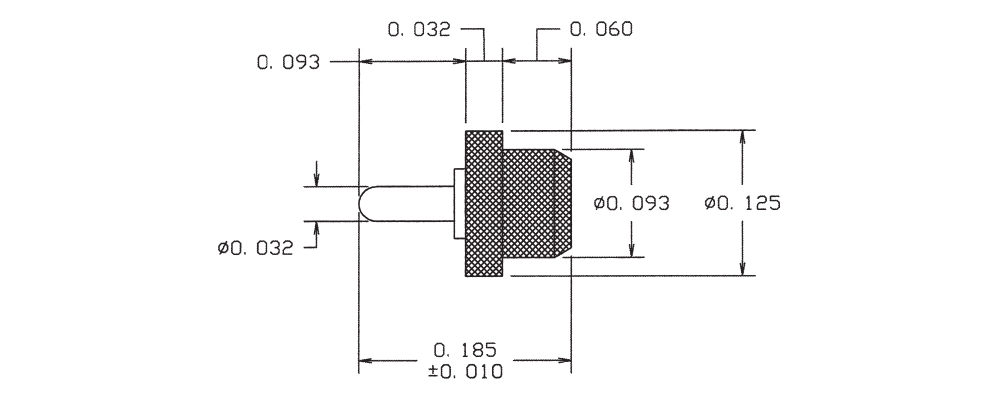

1100-01-0115
1100-01-0115
1100-01-0115
0.185" 0.032 - Press Fit 1/32 0.086 Brass Silver - - PTFE Green YES

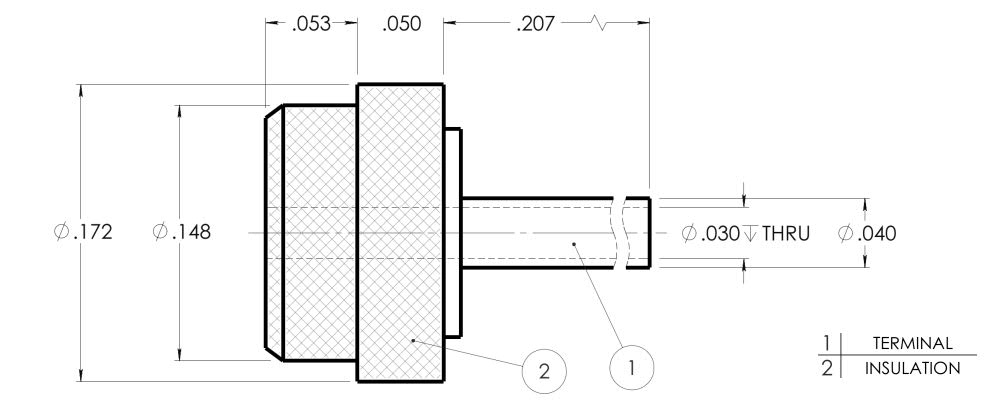

1114-20-0111
1114-20-0111
1114-20-0111
0.310" 0.040 - Press Fit 1/32 0.136 Brass Silver - - PTFE Brown NO
1100-05-0411
1100-05-0411
1100-05-0411
0.262" 0.040 - Press Fit 3/64 0.086 Brass Electro-Tin - - PTFE Brown NO
1114-25-0317
1114-25-0317
1114-25-0317
0.413" 0.085 - Press Fit 1/8 0.136 Brass Gold - - PTFE Violet YES
1100-09-04417
1100-09-04417
1100-09-04417
0.350" 0.040 - Press Fit 3/32 0.098 Brass Bright Tin - - PTFE Violet YES
1114R-16-04413
1114R-16-04413
1114R-16-04413
0.296" 0.040 - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Orange NO
1100-14-08813
1100-14-08813
1100-14-08813
0.280" 0.040 - Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE Orange NO
1123R-75-0519
1123R-75-0519
1123R-75-0519
0.426" - - Press Fit 1/8 0.172 Brass Electro Solder - - PTFE White NO

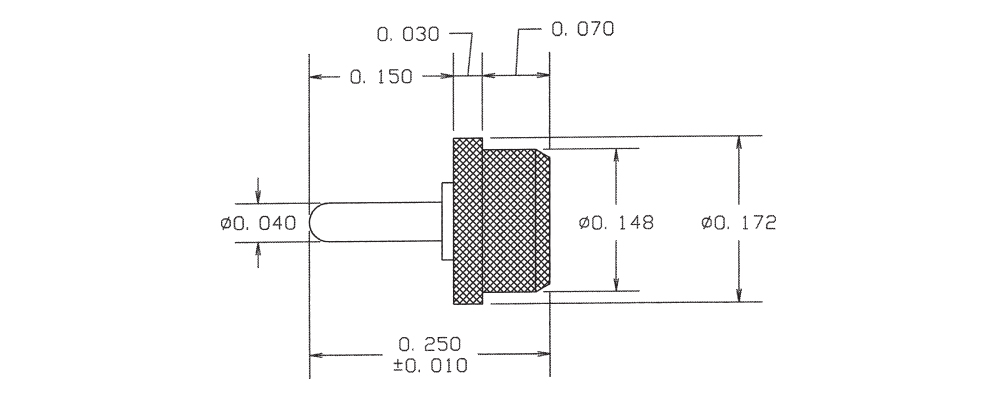

1100-19-0119
1100-19-0119
1100-19-0119
0.250" 0.040 - Press Fit 1/32 0.136 Brass Silver - - PTFE White YES

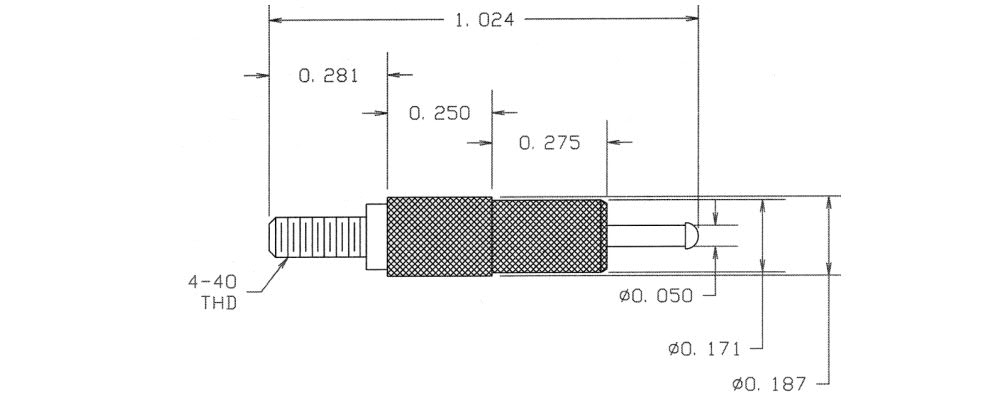

1124-11-0115
1124-11-0115
1124-11-0115
1.024" 0.050 THREAD/TIP Press Fit Up to 1/4 0.158 Brass Silver - - PTFE Green YES

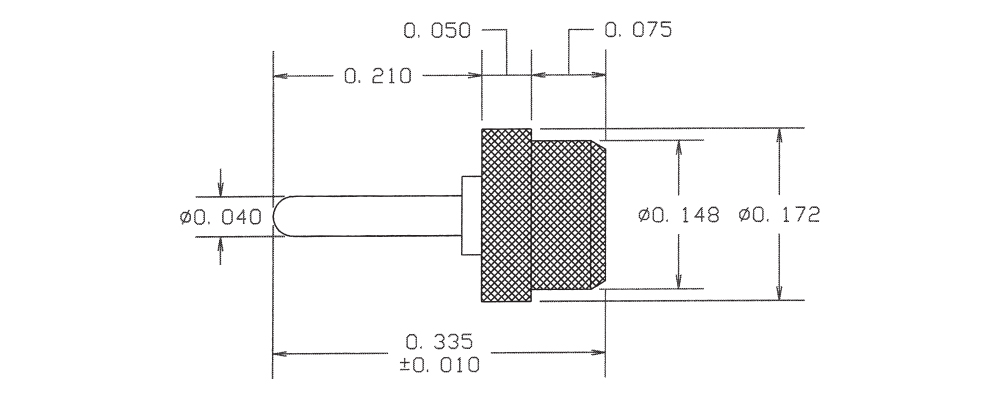

1100-24-0415
1100-24-0415
1100-24-0415
0.335" 0.040 - Press Fit 1/32 0.136 Brass Electro-Tin - - PTFE Green YES
