Commercial
Insulated
Pin Terminals

Filter

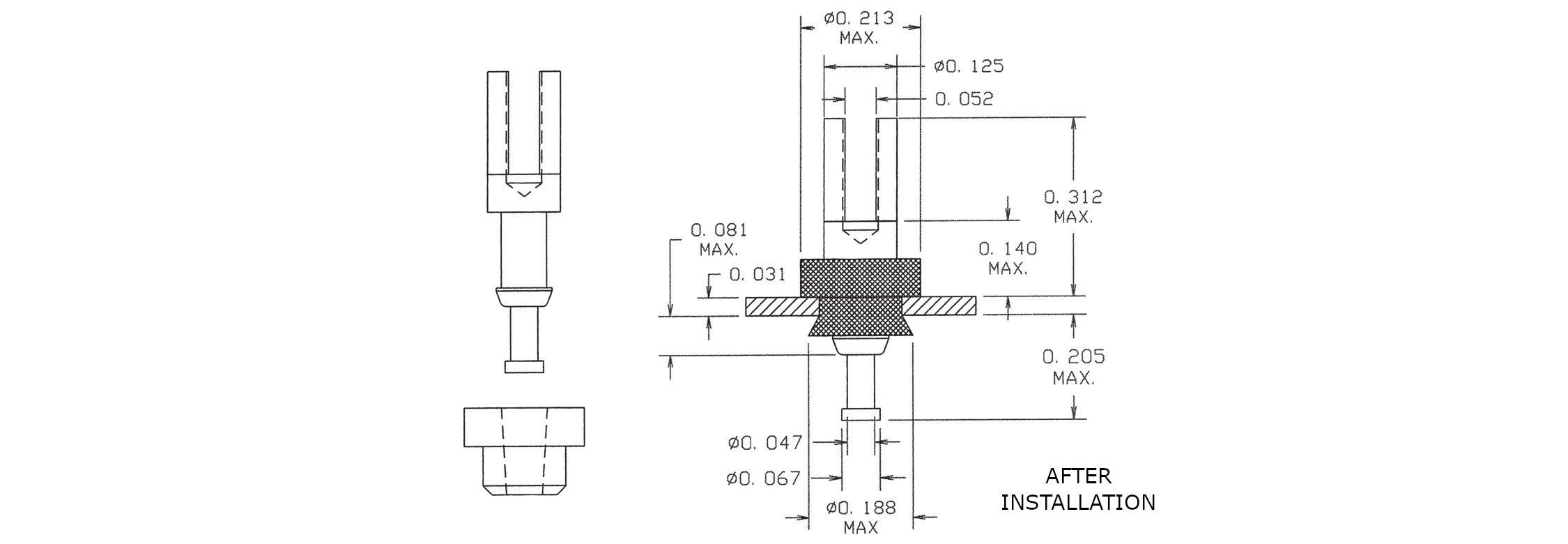

1175-441-0316
1175-441-0316
1175-441-0316
0.548" - TURRET/SLOTTED PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Gold - - PTFE Blue YES

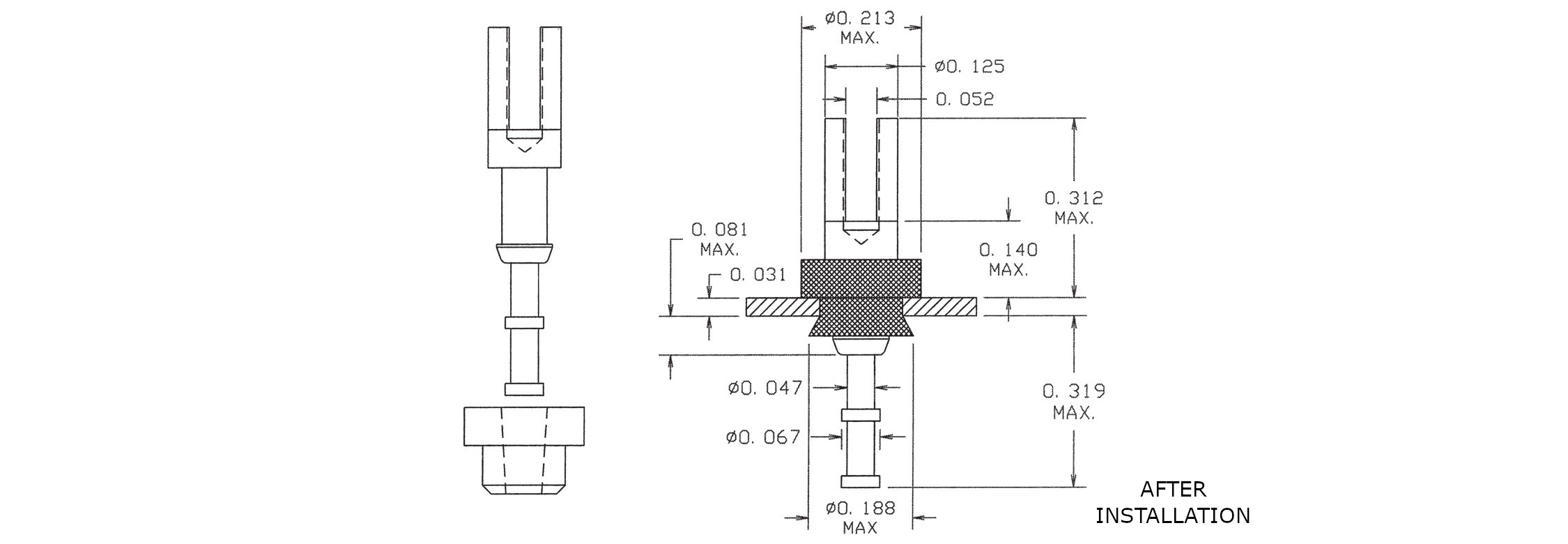

1175-451-04412
1175-451-04412
1175-451-04412
0.662" - DOUBLE TURRET/SLOTTED PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Bright Tin - - PTFE Red NO
1175-462-0518
1175-462-0518
1175-462-0518
0.392" - - PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Gray NO

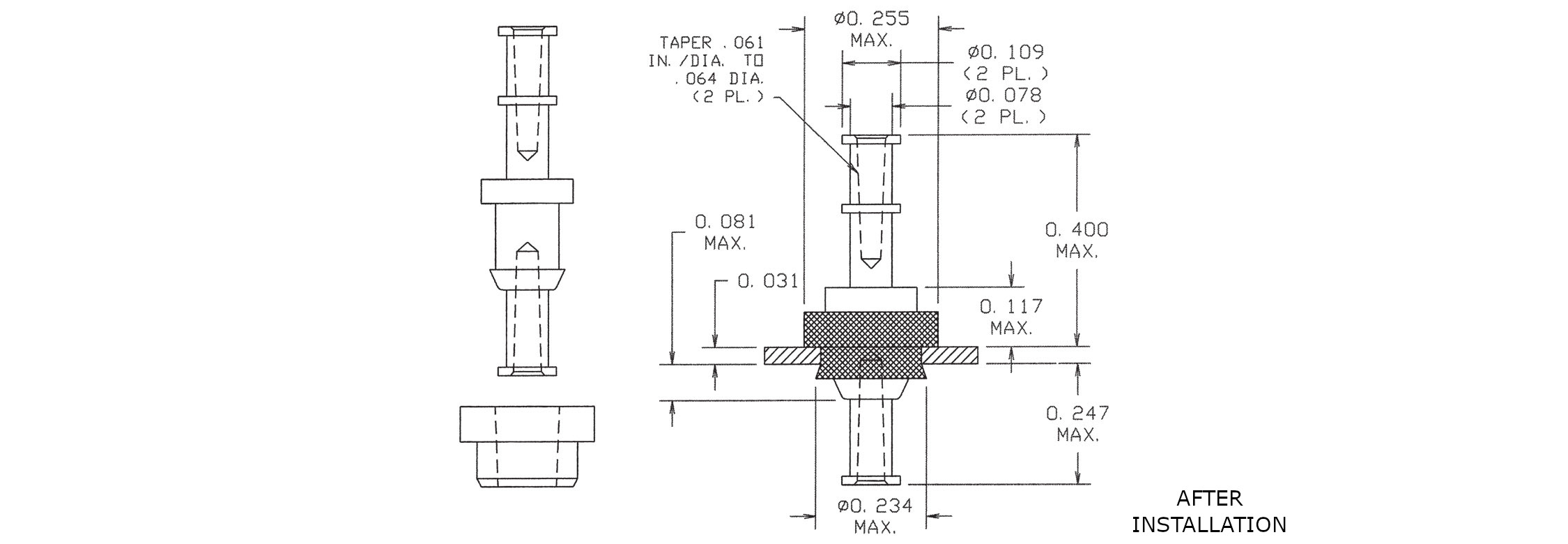

1175-481-0114
1175-481-0114
1175-481-0114
0.678" - DOUBLE Turret/Turret PRESS LOCK 1/32 0.188 (+0.003/-0.001) Brass Silver - - PTFE Yellow NO

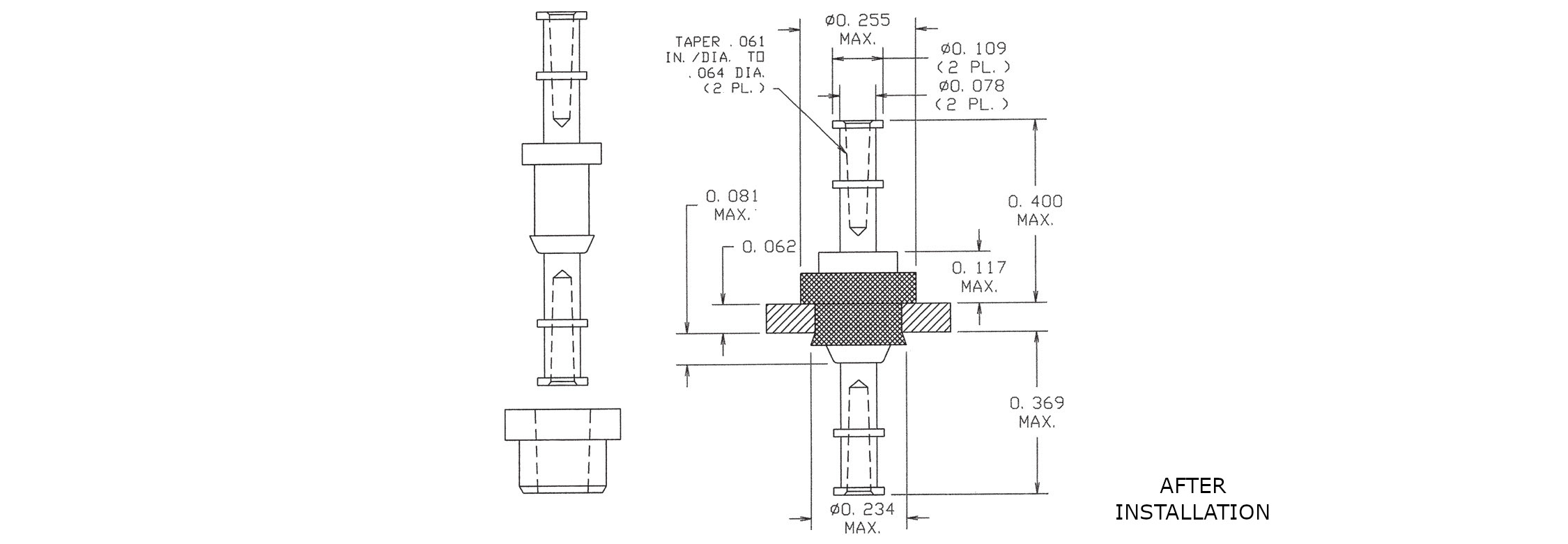

1175-492-0410
1175-492-0410
1175-492-0410
0.831" - Double Turret/Double Turret PRESS LOCK 1/16 0.188 (+0.003/-0.001) Brass Electro-Tin - - PTFE Black YES
1175-601-04416
1175-601-04416
1175-601-04416
0.424" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Bright Tin - - PTFE Blue YES
1175-702-08812
1175-702-08812
1175-702-08812
0.474" - - PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Red NO
1175-713-0118
1175-713-0118
1175-713-0118
0.611" - DOUBLE Turret/Turret PRESS LOCK 3/32 0.154 (+0.003/-0.001) Brass Silver - - PTFE Gray NO

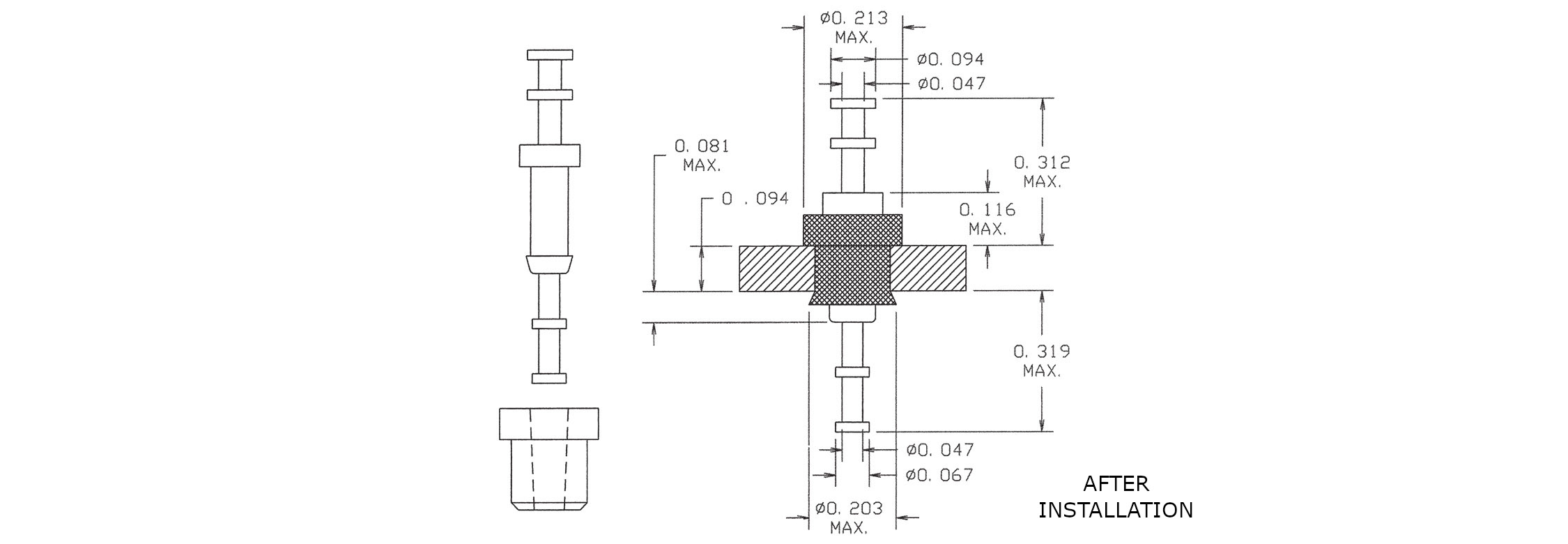

1175-723-0414
1175-723-0414
1175-723-0414
0.725" - Double Turret/Double Turret PRESS LOCK 3/32 0.154 (+0.003/-0.001) Brass Electro-Tin - - PTFE Yellow NO
1175-734-0510
1175-734-0510
1175-734-0510
0.537" - - PRESS LOCK 1/8 0.154 (+0.003/-0.001) Brass Electro Solder - - PTFE Black NO
1175-751-08816
1175-751-08816
1175-751-08816
0.655" - DOUBLE TURRET/SLOTTED PRESS LOCK 1/32 0.154 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Blue NO

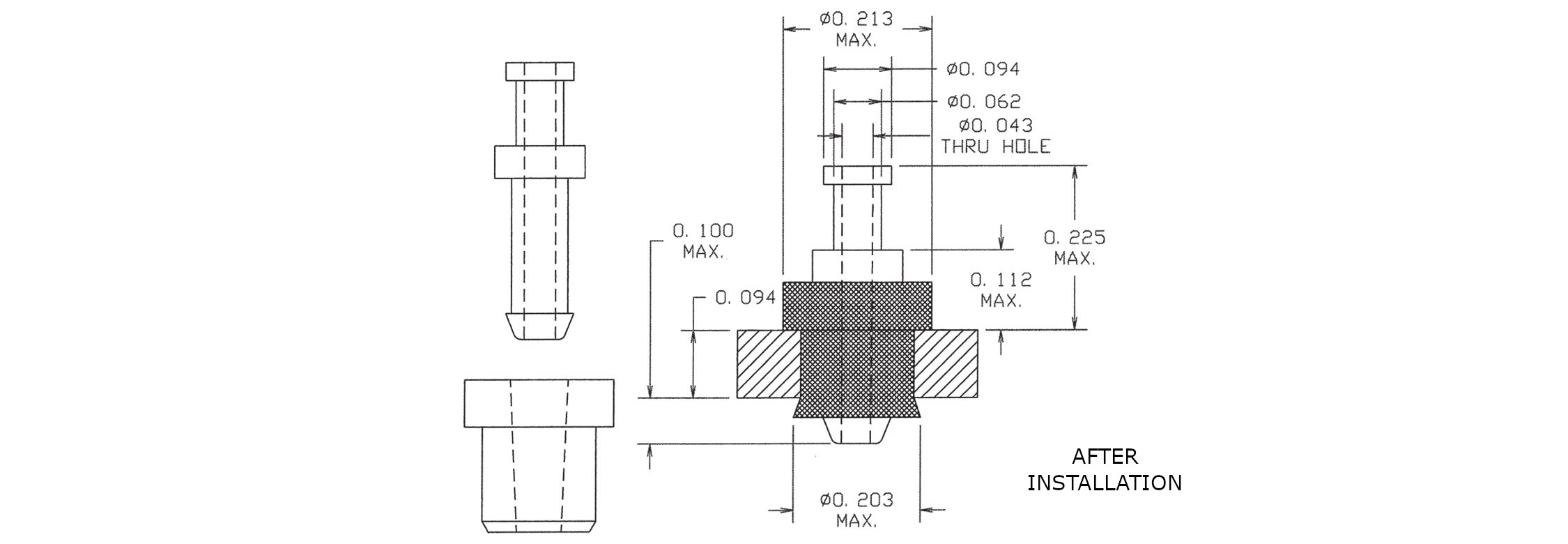

1175-763-0312
1175-763-0312
1175-763-0312
0.419" - - PRESS LOCK 3/32 0.154 (+0.003/-0.001) Brass Gold - - PTFE Red NO
1175-822-0418
1175-822-0418
1175-822-0418
0.433" - - PRESS LOCK 1/16 0.126 (+0.003/-0.001) Brass Electro-Tin - - PTFE Gray NO

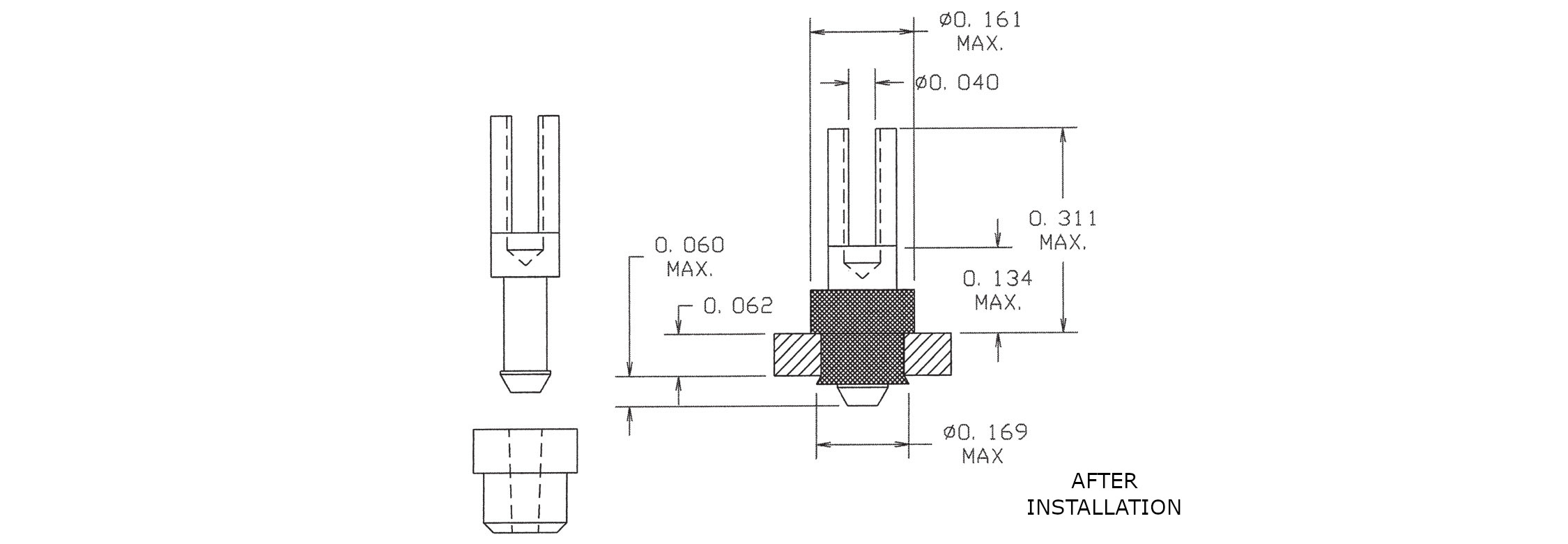

1175-842-0514
1175-842-0514
1175-842-0514
0.433" - - PRESS LOCK 1/16 0.126 (+0.003/-0.001) Brass Electro Solder - - PTFE Yellow NO
1175-891-0110
1175-891-0110
1175-891-0110
0.560" 0.040 TIP/SLOTTED PRESS LOCK 1/32 0.126 (+0.003/-0.001) Brass Silver - - PTFE Black YES

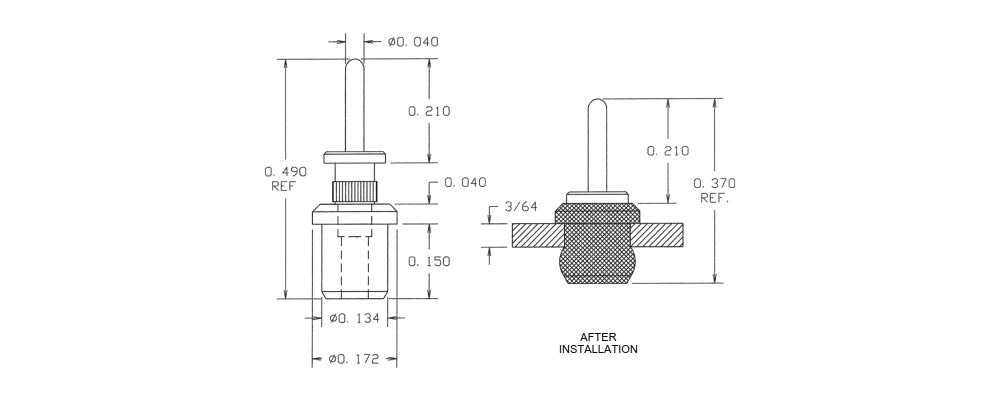

1177-03-0316
1177-03-0316
1177-03-0316
0.370" 0.040 - PRESS LOCK 1/32 - 1/16 0.136 Brass Gold - - PTFE Blue YES

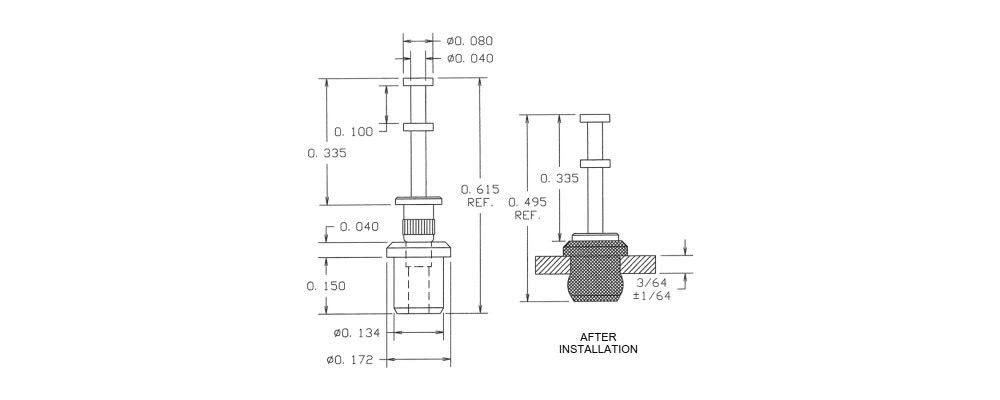

1177-13-04412
1177-13-04412
1177-13-04412
0.495" - - PRESS LOCK 1/32 - 1/16 0.136 Brass Bright Tin - - PTFE Red NO
1177-32-0518
1177-32-0518
1177-32-0518
0.500" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/32 - 1/16 0.136 Brass Electro Solder - - PTFE Gray NO

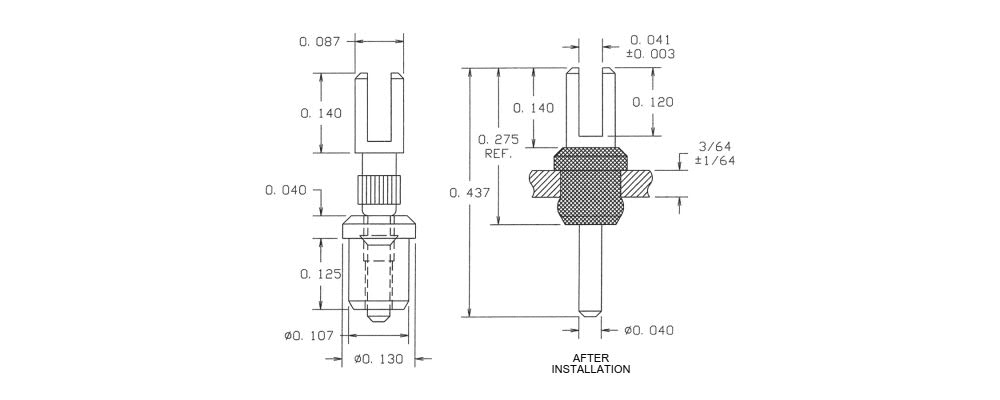

1177-42-0114
1177-42-0114
1177-42-0114
0.437" 0.040 Pin/Slotted PRESS LOCK 1/32 - 1/16 0.109 Brass Silver - - PTFE Yellow NO

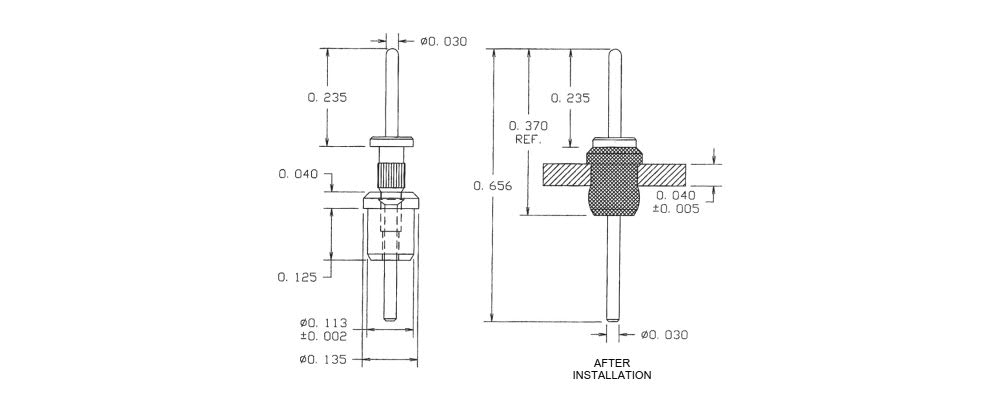

1177-53-0410
1177-53-0410
1177-53-0410
0.656" 0.030 Pin/Pin PRESS LOCK 1/32 - 1/16 0.115 Brass Electro-Tin - - PTFE Black YES
