Commercial
Insulated
Pin Terminals

Filter
1177-57-04416
1177-57-04416
1177-57-04416
0.687" 0.050 Pin/Pin PRESS LOCK 1/32 - 1/16 0.136 Brass Bright Tin - - PTFE Blue YES
1177-61-08812
1177-61-08812
1177-61-08812
0.446" 0.040 Pin/Pin PRESS LOCK 1/64 0.138 Brass Bright Tin-Lead - - PTFE Red NO

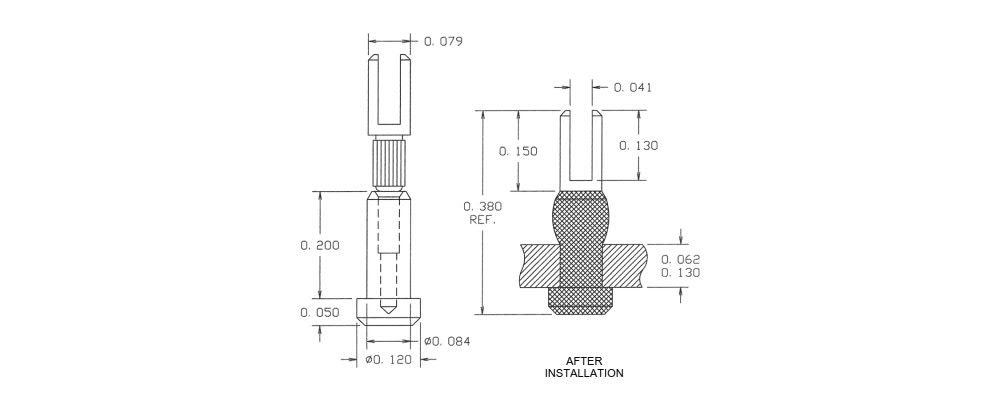

1178R-04-0118
1178R-04-0118
1178R-04-0118
0.380" - - PRESS LOCK 1/16 - 1/8 0.086 Brass Silver - - PTFE Gray NO

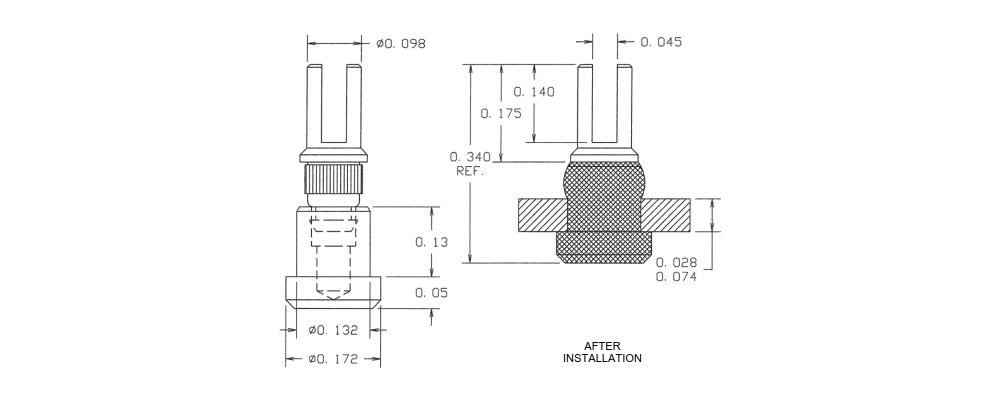

1178R-11-0414
1178R-11-0414
1178R-11-0414
0.340" - - PRESS LOCK 1/32 - 5/64 0.134 Brass Electro-Tin - - PTFE Yellow NO
1178R-15-0510
1178R-15-0510
1178R-15-0510
0.390" - - PRESS LOCK 1/32 - 5/64 0.134 Brass Electro Solder - - PTFE Black NO
1102R-95-08816
1102R-95-08816
1102R-95-08816
0.812" - - Press Fit 13/64 0.297 Brass Bright Tin-Lead - - PTFE Blue NO

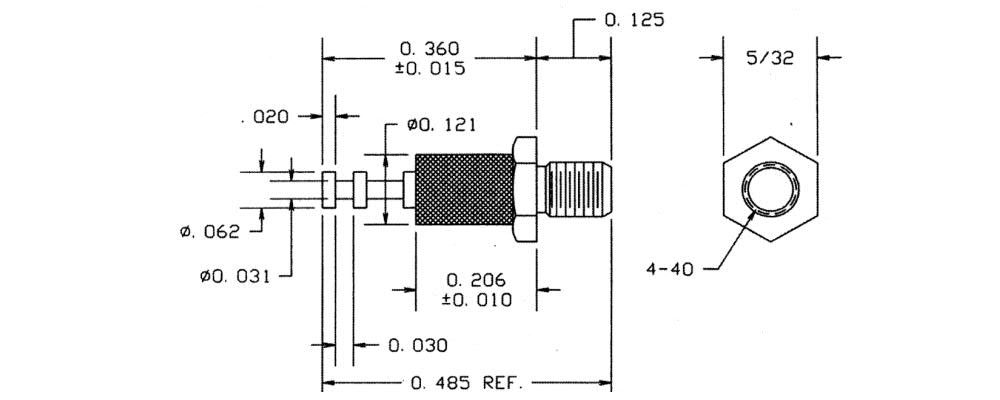

1125-03-0312
1125-03-0312
1125-03-0312
0.485" - - 4-40 1/8 4-40 THREAD Brass Gold Electro-Tin Brass PTFE Red NO
1125-07-0418
1125-07-0418
1125-07-0418
0.454" - - Swage Mount 1/16 0.116 ±0.002 Brass Electro-Tin Electro-Tin Brass PTFE Gray NO
1125-11-0514
1125-11-0514
1125-11-0514
0.454" - - Swage Mount 1/16 0.116 ±0.002 Brass Electro Solder Electro-Tin Brass PTFE Yellow NO

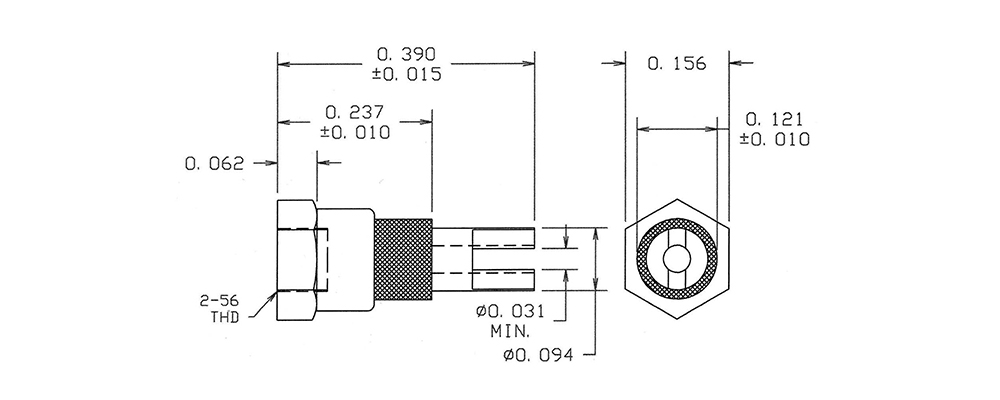

1125-16-0110
1125-16-0110
1125-16-0110
0.390" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Silver Electro-Tin Brass PTFE Black YES
1125-20-0316
1125-20-0316
1125-20-0316
0.885" - - 6-32 Nut 7/32 0.144 Brass Gold Electro-Tin Brass PTFE Blue YES
1125-24-04412
1125-24-04412
1125-24-04412
0.885" - - 4-40 Nut Up to 1/4 0.120 Brass Bright Tin Electro-Tin Brass PTFE Red NO
1125-28-0518
1125-28-0518
1125-28-0518
0.615" - - Swage Mount 1/16 0.116 ±0.001 Brass Electro Solder Electro-Tin Brass PTFE Gray NO

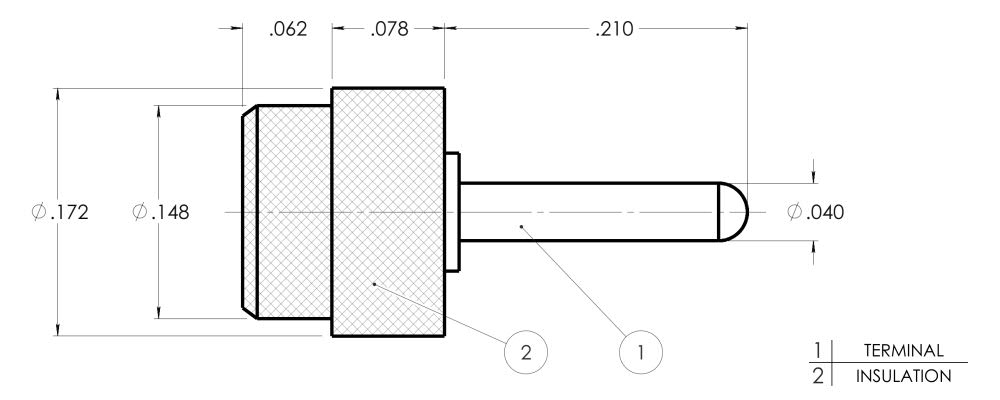

1100-29-0114
1100-29-0114
1100-29-0114
0.350" 0.040 - Press Fit 1/32 0.136 Brass Silver - - PTFE Yellow NO

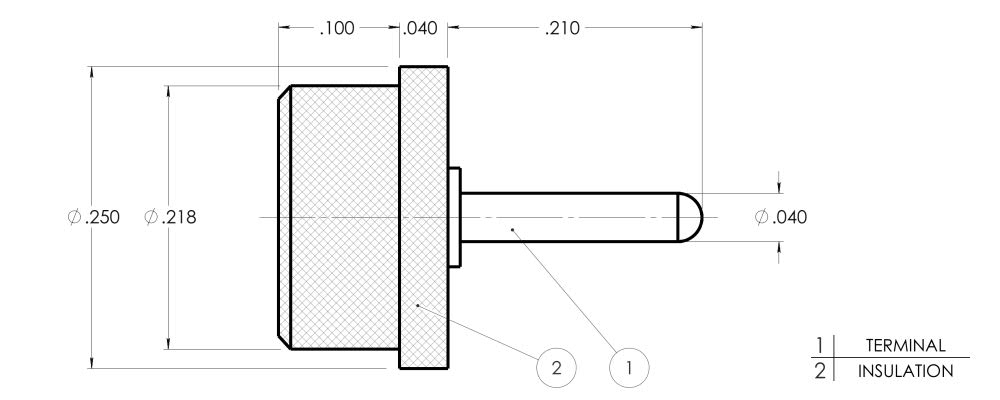

1100-49-0410
1100-49-0410
1100-49-0410
0.350" 0.040 - Press Fit 1/16 0.205 Brass Electro-Tin - - PTFE Black YES
1100R-23A-04416
1100R-23A-04416
1100R-23A-04416
0.330" 0.040 - Press Fit 1/32 0.136 Brass Bright Tin - - PTFE Blue YES

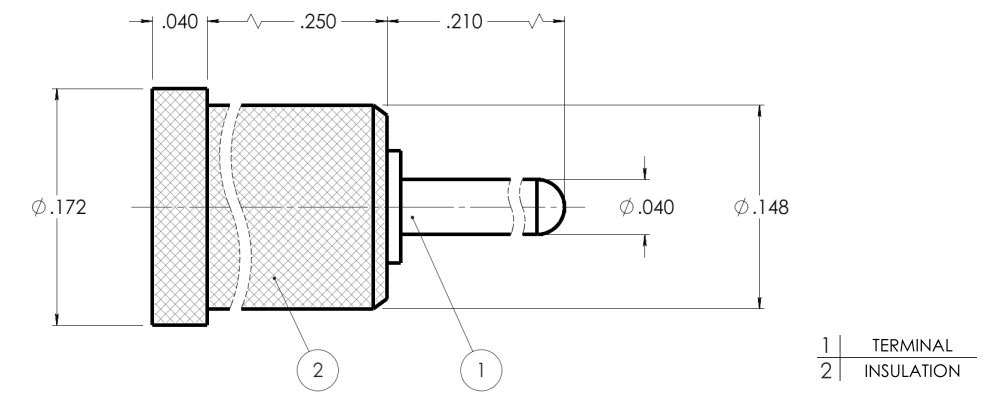

1100R-36-08812
1100R-36-08812
1100R-36-08812
0.390" 0.040 - Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE Red NO

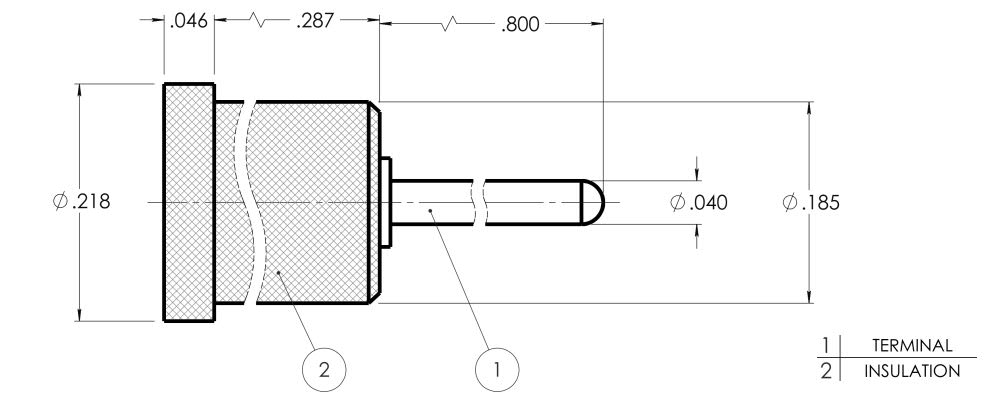

1100R-54-0118
1100R-54-0118
1100R-54-0118
1.133" 0.040 - Press Fit 7/32 0.172 Brass Silver - - PTFE Gray NO

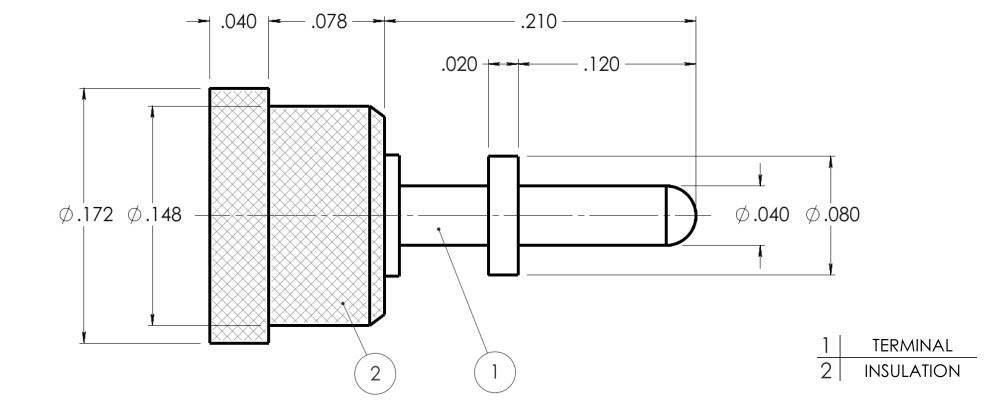

1101R-01-0414
1101R-01-0414
1101R-01-0414
0.328" 0.040 - Press Fit 1/32 0.136 Brass Electro-Tin - - PTFE Yellow NO
09-2010-1-0515
09-2010-1-0515
09-2010-1-0515
0.436" 0.040 Pin/Tip Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Green NO
