Commercial
Insulated
Pin Terminals

Filter
1127-52-04416
1127-52-04416
1127-52-04416
0.875" - - Swage Mount 1/8 0.147 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Blue YES

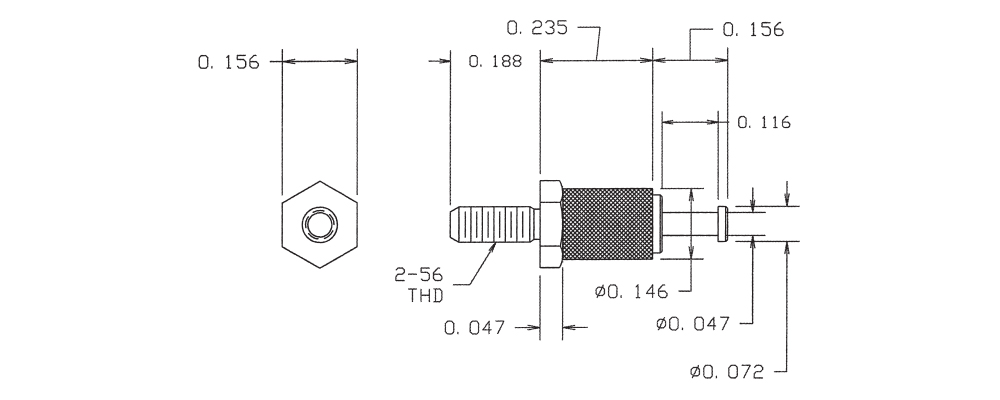

1127-57-08812
1127-57-08812
1127-57-08812
0.579" - - 2-56 Nut 1/16 0.094 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Red NO

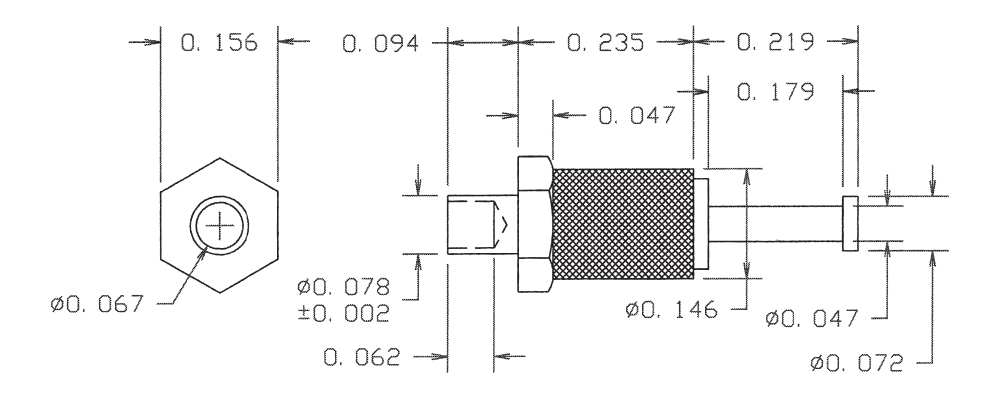

1127-62-0118
1127-62-0118
1127-62-0118
0.548" - - Swage Mount 1/16 0.082 Brass Silver ZINC Brass DIALLYL PHTHALATE Gray YES

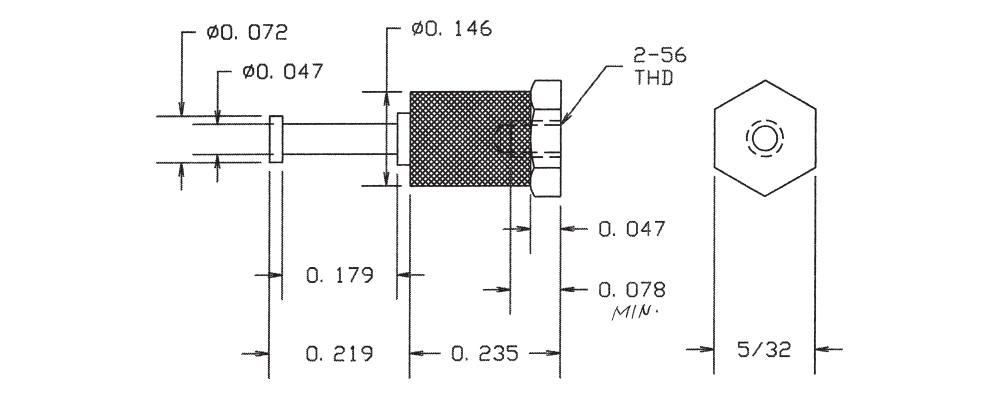

1127-66-0414
1127-66-0414
1127-66-0414
0.454" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Yellow YES

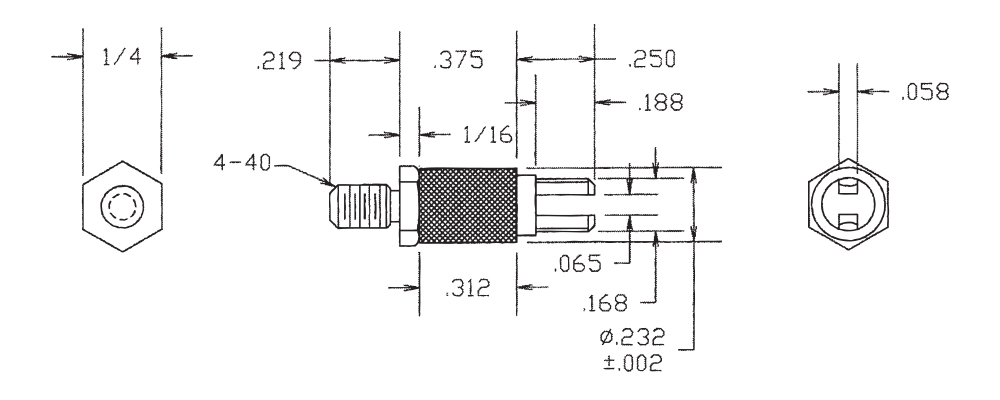

1127-70-0510
1127-70-0510
1127-70-0510
0.844" - - 4-40 Nut 3/32 0.120 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Black NO
1127-74-08816
1127-74-08816
1127-74-08816
1.000" - - 4-40 Nut 3/32 0.120 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Blue NO
1127-79-0312
1127-79-0312
1127-79-0312
0.719" - - Swage Mount 1/16 0.147 Brass Gold ZINC Brass DIALLYL PHTHALATE Red YES

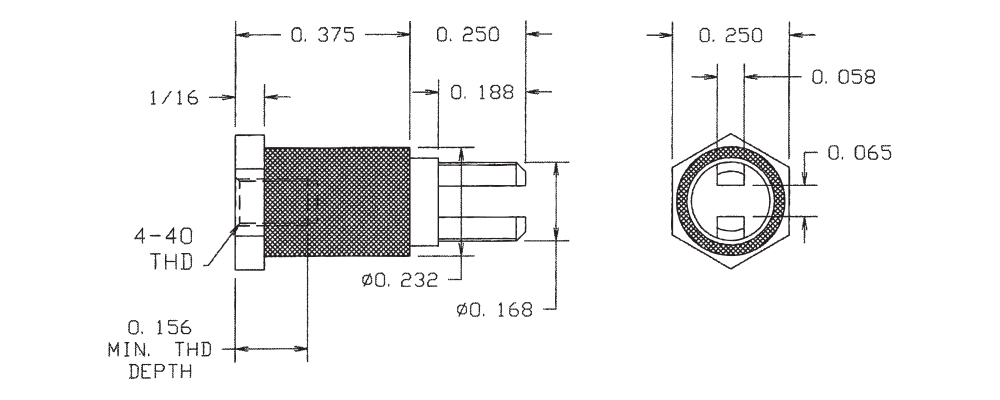

1127-83-0418
1127-83-0418
1127-83-0418
0.625" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Gray YES
1127-87-0514
1127-87-0514
1127-87-0514
0.515" - - 2-56 Nut 1/32 0.094 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Yellow NO

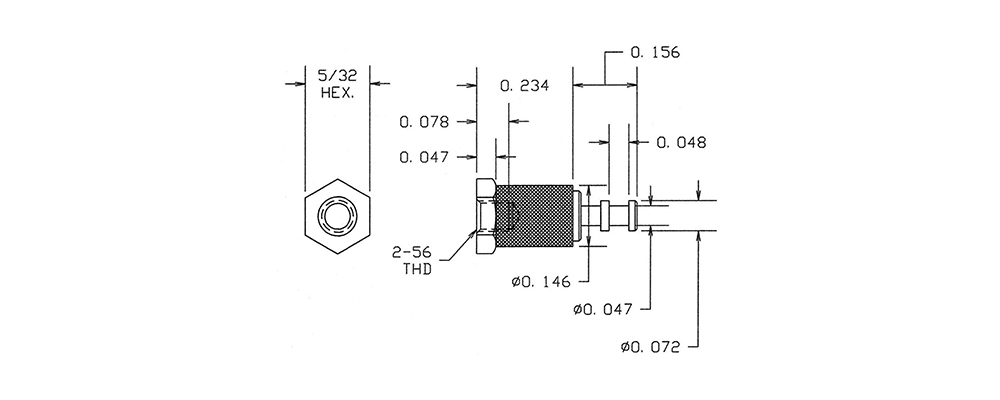

1127-92-0110
1127-92-0110
1127-92-0110
0.390" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Silver ZINC Brass DIALLYL PHTHALATE Black YES

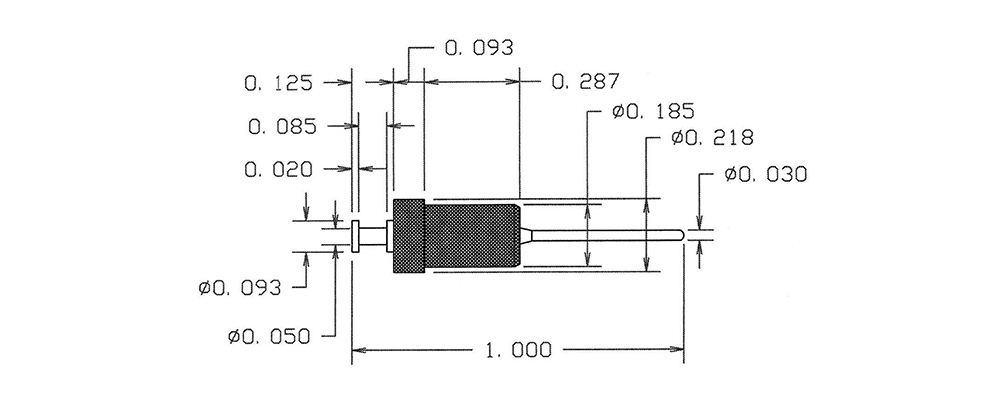

1129-01-0316
1129-01-0316
1129-01-0316
1.000" 0.030 TURRET/PIN Press Fit Up to 1/4 0.205 Brass Gold - - PTFE Blue YES

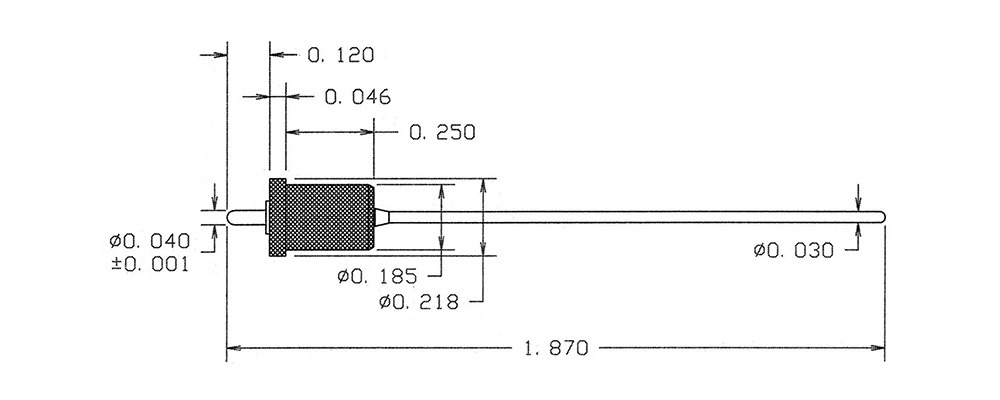

1130-02-04412
1130-02-04412
1130-02-04412
1.870" (0.030)/(0.040) Pin/Pin Press Fit 7/32 0.172 Brass Bright Tin - - PTFE Red NO
1130-07-0518
1130-07-0518
1130-07-0518
2.083" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Electro Solder - - PTFE Gray NO
1130R-06-0114
1130R-06-0114
1130R-06-0114
1.937" (0.030)/(0.050) Pin/Pin Press Fit 3/32 0.172 Brass Silver - - PTFE Yellow NO

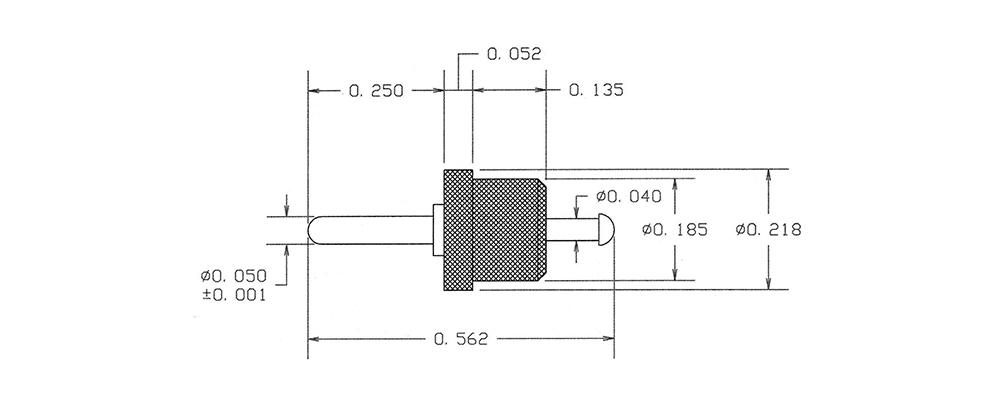

1131-03-0410
1131-03-0410
1131-03-0410
0.562" (0.040)/(0.050) Pin/Tip Press Fit 3/32 0.172 Brass Electro-Tin - - PTFE Black YES

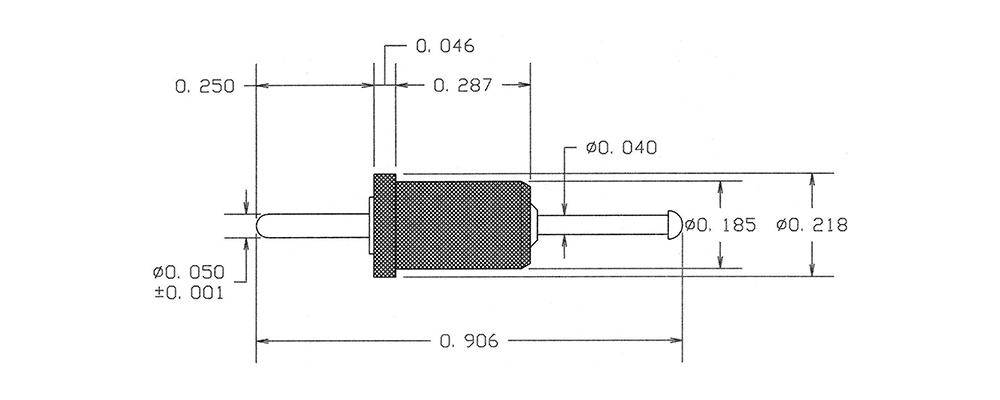

1131-07-04416
1131-07-04416
1131-07-04416
0.906" (0.040)/(0.050) Pin/Tip Press Fit Up to 1/4 0.172 Brass Bright Tin - - PTFE Blue YES
1132-01-08812
1132-01-08812
1132-01-08812
0.645" 0.090 - Solder 7/32 0.0935 Brass Bright Tin-Lead - - PTFE Red NO

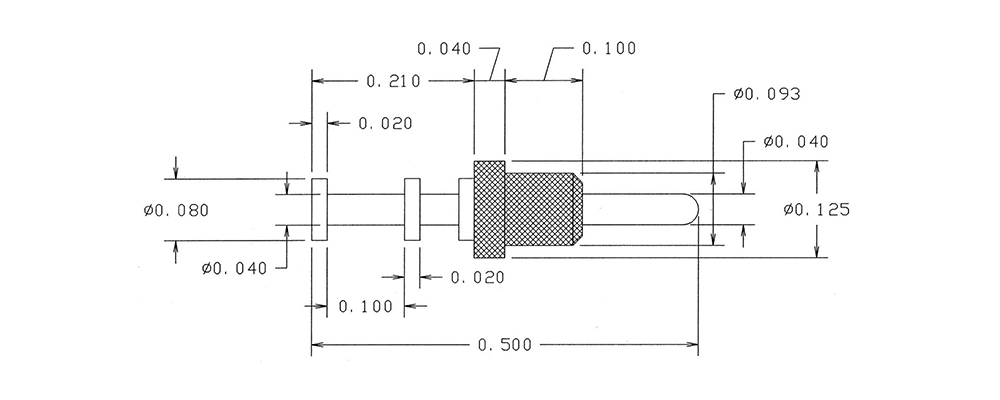

1133-03-0118
1133-03-0118
1133-03-0118
0.500" 0.040 DOUBLE TURRET/PIN Press Fit 1/16 0.086 Brass Silver - - PTFE Gray NO
1135-01-0414
1135-01-0414
1135-01-0414
0.510" 0.030 Pin/Slotted Press Fit 1/32 0.070 Brass Electro-Tin - - PTFE Yellow NO
1135-05-0510
1135-05-0510
1135-05-0510
0.552" 0.030 (+0.000/-0.005) Pin/Slotted Press Fit 1/16 0.070 Brass Electro Solder - - PTFE Black NO
