Non-Insulated
PC Jacks

Filter
09-9020-1-06
09-9020-1-06
09-9020-1-06
0.025 0.141 " 0.262" - Swage Mount 0.062" 1/32 0.062 Brass Electro-Tin Vertical
09-9615-1-06
09-9615-1-06
09-9615-1-06
0.015 - 0.025 0.150 " 0.180" - Solder - 1/32 - 1/16 0.0635 Brass Electro-Tin Vertical
09-9131-1-06
09-9131-1-06
09-9131-1-06
0.030 - 0.032 0.205 " 0.206" - Solder - 1/32 - 1/8 0.076 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9622-1-088
09-9622-1-088
09-9622-1-088
0.022 - 0.034 0.120 " 0.180" - Solder - 1/32 0.067 Brass Bright Tin-Lead Vertical

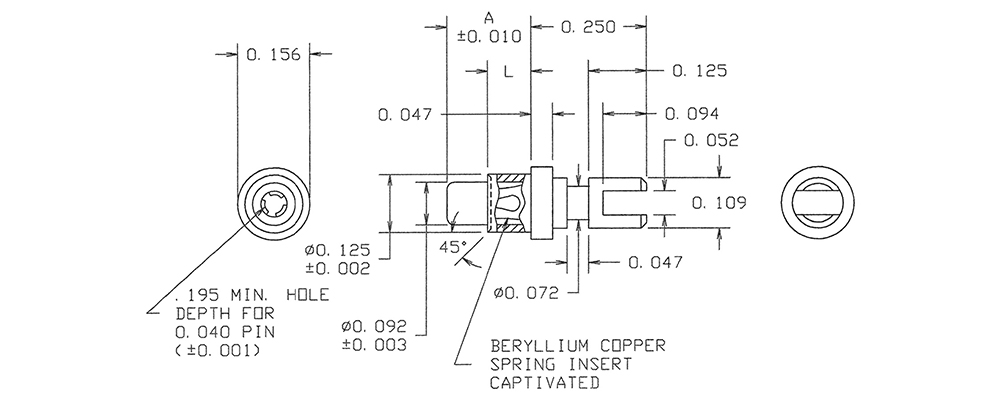

09-9003-4-03
09-9003-4-03
09-9003-4-03
0.040 0.195 " 0.432" Jack/Slotted Swage Mount 0.156" 1/8 0.129 Brass Gold Vertical
09-9034-1-06
09-9034-1-06
09-9034-1-06
0.030 - 0.032 0.190 " 0.206" - Solder - 1/32 - 5/32 0.076 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9230-2-06
09-9230-2-06
09-9230-2-06
0.040 0.185 " 0.277" - Swage Mount 0.084" 1/16 0.076 Brass Electro-Tin Vertical
09-9139-1-063
09-9139-1-063
09-9139-1-063
0.040 0.185 " 0.855" Jack/Pin Press Fit/Solder - 1/16 - 5/32 0.089 Brass Bright Tin-Lead Vertical
09-9729-1-088
09-9729-1-088
09-9729-1-088
0.032 - 0.046 0.220 " 0.253" - Solder - 1/32 - 3/16 0.0935 Brass Bright Tin-Lead Vertical
09-9042-4-06
09-9042-4-06
09-9042-4-06
0.080 0.375 " 0.699" Jack/Turret Swage Mount 0.156" 1/8 0.094 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9015-1-06
09-9015-1-06
09-9015-1-06
0.025 0.150 " 0.192" - Solder - 1/32 - 1/16 0.062 Brass Electro-Tin Vertical
09-9677-1-063
09-9677-1-063
09-9677-1-063
0.015 - 0.025 0.146 " 0.290" Jack/Pin Press Fit/Solder - 1/16 - 3/32 0.057 Brass Bright Tin-Lead Vertical
09-9678-1-03
09-9678-1-03
09-9678-1-03
0.015 - 0.025 0.146 " 0.290" Jack/Pin Press Fit/Solder - 1/16 0.057 Brass Gold Vertical
09-9678-1-035
09-9678-1-035
09-9678-1-035
0.015 - 0.025 0.146 " 0.290" Jack/Pin Press Fit/Solder - 1/16 0.057 Brass Gold Vertical
09-9678-1-063
09-9678-1-063
09-9678-1-063
0.015 - 0.025 0.146 " 0.290" Jack/Pin Press Fit/Solder - 1/16 0.057 Brass Bright Tin-Lead Vertical
09-9678-1-088
09-9678-1-088
09-9678-1-088
0.015 - 0.025 0.146 " 0.290" Jack/Pin Press Fit/Solder - 1/16 0.057 Brass Bright Tin-Lead Vertical
09-9679-1-06
09-9679-1-06
09-9679-1-06
0.015 - 0.025 0.146 " 0.317" Jack/Pin Press Fit/Solder - 1/16 - 3/32 0.057 Brass Electro-Tin Vertical
09-9679-1-088
09-9679-1-088
09-9679-1-088
0.015 - 0.025 0.146 " 0.317" Jack/Pin Press Fit/Solder - 1/16 - 3/32 0.057 Brass Bright Tin-Lead Vertical
09-9680-1-03
09-9680-1-03
09-9680-1-03
0.015 - 0.025 0.162 " 0.203" - Press Fit/Solder - 1/16 - 1/8 0.057 Brass Gold Vertical
09-9039-1-04
09-9039-1-04
09-9039-1-04
0.080 0.333 " 0.412" - Solder - 1/32 - 1/4 0.144 Brass Electro-Tin Vertical
