Non-Insulated
PC Jacks

Filter
09-9613-1-088
09-9613-1-088
09-9613-1-088
0.015 - 0.025 0.148 " 0.173" - Press Fit/Solder - 1/16 - 1/8 0.057 Brass Bright Tin-Lead Vertical
09-9638-2-063
09-9638-2-063
09-9638-2-063
0.025 - 0.037 0.230 " 0.440" Jack/Pin Press Fit/Solder - 1/16 - 5/32 0.062 Brass Bright Tin-Lead Vertical
09-9007-6-088
09-9007-6-088
09-9007-6-088
0.040 0.362 " 0.453" Jack/Jack Swage Mount 0.219" 3/16 0.129 Brass Bright Tin-Lead Vertical
09-9638-2-035
09-9638-2-035
09-9638-2-035
0.025 - 0.037 0.230 " 0.440" Jack/Pin Press Fit/Solder - 1/16 - 5/32 0.062 Brass Gold Vertical
09-9051-4-035
09-9051-4-035
09-9051-4-035
0.016 - 0.020 0.210 " 0.287" Jack/Turret Swage Mount 0.135" 1/8 0.076 Brass Gold Vertical
09-9638-2-03
09-9638-2-03
09-9638-2-03
0.025 - 0.037 0.230 " 0.440" Jack/Pin Press Fit/Solder - 1/16 - 5/32 0.062 Brass Gold Vertical

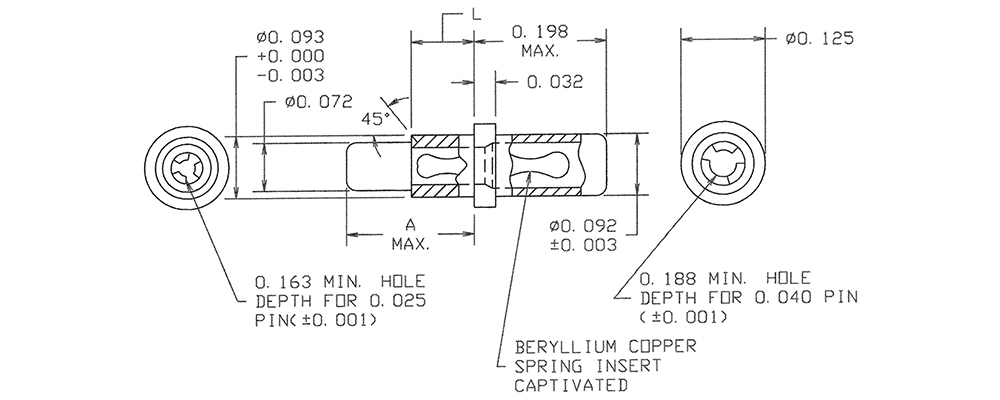

09-9019-6-06
09-9019-6-06
09-9019-6-06
(0.025 & 0.040) 0.163 " 0.451" Jack/Jack Swage Mount 0.219" 3/16 0.094 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9003-4-04
09-9003-4-04
09-9003-4-04
0.040 0.195 " 0.432" Jack/Slotted Swage Mount 0.156" 1/8 0.129 Brass Electro-Tin Vertical
09-9003-4-035
09-9003-4-035
09-9003-4-035
0.040 0.195 " 0.432" Jack/Slotted Swage Mount 0.156" 1/8 0.129 Brass Gold Vertical
09-9003-2-035
09-9003-2-035
09-9003-2-035
0.040 0.195 " 0.432" Jack/Slotted Swage Mount 0.094" 1/16 0.129 Brass Gold Vertical
09-9604-6-03
09-9604-6-03
09-9604-6-03
0.032 - 0.046 0.200 " 0.517" Jack/Turret Swage Mount 0.219" 3/16 0.094 Brass Gold Vertical
09-9604-6-04
09-9604-6-04
09-9604-6-04
0.032 - 0.046 0.200 " 0.517" Jack/Turret Swage Mount 0.219" 3/16 0.094 Brass Electro-Tin Vertical
09-9604-6-06
09-9604-6-06
09-9604-6-06
0.032 - 0.046 0.200 " 0.517" Jack/Turret Swage Mount 0.219" 3/16 0.094 Brass Electro-Tin Vertical
09-9604-6-063
09-9604-6-063
09-9604-6-063
0.032 - 0.046 0.200 " 0.517" Jack/Turret Swage Mount 0.219" 3/16 0.094 Brass Bright Tin-Lead Vertical
09-9604-6-088
09-9604-6-088
09-9604-6-088
0.032 - 0.046 0.200 " 0.517" Jack/Turret Swage Mount 0.219" 3/16 0.094 Brass Bright Tin-Lead Vertical
09-9605-1-04
09-9605-1-04
09-9605-1-04
0.032 - 0.046 0.195 " 0.445" Jack/Pin Swage Mount 0.062" 1/32 0.094 Brass Electro-Tin Vertical
09-9618-1-088
09-9618-1-088
09-9618-1-088
0.032 - 0.046 0.195 " 0.236" - Solder - 1/16 - 5/32 0.089 Brass Bright Tin-Lead Vertical
09-9632-1-03
09-9632-1-03
09-9632-1-03
0.032 - 0.046 0.190 " 0.250" - Press Fit/Solder - 1/16 - 5/32 0.090 Brass Gold Vertical
09-9632-1-04
09-9632-1-04
09-9632-1-04
0.032 - 0.046 0.190 " 0.250" - Press Fit/Solder - 1/16 - 5/32 0.090 Brass Electro-Tin Vertical
09-9632-1-06
09-9632-1-06
09-9632-1-06
0.032 - 0.046 0.190 " 0.250" - Press Fit/Solder - 1/16 - 5/32 0.090 Brass Electro-Tin Vertical
