Non-Insulated
PC Jacks

Filter

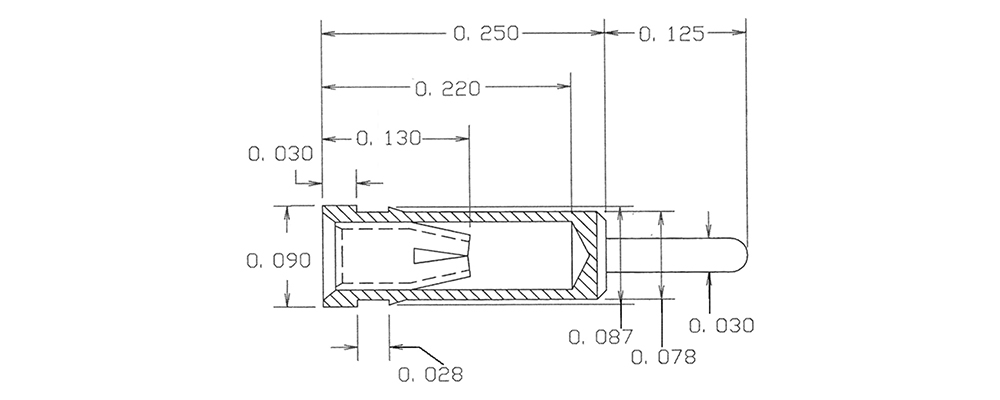

09-9738-1-06
09-9738-1-06
09-9738-1-06
0.032 - 0.046 0.220 " 0.375" Jack/Pin Press Fit/Solder - 1/16 - 3/16 0.086 Brass Electro-Tin Vertical

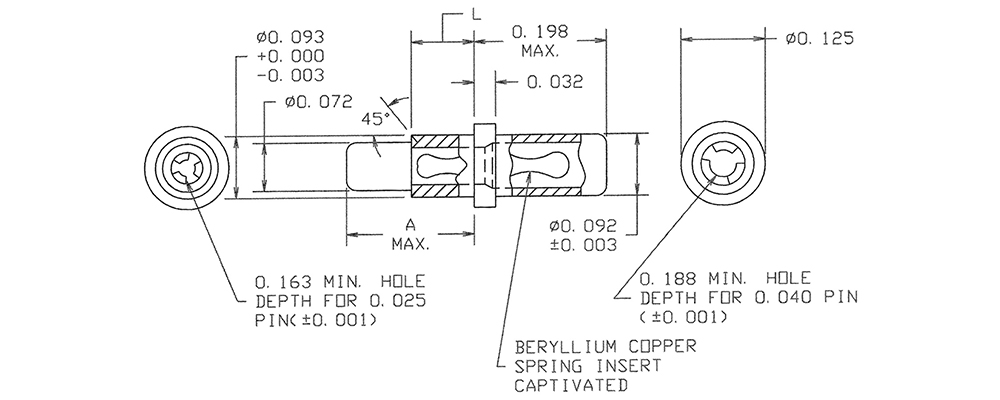

09-9019-3-04
09-9019-3-04
09-9019-3-04
(0.025 & 0.040) 0.163 " 0.389" Jack/Jack Swage Mount 0.125" 3/32 0.094 (+0.002/-0.001) Brass Electro-Tin Vertical

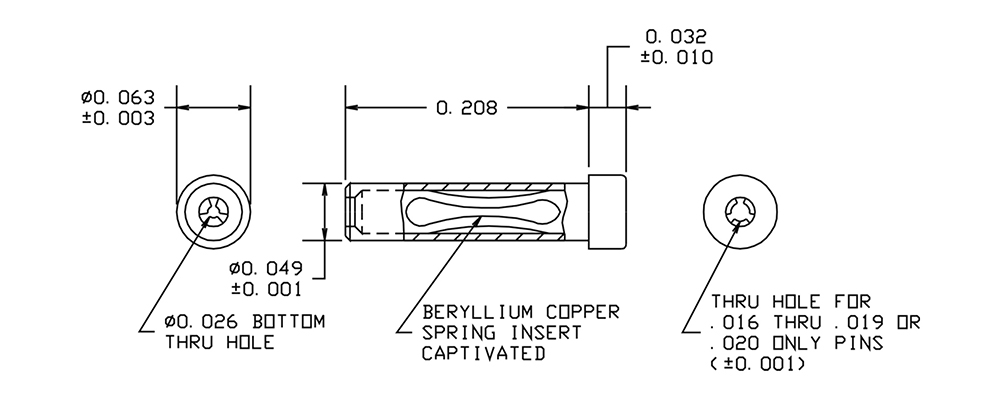

09-9049-1-03
09-9049-1-03
09-9049-1-03
0.016 - 0.020 0.216 " 0.240" - Solder - 1/32 - 1/8 0.052 (+0.002/-0.001) Brass Gold Vertical

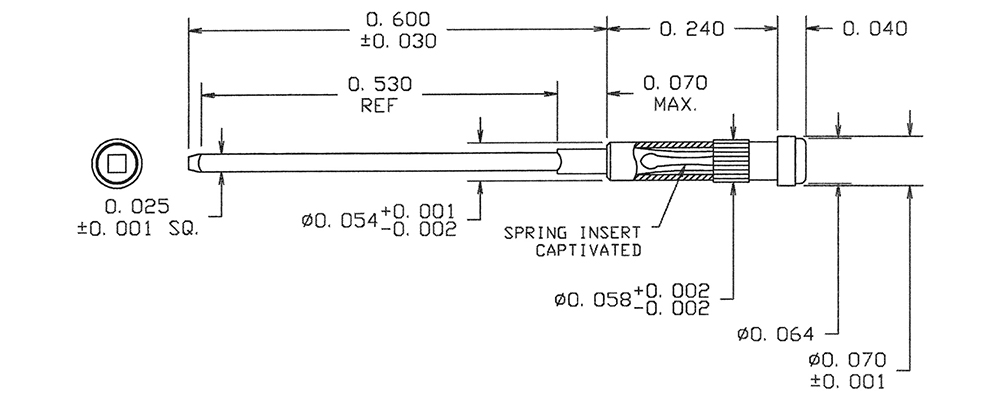

09-9172-1-06
09-9172-1-06
09-9172-1-06
0.014 0.225 " 0.880" Jack/Square Wrap Pin Press Fit/Solder - 3/32 - 3/16 0.055 Brass Electro-Tin Vertical

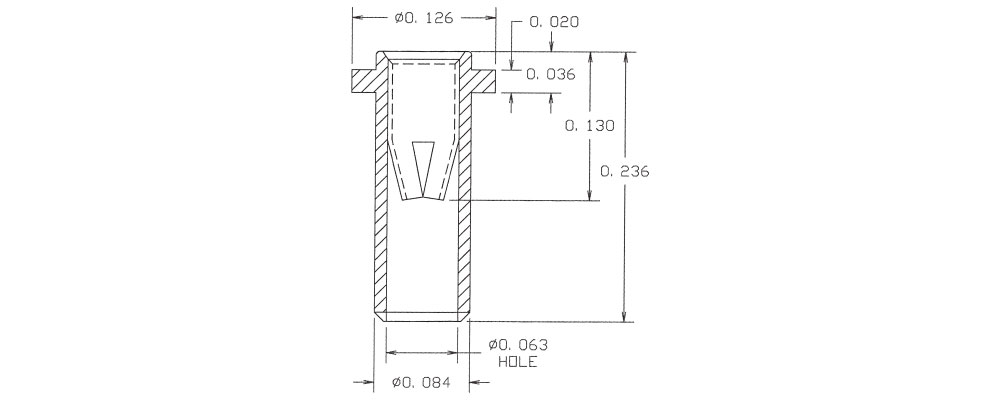

09-9602-1-063
09-9602-1-063
09-9602-1-063
0.032 - 0.046 0.157 " 0.236" - Solder - 1/32 - 5/32 0.087 Brass Bright Tin-Lead Vertical

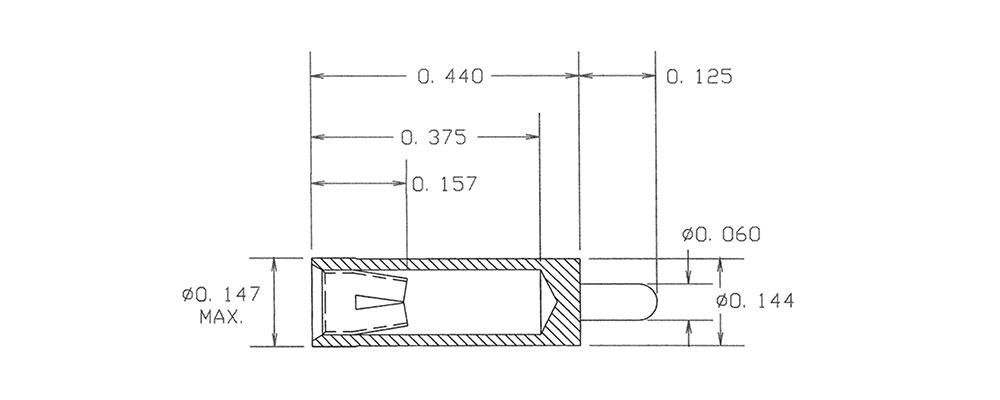

09-9631-1-04
09-9631-1-04
09-9631-1-04
0.065 - 0.082 0.375 " 0.565" Jack/Pin Solder - 1/32 - 1/16 0.067 Brass Electro-Tin Vertical

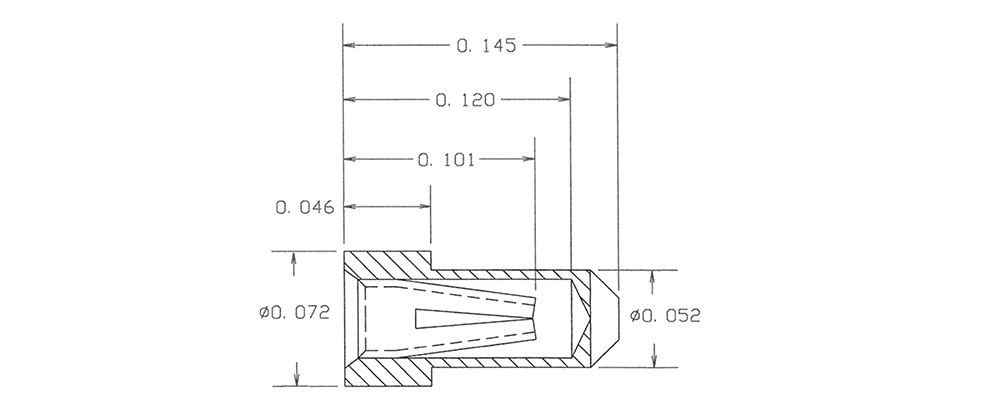

09-9671-1-03
09-9671-1-03
09-9671-1-03
0.015 - 0.025 0.120 " 0.145" - Solder - 1/32 - 1/16 0.055 Brass Gold Vertical
09-9738-1-063
09-9738-1-063
09-9738-1-063
0.032 - 0.046 0.220 " 0.375" Jack/Pin Press Fit/Solder - 1/16 - 3/16 0.086 Brass Bright Tin-Lead Vertical
09-9019-3-06
09-9019-3-06
09-9019-3-06
(0.025 & 0.040) 0.163 " 0.389" Jack/Jack Swage Mount 0.125" 3/32 0.094 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9049-1-035
09-9049-1-035
09-9049-1-035
0.016 - 0.020 0.216 " 0.240" - Solder - 1/32 - 1/8 0.052 (+0.002/-0.001) Brass Gold Vertical
09-9172-1-063
09-9172-1-063
09-9172-1-063
0.014 0.225 " 0.880" Jack/Square Wrap Pin Press Fit/Solder - 3/32 - 3/16 0.055 Brass Bright Tin-Lead Vertical
09-9602-1-088
09-9602-1-088
09-9602-1-088
0.032 - 0.046 0.157 " 0.236" - Solder - 1/32 - 5/32 0.087 Brass Bright Tin-Lead Vertical
09-9631-1-06
09-9631-1-06
09-9631-1-06
0.065 - 0.082 0.375 " 0.565" Jack/Pin Solder - 1/32 - 1/16 0.067 Brass Electro-Tin Vertical
09-9671-1-035
09-9671-1-035
09-9671-1-035
0.015 - 0.025 0.120 " 0.145" - Solder - 1/32 - 1/16 0.055 Brass Gold Vertical
09-9738-1-088
09-9738-1-088
09-9738-1-088
0.032 - 0.046 0.220 " 0.375" Jack/Pin Press Fit/Solder - 1/16 - 3/16 0.086 Brass Bright Tin-Lead Vertical
09-9019-3-063
09-9019-3-063
09-9019-3-063
(0.025 & 0.040) 0.163 " 0.389" Jack/Jack Swage Mount 0.125" 3/32 0.094 (+0.002/-0.001) Brass Bright Tin-Lead Vertical
09-9049-1-04
09-9049-1-04
09-9049-1-04
0.016 - 0.020 0.216 " 0.240" - Solder - 1/32 - 1/8 0.052 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9172-1-088
09-9172-1-088
09-9172-1-088
0.014 0.225 " 0.880" Jack/Square Wrap Pin Press Fit/Solder - 3/32 - 3/16 0.055 Brass Bright Tin-Lead Vertical

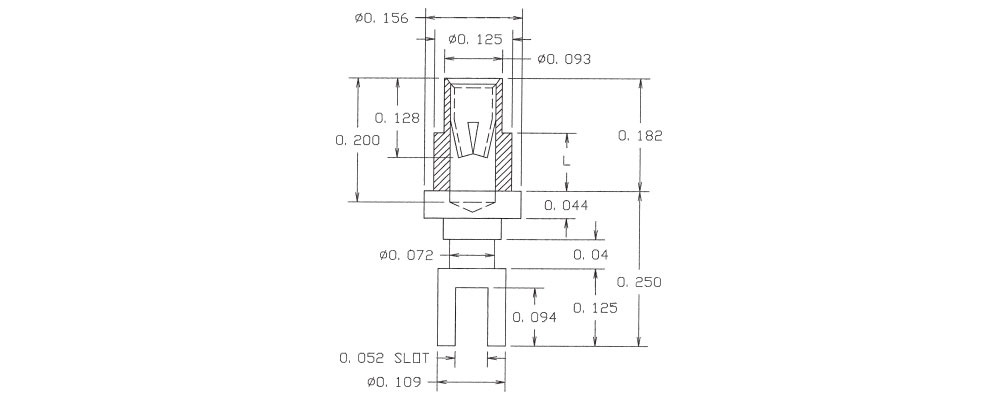

09-9603-2-03
09-9603-2-03
09-9603-2-03
0.032 - 0.046 0.200 " 0.432" Jack/Slotted Swage Mount 0.094" 1/16 0.129 Brass Gold Vertical
09-9631-1-063
09-9631-1-063
09-9631-1-063
0.065 - 0.082 0.375 " 0.565" Jack/Pin Solder - 1/32 - 1/16 0.067 Brass Bright Tin-Lead Vertical
