Insulated
PC Jacks

Filter
09-9265-1-0317
09-9265-1-0317
09-9265-1-0317
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE Violet -

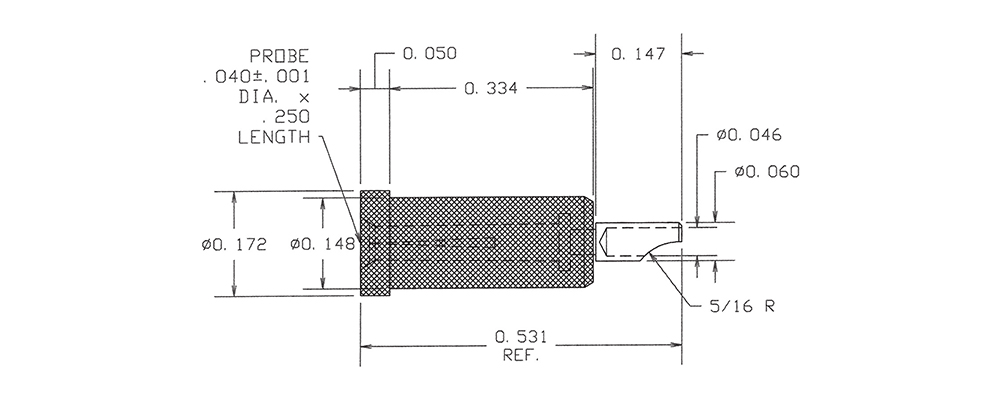

1138-28-03513
1138-28-03513
1138-28-03513
0.040 0.250 " 0.531" Jack/Solder Cup Press Fit 0.136 1/32 - 19/64 Vertical - - PTFE Orange -
09-9192-1-0617
09-9192-1-0617
09-9192-1-0617
0.040 0.190 " 0.452" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Violet -
1138-32-03517
1138-32-03517
1138-32-03517
0.080 0.250 " 0.912" Jack/Pin Press Fit 0.205 1/32 - 17/64 Vertical - - PTFE Violet -
09-9221-1-0116
09-9221-1-0116
09-9221-1-0116
0.080 0.233 " 0.438" Jack/Pin Solder 0.050 1/32 - 1/16 Vertical Brass Silver Nylon Blue -
09-9221-1-0113
09-9221-1-0113
09-9221-1-0113
0.080 0.233 " 0.438" Jack/Pin Solder 0.050 1/32 - 1/16 Vertical Brass Silver Nylon Orange -
09-9299-1-03513
09-9299-1-03513
09-9299-1-03513
0.080 0.360 " 0.466" - Solder 0.062  1/32 - 5/32 Horizontal Brass Gold PTFE Orange -
09-9221-1-0111
09-9221-1-0111
09-9221-1-0111
0.080 0.233 " 0.438" Jack/Pin Solder 0.050 1/32 - 1/16 Vertical Brass Silver Nylon Brown -
09-9221-1-0318
09-9221-1-0318
09-9221-1-0318
0.080 0.233 " 0.438" Jack/Pin Solder 0.050 1/32 - 1/16 Vertical Brass Gold Nylon Gray -
09-9221-1-0315
09-9221-1-0315
09-9221-1-0315
0.080 0.233 " 0.438" Jack/Pin Solder 0.050 1/32 - 1/16 Vertical Brass Gold Nylon Green -
09-9092-1-03518
09-9092-1-03518
09-9092-1-03518
0.050 0.214 " 0.413" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE Gray -
09-9299-1-03512
09-9299-1-03512
09-9299-1-03512
0.080 0.360 " 0.466" - Solder 0.062  1/32 - 5/32 Horizontal Brass Gold PTFE Red -

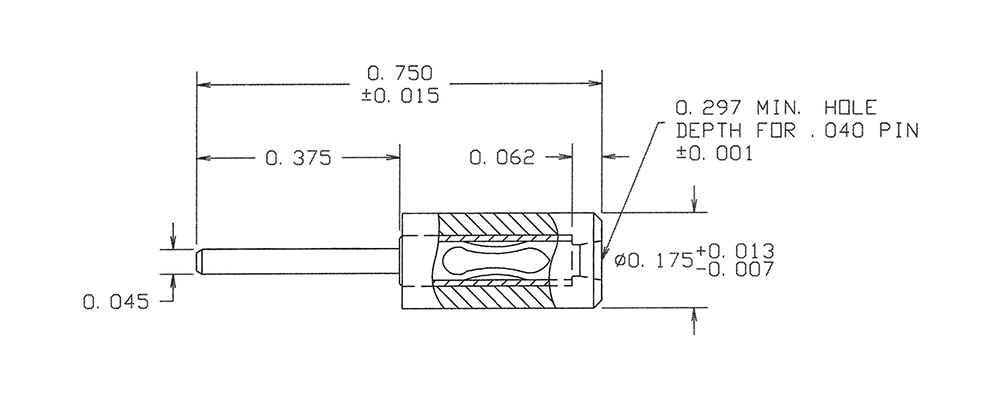

09-9158-1-06311
09-9158-1-06311
09-9158-1-06311
0.040 0.297 " 0.750" Jack/Pin Solder 0.047 1/32 - 21/64 Vertical Brass Bright Tin-Lead PTFE Brown -
09-9216-1-04416
09-9216-1-04416
09-9216-1-04416
0.060 0.250 " 0.287" - Solder 0.102  1/32 - 3/32 Vertical Brass Bright Tin-Lead PTFE Blue -
09-9083-1-0619
09-9083-1-0619
09-9083-1-0619
0.140 0.190 " 0.516" Jack/Pin - - - - Brass Electro-Tin Polyolefin White -
09-9071-1-06314
09-9071-1-06314
09-9071-1-06314
0.061 0.190 " 0.656" - - - - - Brass Bright Tin-Lead Polyolefin Yellow -
09-9295-1-03513
09-9295-1-03513
09-9295-1-03513
0.080 0.500 " 0.530" Jack/Pin Press Fit 0.178 1/32 - 5/32 Vertical Brass Gold PTFE Orange -
20-9201-1-0310
20-9201-1-0310
20-9201-1-0310
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Black -
09-9071-1-06312
09-9071-1-06312
09-9071-1-06312
0.061 0.190 " 0.656" - - - - - Brass Bright Tin-Lead Polyolefin Red -
1138-03-0319
1138-03-0319
1138-03-0319
0.080 0.250 " 0.441" - Swage Mount 0.114 1/32 Vertical - - PTFE White -
