Insulated
PC Jacks

Filter
09-9011-1-0313
09-9011-1-0313
09-9011-1-0313
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.137 1/32 - 3/16 Vertical Brass Gold PTFE Orange -
09-9011-1-0315
09-9011-1-0315
09-9011-1-0315
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.137 1/32 - 3/16 Vertical Brass Gold PTFE Green -
09-9011-1-0417
09-9011-1-0417
09-9011-1-0417
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.137 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Violet -
09-9011-1-06315
09-9011-1-06315
09-9011-1-06315
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.137 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Green -
09-9012-1-0310
09-9012-1-0310
09-9012-1-0310
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE Black -
09-9055-1-0319
09-9055-1-0319
09-9055-1-0319
0.025 0.145 " 0.431" Jack/Pin - - - - Brass Gold Polyolefin White -

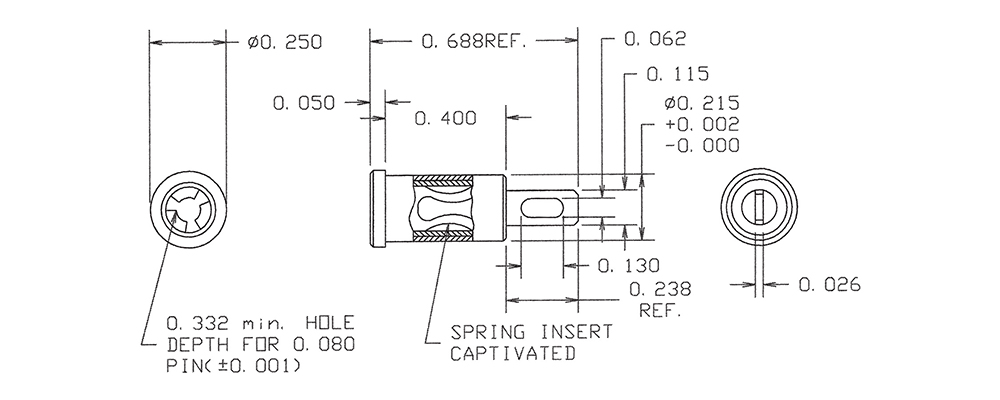

09-9060-1-0611
09-9060-1-0611
09-9060-1-0611
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Electro-Tin PTFE Brown -
09-9401-1-03519
09-9401-1-03519
09-9401-1-03519
0.080 0.500 " 0.530" Jack/Pin Press Fit 0.177 1/64 - 1/16 Vertical Brass Gold PTFE White -
09-9306-1-03511
09-9306-1-03511
09-9306-1-03511
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/64 Horizontal - - Nylon Brown M39024/11-54
09-9306-1-03517
09-9306-1-03517
09-9306-1-03517
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/64 Horizontal - - Nylon Violet M39024/11-60
09-9306-1-03518
09-9306-1-03518
09-9306-1-03518
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/64 Horizontal - - Nylon Gray M39024/11-59
09-9306-1-04411
09-9306-1-04411
09-9306-1-04411
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/64 Horizontal - - Nylon Brown -

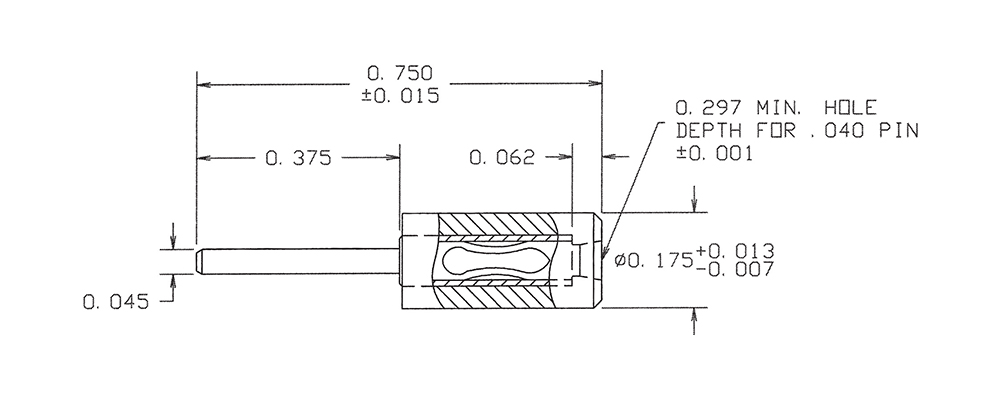

09-9158-1-0619
09-9158-1-0619
09-9158-1-0619
0.040 0.297 " 0.750" Jack/Pin Solder 0.047 1/32 - 21/64 Vertical Brass Electro-Tin PTFE White -
09-9307-1-03513
09-9307-1-03513
09-9307-1-03513
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/64 Horizontal - - Nylon Orange M39024/11-66
09-9307-1-03516
09-9307-1-03516
09-9307-1-03516
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/64 Horizontal - - Nylon Blue M39024/11-67

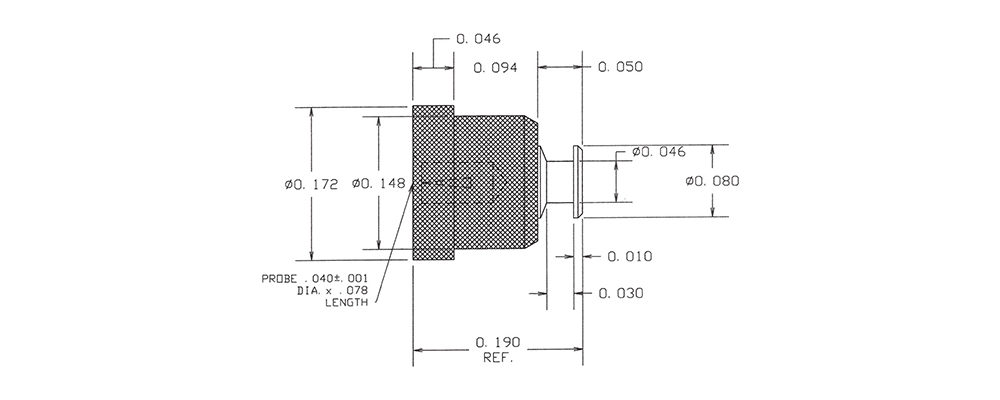

1128-06-0310
1128-06-0310
1128-06-0310
0.040 0.078 " 0.190" Jack/Turret Press Fit 0.136 1/32 - 1/16 Vertical - - PTFE Black -
1128-06-0311
1128-06-0311
1128-06-0311
0.040 0.078 " 0.190" Jack/Turret Press Fit 0.136 1/32 - 1/16 Vertical - - PTFE Brown -
21-9205-1-03519
21-9205-1-03519
21-9205-1-03519
0.080 0.400 " 0.410" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon White -
1128-03-03517
1128-03-03517
1128-03-03517
0.040 0.245 " 0.449" Jack/Turret Press Fit 0.108 1/32 - 15/64 Vertical - - PTFE Violet -
1138-03-0319
1138-03-0319
1138-03-0319
0.080 0.250 " 0.441" - Swage Mount 0.114 1/32 Vertical - - PTFE White -
