Insulated
PC Jacks

Filter
09-9011-1-0313
09-9011-1-0313
09-9011-1-0313
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.137 1/32 - 3/16 Vertical Brass Gold PTFE Orange -

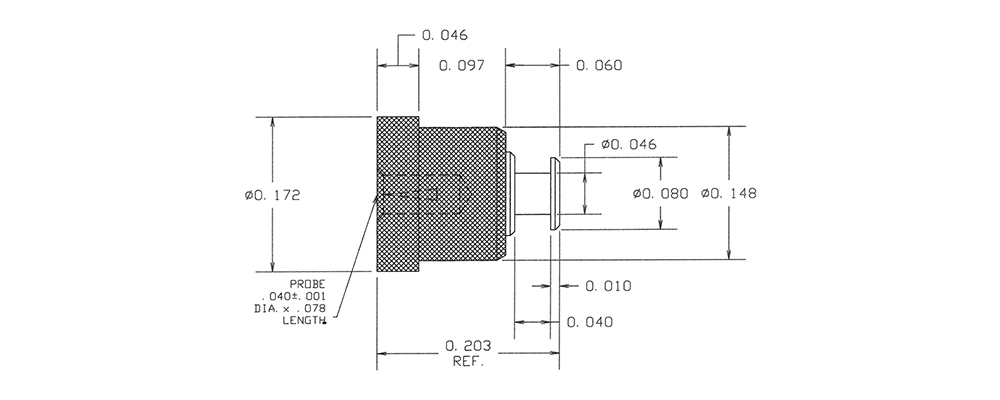

1128-07-0311
1128-07-0311
1128-07-0311
0.040 0.078 " 0.203" Jack/Turret Press Fit 0.136 1/32 - 1/16 Vertical - - PTFE Brown -

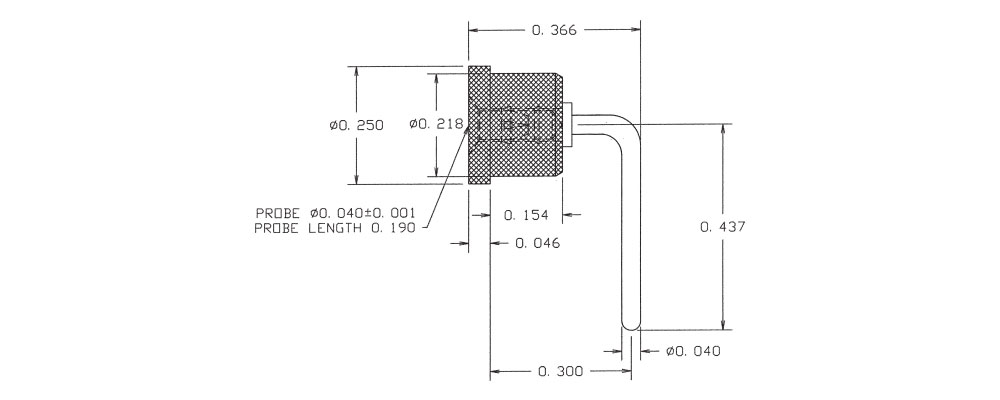

1128-22-0317
1128-22-0317
1128-22-0317
0.040 0.190 " 0.366" Jack/Pin Press Fit 0.205 1/32 - 3/32 Vertical - - PTFE Violet -

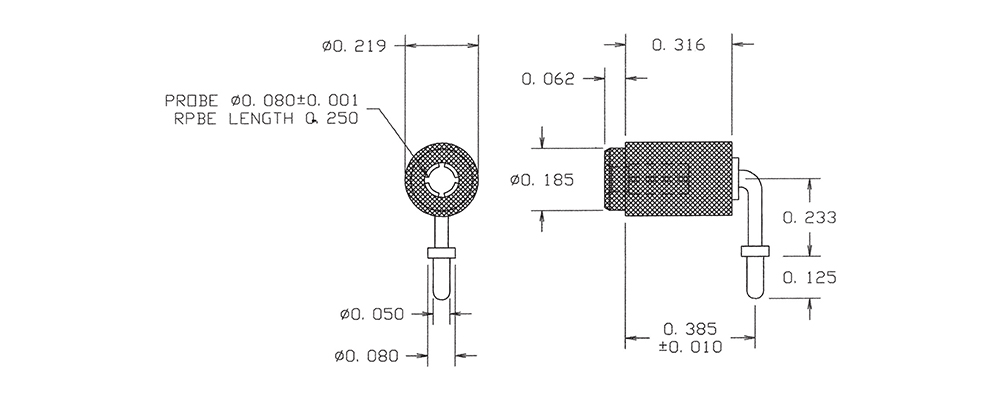

1128-50-0313
1128-50-0313
1128-50-0313
0.080 0.250 " 0.472" Jack/Pin Press Fit 0.172 1/32 - 1/16 Vertical - - PTFE Orange -

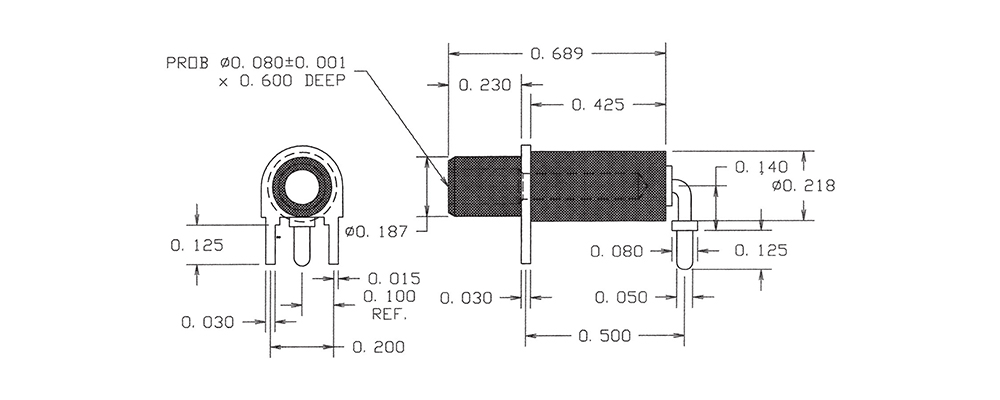

1128-72-0319
1128-72-0319
1128-72-0319
0.080 0.600 " 0.794" - Solder 0.062  1/32 - 1/16 Horizontal - - PTFE White -

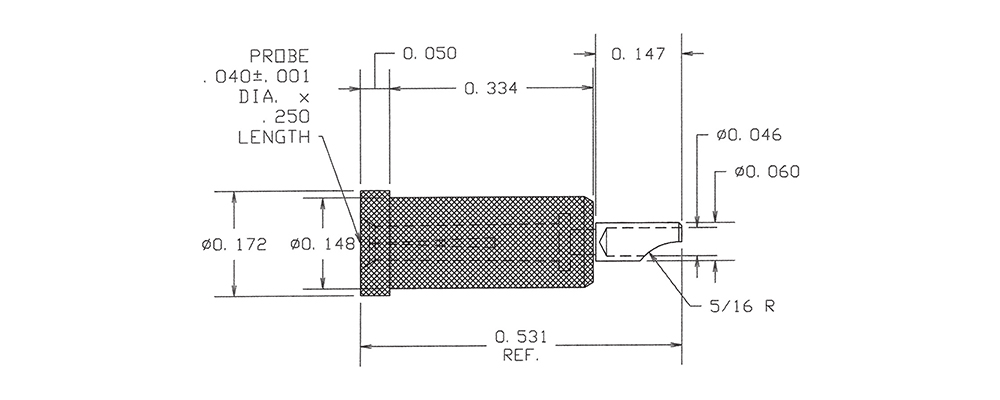

1138-28-03515
1138-28-03515
1138-28-03515
0.040 0.250 " 0.531" Jack/Solder Cup Press Fit 0.136 1/32 - 19/64 Vertical - - PTFE Green -

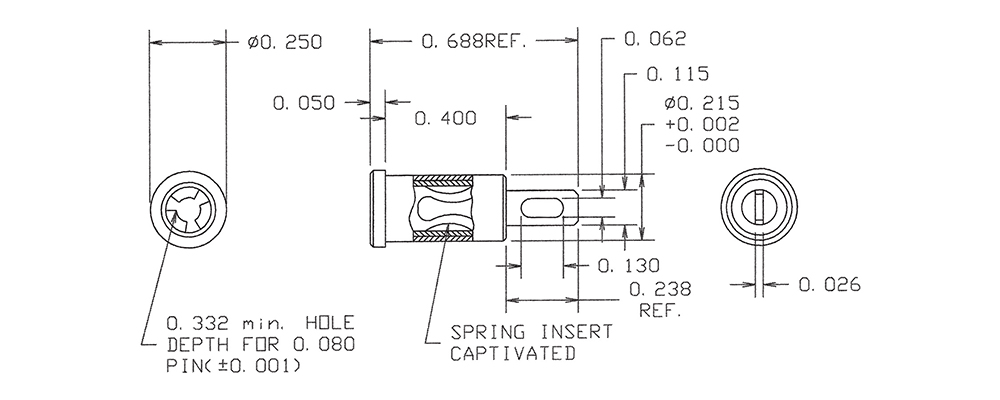

09-9060-1-06310
09-9060-1-06310
09-9060-1-06310
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Bright Tin-Lead PTFE Black -

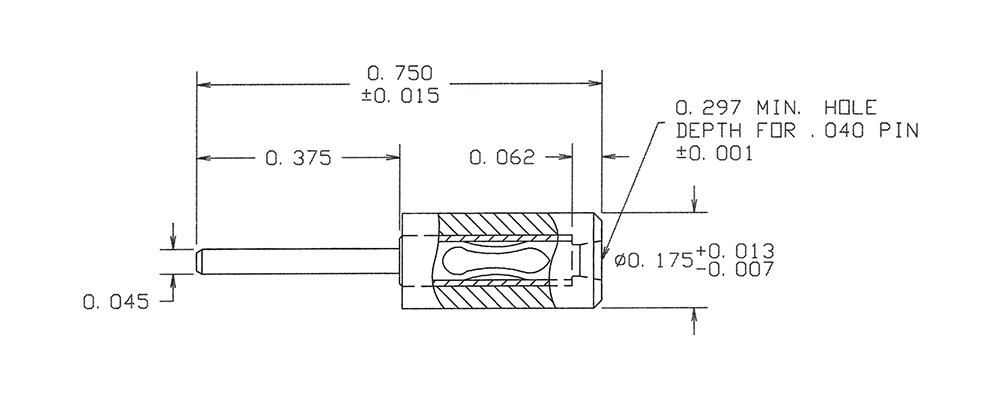

09-9158-1-03514
09-9158-1-03514
09-9158-1-03514
0.040 0.297 " 0.750" Jack/Pin Solder 0.047 1/32 - 21/64 Vertical Brass Gold PTFE Yellow -

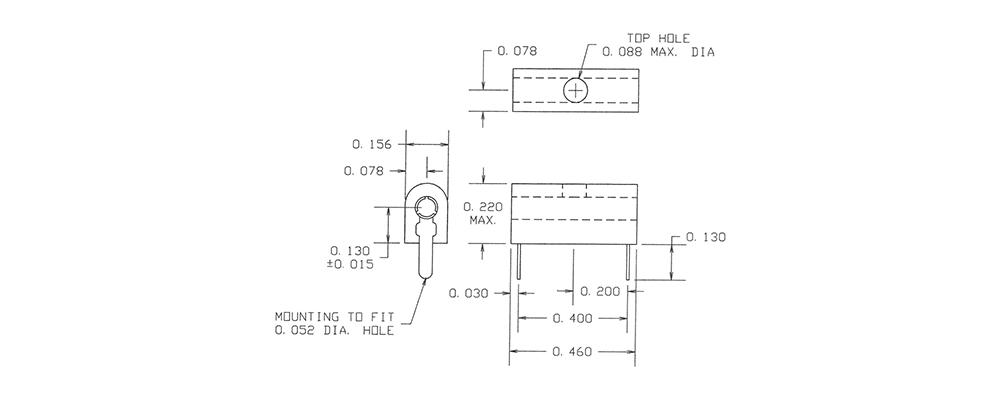

09-9208-1-0310
09-9208-1-0310
09-9208-1-0310
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Black -

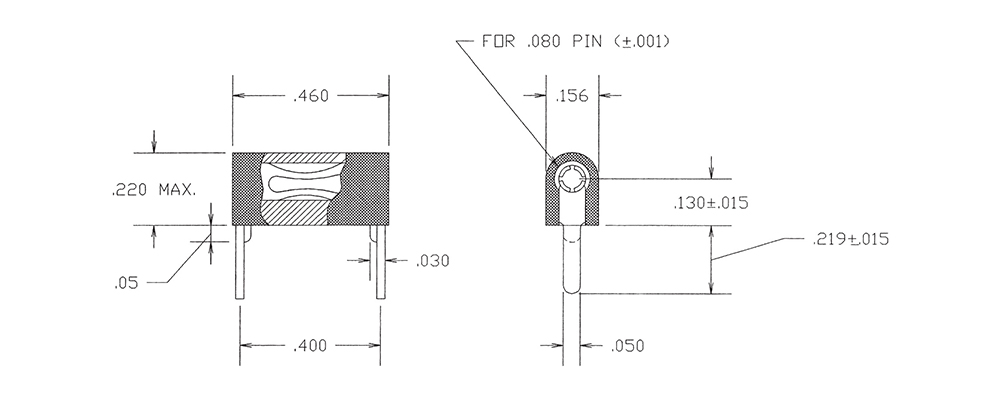

09-9301-1-04416
09-9301-1-04416
09-9301-1-04416
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 3/32 Horizontal - - Nylon Blue -
09-9011-1-0314
09-9011-1-0314
09-9011-1-0314
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.137 1/32 - 3/16 Vertical Brass Gold PTFE Yellow -
1128-07-0312
1128-07-0312
1128-07-0312
0.040 0.078 " 0.203" Jack/Turret Press Fit 0.136 1/32 - 1/16 Vertical - - PTFE Red -
1128-22-0318
1128-22-0318
1128-22-0318
0.040 0.190 " 0.366" Jack/Pin Press Fit 0.205 1/32 - 3/32 Vertical - - PTFE Gray -
1128-50-0314
1128-50-0314
1128-50-0314
0.080 0.250 " 0.472" Jack/Pin Press Fit 0.172 1/32 - 1/16 Vertical - - PTFE Yellow -
1128-72-03510
1128-72-03510
1128-72-03510
0.080 0.600 " 0.794" - Solder 0.062  1/32 - 1/16 Horizontal - - PTFE Black -
1138-28-03516
1138-28-03516
1138-28-03516
0.040 0.250 " 0.531" Jack/Solder Cup Press Fit 0.136 1/32 - 19/64 Vertical - - PTFE Blue -
09-9060-1-06311
09-9060-1-06311
09-9060-1-06311
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Bright Tin-Lead PTFE Brown -
09-9158-1-03515
09-9158-1-03515
09-9158-1-03515
0.040 0.297 " 0.750" Jack/Pin Solder 0.047 1/32 - 21/64 Vertical Brass Gold PTFE Green -
09-9208-1-0311
09-9208-1-0311
09-9208-1-0311
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Brown -
09-9301-1-04417
09-9301-1-04417
09-9301-1-04417
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 3/32 Horizontal - - Nylon Violet -
