Insulated
PC Jacks

Filter
09-9084-1-0316
09-9084-1-0316
09-9084-1-0316
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Gold PTFE Blue -
09-9084-1-0317
09-9084-1-0317
09-9084-1-0317
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Gold PTFE Violet -
09-9084-1-0318
09-9084-1-0318
09-9084-1-0318
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Gold PTFE Gray -
09-9208-1-0316
09-9208-1-0316
09-9208-1-0316

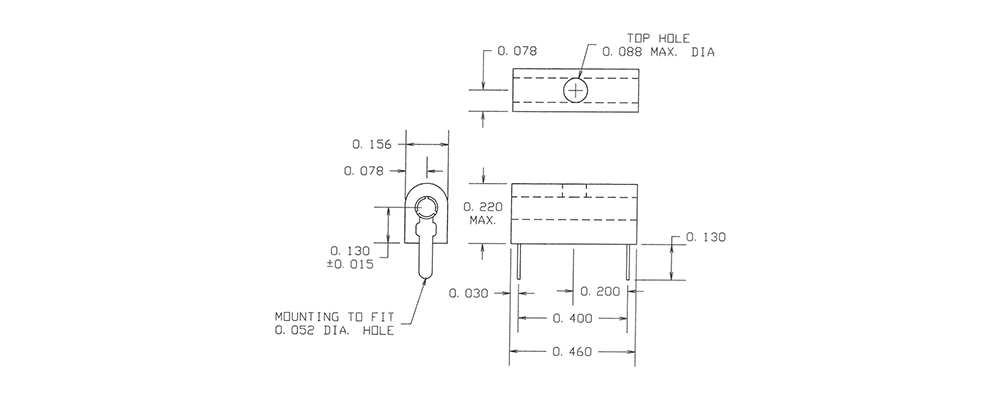

0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Blue -
1128-06-03514
1128-06-03514
1128-06-03514
0.040 0.078 " 0.190" Jack/Turret Press Fit 0.136 1/32 - 1/16 Vertical - - PTFE Yellow -
1128-06-03512
1128-06-03512
1128-06-03512
0.040 0.078 " 0.190" Jack/Turret Press Fit 0.136 1/32 - 1/16 Vertical - - PTFE Red -
09-9203-1-04418
09-9203-1-04418
09-9203-1-04418
0.080 0.250 " 0.380" - Solder 0.062  1/32 - 1/16 Horizontal Brass Bright Tin-Lead PTFE Gray -
09-9203-1-04417
09-9203-1-04417
09-9203-1-04417
0.080 0.250 " 0.380" - Solder 0.062  1/32 - 1/16 Horizontal Brass Bright Tin-Lead PTFE Violet -
09-9203-1-04415
09-9203-1-04415
09-9203-1-04415
0.080 0.250 " 0.380" - Solder 0.062  1/32 - 1/16 Horizontal Brass Bright Tin-Lead PTFE Green -
09-9084-1-03511
09-9084-1-03511
09-9084-1-03511
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Gold PTFE Brown M39024/12-04
09-9203-1-04413
09-9203-1-04413
09-9203-1-04413
0.080 0.250 " 0.380" - Solder 0.062  1/32 - 1/16 Horizontal Brass Bright Tin-Lead PTFE Orange -
09-9084-1-03512
09-9084-1-03512
09-9084-1-03512
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Gold PTFE Red M39024/12-02
09-9203-1-04412
09-9203-1-04412
09-9203-1-04412
0.080 0.250 " 0.380" - Solder 0.062  1/32 - 1/16 Horizontal Brass Bright Tin-Lead PTFE Red -
09-9192-1-06318
09-9192-1-06318
09-9192-1-06318
0.040 0.190 " 0.452" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Gray -
09-9203-1-04411
09-9203-1-04411
09-9203-1-04411
0.080 0.250 " 0.380" - Solder 0.062  1/32 - 1/16 Horizontal Brass Bright Tin-Lead PTFE Brown -
09-9221-1-03514
09-9221-1-03514
09-9221-1-03514
0.080 0.233 " 0.438" Jack/Pin Solder 0.050 1/32 - 1/16 Vertical Brass Gold Nylon Yellow -
09-9071-1-0612
09-9071-1-0612
09-9071-1-0612
0.061 0.190 " 0.656" - - - - - Brass Electro-Tin Polyolefin Red -
09-9295-1-03514
09-9295-1-03514
09-9295-1-03514
0.080 0.500 " 0.530" Jack/Pin Press Fit 0.178 1/32 - 5/32 Vertical Brass Gold PTFE Yellow -
09-9084-1-03514
09-9084-1-03514
09-9084-1-03514
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Gold PTFE Yellow M39024/12-08
1138-03-0319
1138-03-0319
1138-03-0319
0.080 0.250 " 0.441" - Swage Mount 0.114 1/32 Vertical - - PTFE White -
