Insulated
PC Jacks

Filter
09-9011-1-0417
09-9011-1-0417
09-9011-1-0417
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.137 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Violet -

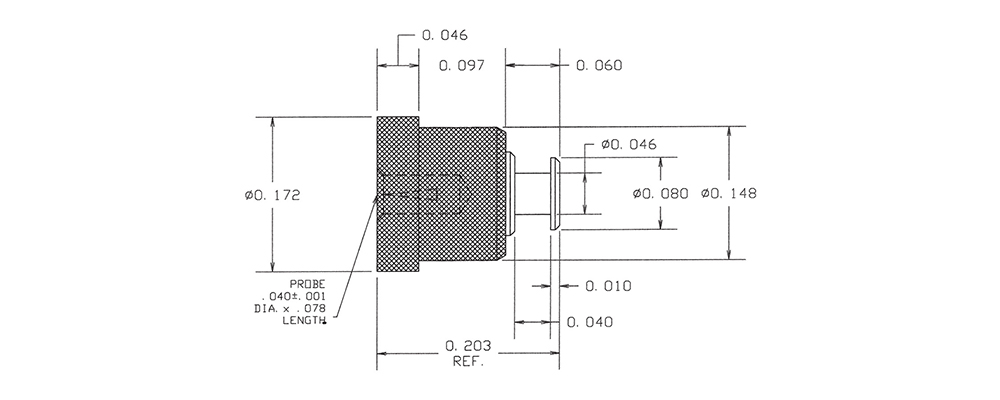

1128-07-0319
1128-07-0319
1128-07-0319
0.040 0.078 " 0.203" Jack/Turret Press Fit 0.136 1/32 - 1/16 Vertical - - PTFE White -

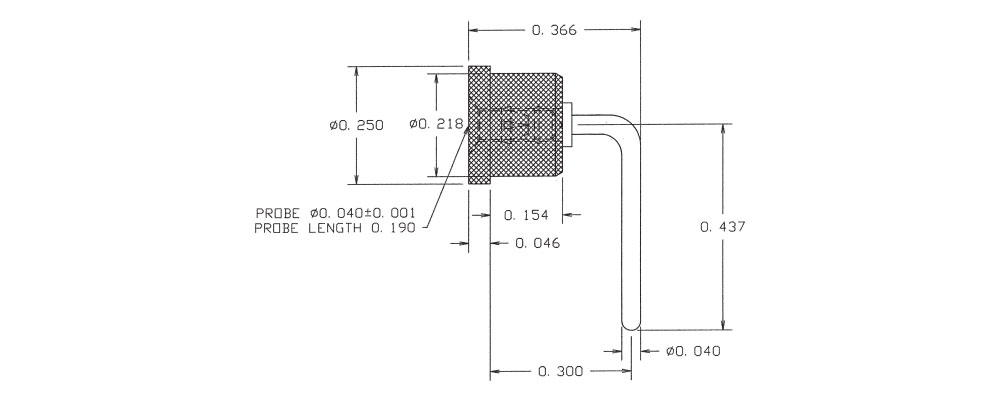

1128-22-03515
1128-22-03515
1128-22-03515
0.040 0.190 " 0.366" Jack/Pin Press Fit 0.205 1/32 - 3/32 Vertical - - PTFE Green -
1128-50-03511
1128-50-03511
1128-50-03511
0.080 0.250 " 0.472" Jack/Pin Press Fit 0.172 1/32 - 1/16 Vertical - - PTFE Brown -

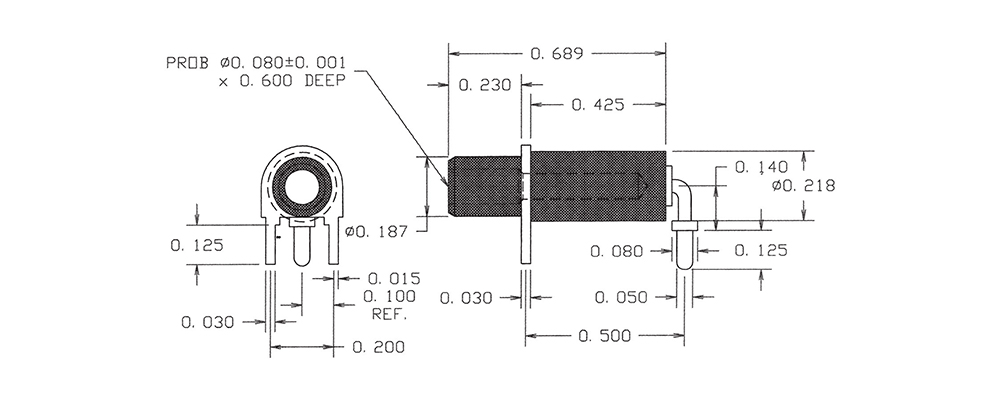

1128-72-03517
1128-72-03517
1128-72-03517
0.080 0.600 " 0.794" - Solder 0.062  1/32 - 1/16 Horizontal - - PTFE Violet -

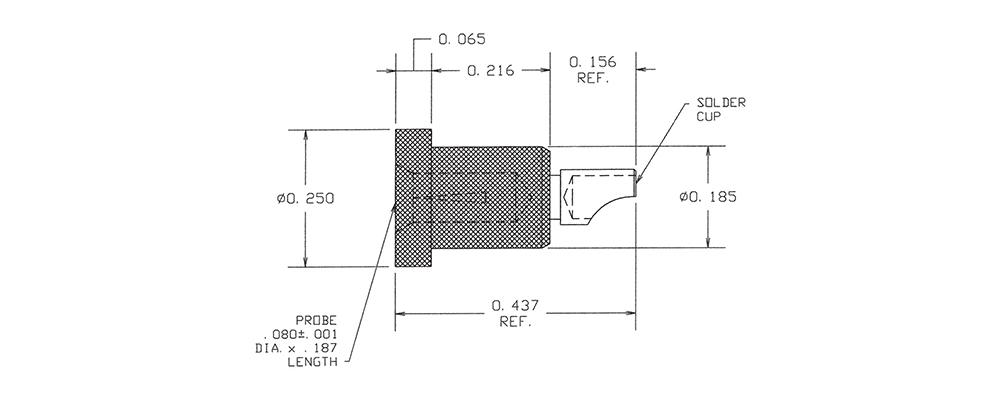

1138-29-0313
1138-29-0313
1138-29-0313
0.080 0.187 " 0.437" Jack/Solder Cup Press Fit 0.172 1/32 - 3/16 Vertical - - PTFE Orange -
09-9060-1-06318
09-9060-1-06318
09-9060-1-06318
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Bright Tin-Lead PTFE Gray -
09-9158-1-0412
09-9158-1-0412
09-9158-1-0412
0.040 0.297 " 0.750" Jack/Pin Solder 0.047 1/32 - 21/64 Vertical Brass Electro-Tin PTFE Red -
09-9208-1-0318
09-9208-1-0318
09-9208-1-0318
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Gray -

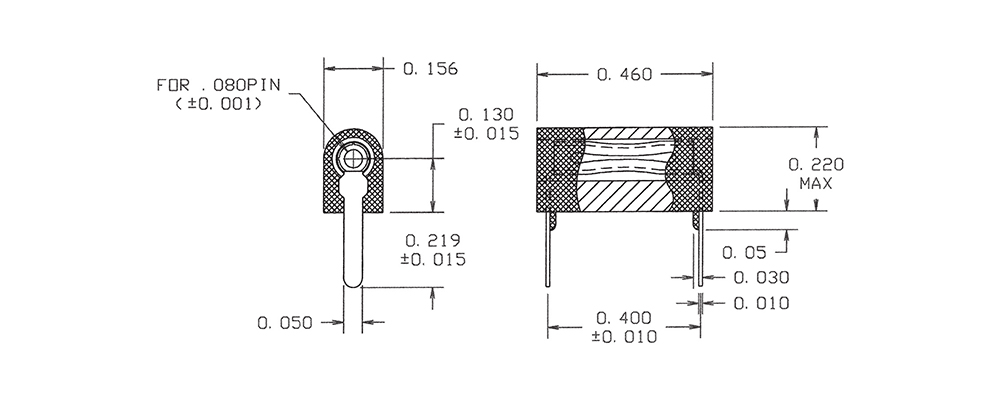

09-9302-1-0314
09-9302-1-0314
09-9302-1-0314
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 3/32 Horizontal - - Nylon Yellow -
09-9011-1-06314
09-9011-1-06314
09-9011-1-06314
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.137 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Yellow -
1128-07-03510
1128-07-03510
1128-07-03510
0.040 0.078 " 0.203" Jack/Turret Press Fit 0.136 1/32 - 1/16 Vertical - - PTFE Black -
1128-22-03516
1128-22-03516
1128-22-03516
0.040 0.190 " 0.366" Jack/Pin Press Fit 0.205 1/32 - 3/32 Vertical - - PTFE Blue -
1128-50-03512
1128-50-03512
1128-50-03512
0.080 0.250 " 0.472" Jack/Pin Press Fit 0.172 1/32 - 1/16 Vertical - - PTFE Red -
1128-72-03518
1128-72-03518
1128-72-03518
0.080 0.600 " 0.794" - Solder 0.062  1/32 - 1/16 Horizontal - - PTFE Gray -
1138-29-0314
1138-29-0314
1138-29-0314
0.080 0.187 " 0.437" Jack/Solder Cup Press Fit 0.172 1/32 - 3/16 Vertical - - PTFE Yellow -
09-9060-1-06319
09-9060-1-06319
09-9060-1-06319
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Bright Tin-Lead PTFE White -
09-9158-1-0413
09-9158-1-0413
09-9158-1-0413
0.040 0.297 " 0.750" Jack/Pin Solder 0.047 1/32 - 21/64 Vertical Brass Electro-Tin PTFE Orange -
09-9208-1-0319
09-9208-1-0319
09-9208-1-0319
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon White -
09-9302-1-0315
09-9302-1-0315
09-9302-1-0315
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 3/32 Horizontal - - Nylon Green -
