Insulated
PC Jacks

Filter
09-9084-1-03518
09-9084-1-03518
09-9084-1-03518
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Gold PTFE Gray M39024/12-09
09-9084-1-0413
09-9084-1-0413
09-9084-1-0413
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Electro-Tin PTFE Orange -
09-9203-1-03518
09-9203-1-03518
09-9203-1-03518
0.080 0.250 " 0.380" - Solder 0.062  1/32 - 1/16 Horizontal Brass Gold PTFE Gray M39024/4-09
09-9084-1-0414
09-9084-1-0414
09-9084-1-0414
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Electro-Tin PTFE Yellow -
1128-06-03510
1128-06-03510
1128-06-03510
0.040 0.078 " 0.190" Jack/Turret Press Fit 0.136 1/32 - 1/16 Vertical - - PTFE Black -
09-9203-1-0319
09-9203-1-0319
09-9203-1-0319
0.080 0.250 " 0.380" - Solder 0.062  1/32 - 1/16 Horizontal Brass Gold PTFE White -
09-9203-1-03517
09-9203-1-03517
09-9203-1-03517
0.080 0.250 " 0.380" - Solder 0.062  1/32 - 1/16 Horizontal Brass Gold PTFE Violet M39024/4-10
09-9203-1-03516
09-9203-1-03516
09-9203-1-03516
0.080 0.250 " 0.380" - Solder 0.062  1/32 - 1/16 Horizontal Brass Gold PTFE Blue M39024/4-07
09-9203-1-03515
09-9203-1-03515
09-9203-1-03515
0.080 0.250 " 0.380" - Solder 0.062  1/32 - 1/16 Horizontal Brass Gold PTFE Green M39024/4-05
09-9203-1-03513
09-9203-1-03513
09-9203-1-03513
0.080 0.250 " 0.380" - Solder 0.062  1/32 - 1/16 Horizontal Brass Gold PTFE Orange M39024/4-06
1128-06-0317
1128-06-0317
1128-06-0317
0.040 0.078 " 0.190" Jack/Turret Press Fit 0.136 1/32 - 1/16 Vertical - - PTFE Violet -
09-9203-1-03512
09-9203-1-03512
09-9203-1-03512
0.080 0.250 " 0.380" - Solder 0.062  1/32 - 1/16 Horizontal Brass Gold PTFE Red M39024/4-02
09-9084-1-0418
09-9084-1-0418
09-9084-1-0418
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Electro-Tin PTFE Gray -
1128-07-03510
1128-07-03510
1128-07-03510

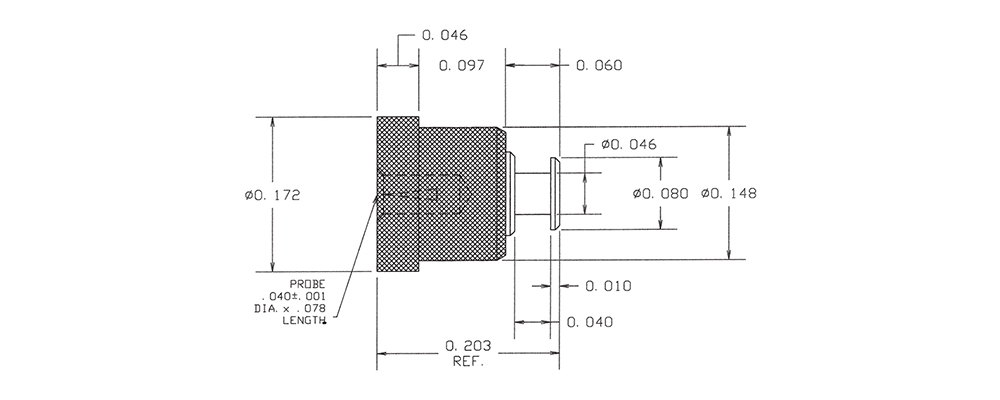

0.040 0.078 " 0.203" Jack/Turret Press Fit 0.136 1/32 - 1/16 Vertical - - PTFE Black -
1128-07-0318
1128-07-0318
1128-07-0318
0.040 0.078 " 0.203" Jack/Turret Press Fit 0.136 1/32 - 1/16 Vertical - - PTFE Gray -
1128-51-03513
1128-51-03513
1128-51-03513
0.080 0.500 " 0.898" - Solder 0.062  1/32 - 1/16 Horizontal - - PTFE Orange -
1138-28-03510
1138-28-03510
1138-28-03510
0.040 0.250 " 0.531" Jack/Solder Cup Press Fit 0.136 1/32 - 19/64 Vertical - - PTFE Black -
09-9201-1-04410
09-9201-1-04410
09-9201-1-04410
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Black -
09-9201-1-03512
09-9201-1-03512
09-9201-1-03512
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Red M39024/11-02G
1138-03-0319
1138-03-0319
1138-03-0319
0.080 0.250 " 0.441" - Swage Mount 0.114 1/32 Vertical - - PTFE White -
