Insulated
PC Jacks

Filter
09-9010-1-06319
09-9010-1-06319
09-9010-1-06319
0.040 0.195 " 0.343" Jack/Pin Solder 0.027 1/32 - 1/16 Vertical Brass Bright Tin-Lead Polyolefin White -

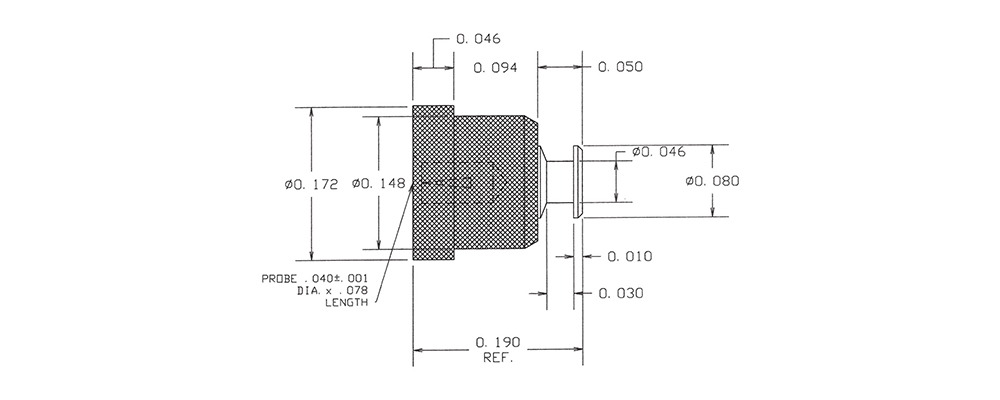

1128-06-03511
1128-06-03511
1128-06-03511
0.040 0.078 " 0.190" Jack/Turret Press Fit 0.136 1/32 - 1/16 Vertical - - PTFE Brown -

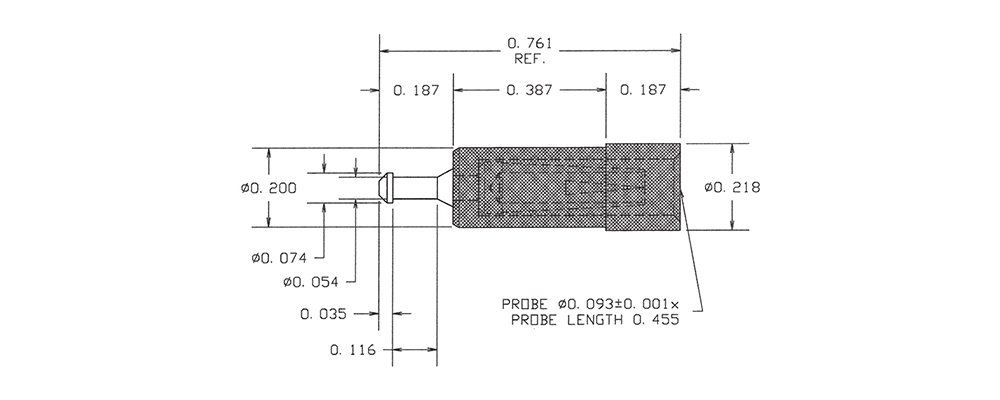

1128-20-03517
1128-20-03517
1128-20-03517
0.093 0.455 " 0.761" Jack/Turret Press Fit 0.187 1/32 - 21/64 Vertical - - PTFE Violet -

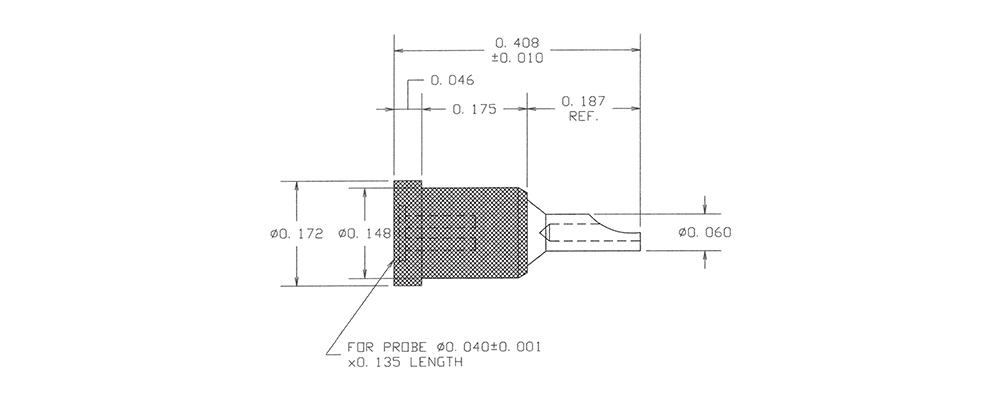

1128-39-03513
1128-39-03513
1128-39-03513
0.040 0.135 " 0.408" Jack/Solder Cup Press Fit 0.136 1/32 - 1/8 Vertical - - PTFE Orange -

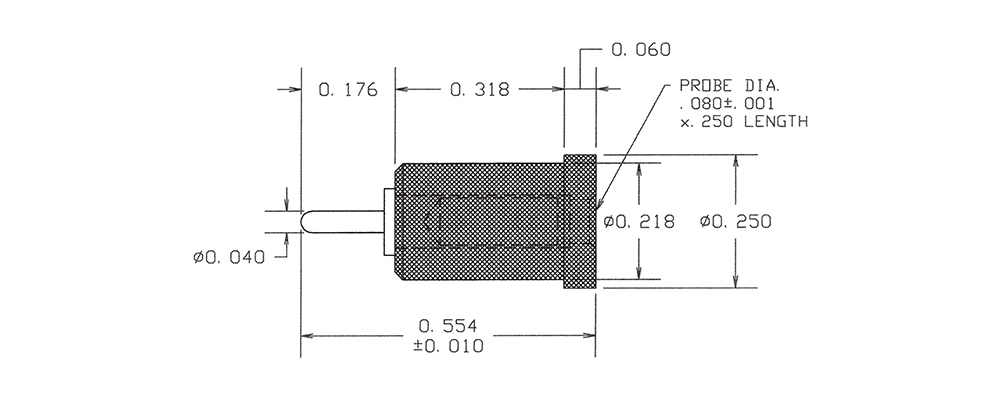

1128-66-04419
1128-66-04419
1128-66-04419
0.080 0.250 " 0.554" Jack/Pin Press Fit 0.205 1/32 - 17/64 Vertical - - PTFE White -

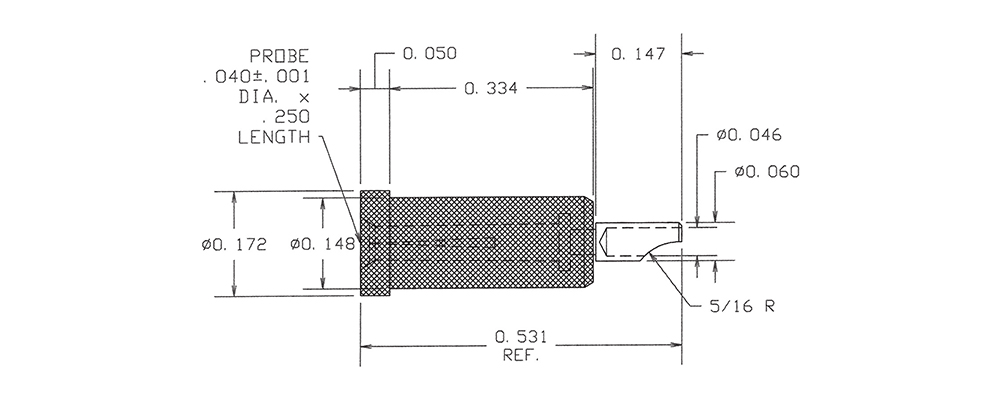

1138-28-0315
1138-28-0315
1138-28-0315
0.040 0.250 " 0.531" Jack/Solder Cup Press Fit 0.136 1/32 - 19/64 Vertical - - PTFE Green -

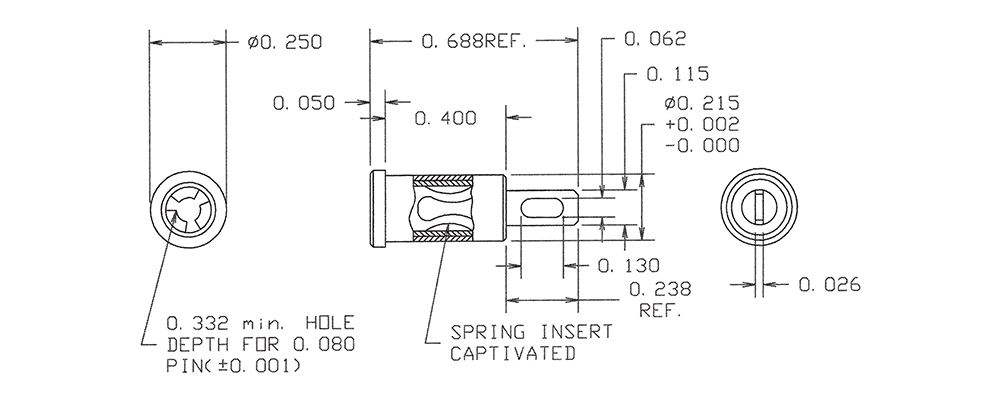

09-9060-1-0418
09-9060-1-0418
09-9060-1-0418
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Electro-Tin PTFE Gray -

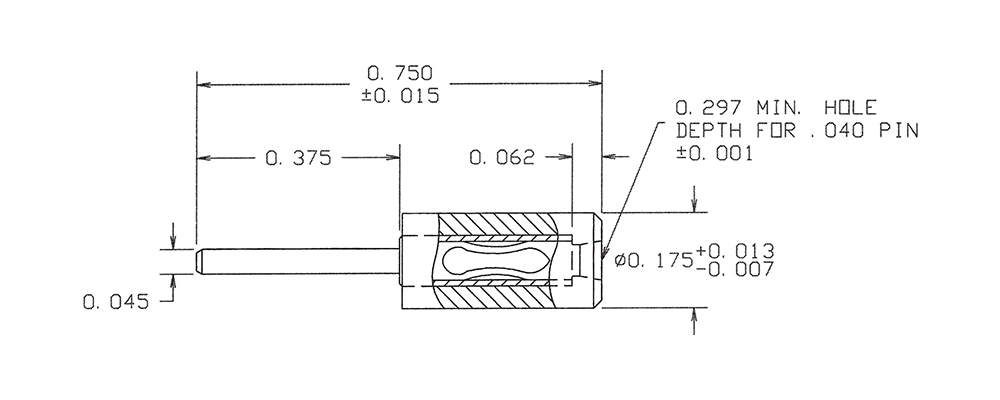

09-9158-1-0314
09-9158-1-0314
09-9158-1-0314
0.040 0.297 " 0.750" Jack/Pin Solder 0.047 1/32 - 21/64 Vertical Brass Gold PTFE Yellow -

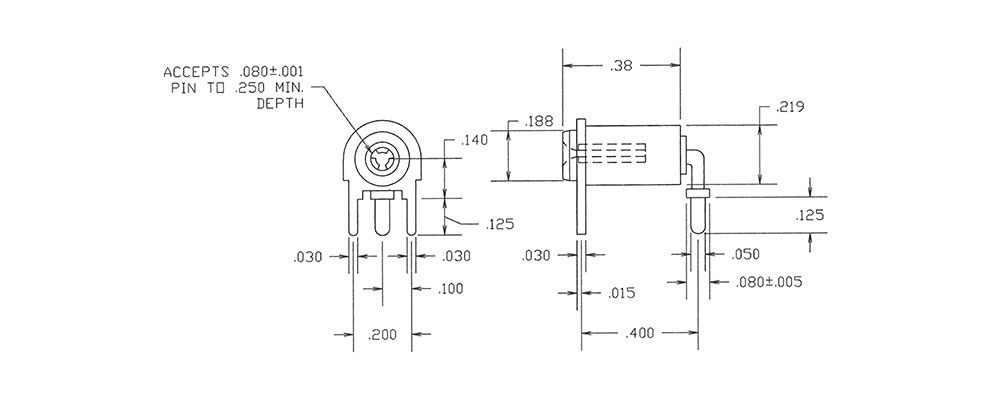

09-9203-1-04410
09-9203-1-04410
09-9203-1-04410
0.080 0.250 " 0.380" - Solder 0.062  1/32 - 1/16 Horizontal Brass Bright Tin-Lead PTFE Black -

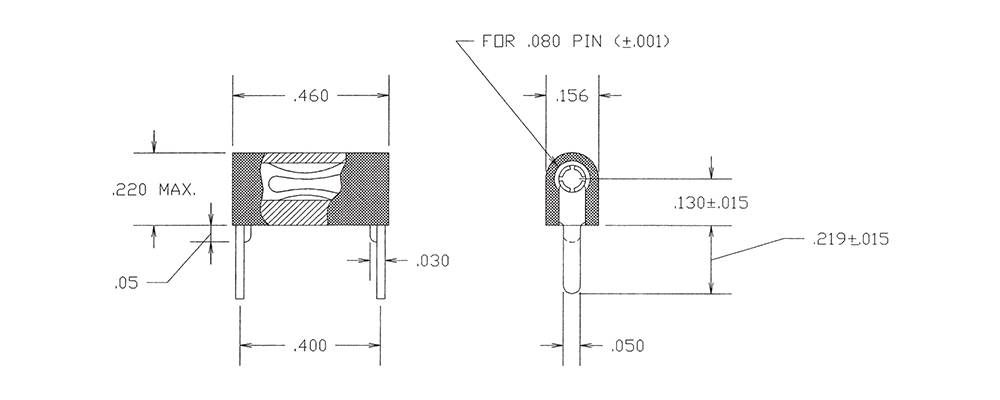

09-9301-1-03516
09-9301-1-03516
09-9301-1-03516
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 3/32 Horizontal - - Nylon Blue -
09-9010-1-08810
09-9010-1-08810
09-9010-1-08810
0.040 0.195 " 0.343" Jack/Pin Solder 0.027 1/32 - 1/16 Vertical Brass Bright Tin-Lead Polyolefin Black -
1128-06-03512
1128-06-03512
1128-06-03512
0.040 0.078 " 0.190" Jack/Turret Press Fit 0.136 1/32 - 1/16 Vertical - - PTFE Red -
1128-20-03518
1128-20-03518
1128-20-03518
0.093 0.455 " 0.761" Jack/Turret Press Fit 0.187 1/32 - 21/64 Vertical - - PTFE Gray -
1128-39-03514
1128-39-03514
1128-39-03514
0.040 0.135 " 0.408" Jack/Solder Cup Press Fit 0.136 1/32 - 1/8 Vertical - - PTFE Yellow -
1128-72-0310
1128-72-0310
1128-72-0310
0.080 0.600 " 0.794" - Solder 0.062  1/32 - 1/16 Horizontal - - PTFE Black -
1138-28-0316
1138-28-0316
1138-28-0316
0.040 0.250 " 0.531" Jack/Solder Cup Press Fit 0.136 1/32 - 19/64 Vertical - - PTFE Blue -
09-9060-1-0419
09-9060-1-0419
09-9060-1-0419
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Electro-Tin PTFE White -
09-9158-1-0315
09-9158-1-0315
09-9158-1-0315
0.040 0.297 " 0.750" Jack/Pin Solder 0.047 1/32 - 21/64 Vertical Brass Gold PTFE Green -
09-9203-1-04411
09-9203-1-04411
09-9203-1-04411
0.080 0.250 " 0.380" - Solder 0.062  1/32 - 1/16 Horizontal Brass Bright Tin-Lead PTFE Brown -
09-9301-1-03517
09-9301-1-03517
09-9301-1-03517
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 3/32 Horizontal - - Nylon Violet -
