Military
Non-Insulated
Terminals

Filter

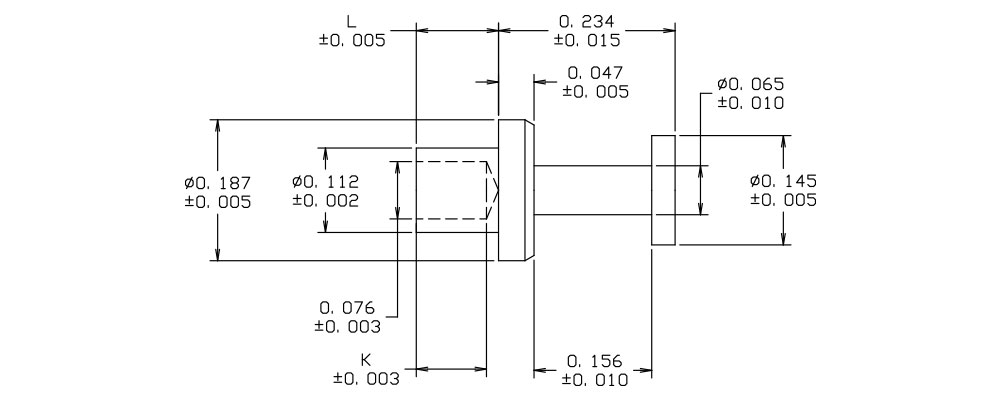

15R-103-5-05
15R-103-5-05
15R-103-5-05
0.429" - Swage Mount 0.195" 5/32 0.116 Phosphor Bronze Electro Solder M55155/29XB14 AA59126/29XB14

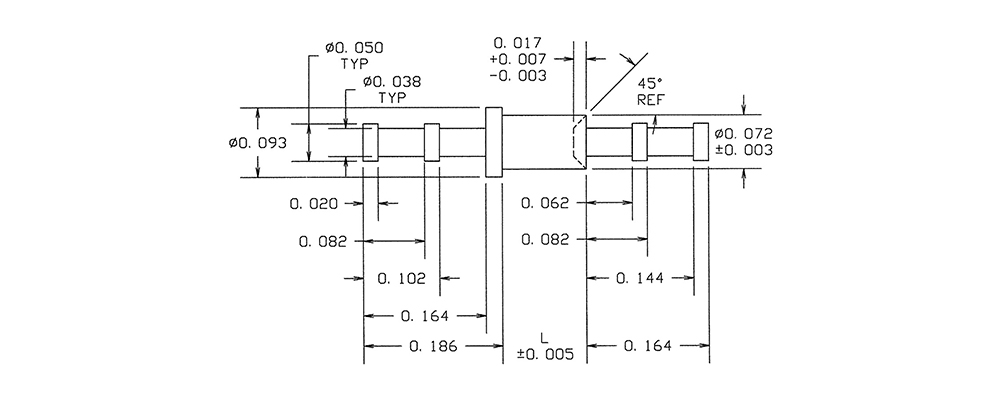

15R-503-4-088
15R-503-4-088
15R-503-4-088
0.495" Double Turret/Double Turret Swage Mount 0.145" 1/8 0.076 Phosphor Bronze Bright Tin-Lead M55155/15XD03 AA59126/15XD03

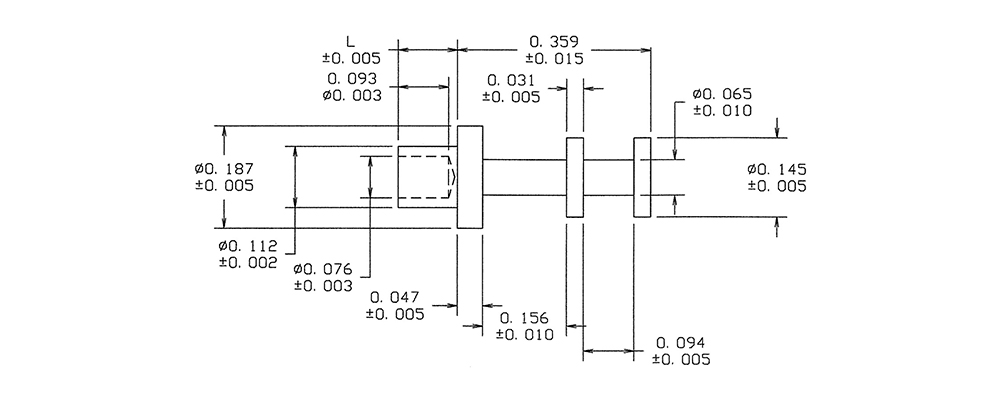

15-270-1-05
15-270-1-05
15-270-1-05
0.437" - Swage Mount 0.078" 1/32 0.116 Brass Electro Solder M55155/30XH04 AA59126/30XH04
15R-103-5-088
15R-103-5-088
15R-103-5-088
0.429" - Swage Mount 0.195" 5/32 0.116 Phosphor Bronze Bright Tin-Lead M55155/29XD14 AA59126/29XD14
15R-503-4-095
15R-503-4-095
15R-503-4-095
0.495" Double Turret/Double Turret Swage Mount 0.145" 1/8 0.076 Phosphor Bronze Hot Solder Dip M55155/15XC03 AA59126/15XC03
15-270-1-088
15-270-1-088
15-270-1-088
0.437" - Swage Mount 0.078" 1/32 0.116 Brass Bright Tin-Lead M55155/30XJ04 AA59126/30XJ04
15R-103-5-095
15R-103-5-095
15R-103-5-095
0.429" - Swage Mount 0.195" 5/32 0.116 Phosphor Bronze Hot Solder Dip M55155/29XC14 AA59126/29XC14

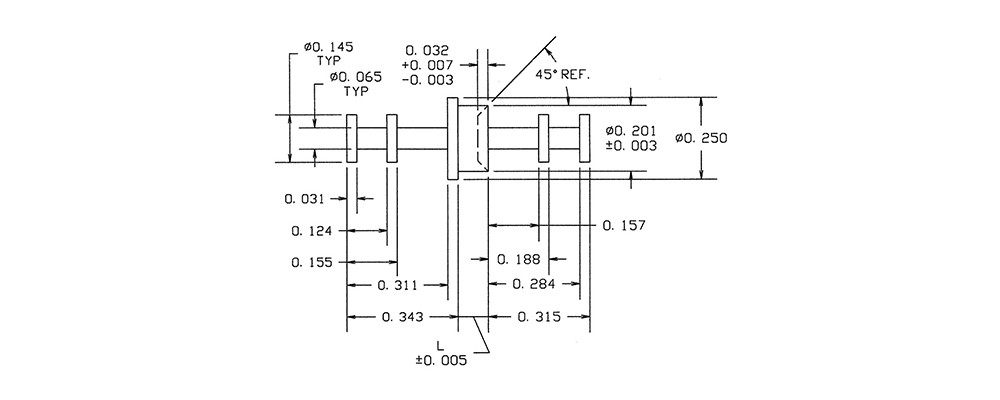

15R-509-2-05
15R-509-2-05
15R-509-2-05
0.751" Double Turret/Double Turret Swage Mount 0.093" 1/16 0.204 Phosphor Bronze Electro Solder M55155/15XB07 AA59126/15XB07
15-270-1-095
15-270-1-095
15-270-1-095
0.437" - Swage Mount 0.078" 1/32 0.116 Brass Hot Solder Dip M55155/30XI04 AA59126/30XI04
15R-103-6-05
15R-103-6-05
15R-103-6-05
0.464" - Swage Mount 0.230" 3/16 0.116 Phosphor Bronze Electro Solder M55155/29XB15 AA59126/29XB15
15R-509-2-088
15R-509-2-088
15R-509-2-088
0.751" Double Turret/Double Turret Swage Mount 0.093" 1/16 0.204 Phosphor Bronze Bright Tin-Lead M55155/15XD07 AA59126/15XD07
15-270-2-05
15-270-2-05
15-270-2-05
0.468" - Swage Mount 0.109" 1/16 0.116 Brass Electro Solder M55155/30XH07 AA59126/30XH07
15R-103-6-088
15R-103-6-088
15R-103-6-088
0.464" - Swage Mount 0.230" 3/16 0.116 Phosphor Bronze Bright Tin-Lead M55155/29XD15 AA59126/29XD15
15R-509-2-095
15R-509-2-095
15R-509-2-095
0.751" Double Turret/Double Turret Swage Mount 0.093" 1/16 0.204 Phosphor Bronze Hot Solder Dip M55155/15XC07 AA59126/15XC07
15-270-2-088
15-270-2-088
15-270-2-088
0.468" - Swage Mount 0.109" 1/16 0.116 Brass Bright Tin-Lead M55155/30XJ07 AA59126/30XJ07
15R-103-6-095
15R-103-6-095
15R-103-6-095
0.464" - Swage Mount 0.230" 3/16 0.116 Phosphor Bronze Hot Solder Dip M55155/29XC15 AA59126/29XC15
15R-509-3-05
15R-509-3-05
15R-509-3-05
0.783" Double Turret/Double Turret Swage Mount 0.125" 3/32 0.204 Phosphor Bronze Electro Solder M55155/15XB08 AA59126/15XB08
15-270-2-095
15-270-2-095
15-270-2-095
0.468" - Swage Mount 0.109" 1/16 0.116 Brass Hot Solder Dip M55155/30XI07 AA59126/30XI07
15R-103-8-05
15R-103-8-05
15R-103-8-05
0.531" - Swage Mount 0.297" 1/4 0.116 Phosphor Bronze Electro Solder M55155/29XB16 AA59126/29XB16
15R-509-3-088
15R-509-3-088
15R-509-3-088
0.783" Double Turret/Double Turret Swage Mount 0.125" 3/32 0.204 Phosphor Bronze Bright Tin-Lead M55155/15XD08 AA59126/15XD08
