Military
Non-Insulated
Terminals

Filter

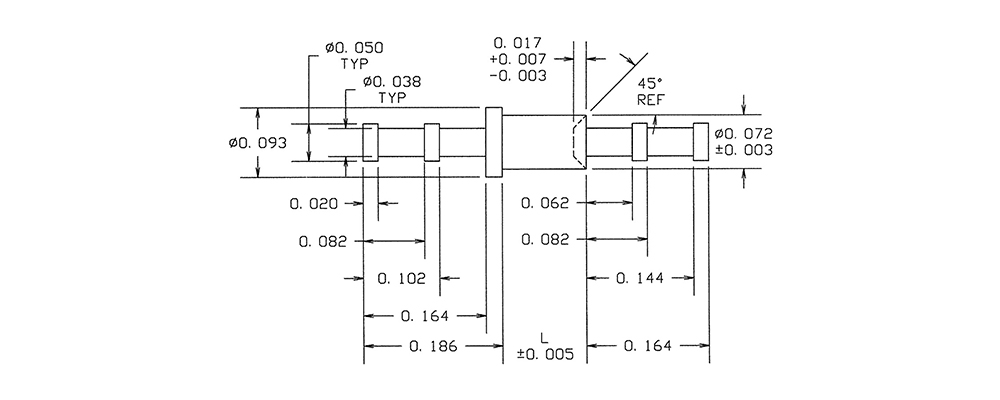

15R-503-2-05
15R-503-2-05
15R-503-2-05
0.432" Double Turret/Double Turret Swage Mount 0.082" 1/16 0.076 Phosphor Bronze Electro Solder M55155/15XB01 AA59126/15XB01

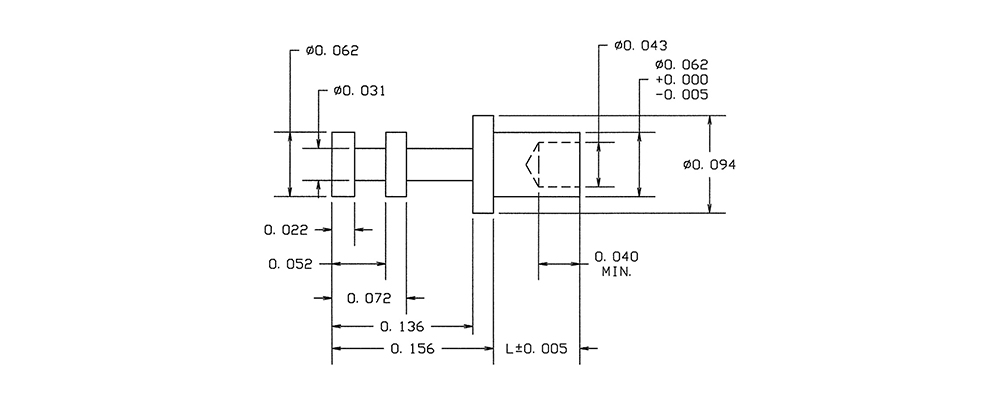

15-266-2-095
15-266-2-095
15-266-2-095
0.240" - Swage Mount 0.084" 1/16 0.0635 Brass Hot Solder Dip M55155/12XI11 AA59126/12XI11

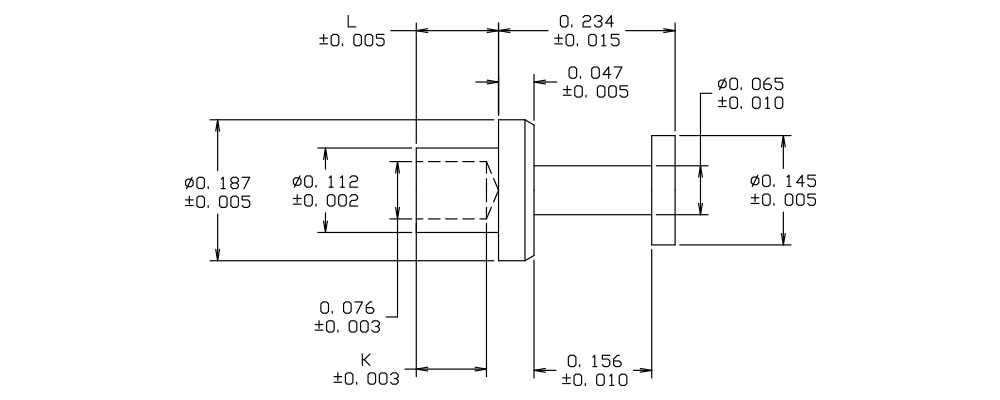

15R-103-3-05
15R-103-3-05
15R-103-3-05
0.374" - Swage Mount 0.140" 3/32 0.116 Phosphor Bronze Electro Solder M55155/29XB10 AA59126/29XB10
15R-503-2-088
15R-503-2-088
15R-503-2-088
0.432" Double Turret/Double Turret Swage Mount 0.082" 1/16 0.076 Phosphor Bronze Bright Tin-Lead M55155/15XD01 AA59126/15XD01
15-266-3-05
15-266-3-05
15-266-3-05
0.271" - Swage Mount 0.115" 3/32 0.0635 Brass Electro Solder M55155/12XH12 AA59126/12XH12
15R-103-3-088
15R-103-3-088
15R-103-3-088
0.374" - Swage Mount 0.140" 3/32 0.116 Phosphor Bronze Bright Tin-Lead M55155/29XD10 AA59126/29XD10
15R-503-2-095
15R-503-2-095
15R-503-2-095
0.432" Double Turret/Double Turret Swage Mount 0.082" 1/16 0.076 Phosphor Bronze Hot Solder Dip M55155/15XC01 AA59126/15XC01
15-266-3-088
15-266-3-088
15-266-3-088
0.271" - Swage Mount 0.115" 3/32 0.0635 Brass Bright Tin-Lead M55155/12XJ12 AA59126/12XJ12
15R-103-3-095
15R-103-3-095
15R-103-3-095
0.374" - Swage Mount 0.140" 3/32 0.116 Phosphor Bronze Hot Solder Dip M55155/29XC10 AA59126/29XC10
15R-503-3-05
15R-503-3-05
15R-503-3-05
0.463" Double Turret/Double Turret Swage Mount 0.113" 3/32 0.076 Phosphor Bronze Electro Solder M55155/15XB02 AA59126/15XB02
15-266-3-095
15-266-3-095
15-266-3-095
0.271" - Swage Mount 0.115" 3/32 0.0635 Brass Hot Solder Dip M55155/12XI12 AA59126/12XI12
15R-103-4-05
15R-103-4-05
15R-103-4-05
0.404" - Swage Mount 0.170" 1/8 0.116 Phosphor Bronze Electro Solder M55155/29XB13 AA59126/29XB13
15R-503-3-088
15R-503-3-088
15R-503-3-088
0.463" Double Turret/Double Turret Swage Mount 0.113" 3/32 0.076 Phosphor Bronze Bright Tin-Lead M55155/15XD02 AA59126/15XD02
15-266-4-05
15-266-4-05
15-266-4-05
0.303" - Swage Mount 0.147" 1/8 0.0635 Brass Electro Solder M55155/12XH13 AA59126/12XH13
15R-103-4-088
15R-103-4-088
15R-103-4-088
0.404" - Swage Mount 0.170" 1/8 0.116 Phosphor Bronze Bright Tin-Lead M55155/29XD13 AA59126/29XD13
15R-503-3-095
15R-503-3-095
15R-503-3-095
0.463" Double Turret/Double Turret Swage Mount 0.113" 3/32 0.076 Phosphor Bronze Hot Solder Dip M55155/15XC02 AA59126/15XC02
15-266-4-088
15-266-4-088
15-266-4-088
0.303" - Swage Mount 0.147" 1/8 0.0635 Brass Bright Tin-Lead M55155/12XJ13 AA59126/12XJ13
15R-103-4-095
15R-103-4-095
15R-103-4-095
0.404" - Swage Mount 0.170" 1/8 0.116 Phosphor Bronze Hot Solder Dip M55155/29XC13 AA59126/29XC13
15R-503-4-05
15R-503-4-05
15R-503-4-05
0.495" Double Turret/Double Turret Swage Mount 0.145" 1/8 0.076 Phosphor Bronze Electro Solder M55155/15XB03 AA59126/15XB03
15-266-4-095
15-266-4-095
15-266-4-095
0.303" - Swage Mount 0.147" 1/8 0.0635 Brass Hot Solder Dip M55155/12XI13 AA59126/12XI13
