Military
Non-Insulated
Terminals

Filter

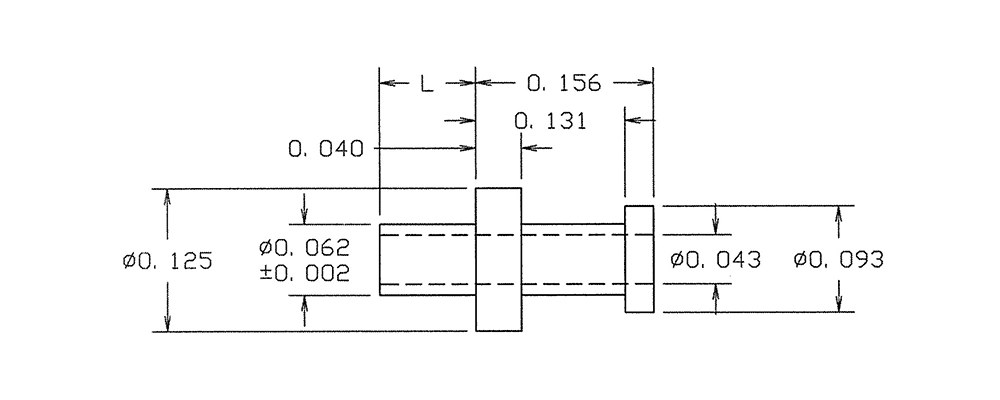

15-302-4-095
15-302-4-095
15-302-4-095
0.303" - Swage Mount 0.147" 1/8 0.067 Brass Hot Solder Dip M55155/16XI03 AA59126/16XI03

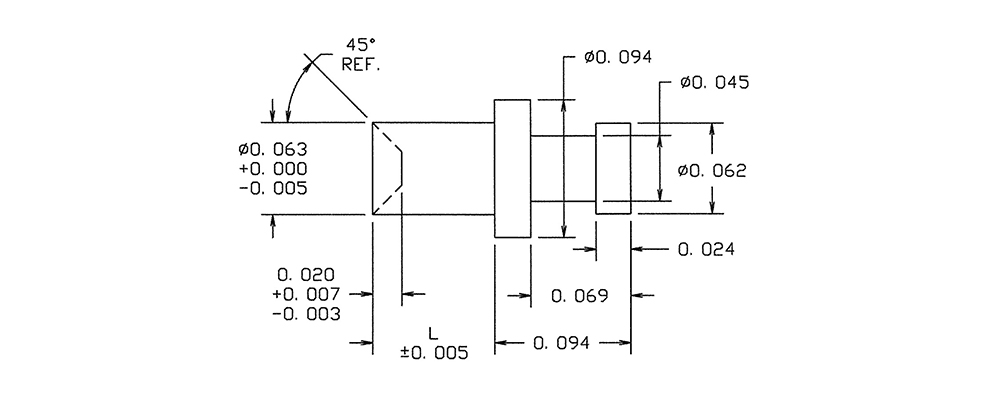

15R-141-3-05
15R-141-3-05
15R-141-3-05
0.209" - Swage Mount 0.115" 3/32 0.067 Phosphor Bronze Electro Solder M55155/11XB06 AA59126/11XB06

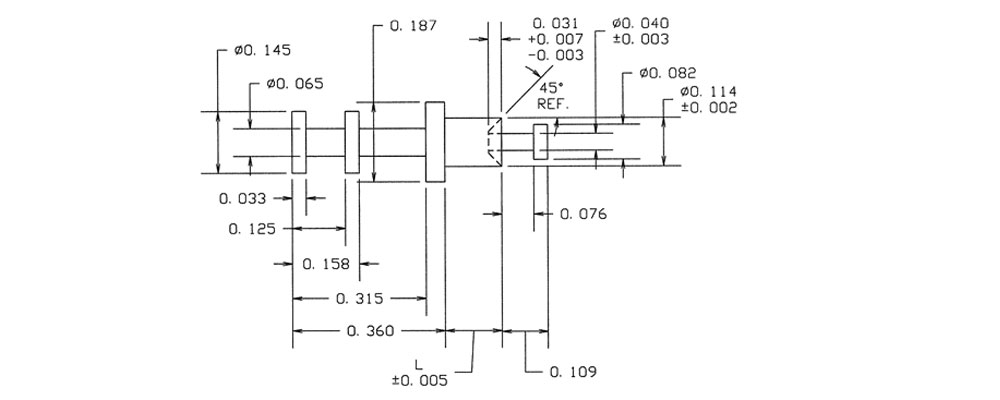

15R-541-4-088
15R-541-4-088
15R-541-4-088
0.634" TURRET/DOUBLE TURRET Swage Mount 0.165" 1/8 0.116 Phosphor Bronze Bright Tin-Lead M55155/14XD06 AA59126/14XD06

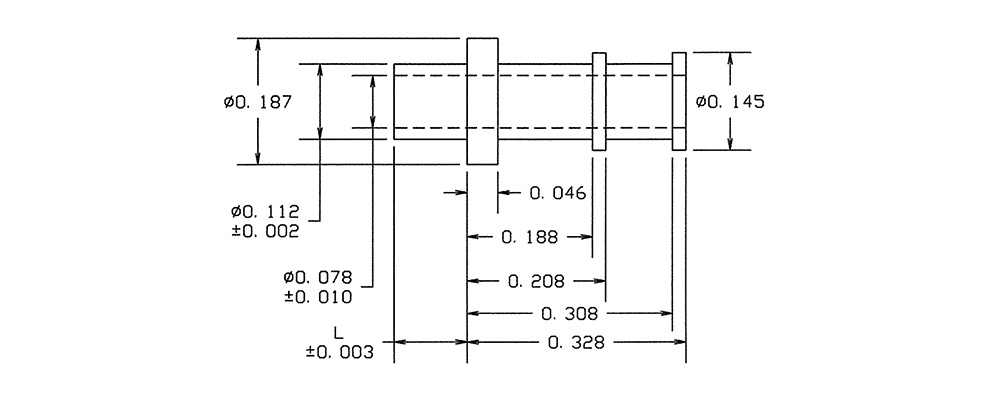

15-349-2-05
15-349-2-05
15-349-2-05
0.437" - Swage Mount 0.109" 1/16 0.116 Brass Electro Solder M55155/17XH01 AA59126/17XH01
15R-141-3-088
15R-141-3-088
15R-141-3-088
0.209" - Swage Mount 0.115" 3/32 0.067 Phosphor Bronze Bright Tin-Lead M55155/11XD06 AA59126/11XD06
15R-541-4-095
15R-541-4-095
15R-541-4-095
0.634" TURRET/DOUBLE TURRET Swage Mount 0.165" 1/8 0.116 Phosphor Bronze Hot Solder Dip M55155/14XC06 AA59126/14XC06
15-349-2-088
15-349-2-088
15-349-2-088
0.437" - Swage Mount 0.109" 1/16 0.116 Brass Bright Tin-Lead M55155/17XJ01 AA59126/17XJ01
15R-141-3-095
15R-141-3-095
15R-141-3-095
0.209" - Swage Mount 0.115" 3/32 0.067 Phosphor Bronze Hot Solder Dip M55155/11XC06 AA59126/11XC06
15R-576-2-05
15R-576-2-05
15R-576-2-05
0.386" Turret/Turret Swage Mount 0.105" 1/16 0.120 Phosphor Bronze Electro Solder M55155/13XB04 AA59126/13XB04
15-349-2-095
15-349-2-095
15-349-2-095
0.437" - Swage Mount 0.109" 1/16 0.116 Brass Hot Solder Dip M55155/17XI01 AA59126/17XI01
15R-141-4-05
15R-141-4-05
15R-141-4-05
0.241" - Swage Mount 0.147" 1/8 0.067 Phosphor Bronze Electro Solder M55155/11XB07 AA59126/11XB07
15R-576-2-088
15R-576-2-088
15R-576-2-088
0.386" Turret/Turret Swage Mount 0.105" 1/16 0.120 Phosphor Bronze Bright Tin-Lead M55155/13XD04 AA59126/13XD04
15-349-3-05
15-349-3-05
15-349-3-05
0.469" - Swage Mount 0.141" 3/32 0.116 Brass Electro Solder M55155/17XH02 AA59126/17XH02
15R-141-4-088
15R-141-4-088
15R-141-4-088
0.241" - Swage Mount 0.147" 1/8 0.067 Phosphor Bronze Bright Tin-Lead M55155/11XD07 AA59126/11XD07
15R-576-2-095
15R-576-2-095
15R-576-2-095
0.386" Turret/Turret Swage Mount 0.105" 1/16 0.120 Phosphor Bronze Hot Solder Dip M55155/13XC04 AA59126/13XC04
15-349-3-088
15-349-3-088
15-349-3-088
0.469" - Swage Mount 0.141" 3/32 0.116 Brass Bright Tin-Lead M55155/17XJ02 AA59126/17XJ02
15R-141-4-095
15R-141-4-095
15R-141-4-095
0.241" - Swage Mount 0.147" 1/8 0.067 Phosphor Bronze Hot Solder Dip M55155/11XC07 AA59126/11XC07
15R-576-3-05
15R-576-3-05
15R-576-3-05
0.416" Turret/Turret Swage Mount 0.135" 3/32 0.120 Phosphor Bronze Electro Solder M55155/13XB05 AA59126/13XB05
15-349-3-095
15-349-3-095
15-349-3-095
0.469" - Swage Mount 0.141" 3/32 0.116 Brass Hot Solder Dip M55155/17XI02 AA59126/17XI02

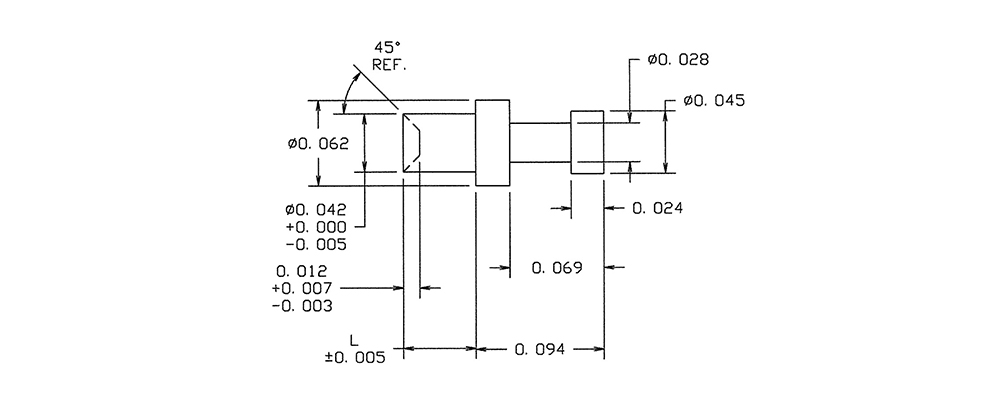

15R-142-1-05
15R-142-1-05
15R-142-1-05
0.147" - Swage Mount 0.053" 1/32 0.043 Phosphor Bronze Electro Solder M55155/11XB09 AA59126/11XB09
