Military
Non-Insulated
Terminals

Filter

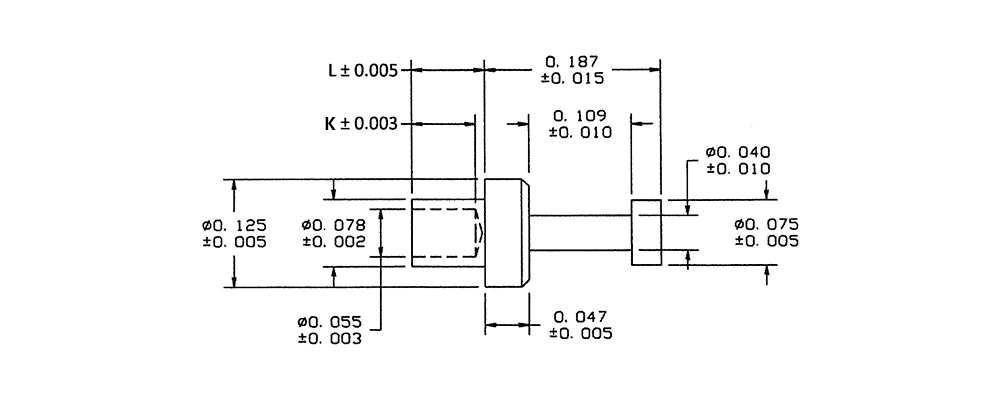

15R-102-2-088
15R-102-2-088
15R-102-2-088
0.296" - Swage Mount 0.109" 1/16 0.082 Phosphor Bronze Bright Tin-Lead M55155/29XD06 AA59126/29XD06

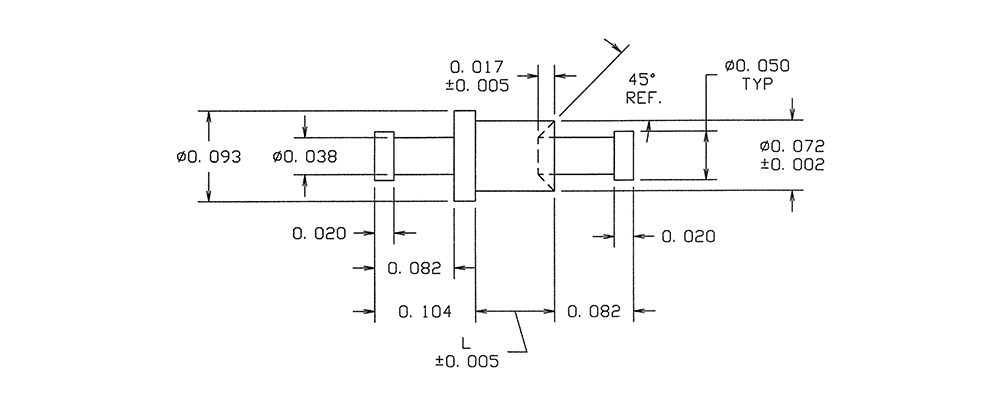

15R-501-3-095
15R-501-3-095
15R-501-3-095
0.299" Turret/Turret Swage Mount 0.113" 3/32 0.076 Phosphor Bronze Hot Solder Dip M55155/13XC02 AA59126/13XC02

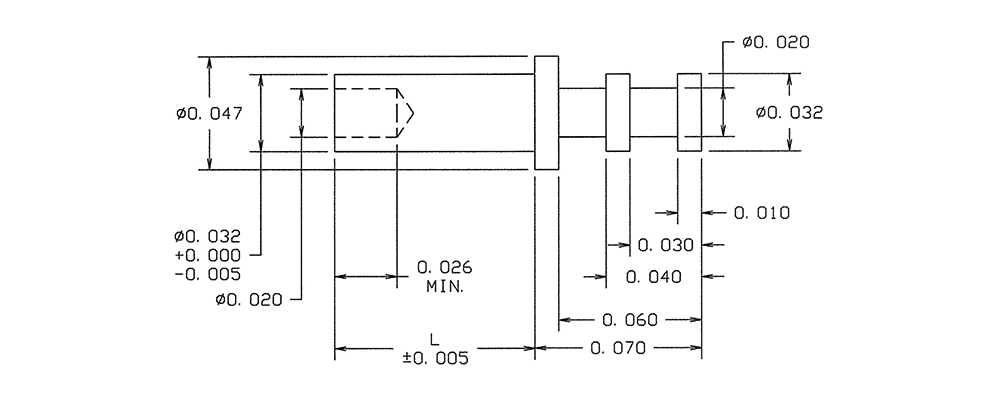

15-229-1-088
15-229-1-088
15-229-1-088
0.123" - Swage Mount 0.053" 1/32 0.033 Brass Bright Tin-Lead M55155/12XJ14 AA59126/12XJ14
15R-102-2-095
15R-102-2-095
15R-102-2-095
0.296" - Swage Mount 0.109" 1/16 0.082 Phosphor Bronze Hot Solder Dip M55155/29XC06 AA59126/29XC06
15R-501-4-05
15R-501-4-05
15R-501-4-05
0.331" Turret/Turret Swage Mount 0.145" 1/8 0.076 Phosphor Bronze Electro Solder M55155/13XB03 AA59126/13XB03
15-229-1-095
15-229-1-095
15-229-1-095
0.123" - Swage Mount 0.053" 1/32 0.033 Brass Hot Solder Dip M55155/12XI14 AA59126/12XI14
15R-102-3-05
15R-102-3-05
15R-102-3-05
0.327" - Swage Mount 0.140" 3/32 0.082 Phosphor Bronze Electro Solder M55155/29XB09 AA59126/29XB09
15R-501-4-088
15R-501-4-088
15R-501-4-088
0.331" Turret/Turret Swage Mount 0.145" 1/8 0.076 Phosphor Bronze Bright Tin-Lead M55155/13XD03 AA59126/13XD03
15-229-2-05
15-229-2-05
15-229-2-05
0.154" - Swage Mount 0.084" 1/16 0.033 Brass Electro Solder M55155/12XH15 AA59126/12XH15
15R-102-3-088
15R-102-3-088
15R-102-3-088
0.327" - Swage Mount 0.140" 3/32 0.082 Phosphor Bronze Bright Tin-Lead M55155/29XD09 AA59126/29XD09
15R-501-4-095
15R-501-4-095
15R-501-4-095
0.331" Turret/Turret Swage Mount 0.145" 1/8 0.076 Phosphor Bronze Hot Solder Dip M55155/13XC03 AA59126/13XC03
15-229-2-088
15-229-2-088
15-229-2-088
0.154" - Swage Mount 0.084" 1/16 0.033 Brass Bright Tin-Lead M55155/12XJ15 AA59126/12XJ15
15R-102-3-095
15R-102-3-095
15R-102-3-095
0.327" - Swage Mount 0.140" 3/32 0.082 Phosphor Bronze Hot Solder Dip M55155/29XC09 AA59126/29XC09

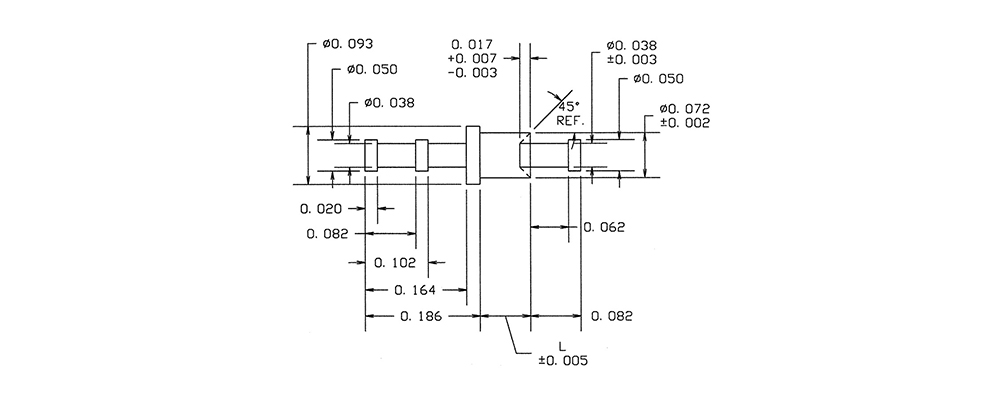

15R-502-2-05
15R-502-2-05
15R-502-2-05
0.350" TURRET/DOUBLE TURRET Swage Mount 0.082" 1/16 0.076 Phosphor Bronze Electro Solder M55155/14XB01 AA59126/14XB01
15-229-2-095
15-229-2-095
15-229-2-095
0.154" - Swage Mount 0.084" 1/16 0.033 Brass Hot Solder Dip M55155/12XI15 AA59126/12XI15
15R-102-4-05
15R-102-4-05
15R-102-4-05
0.357" - Swage Mount 0.170" 1/8 0.082 Phosphor Bronze Electro Solder M55155/29XB12 AA59126/29XB12
15R-502-2-088
15R-502-2-088
15R-502-2-088
0.350" TURRET/DOUBLE TURRET Swage Mount 0.082" 1/16 0.076 Phosphor Bronze Bright Tin-Lead M55155/14XD01 AA59126/14XD01
15-229-3-05
15-229-3-05
15-229-3-05
0.185" - Swage Mount 0.115" 3/32 0.033 Brass Electro Solder M55155/12XH16 AA59126/12XH16
15R-102-4-088
15R-102-4-088
15R-102-4-088
0.357" - Swage Mount 0.170" 1/8 0.082 Phosphor Bronze Bright Tin-Lead M55155/29XD12 AA59126/29XD12
15R-502-2-095
15R-502-2-095
15R-502-2-095
0.350" TURRET/DOUBLE TURRET Swage Mount 0.082" 1/16 0.076 Phosphor Bronze Hot Solder Dip M55155/14XC01 AA59126/14XC01
