Military
Non-Insulated
Terminals

Filter

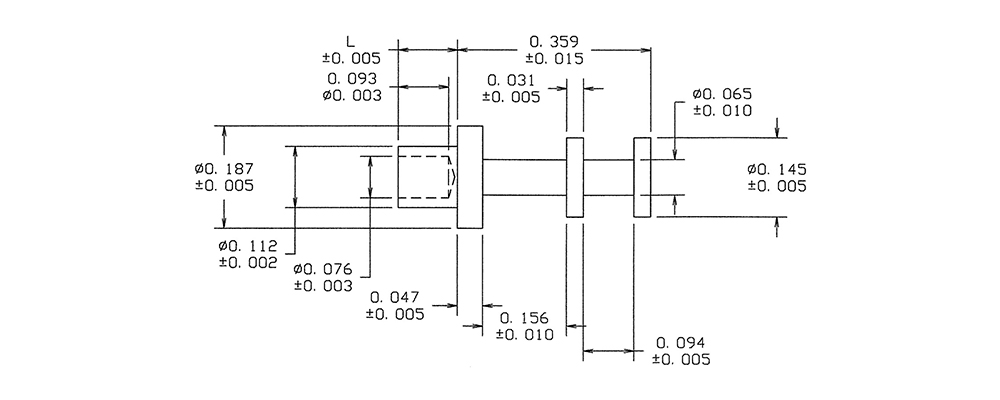

15-270-3-05
15-270-3-05
15-270-3-05
0.499" - Swage Mount 0.140" 3/32 0.116 Brass Electro Solder M55155/30XH11 AA59126/30XH11

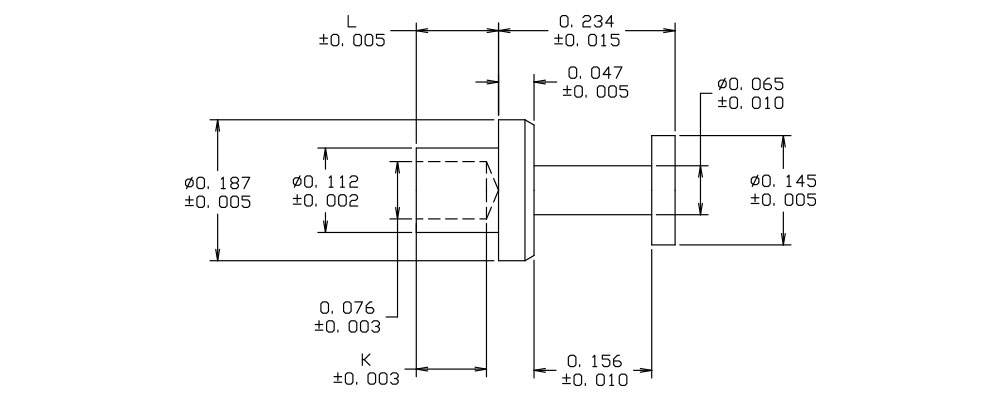

15R-103-8-088
15R-103-8-088
15R-103-8-088
0.531" - Swage Mount 0.297" 1/4 0.116 Phosphor Bronze Bright Tin-Lead M55155/29XD16 AA59126/29XD16

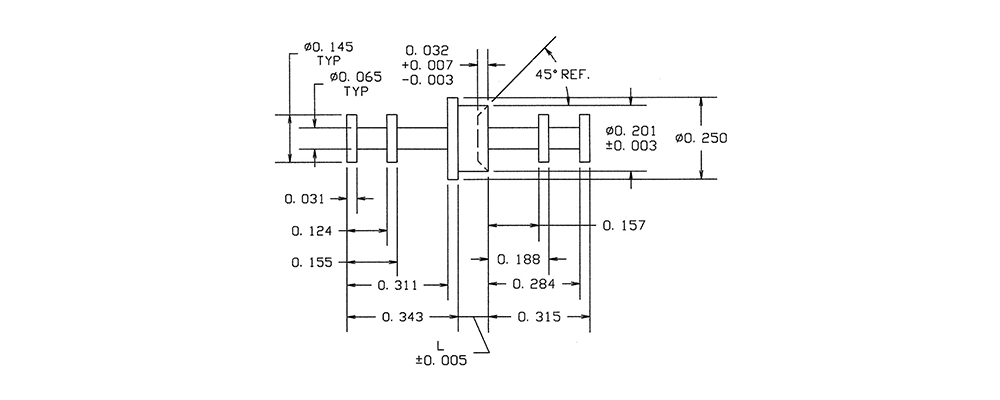

15R-509-3-095
15R-509-3-095
15R-509-3-095
0.783" Double Turret/Double Turret Swage Mount 0.125" 3/32 0.204 Phosphor Bronze Hot Solder Dip M55155/15XC08 AA59126/15XC08
15-270-3-088
15-270-3-088
15-270-3-088
0.499" - Swage Mount 0.140" 3/32 0.116 Brass Bright Tin-Lead M55155/30XJ11 AA59126/30XJ11
15R-103-8-095
15R-103-8-095
15R-103-8-095
0.531" - Swage Mount 0.297" 1/4 0.116 Phosphor Bronze Hot Solder Dip M55155/29XC16 AA59126/29XC16
15R-509-4-05
15R-509-4-05
15R-509-4-05
0.814" Double Turret/Double Turret Swage Mount 0.156" 1/8 0.204 Phosphor Bronze Electro Solder M55155/15XB09 AA59126/15XB09
15-270-3-095
15-270-3-095
15-270-3-095
0.499" - Swage Mount 0.140" 3/32 0.116 Brass Hot Solder Dip M55155/30XI11 AA59126/30XI11

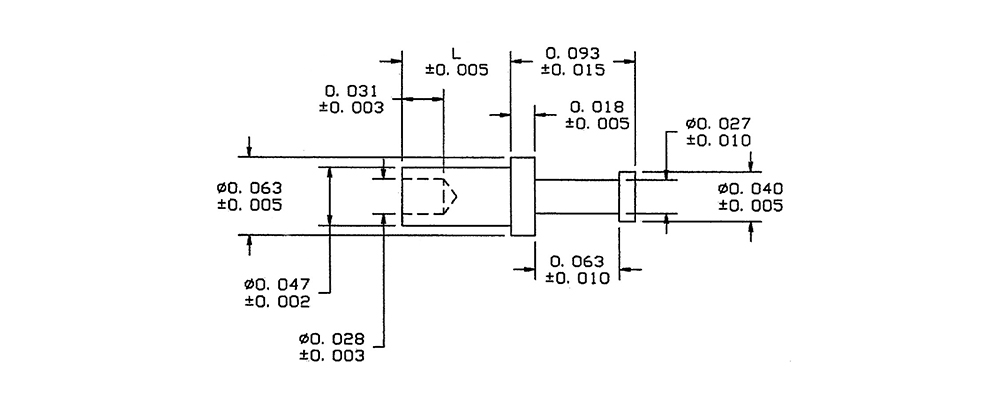

15R-104-1-05
15R-104-1-05
15R-104-1-05
0.144" - Swage Mount 0.051" 1/32 0.052 Phosphor Bronze Electro Solder M55155/29XB02 AA59126/29XB02
15R-509-4-088
15R-509-4-088
15R-509-4-088
0.814" Double Turret/Double Turret Swage Mount 0.156" 1/8 0.204 Phosphor Bronze Bright Tin-Lead M55155/15XD09 AA59126/15XD09
15-270-4-05
15-270-4-05
15-270-4-05
0.530" - Swage Mount 0.171" 1/8 0.116 Brass Electro Solder M55155/30XH15 AA59126/30XH15
15R-104-1-088
15R-104-1-088
15R-104-1-088
0.144" - Swage Mount 0.051" 1/32 0.052 Phosphor Bronze Bright Tin-Lead M55155/29XD02 AA59126/29XD02
15R-509-4-095
15R-509-4-095
15R-509-4-095
0.814" Double Turret/Double Turret Swage Mount 0.156" 1/8 0.204 Phosphor Bronze Hot Solder Dip M55155/15XC09 AA59126/15XC09
15-270-4-088
15-270-4-088
15-270-4-088
0.530" - Swage Mount 0.171" 1/8 0.116 Brass Bright Tin-Lead M55155/30XJ15 AA59126/30XJ15
15R-104-1-095
15R-104-1-095
15R-104-1-095
0.144" - Swage Mount 0.051" 1/32 0.052 Phosphor Bronze Hot Solder Dip M55155/29XC02 AA59126/29XC02

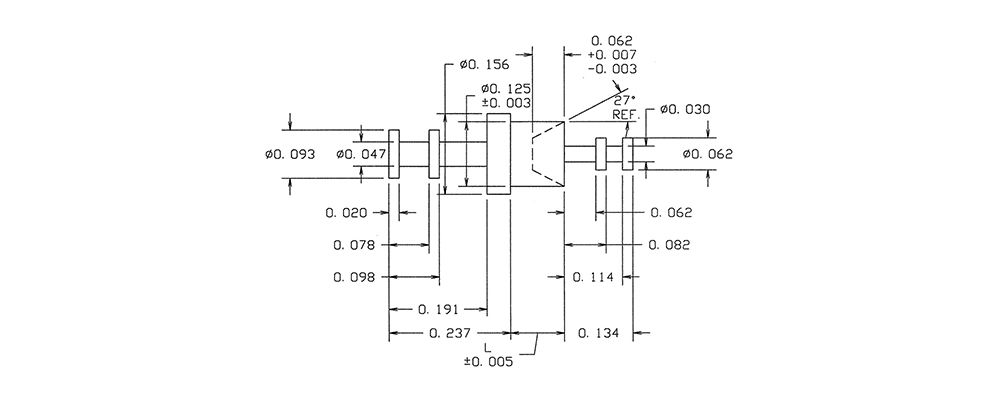

15R-512-2-05
15R-512-2-05
15R-512-2-05
0.476" Double Turret/Double Turret Swage Mount 0.105" 1/16 0.129 Phosphor Bronze Electro Solder M55155/15XB04 AA59126/15XB04
15-270-4-095
15-270-4-095
15-270-4-095
0.530" - Swage Mount 0.171" 1/8 0.116 Brass Hot Solder Dip M55155/30XI15 AA59126/30XI15
15R-104-2-05
15R-104-2-05
15R-104-2-05
0.175" - Swage Mount 0.082" 1/16 0.052 Phosphor Bronze Electro Solder M55155/29XB05 AA59126/29XB05
15R-512-2-088
15R-512-2-088
15R-512-2-088
0.476" Double Turret/Double Turret Swage Mount 0.105" 1/16 0.129 Phosphor Bronze Bright Tin-Lead M55155/15XD04 AA59126/15XD04
15-270-6-05
15-270-6-05
15-270-6-05
0.593" - Swage Mount 0.234" 3/16 0.116 Brass Electro Solder M55155/30XH18 AA59126/30XH18
15R-104-2-088
15R-104-2-088
15R-104-2-088
0.175" - Swage Mount 0.082" 1/16 0.052 Phosphor Bronze Bright Tin-Lead M55155/29XD05 AA59126/29XD05
