Military
Non-Insulated
Terminals

Filter

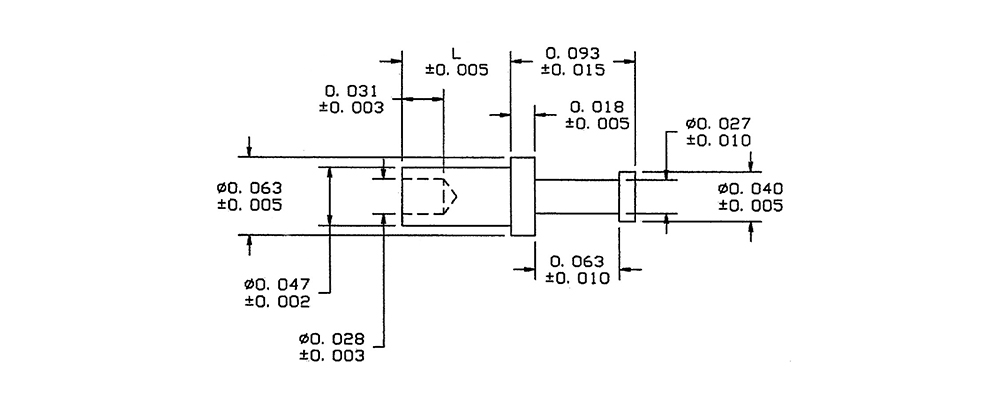

15R-104-4-095
15R-104-4-095
15R-104-4-095
0.238" - Swage Mount 0.145" 1/8 0.052 Phosphor Bronze Hot Solder Dip M55155/29XC11 AA59126/29XC11

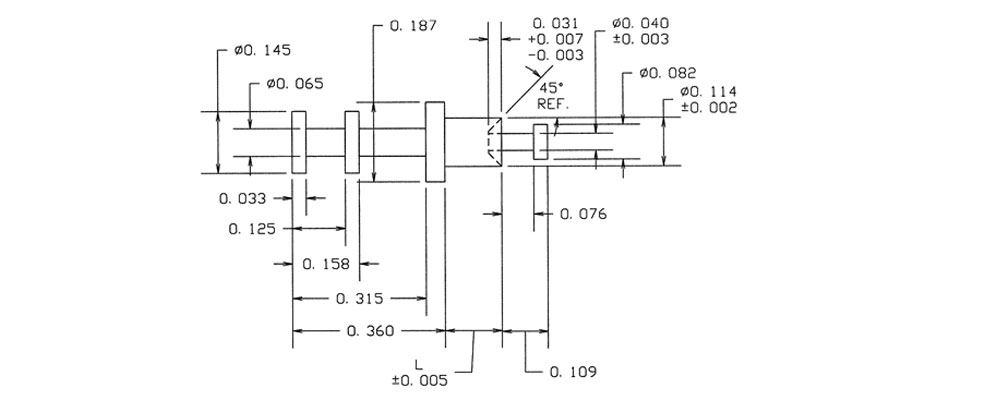

15R-541-2-05
15R-541-2-05
15R-541-2-05
0.574" TURRET/DOUBLE TURRET Swage Mount 0.105" 1/16 0.116 Phosphor Bronze Electro Solder M55155/14XB04 AA59126/14XB04

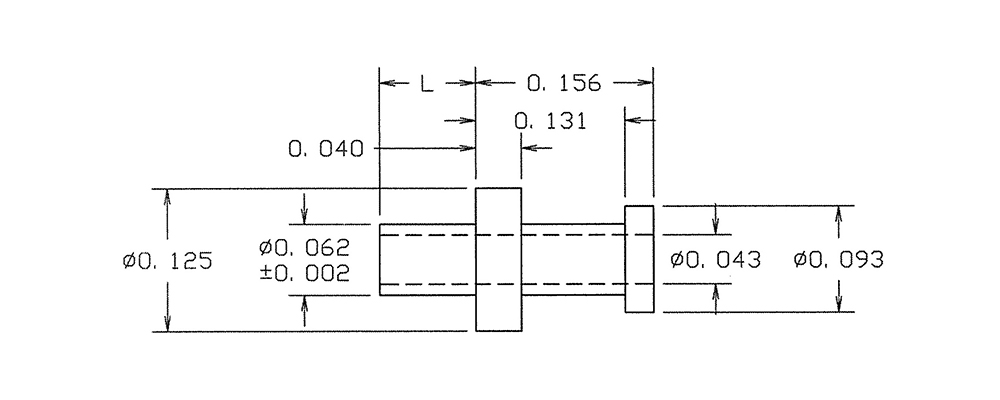

15-302-2-095
15-302-2-095
15-302-2-095
0.240" - Swage Mount 0.084" 1/16 0.067 Brass Hot Solder Dip M55155/16XI01 AA59126/16XI01

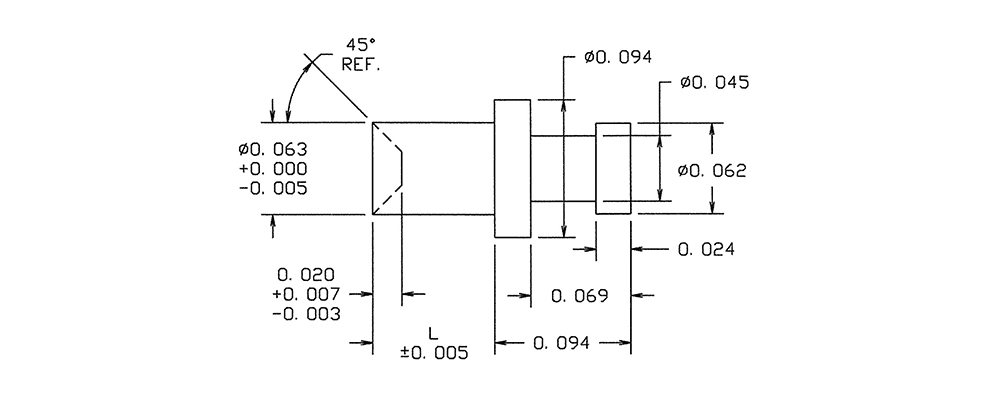

15R-141-1-05
15R-141-1-05
15R-141-1-05
0.147" - Swage Mount 0.053" 1/32 0.067 Phosphor Bronze Electro Solder M55155/11XB04 AA59126/11XB04
15R-541-2-088
15R-541-2-088
15R-541-2-088
0.574" TURRET/DOUBLE TURRET Swage Mount 0.105" 1/16 0.116 Phosphor Bronze Bright Tin-Lead M55155/14XD04 AA59126/14XD04
15-302-3-05
15-302-3-05
15-302-3-05
0.271" - Swage Mount 0.115" 3/32 0.067 Brass Electro Solder M55155/16XH02 AA59126/16XH02
15R-141-1-088
15R-141-1-088
15R-141-1-088
0.147" - Swage Mount 0.053" 1/32 0.067 Phosphor Bronze Bright Tin-Lead M55155/11XD04 AA59126/11XD04
15R-541-2-095
15R-541-2-095
15R-541-2-095
0.574" TURRET/DOUBLE TURRET Swage Mount 0.105" 1/16 0.116 Phosphor Bronze Hot Solder Dip M55155/14XC04 AA59126/14XC04
15-302-3-088
15-302-3-088
15-302-3-088
0.271" - Swage Mount 0.115" 3/32 0.067 Brass Bright Tin-Lead M55155/16XJ02 AA59126/16XJ02
15R-141-1-095
15R-141-1-095
15R-141-1-095
0.147" - Swage Mount 0.053" 1/32 0.067 Phosphor Bronze Hot Solder Dip M55155/11XC04 AA59126/11XC04
15R-541-3-05
15R-541-3-05
15R-541-3-05
0.604" TURRET/DOUBLE TURRET Swage Mount 0.135" 3/32 0.116 Phosphor Bronze Electro Solder M55155/14XB05 AA59126/14XB05
15-302-3-095
15-302-3-095
15-302-3-095
0.271" - Swage Mount 0.115" 3/32 0.067 Brass Hot Solder Dip M55155/16XI02 AA59126/16XI02
15R-141-2-05
15R-141-2-05
15R-141-2-05
0.178" - Swage Mount 0.084" 1/16 0.067 Phosphor Bronze Electro Solder M55155/11XB05 AA59126/11XB05
15R-541-3-088
15R-541-3-088
15R-541-3-088
0.604" TURRET/DOUBLE TURRET Swage Mount 0.135" 3/32 0.116 Phosphor Bronze Bright Tin-Lead M55155/14XD05 AA59126/14XD05
15-302-4-05
15-302-4-05
15-302-4-05
0.303" - Swage Mount 0.147" 1/8 0.067 Brass Electro Solder M55155/16XH03 AA59126/16XH03
15R-141-2-088
15R-141-2-088
15R-141-2-088
0.178" - Swage Mount 0.084" 1/16 0.067 Phosphor Bronze Bright Tin-Lead M55155/11XD05 AA59126/11XD05
15R-541-3-095
15R-541-3-095
15R-541-3-095
0.604" TURRET/DOUBLE TURRET Swage Mount 0.135" 3/32 0.116 Phosphor Bronze Hot Solder Dip M55155/14XC05 AA59126/14XC05
15-302-4-088
15-302-4-088
15-302-4-088
0.303" - Swage Mount 0.147" 1/8 0.067 Brass Bright Tin-Lead M55155/16XJ03 AA59126/16XJ03
15R-141-2-095
15R-141-2-095
15R-141-2-095
0.178" - Swage Mount 0.084" 1/16 0.067 Phosphor Bronze Hot Solder Dip M55155/11XC05 AA59126/11XC05
15R-541-4-05
15R-541-4-05
15R-541-4-05
0.634" TURRET/DOUBLE TURRET Swage Mount 0.165" 1/8 0.116 Phosphor Bronze Electro Solder M55155/14XB06 AA59126/14XB06
