Military
Non-Insulated
Terminals

Filter

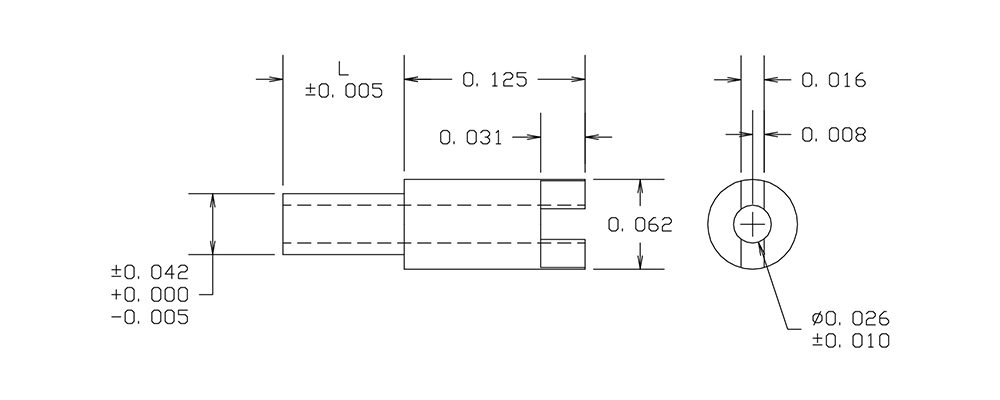

15R-494-1-095
15R-494-1-095
15R-494-1-095
0.178" - Swage Mount 0.053" 1/32 0.043 Phosphor Bronze Hot Solder Dip M55155/24XC11 AA59126/24XC11

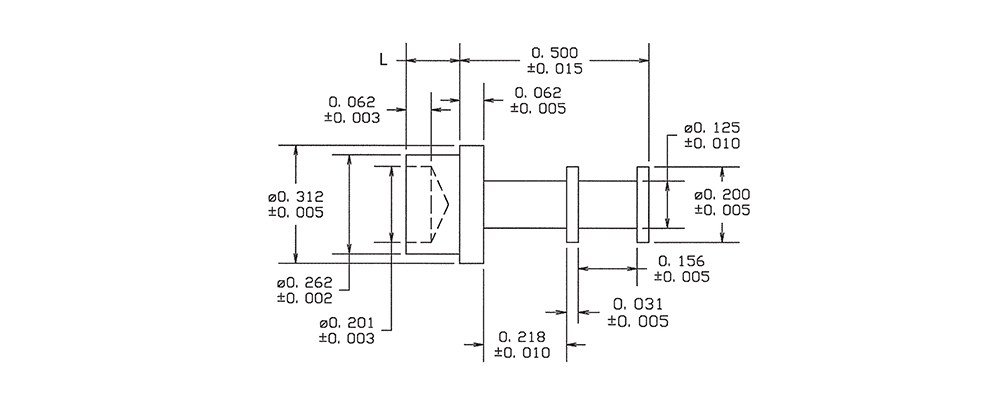

15-211-2-088
15-211-2-088
15-211-2-088
0.609" - Swage Mount 0.109" 1/16 0.266 Brass Bright Tin-Lead M55155/30XJ08 AA59126/30XJ08

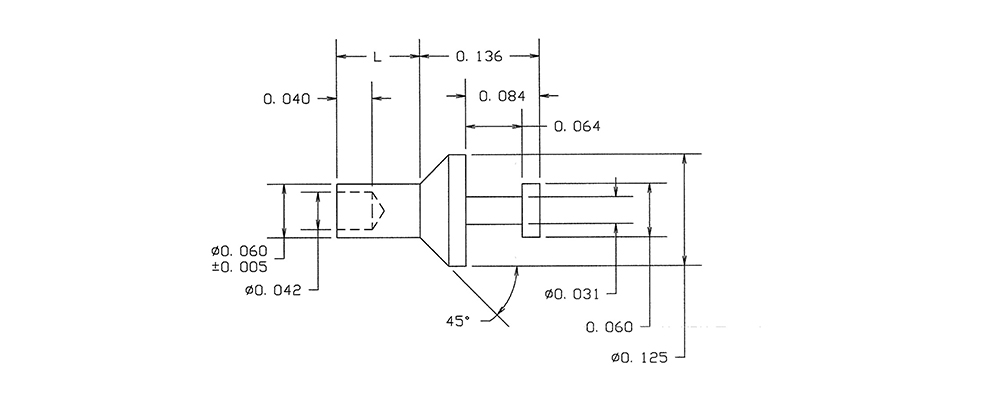

15-904-4-095
15-904-4-095
15-904-4-095
0.292" - Swage Mount 0.156" 1/8 0.0635 Brass Hot Solder Dip M55155/25XI04 AA59126/25XI04
15R-494-11-05
15R-494-11-05
15R-494-11-05
0.162" - Swage Mount 0.037" 1/64 0.043 Phosphor Bronze Electro Solder M55155/24XB10 AA59126/24XB10
15-211-2-095
15-211-2-095
15-211-2-095
0.609" - Swage Mount 0.109" 1/16 0.266 Brass Hot Solder Dip M55155/30XI08 AA59126/30XI08

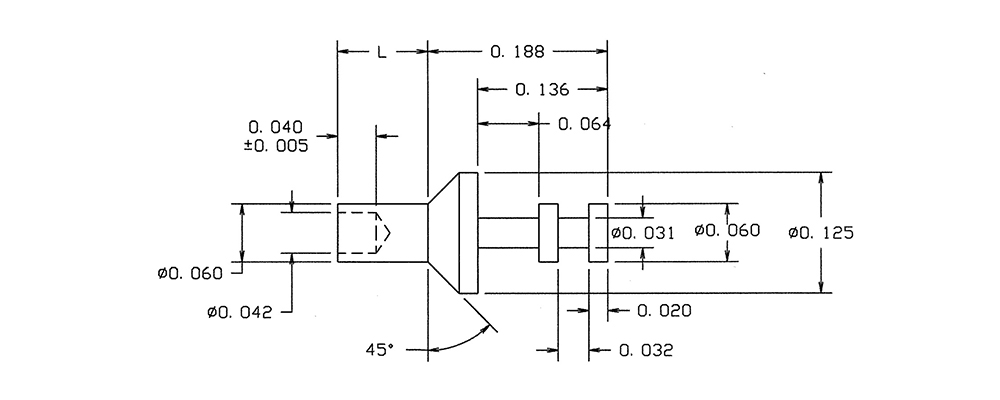

15-905-1-05
15-905-1-05
15-905-1-05
0.250" - Swage Mount 0.062" 1/32 0.0635 Brass Electro Solder M55155/23XH01 AA59126/23XH01
15R-494-11-088
15R-494-11-088
15R-494-11-088
0.162" - Swage Mount 0.037" 1/64 0.043 Phosphor Bronze Bright Tin-Lead M55155/24XD10 AA59126/24XD10
15-211-3-05
15-211-3-05
15-211-3-05
0.640" - Swage Mount 0.140" 3/32 0.266 Brass Electro Solder M55155/30XH12 AA59126/30XH12
15-905-1-088
15-905-1-088
15-905-1-088
0.250" - Swage Mount 0.062" 1/32 0.0635 Brass Bright Tin-Lead M55155/23XJ01 AA59126/23XJ01
15R-494-11-095
15R-494-11-095
15R-494-11-095
0.162" - Swage Mount 0.037" 1/64 0.043 Phosphor Bronze Hot Solder Dip M55155/24XC10 AA59126/24XC10
15-211-3-088
15-211-3-088
15-211-3-088
0.640" - Swage Mount 0.140" 3/32 0.266 Brass Bright Tin-Lead M55155/30XJ12 AA59126/30XJ12
15-905-1-095
15-905-1-095
15-905-1-095
0.250" - Swage Mount 0.062" 1/32 0.0635 Brass Hot Solder Dip M55155/23XI01 AA59126/23XI01
15R-494-2-05
15R-494-2-05
15R-494-2-05
0.209" - Swage Mount 0.084" 1/16 0.043 Phosphor Bronze Electro Solder M55155/24XB12 AA59126/24XB12
15-211-3-095
15-211-3-095
15-211-3-095
0.640" - Swage Mount 0.140" 3/32 0.266 Brass Hot Solder Dip M55155/30XI12 AA59126/30XI12
15-905-2-05
15-905-2-05
15-905-2-05
0.282" - Swage Mount 0.094" 1/16 0.0635 Brass Electro Solder M55155/23XH02 AA59126/23XH02
15R-494-2-088
15R-494-2-088
15R-494-2-088
0.209" - Swage Mount 0.084" 1/16 0.043 Phosphor Bronze Bright Tin-Lead M55155/24XD12 AA59126/24XD12

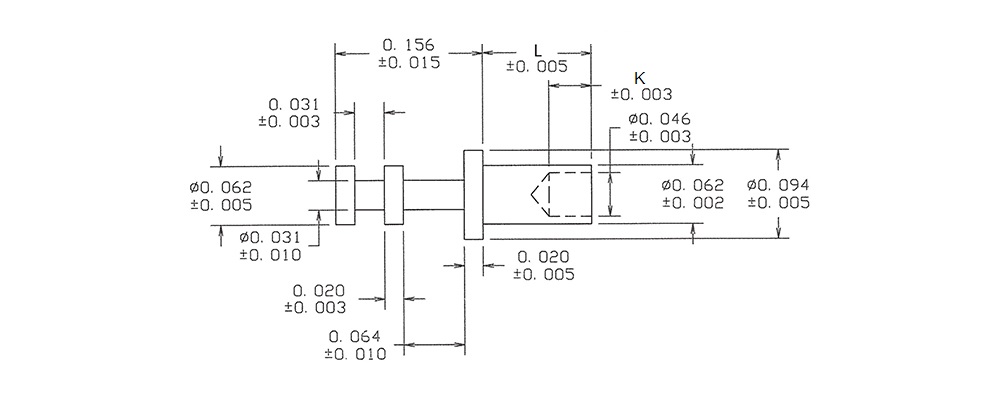

15-214-1-05
15-214-1-05
15-214-1-05
0.209" - Swage Mount 0.053" 1/32 0.067 Brass Electro Solder M55155/30XH02 AA59126/30XH02
15-905-2-088
15-905-2-088
15-905-2-088
0.282" - Swage Mount 0.094" 1/16 0.0635 Brass Bright Tin-Lead M55155/23XJ02 AA59126/23XJ02
15R-494-2-095
15R-494-2-095
15R-494-2-095
0.209" - Swage Mount 0.084" 1/16 0.043 Phosphor Bronze Hot Solder Dip M55155/24XC12 AA59126/24XC12
15-214-1-088
15-214-1-088
15-214-1-088
0.209" - Swage Mount 0.053" 1/32 0.067 Brass Bright Tin-Lead M55155/30XJ02 AA59126/30XJ02
